Double-Sided P5 LED Digital Sign, 134x86 cm, on a 2/2.5-meter Pole, MNE

Double-Sided Digital LED Billboard for Urban Communication

The MNE P5 Double-Sided Digital LED Billboard is an outdoor solution designed for digital advertising in urban settings and for DOOH (Digital Out-of-Home) applications. The configuration combines a double-sided color LED display with a pole-mounted structure, allowing the display to be used for messaging directed at two viewing directions.

With a cabinet measuring 1340 × 860 mm, a P5 pixel pitch, a rated brightness of 5,000–5,500 nits, and IP65 protection, the system is intended for outdoor use.

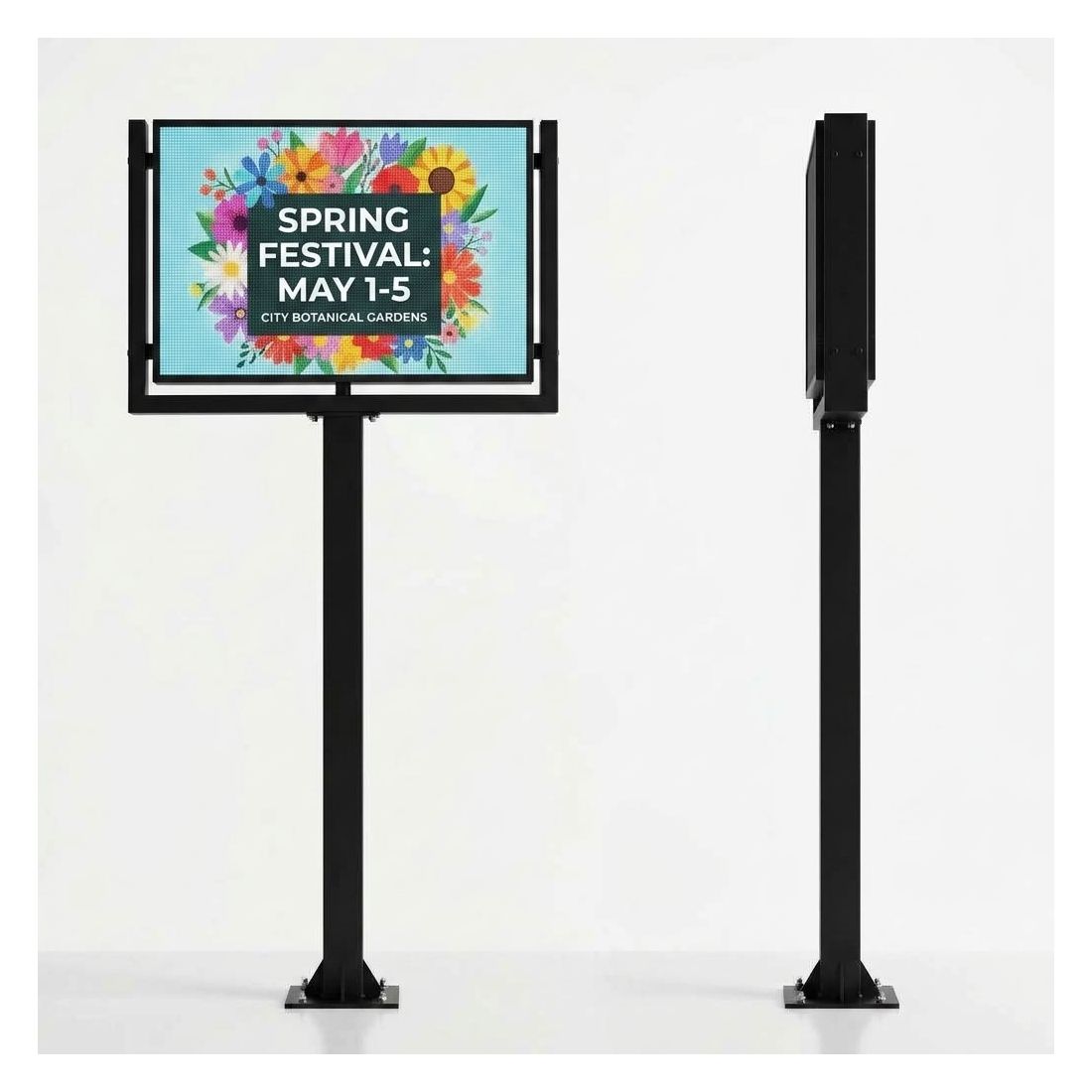

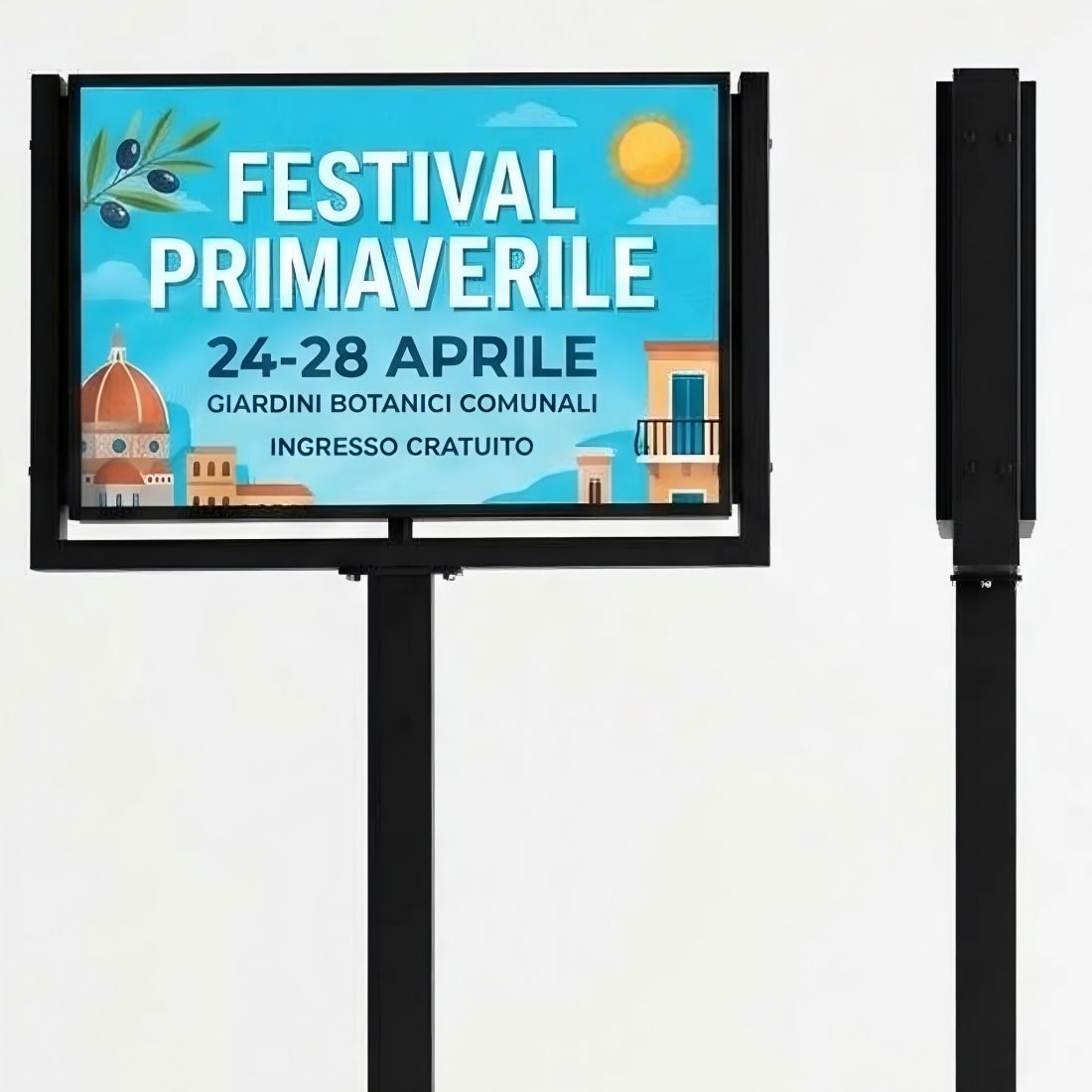

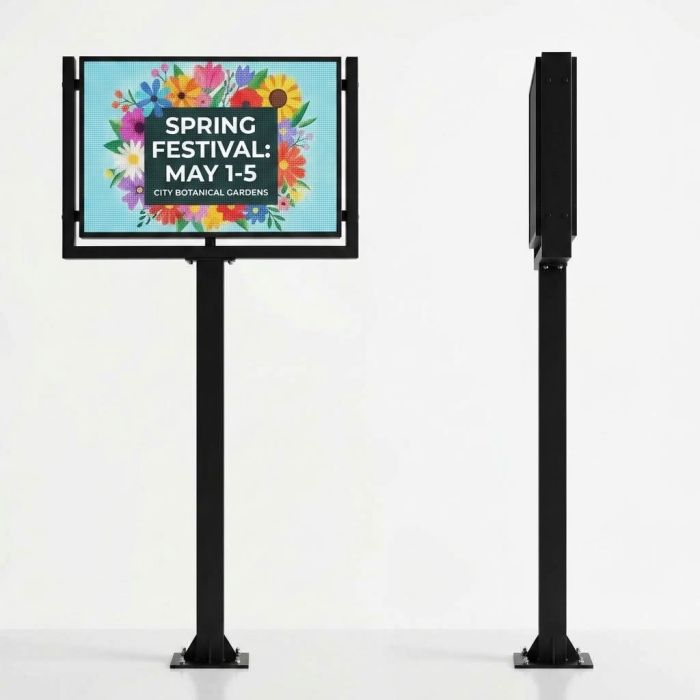

Two LED surfaces for 360° communication

The double-sided configuration provides two LED surfaces facing opposite directions, expanding communication possibilities along streets, in public areas, and other high-traffic environments.

The cabinet’s compact size—1,340 × 860 mm—enables the creation of a digital solution dedicated to urban communication without resorting to the large formats typical of giant LED screens.

Designed for urban communication and DOOH

The display is suitable for various types of digital communication in outdoor spaces, including:

• public notices and announcements;
• institutional campaigns;
• information and events;
• advertising;
• advertising and DOOH activities.

The solution can therefore be used in projects targeting public administrations, companies, communications providers, and advertising agencies, depending on the specific installation.

High brightness and protection for outdoor use

The P5 LED display achieves a rated brightness of 5,000–5,500 nits, a feature designed for outdoor use. The cabinet is also IP65-rated, according to the product’s specified configuration.

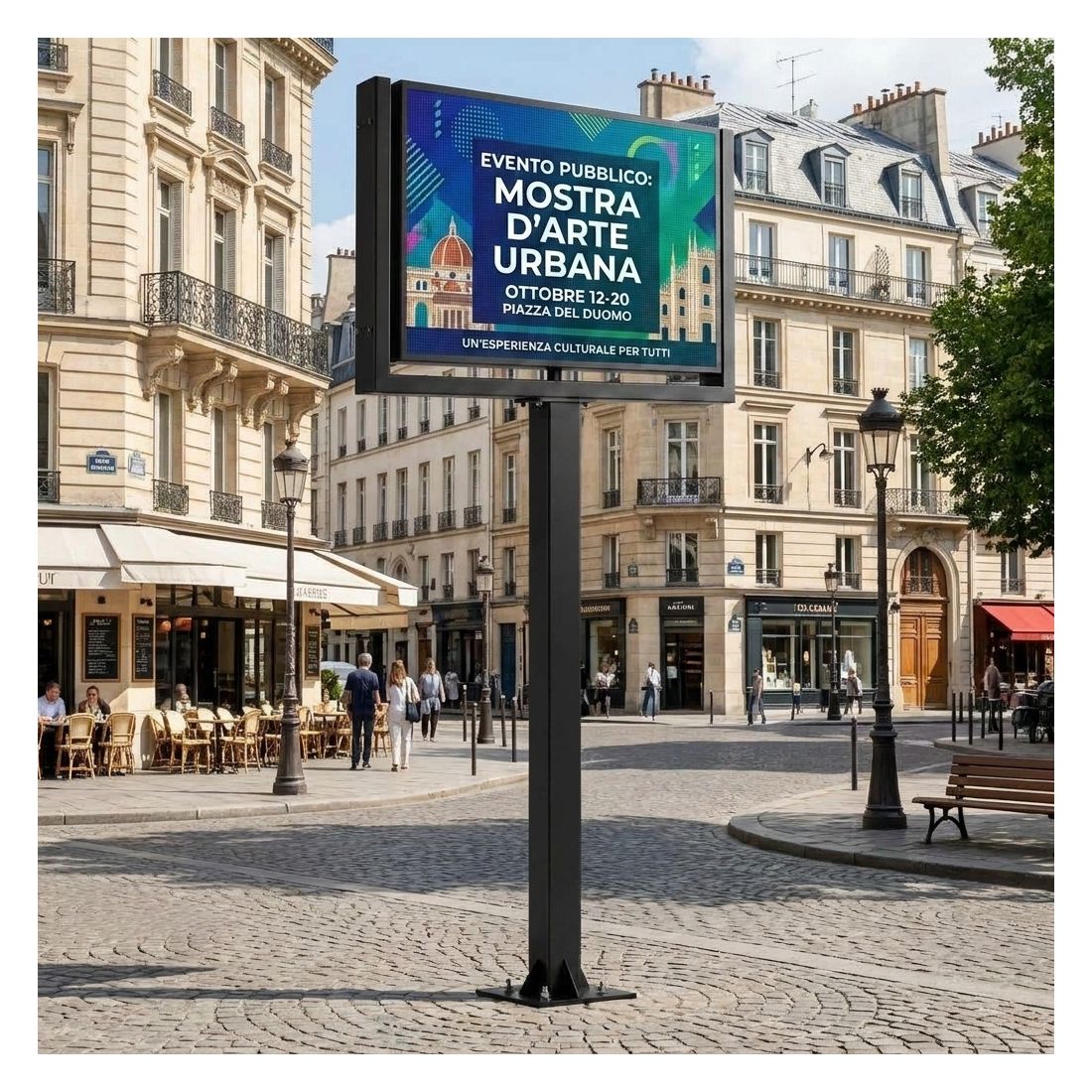

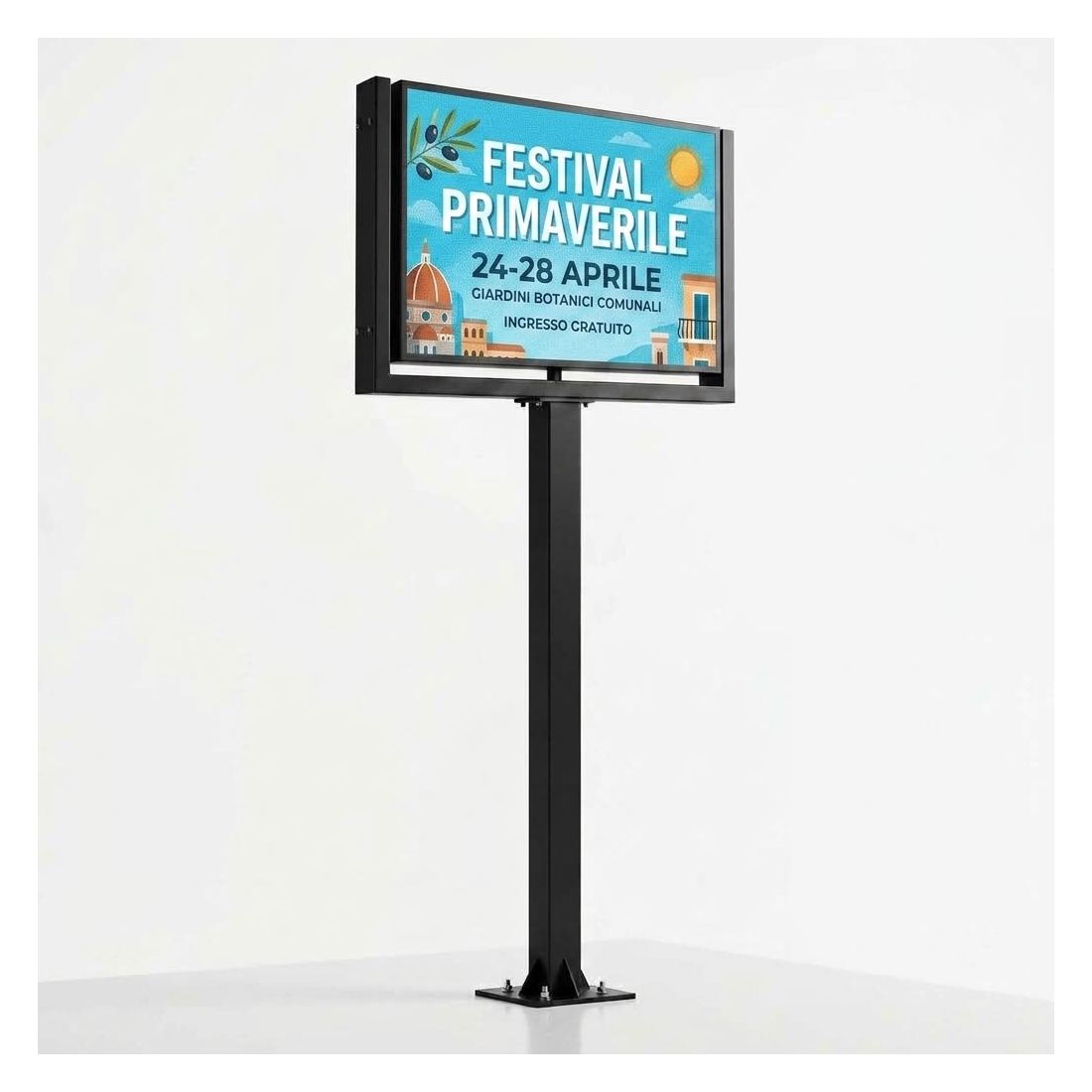

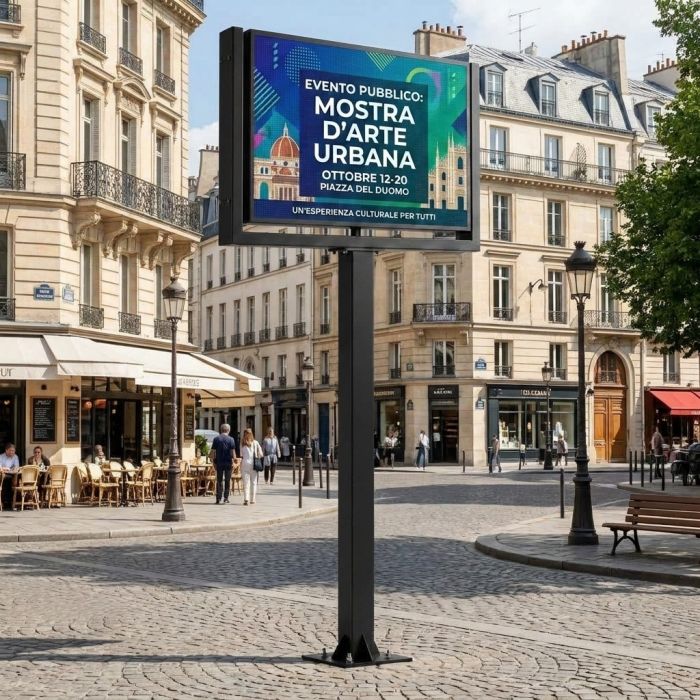

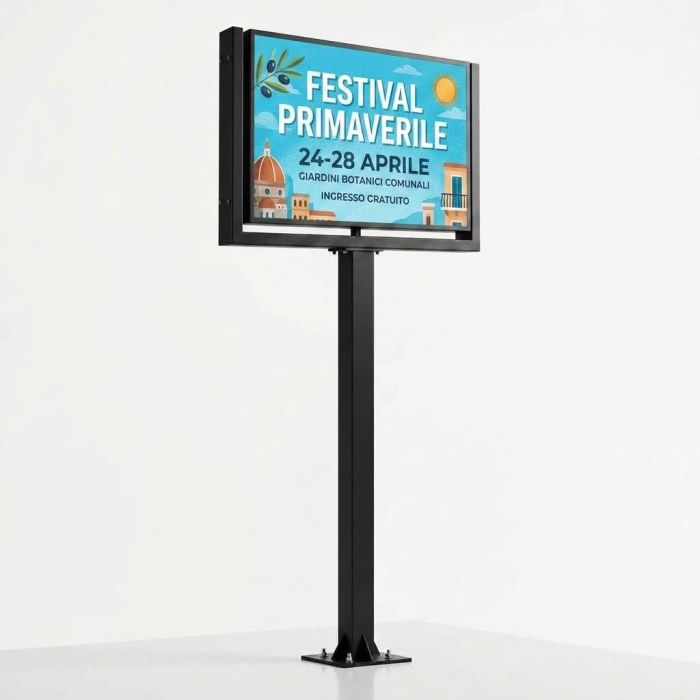

Pole-mounted installation

The display is integrated into a structure with a 2- to 2.5-meter pole, a configuration designed for installations dedicated to urban communication and the visibility of digital content outdoors.

The structure and the LED system are supplied as an integrated MondoNovoElectronics configuration, with the option to customize the solution based on the characteristics of the installation site and the project.

Content Management

The product includes multilingual software for content management. The configuration allows the display to be used as a medium for digital communication and for publishing content intended for various application contexts.

Technical
Specifications

LED Technology	SMD
Pixel Pitch	5 mm (P5)
Resolution	256 × 160 px/cabinet
Cabinet Dimensions	1340 × 860 mm
Brightness	5,000–5,500 nits
Viewing distance	≥ 5 m
Viewing angle	140° H / 130° V
Maximum power consumption	≤ 1,760 W
Average power consumption	± 686 W
Operating voltage	AC 200–230 V
Chassis	Metal
Opening	Upward
Scanning	1/8
Configuration	Dual-sided
Protection rating	IP65
Operating Temperature	-20 °C / +45 °C
Operating humidity	10–90%
Grayscale	14–16 bits
Software	Included, multilingual
Connectivity	TCP/IP (network cable), USB flash drive, 3G/4G, Wi-Fi

Dimensions

This Double-Sided P5 LED Digital Signage Display is a MondoNovoElectronics solution for outdoor digital communication, designed to integrate informational, institutional, and advertising content in urban and DOOH settings.
