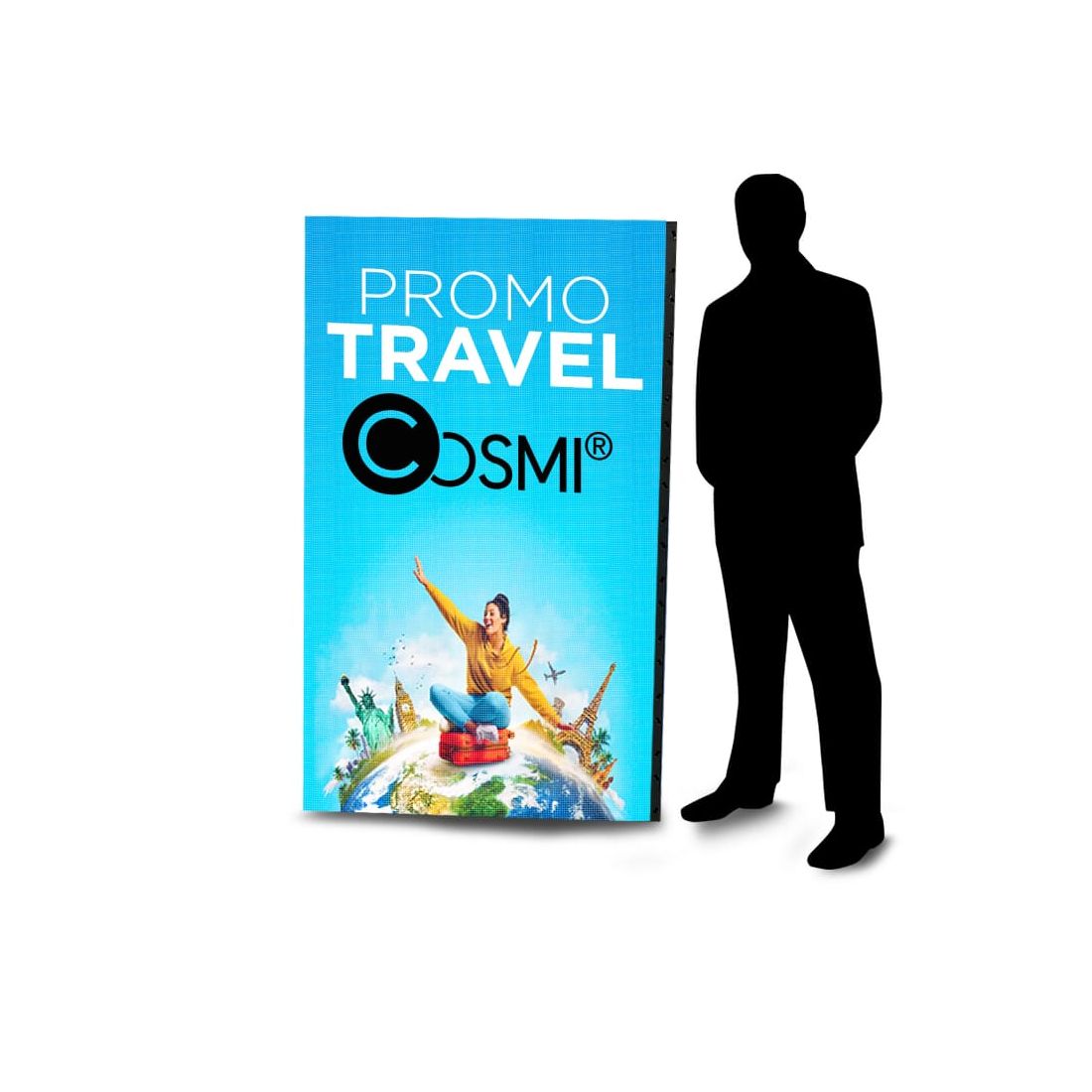

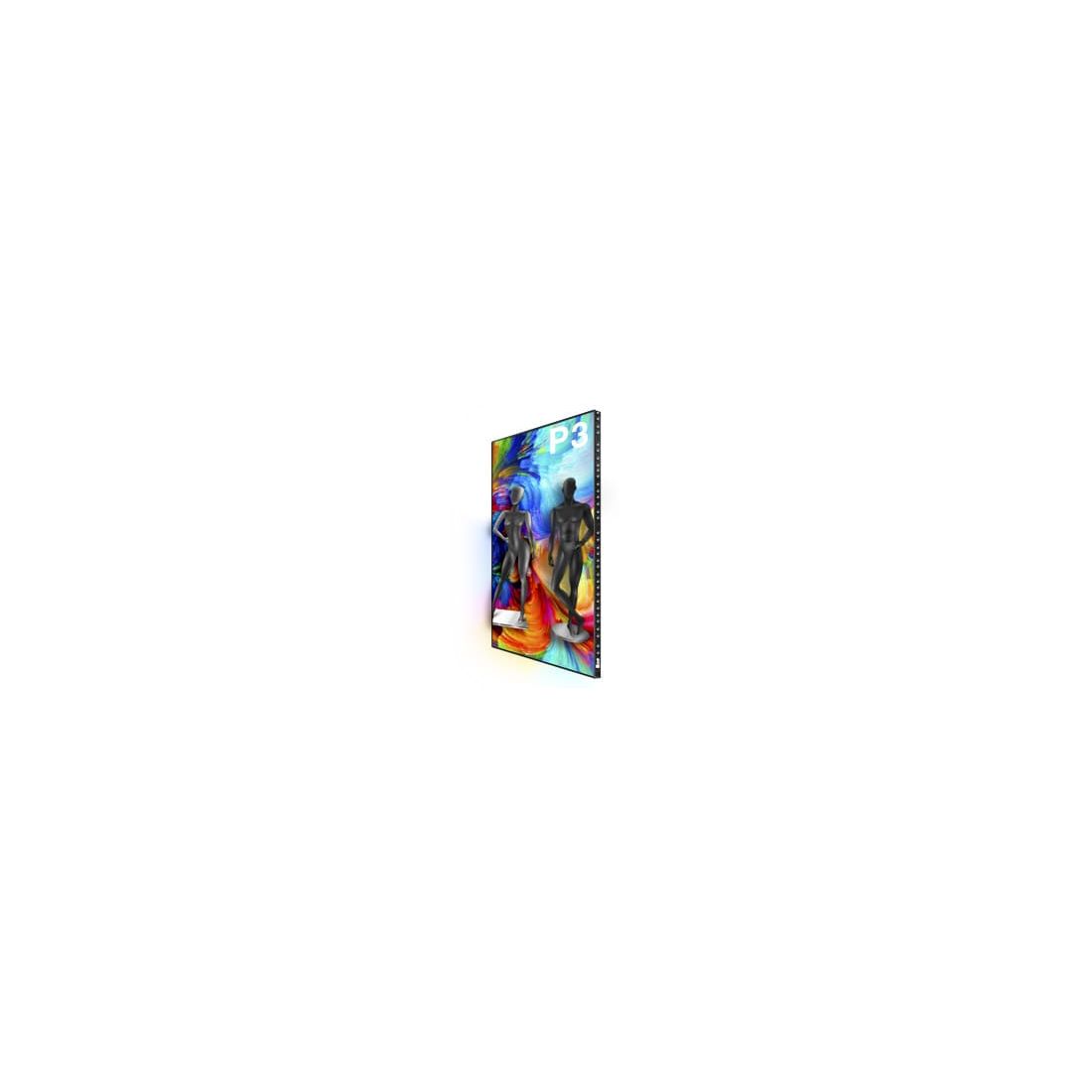

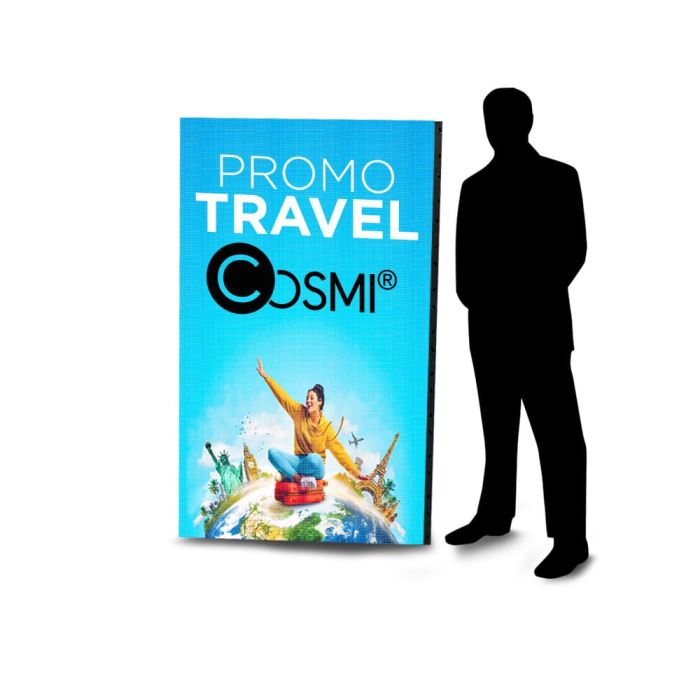

Cosmi P3 Full Color LED Display for showcases 960×1600 mm, 5,000 nits
€6,495.00
MN000758
8056666282122
P3 Full Color LED screen designed for retail storefronts: high brightness up to 5,000 nits and 3 mm pitch for sharp images even in brightly lit environments. Size 960×1600 mm (16:9), slim 68 mm design, rear opening installation without casing for integration into furnishings and customizations. Multilingual content management with the possibility of text, video, images, pictograms, date/time, and remote control via Cosmi server (optional). TCP/IP connectivity, USB, Wi-Fi/3G/4G options.
P3 Full Color LED display for retail storefronts (960×1600 mm)
A P3 LED display designed for use in shop windows, where maximum visibility and high definition at close range are required. Brightness
±4,500/5,000 nits and a pixel pitch of 3 mm, the ideal combination for legible and "impactful" content even in bright ambient lighting.
Key features
- High brightness: up to 5,000 cd/m² for shop windows and very bright environments.
- Close-up definition: 3 mm pitch, recommended viewing distance ≥ 3 m.
- 16:9 format: also suitable for "TV monitor" type content and standard video compositions.

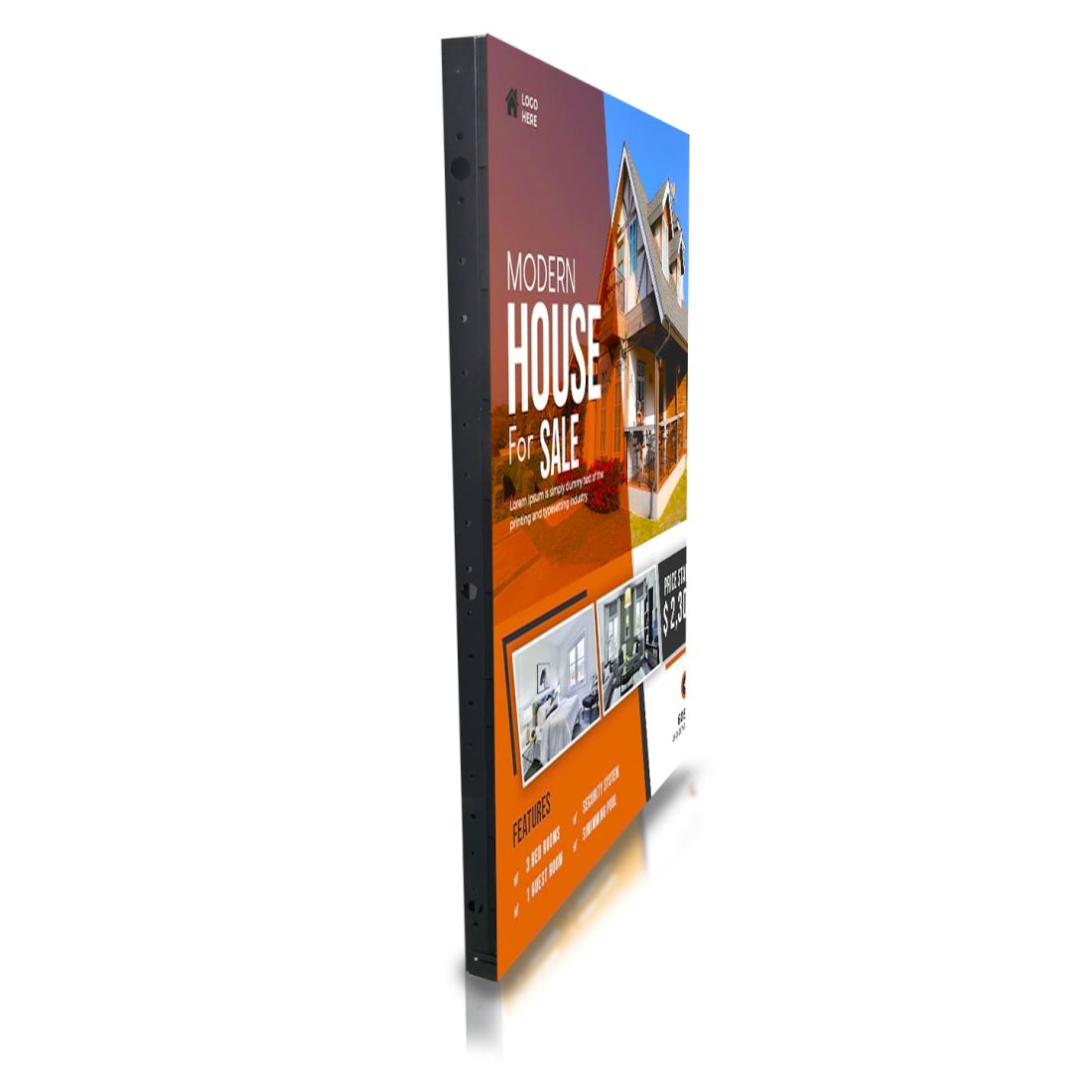

- Slim design: thickness 68 mm, uniform lines, can also be wall-mounted (hang).

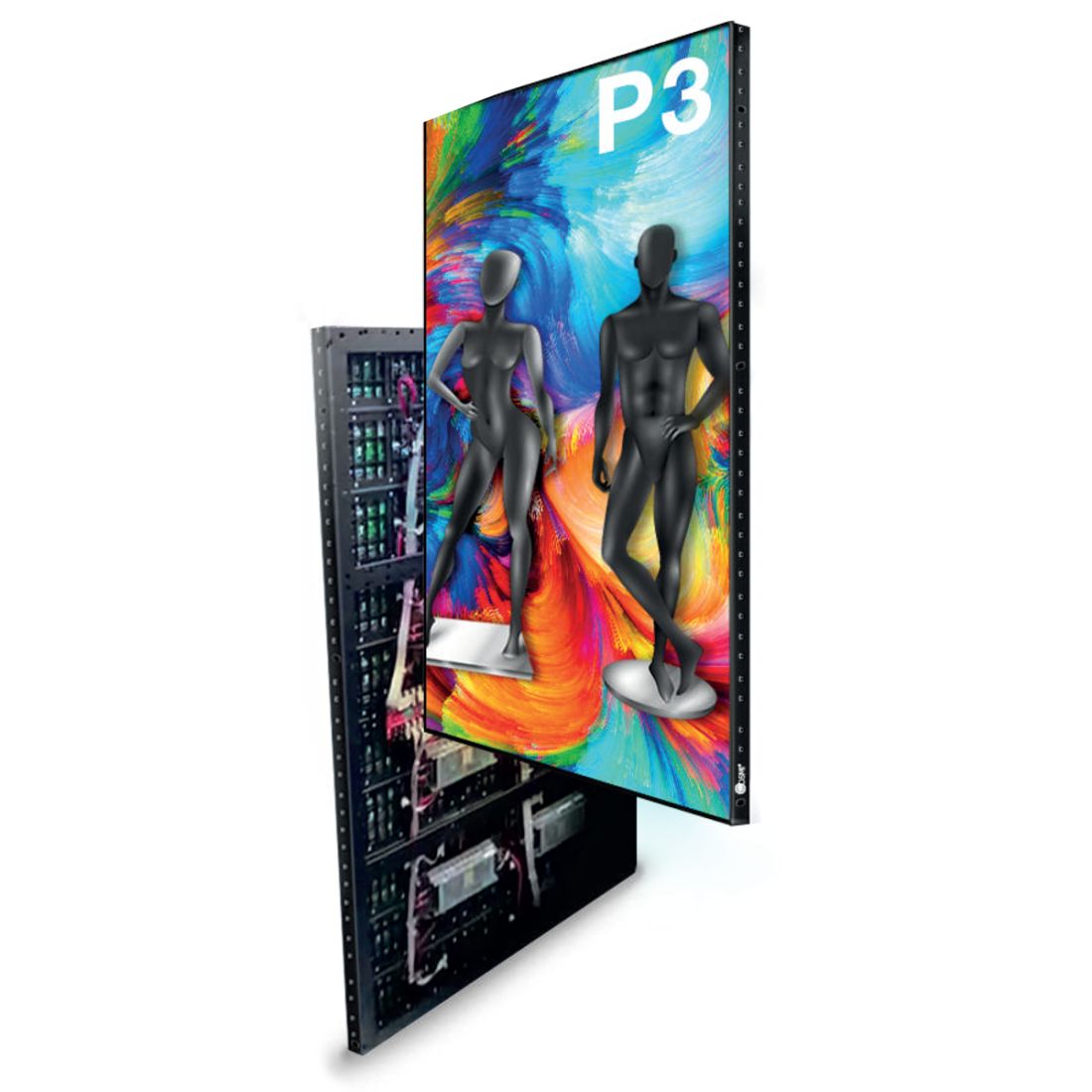

- Integration into furnishings: rear without casing for customization and integration into furniture/structures.
- Content control: text, video, images, pictograms, date/time; multilingual software included.
Connectivity and control
- Connections: TCP/IP (network cable), USB.
- Options: Wi-Fi, 3G/4G, Cosmi server (optional) for remote control.
- Optional sensors: brightness sensor; temperature sensor (optional).
Installation notes
- Leave 30–50 mm between the display case and the display for ventilation.
- Mounting surface must be free of deformations; avoid impacts on the chassis and LED boards.
- Do not obstruct air intakes/outlets; avoid perforations or deformations that affect the interior.

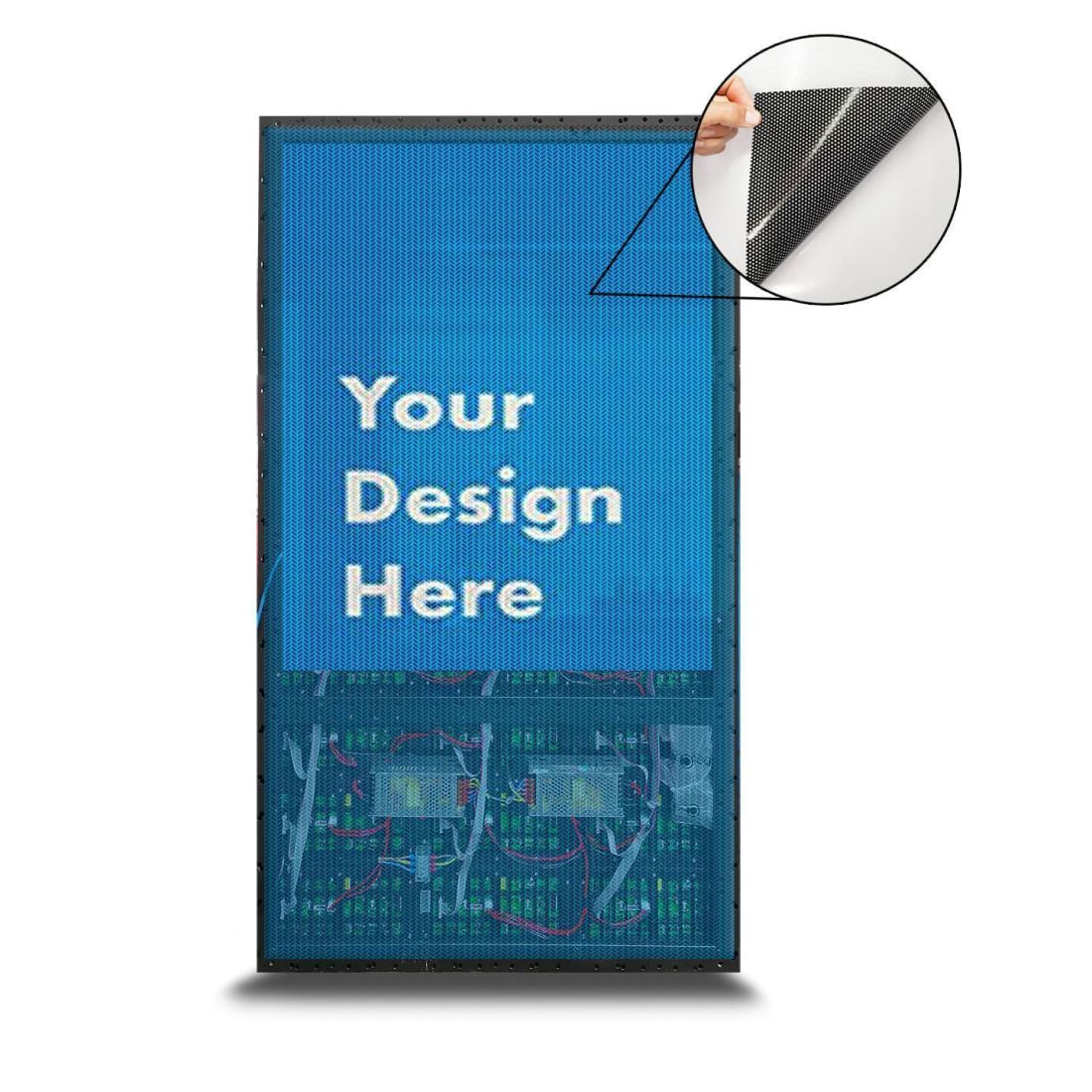

- Micro-perforated backing recommended for ventilation and electronic coverage (not included).
- The notes page states "Mandatory indoor use."

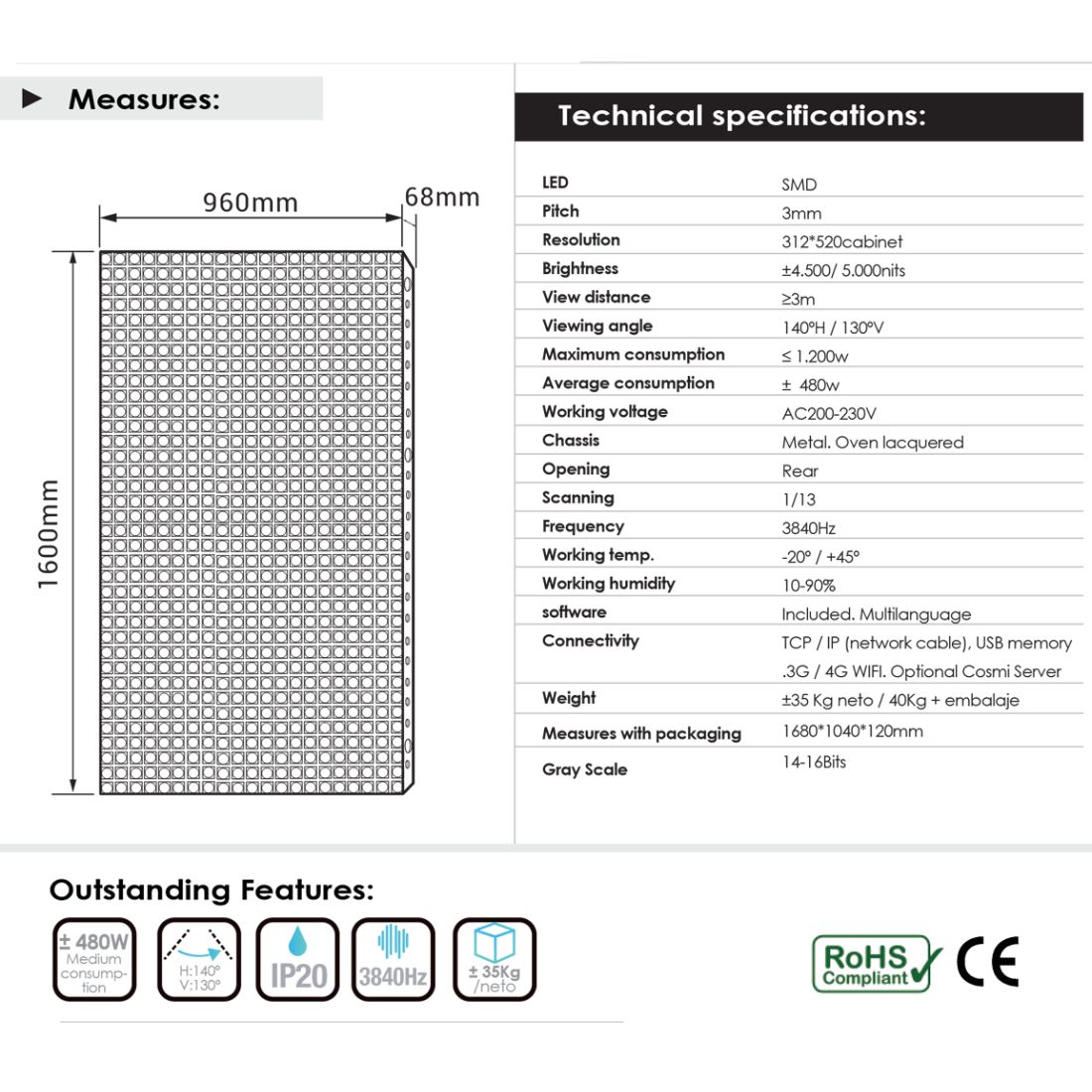

Technical specifications
| LED type | SMD |
|---|---|
| Pixel pitch | 3 mm (P3) |
| Resolution | 312 × 520 (cabinet) |
| Brightness | ±4,500 / 5,000 cd/m² (nits) |
| Viewing distance | ≥ 3 m |
| Viewing angle | 140° H / 130° V |
| Refresh rate | 3840 Hz |
| Scanning | 1/13 |
| Maximum power consumption | ≤ 1,200 W |
| Average power consumption | ± 480 W |
| Power supply | AC 200–230 V |
| Chassis | Metal, oven-baked paint finish |
| Front | Rear |
| Operating temperature | -20°C / +45°C |
| Working humidity | 10–90 |
| Grayscale | 14–16 bits |
| Degree of protection | IP20 |
| Weight | ± 35 kg (net) |
| Dimensions (W×H×D) | 960 × 1600 × 68 mm |
| Packaging | 1680 × 1040 × 120 mm (± 40 kg with packaging) |
| Software | Included (multilingual) |
| Connectivity | LAN (TCP/IP), USB; Wi-Fi / 3G-4G / Cosmi Server options |
Usage scenarios

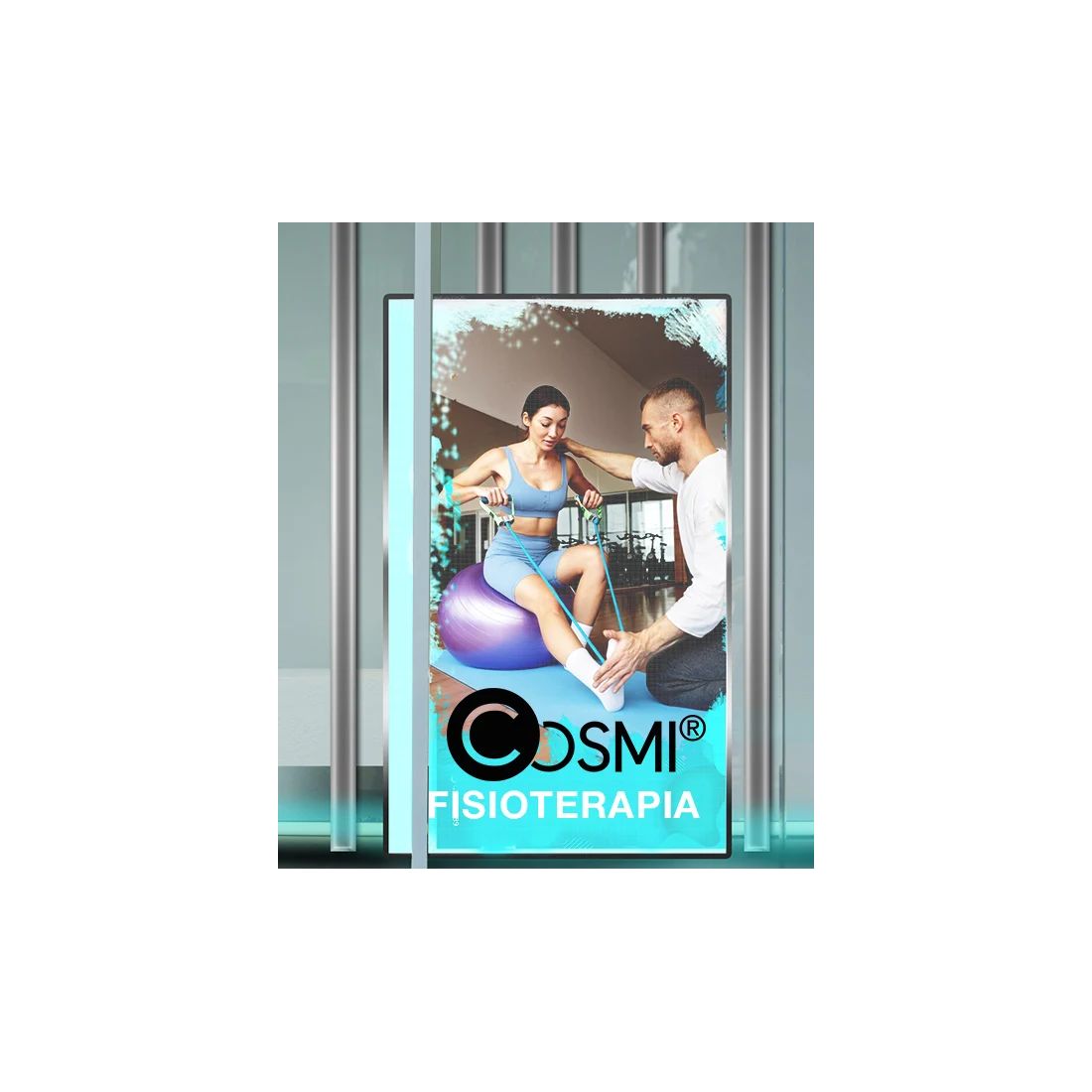

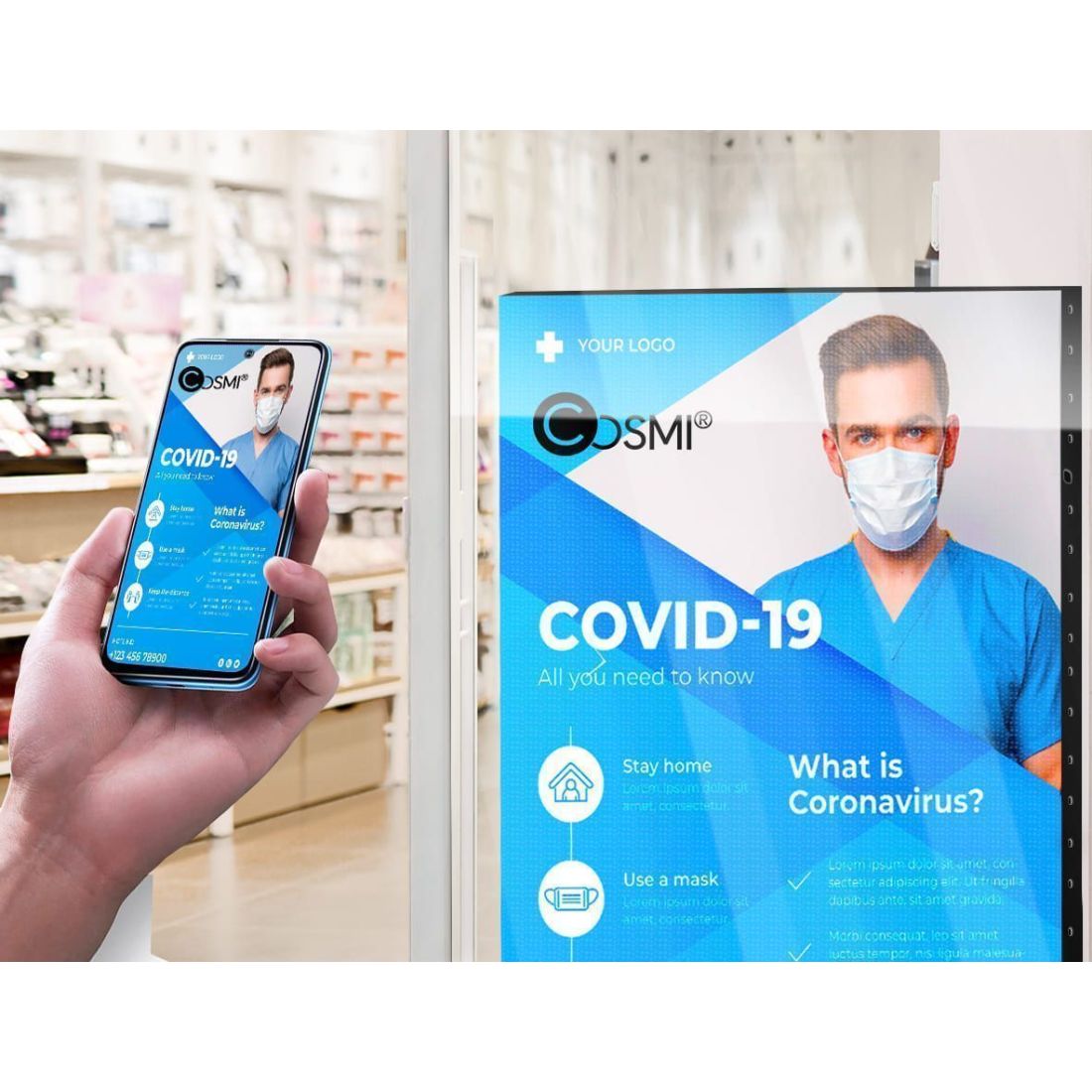

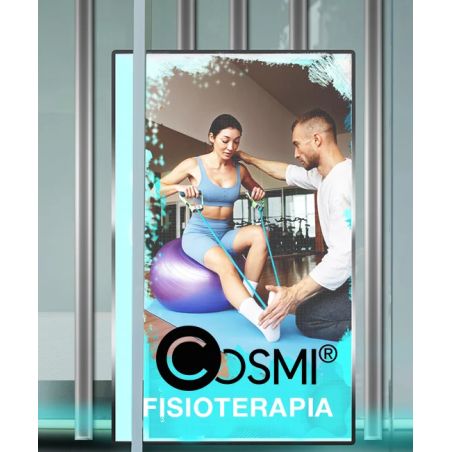

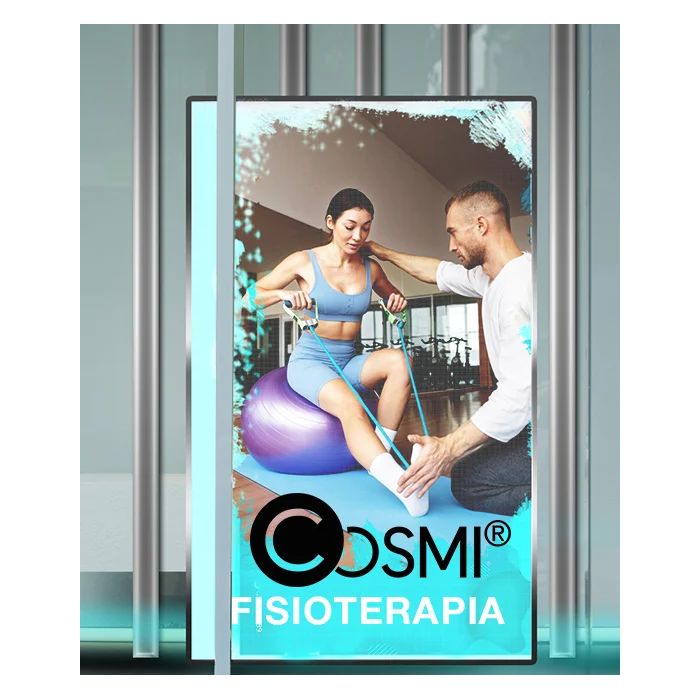

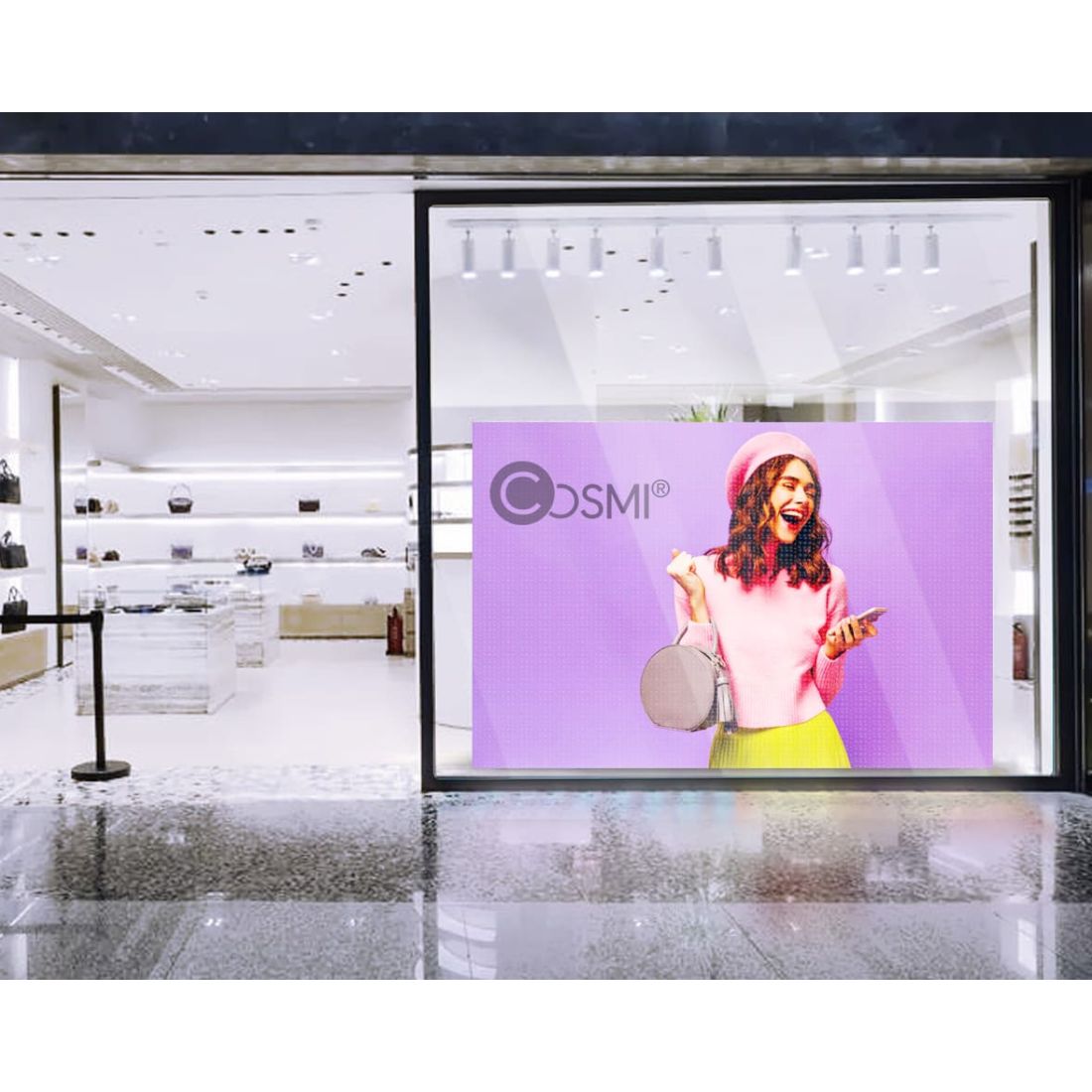

- Retail storefronts (promotions, product launches, high-visibility video storytelling).
- Shopping centers and store entrances with dynamic content.
- Multi-site chains with coordinated updates (with optional server/remote control).
- Tecnologia
- LED
- Type of Use
- Showcase
- No. Display
- Single Side
- Brightness
- 4500-5000 cd/m2
- LED Pixel Pitch
- 3.0mm
- Grado Protezione IP
- IP20
8056666282122
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
