LED Display P4 Cosmi Full Color outdoor 96x64 cm 5500 nits IP65
€2,155.00
MN000761
8056666282153
P4 Cosmi Full Color LED display for outdoor use in 96x64 cm format. High brightness up to 5500 nits and IP65 front protection for exposed installations. High-definition images with 3840Hz refresh rate and wide viewing angle 140H 130V. Supports text, video, images, pictograms, date, time, and temperature with remote control via optional Cosmi server. LAN TCP/IP and USB connectivity with Wi-Fi and 3G-4G options.
Cosmi P4 Full Color outdoor LED display 96x64 cm IP65
Cosmi P4 LED display for outdoor use in 96x64 cm format. Designed for high visibility and outdoor resistance with brightness up to 5500 nits and IP65 protection rating on the front. Often sought after as an outdoor LED screen for dynamic and informative communication.
Strengths
- Brightness up to 5500 nits
- IP65 protection on the front and IP54 on the rear
- 3840Hz refresh rate for smooth video content
- 140H 130V viewing angle
- 96x64 cm format for modular installations
Content management and connectivity
- Content: text, video, images, pictograms, date, time, temperature
- Connections: LAN TCP/IP and USB
- Options: Wi-Fi 3G-4G Cosmi server optional
- Sensor options: brightness sensor and optional temperature sensor
Installation notes
- Horizontal mounting required when installed outdoors
- Maximum tilt allowed 15 degrees towards the front or rear
- Do not obstruct the frame's air intakes and outlets
- Avoid impacts and deformation of the mounting structure

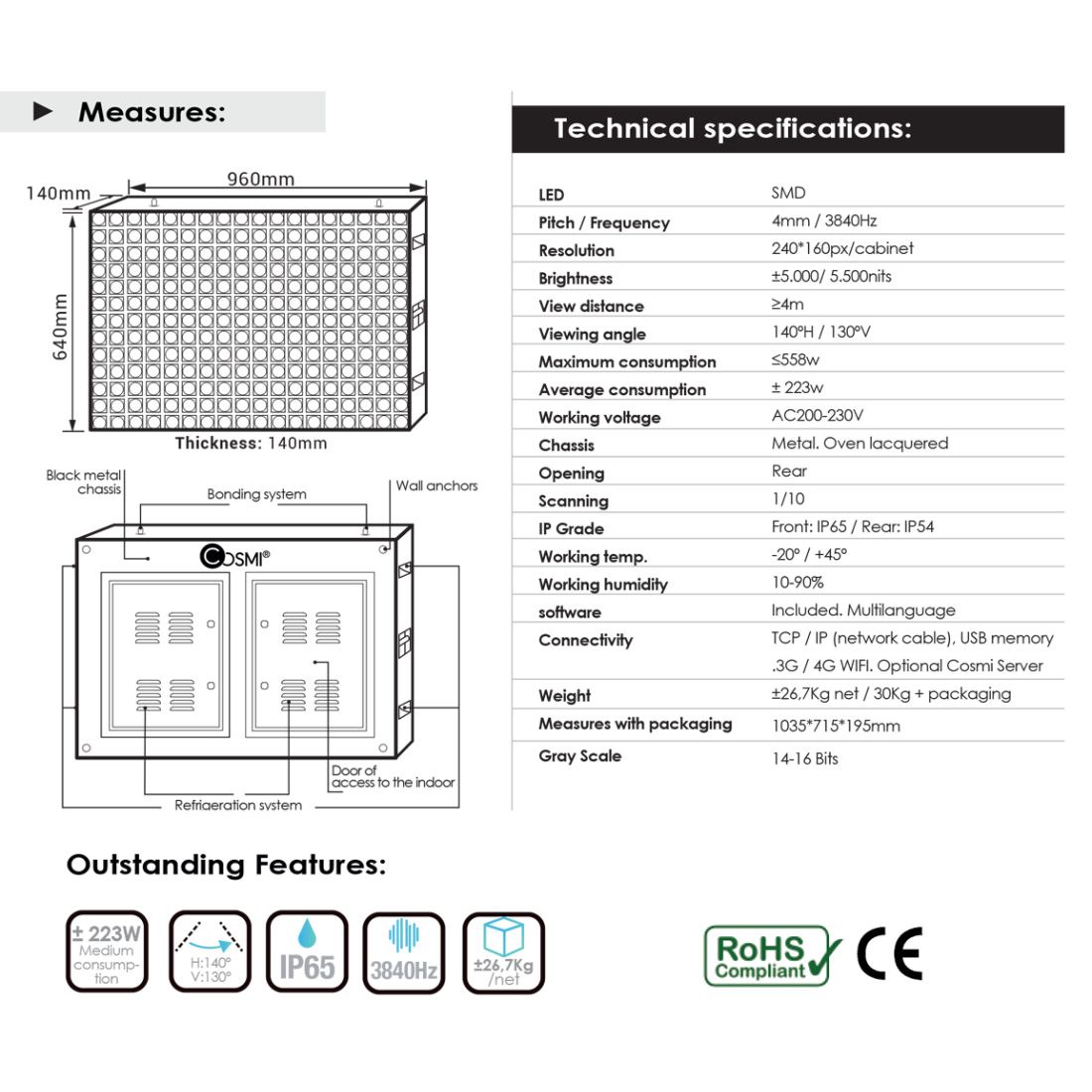

Technical specifications
| Pixel pitch | 4 mm P4 |
|---|---|
| Brightness | up to 5500 nits |
| Cabinet resolution | 240 x 160 px |
| Refresh | 3840 Hz |
| Scanning | 1/10 |
| Viewing angle | 140 H / 130 V |
| Maximum power consumption | 558 W |
| Average power consumption | 223 W |
| Power supply | AC 200-230 V |
| Protection rating | Front IP65 / Rear IP54 |
| Net weight | 26.7 kg |
| Cabinet dimensions | 960 x 640 x 140 mm |
| Packaging dimensions | 1035 x 715 x 195 mm |
Usage scenarios
- Outdoor retail and display windows
- Entrances and facades with promotional communication
- Outdoor events and installations
- Dynamic signage for public structures and areas
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 4 mm
- Grado Protezione IP
- IP65
8056666282153
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
