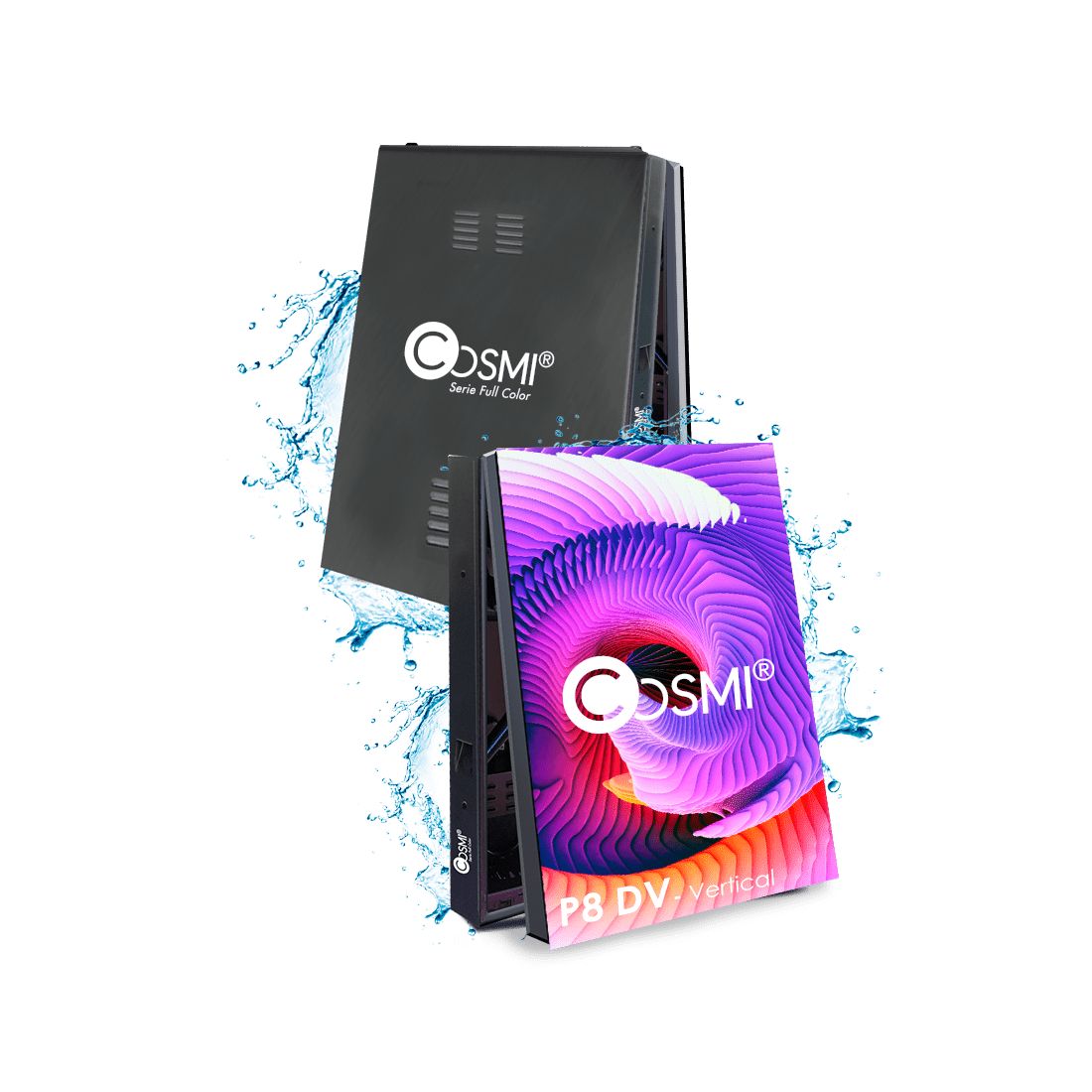

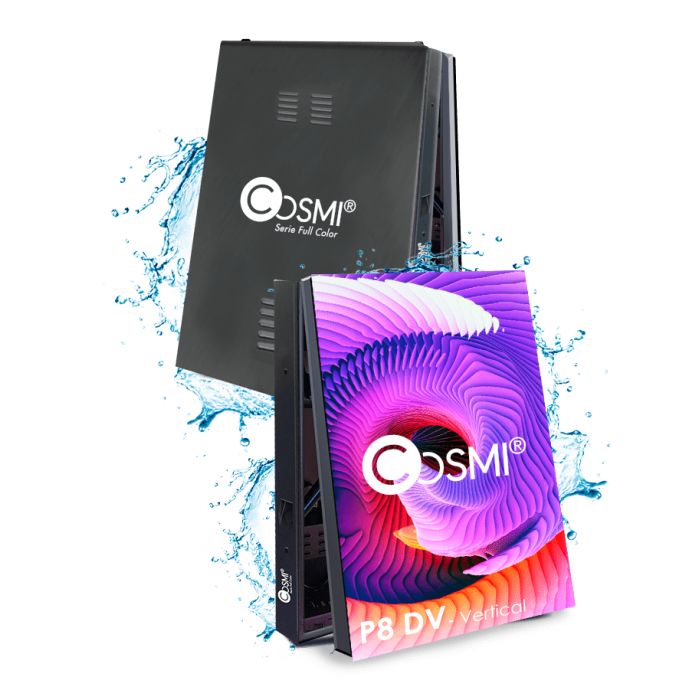

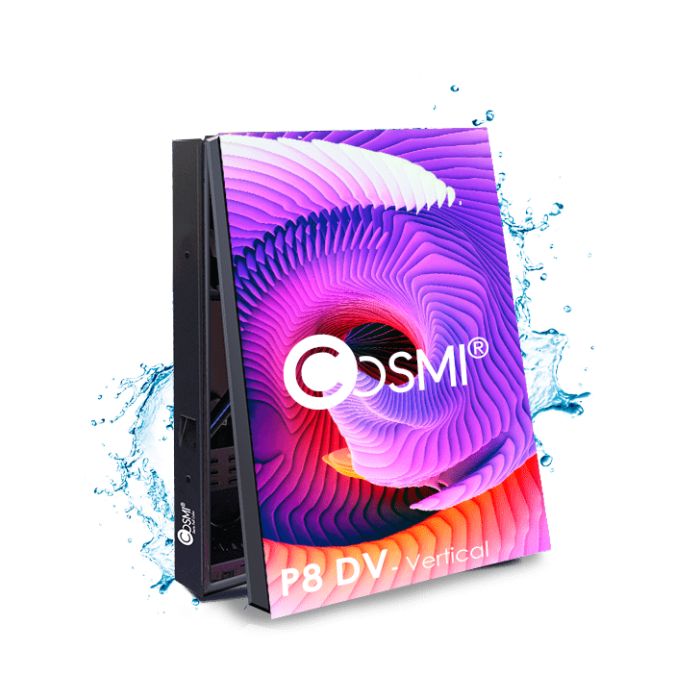

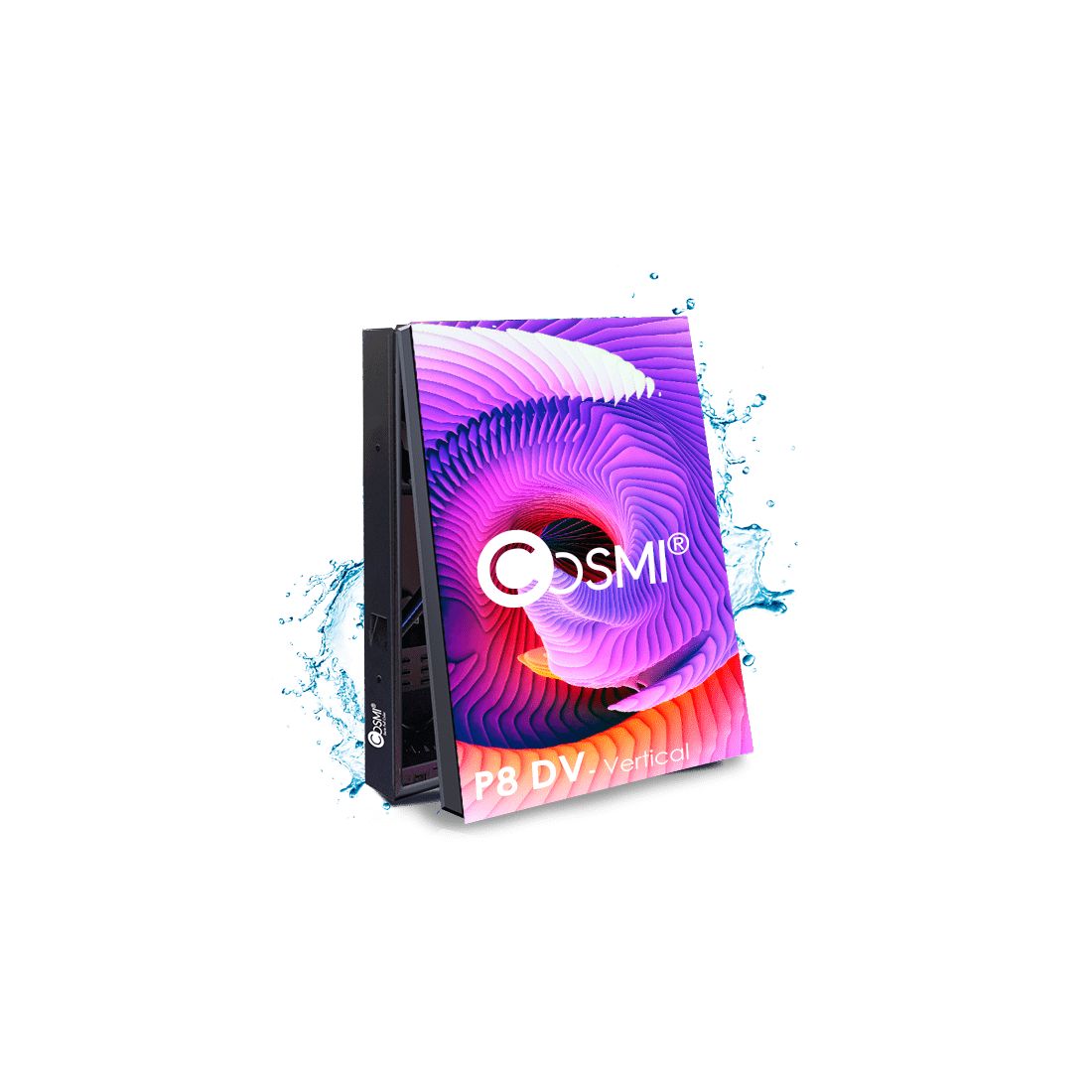

LED display P8 Cosmi Full Color outdoor 64x96 cm 5500 nits IP54 front access
€1,645.00
MN000768
8056666282221
P8 Cosmi Full Color LED display for outdoor use in 64x96 cm vertical format with front opening. High brightness 5000-5500 nits and IP54 protection for outdoor installations. 1920Hz refresh rate and 140H 130V viewing angle for readable content. Supports text, video, images, pictograms, date, time, and temperature, and remote control via optional Cosmi Server. LAN TCP/IP and USB connectivity with Wi-Fi and 3G 4G options. At least 80 mm of space must be left between the top and bottom during installation.
P8 Cosmi Full Color outdoor LED display 64x96 cm 5500 nits IP54 vertical orientation, front access
P8 Full Color LED screen for outdoor use, measuring 64x96 cm with front access. Designed for high visibility outdoors with 5000-5500 nits brightness and IP54 protection. Supports dynamic content and remote control via the optional Cosmi Server.
Key features
- Front opening for maintenance in wall installations
- Outdoor use with IP54 protection
- Brightness 5000-5500 nits
- 1920Hz refresh rate and 140H 130V viewing angle
- Vertical format 64x96 cm
Content management and connectivity

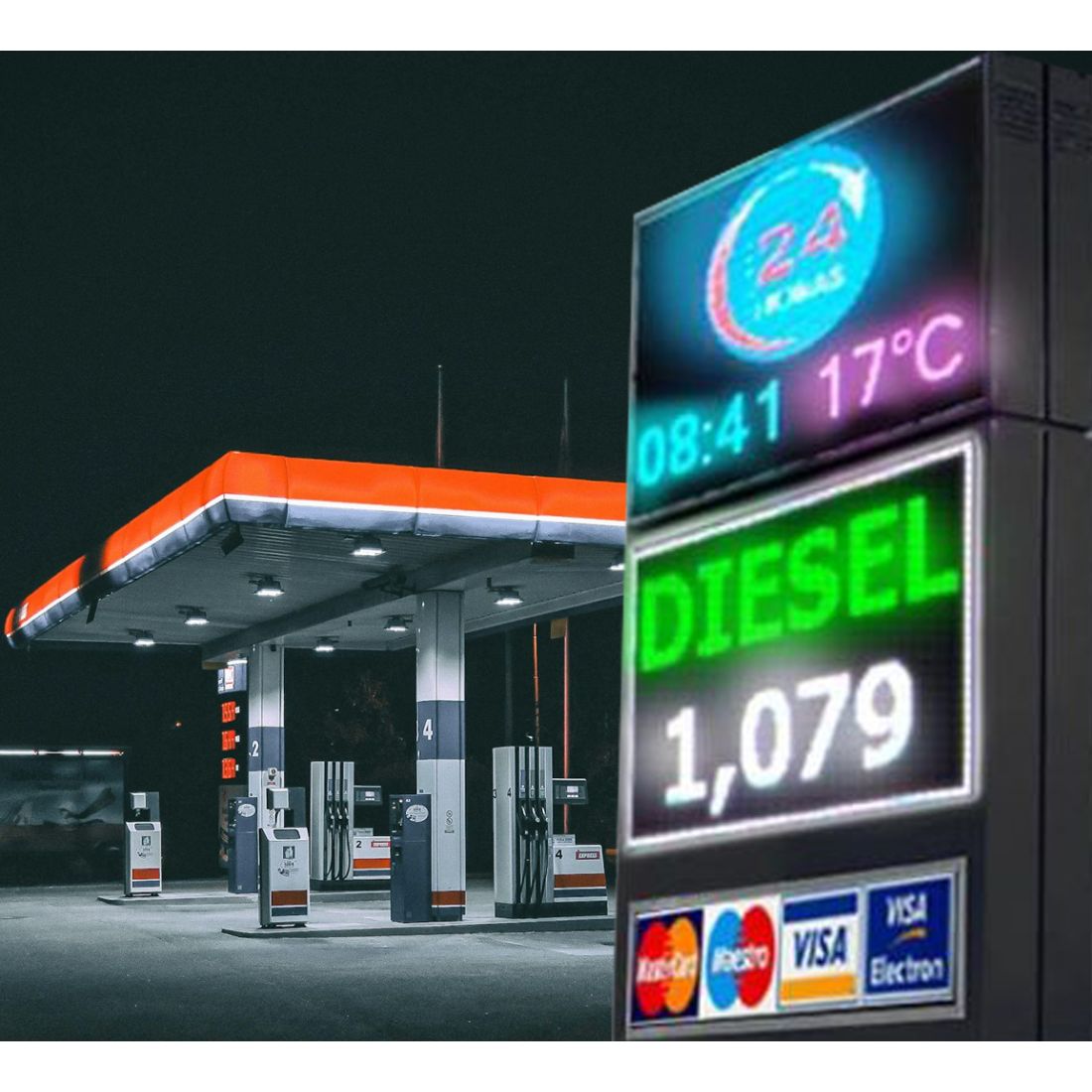

- Content: text, video, images, pictograms, date, time, temperature
- Connections: LAN TCP/IP and USB
- Options: Wi-Fi, 3G, 4G, and optional Cosmi Server
- Options: brightness sensor and optional temperature sensor
Installation notes
- Front opening only lengthwise
- Leave at least 80 mm of space between the top and bottom
- Do not obstruct the chassis air intakes and outlets
- Avoid impacts and deformations that could damage the chassis and LED modules
Technical specifications
| Brand | Cosmi |
|---|---|
| Category | LED display |
| Use | Outdoor |
| Model | P8DV Full Color LED Screen Vertical |
| Pixel pitch | 8 mm P8 |
| Cabinet resolution | 80 x 120 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 8 m |
| Viewing angle | 140 H / 130 V |
| Maximum power consumption | 532 W |
| Average power consumption | 212 W |
| Power supply | AC 200-230 V |
| Chassis | Painted metal |
| Front | Front |
| Scanning | 1/5 |
| Refresh | 1920 Hz |
| Operating temperature | -20 / +45 |
| Working humidity | 10-90 |
| Gray scale | 14-16 bits |
| Net weight | 29.8 kg |
| Cabinet dimensions | 640 x 960 x 140 mm |
| Packaging dimensions | 1035 x 715 x 195 mm |
| Software | Multilingual included |
| Connectivity | LAN TCP/IP USB options Wi-Fi 3G 4G |
Scenarios of use
- Facades and entrances with outdoor promotional communication
- Outdoor events and installations

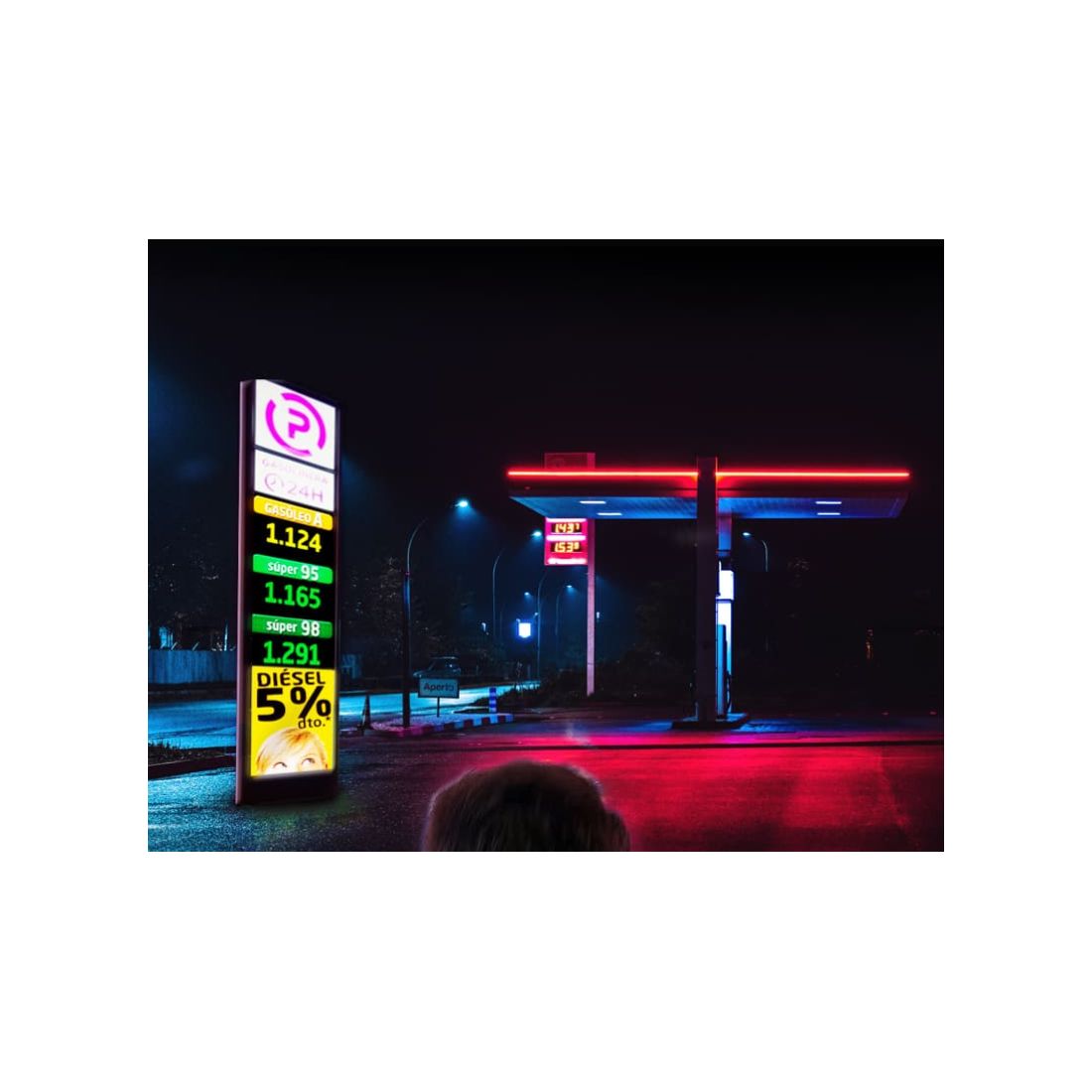

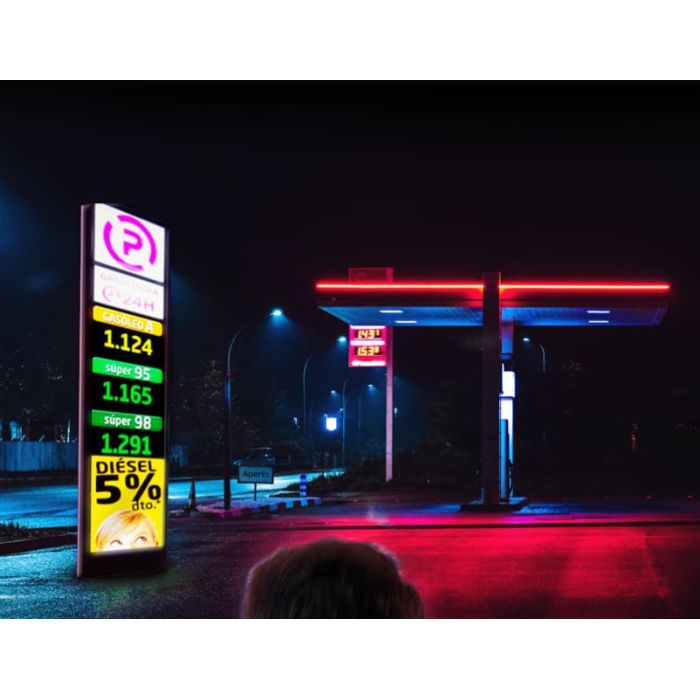

- Dynamic signage for public facilities and areas
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 8.0mm
- Grado Protezione IP
- IP54
8056666282221
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
