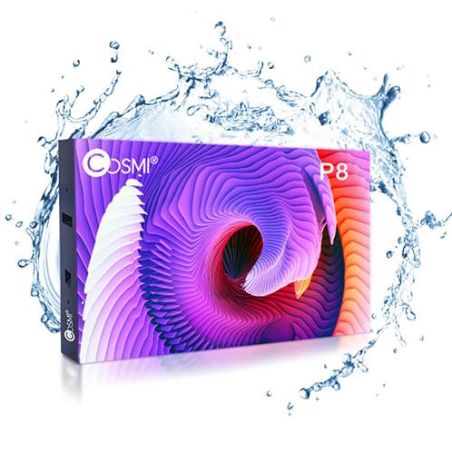

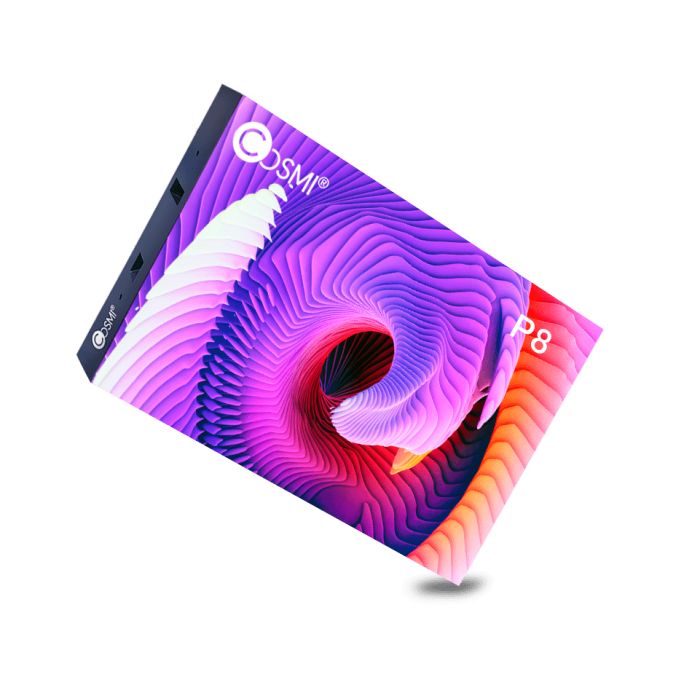

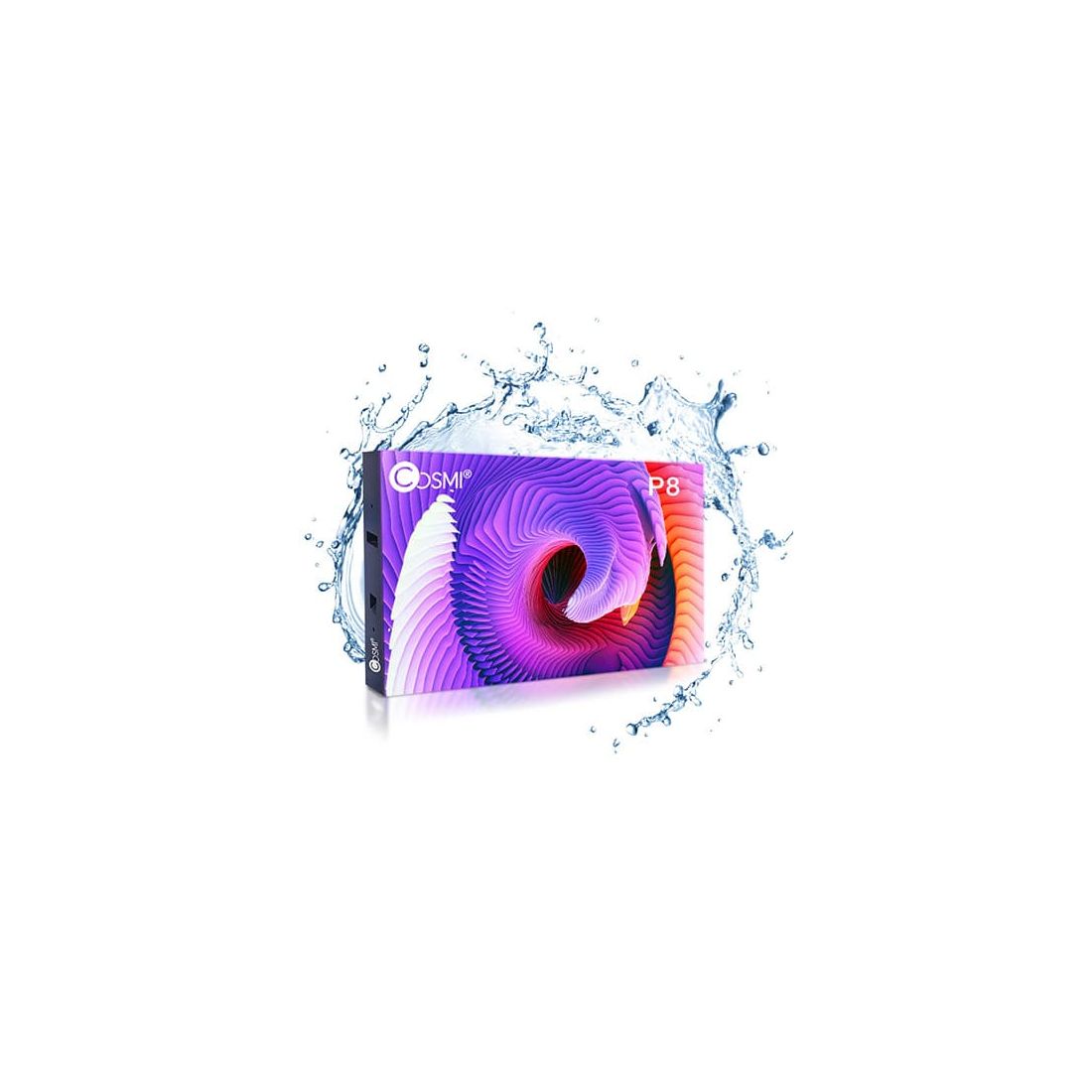

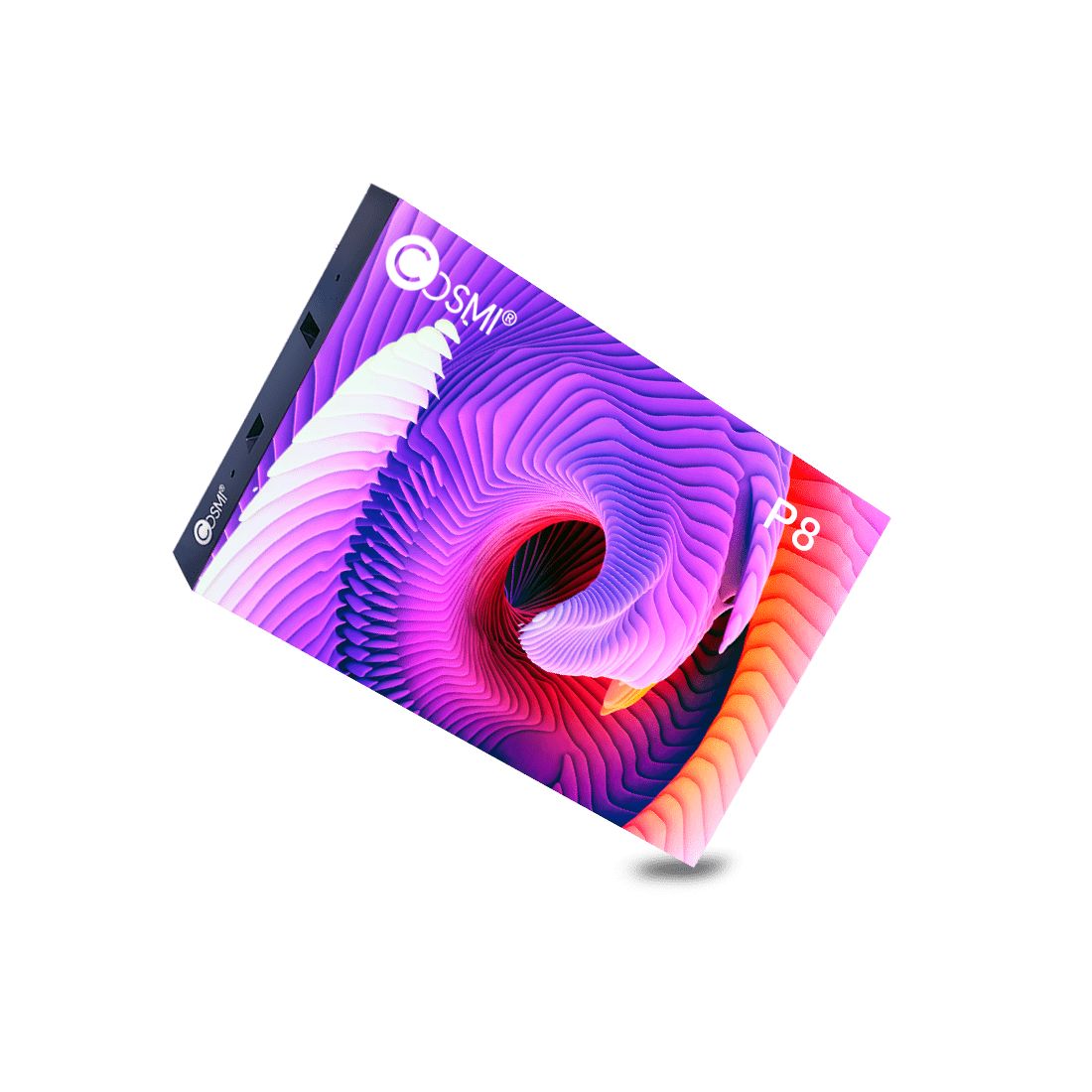

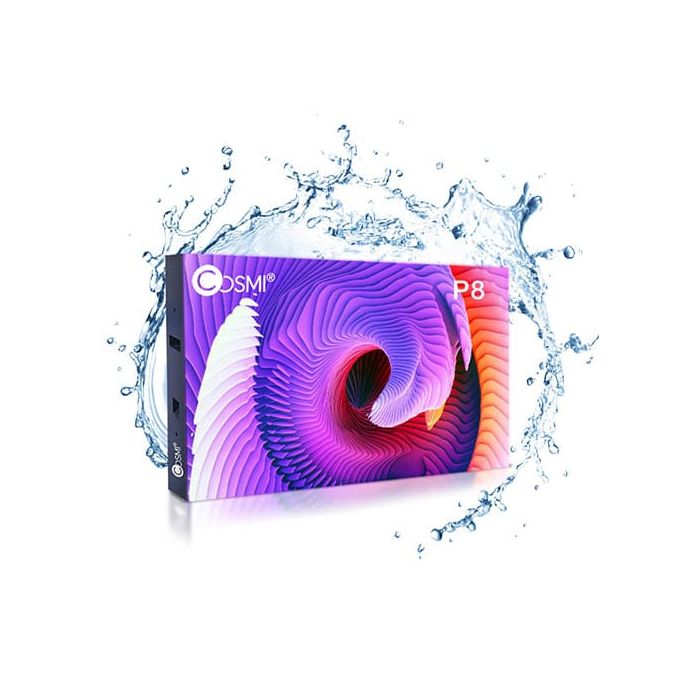

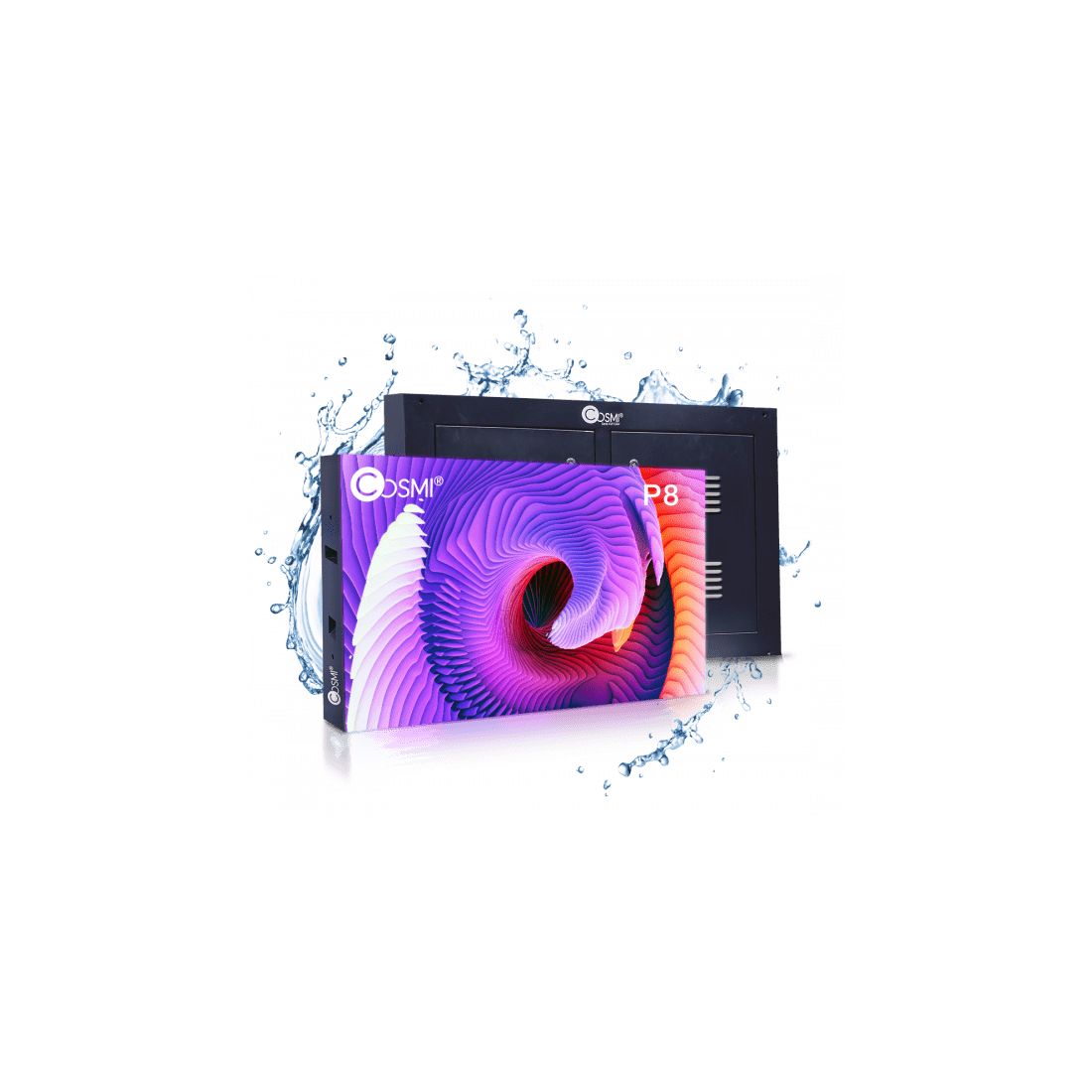

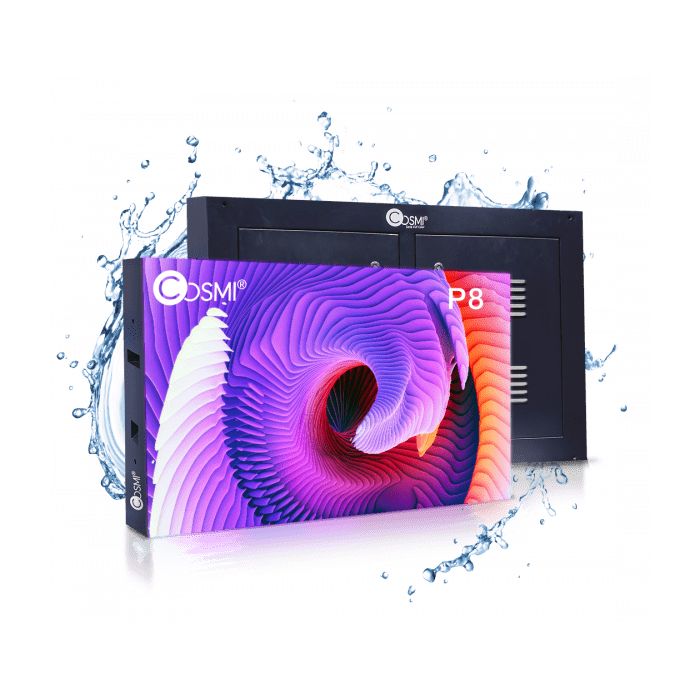

LED display P8 Cosmi Full Color outdoor 96x64 cm 5500 nits IP65 rear access
€1,599.00
MN000767
8056666282214
P8 Cosmi Full Color LED display for outdoor use in 96x64 cm horizontal format with rear access. High brightness 5000-5500 nits and IP65 front and IP54 rear protection for outdoor installations. 1920Hz refresh rate and 140H 130V viewing angle for legible content. Supports text, video, images, pictograms, date, time, and temperature, and remote control via optional Cosmi Server. LAN TCP/IP and USB connectivity with Wi-Fi and 3G 4G options. Outdoor installation with mandatory horizontal mounting and maximum tilt of 15 degrees.
P8 Cosmi Full Color outdoor LED display 96x64 cm 5500 nits IP65 horizontal rear access
P8 Full Color LED screen for outdoor use, measuring 96x64 cm with rear access. Designed for high visibility and durability outdoors with a brightness of 5000-5500 nits and IP65 front and IP54 rear protection. Outdoor installation with mandatory horizontal mounting.
Key features

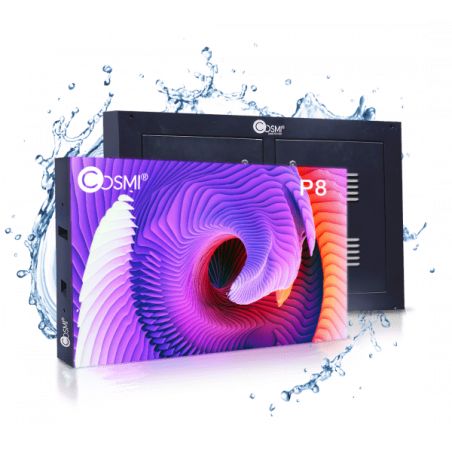

- Rear access for installation and maintenance
- Outdoor use with IP65 front and IP54 rear protection
- Brightness 5000-5500 nits
- 1920Hz refresh rate and 140H 130V viewing angle
- Size 96x64 cm
Content management and connectivity
- Content: text, video, images, pictograms, date, time, temperature
- Connections: LAN TCP/IP and USB
- Options: Wi-Fi, 3G, 4G, and optional Cosmi Server for remote control
- Options: brightness sensor and optional temperature sensor
Installation notes
- Must be mounted horizontally when installed outdoors
- Maximum tilt allowed 15 degrees towards the front or rear
- Do not obstruct the frame's air intakes and outlets
- Avoid impacts and deformations that could damage the chassis and LED modules
Technical specifications
| Brand | Cosmi |
|---|---|
| Category | LED display |
| Use | Outdoor |
| Model | P8 Full Color LED Screen Outdoor |
| Pixel pitch | 8 mm P8 |
| Cabinet resolution | 120 x 80 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 8 m |
| Viewing angle | 140 H / 130 V |
| Maximum power consumption | 532 W |
| Average power consumption | 212 W |
| Power supply | AC 200-230 V |
| Front | Rear |
| Scanning | 1/5 |
| Refresh | 1920 Hz |
| Protection rating | Front IP65 / Rear IP54 |
| Net weight | 26.7 kg |
| Cabinet dimensions | 960 x 640 x 140 mm |
| Packaging dimensions | 1035 x 715 x 195 mm |
| Software | Included, multilingual |
| Connectivity | LAN TCP/IP USB options Wi-Fi 3G 4G |
Scenarios of use
- Facades and entrances with outdoor promotional communication
- Outdoor events and installations
- Dynamic signage for public facilities and areas
- Tecnologia
- LED
- Type of Use
- Outdoor
- Display Size
- 96x64cm (45" circa)
- Touch screen
- No Touch
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 8.0mm
- Grado Protezione IP
- IP65
