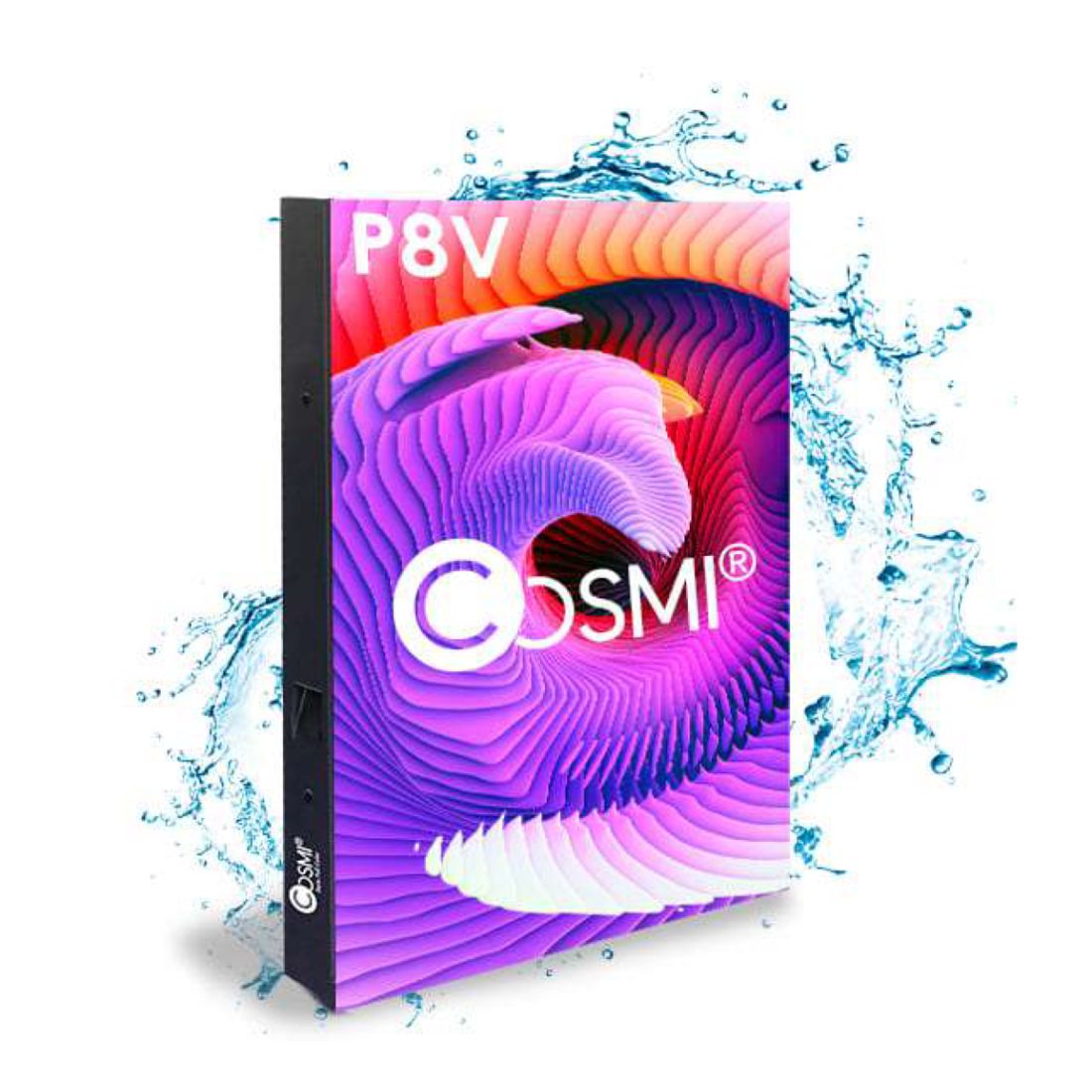

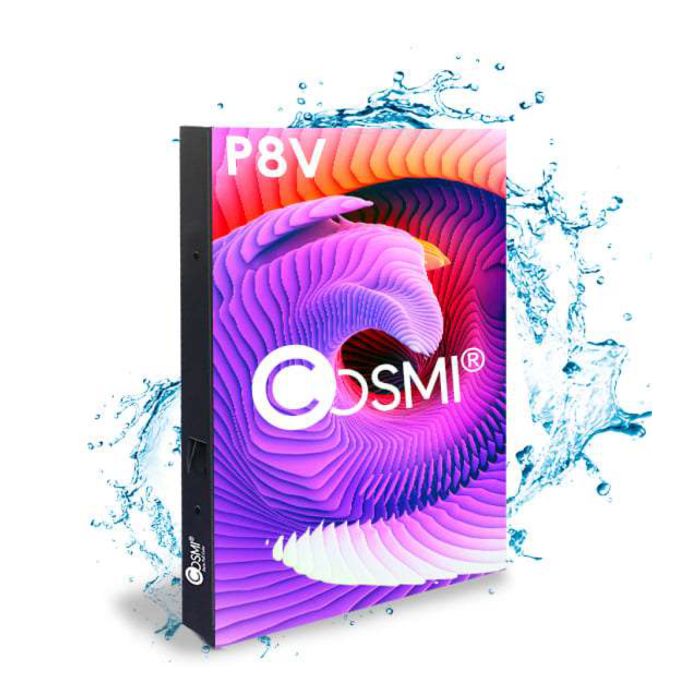

LED display P8 Cosmi Full Color outdoor 64x96 cm 5500 nits IP65 rear access
€1,695.00
MN000769
8056666282238
P8 Cosmi Full Color outdoor LED display in 64x96 cm vertical format with rear access. High brightness 5000-5500 nits and Front IP65 Rear IP54 protection for outdoor installations. 1920Hz refresh rate and 140H 130V viewing angle for readable content. Supports text, video, images, pictograms, date, time, and temperature with remote control via optional Cosmi Server. LAN TCP/IP and USB connectivity with Wi-Fi and 3G 4G options. For outdoor installation, horizontal mounting and a maximum tilt of 15 degrees are required.
P8 Cosmi Full Color outdoor LED display 64x96 cm 5500 nits IP65 vertical orientation, rear access
P8 Full Color LED screen for outdoor use, measuring 64x96 cm with rear access. Designed for high visibility outdoors with a brightness of 5000-5500 nits and IP65 front and IP54 rear protection. Supports dynamic content and remote control via the optional Cosmi Server.
Key features
- Outdoor use with IP65 front and IP54 rear protection
- Brightness 5000-5500 nits
- 1920Hz refresh rate and 140H 130V viewing angle
- Rear access for installation and maintenance
- Size 64x96 cm
Content management and connectivity
- Content: text, video, images, pictograms, date, time, temperature
- Connections: LAN TCP/IP and USB
- Options: Wi-Fi, 3G, 4G, and optional Cosmi Server
- Options: brightness sensor and optional temperature sensor
Installation notes
- Horizontal mounting required when installed outdoors
- Maximum tilt allowed 15 degrees towards the front or rear
- Do not obstruct the frame's air intakes and outlets
- Avoid impacts and deformations that could damage the chassis and LED modules
Technical specifications
| Brand | Cosmi |
|---|---|
| Category | LED display |
| Use | Outdoor |
| Model | P8V Full Color Screen |
| Pixel pitch | 8 mm P8 |
| Refresh | 1920 Hz |
| Cabinet resolution | 80 x 120 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 8 m |
| Viewing angle | 140 H / 130 V |
| Maximum power consumption | 532 W |
| Average power consumption | 212 W |
| Power supply | AC 200-230 V |
| Chassis | Painted metal |
| Access | Rear |
| Scanning | 1/5 |
| Protection rating | Front IP65 / Rear IP54 |
| Operating temperature | -20 / +45 |
| Operating humidity | 10-90 |
| Gray scale | 14-16 bits |
| Net weight | 9.9 kg |
| Cabinet dimensions | 640 x 960 x 140 mm |
| Packaging dimensions | 730 x 740 x 155 mm |
| Software | Included, multilingual |
| Connectivity | LAN TCP/IP USB options Wi-Fi 3G 4G Cosmi Server optional |
Scenarios of use

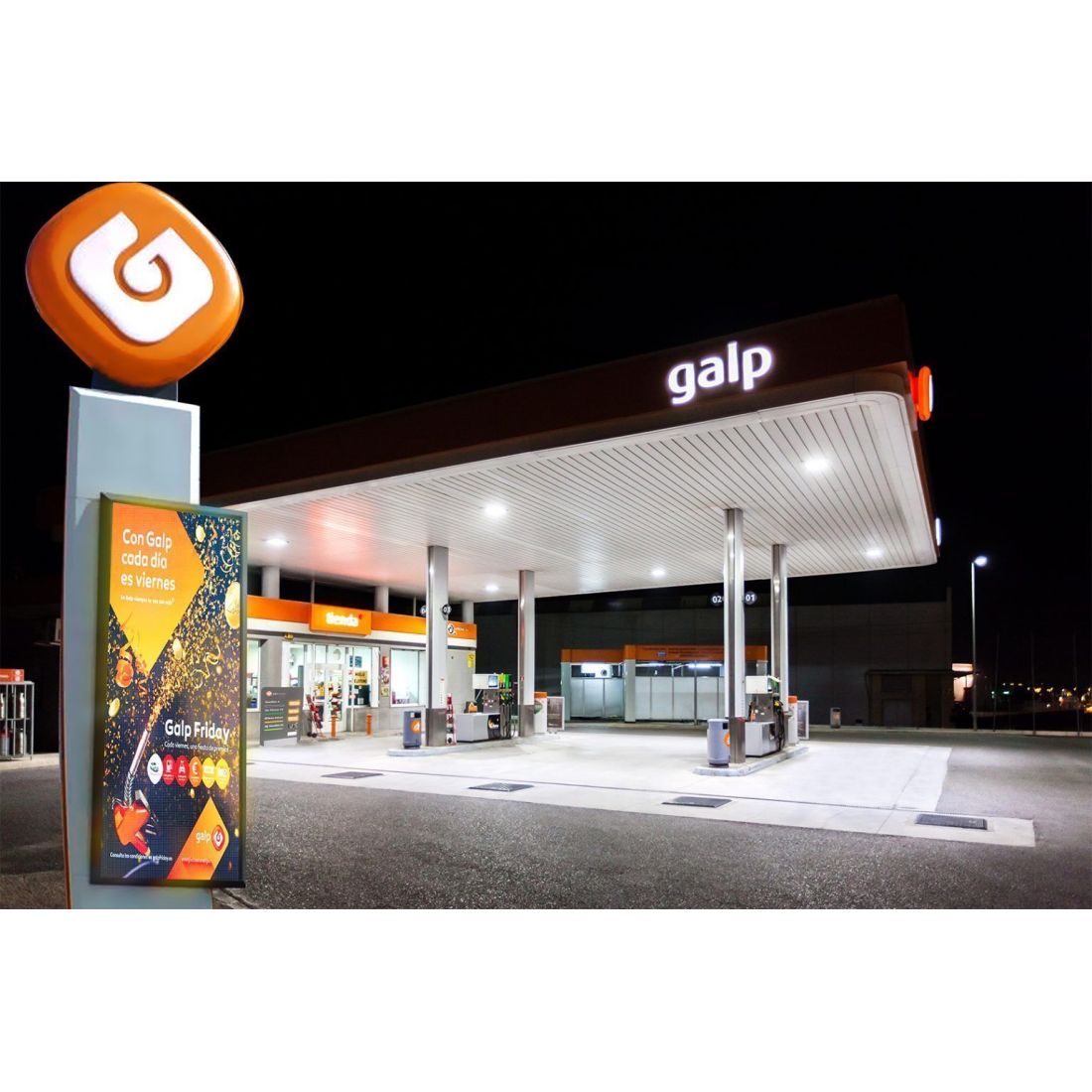

- Facades and entrances with outdoor promotional communication
- Outdoor events and installations

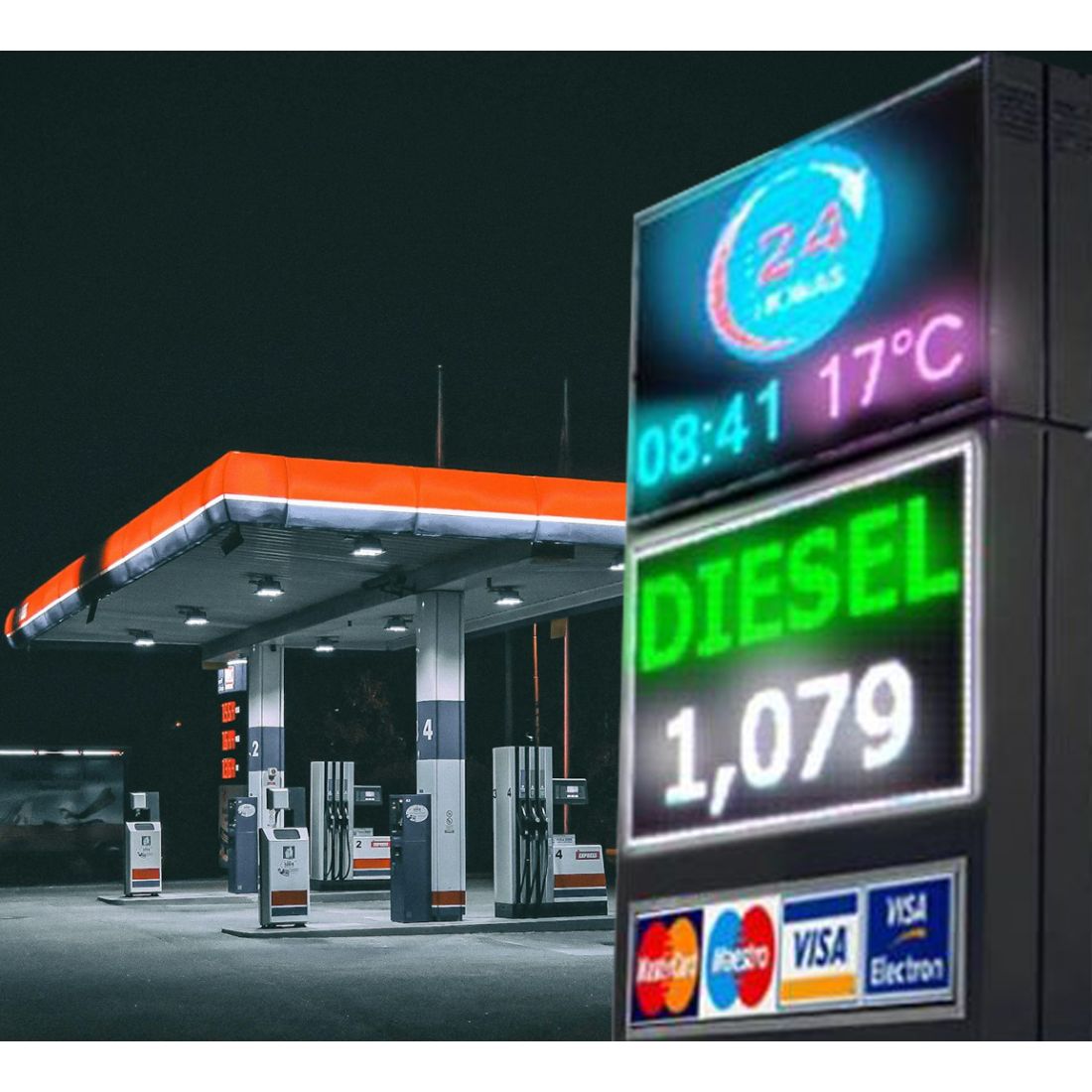

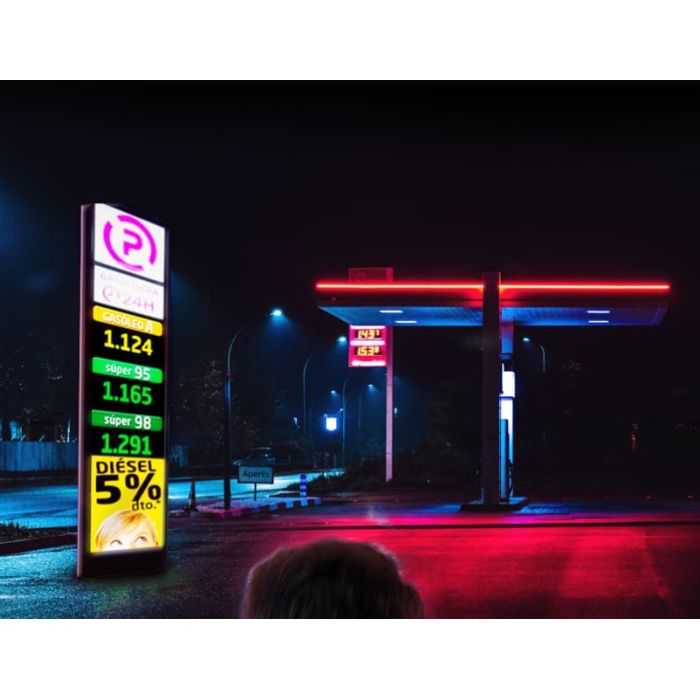

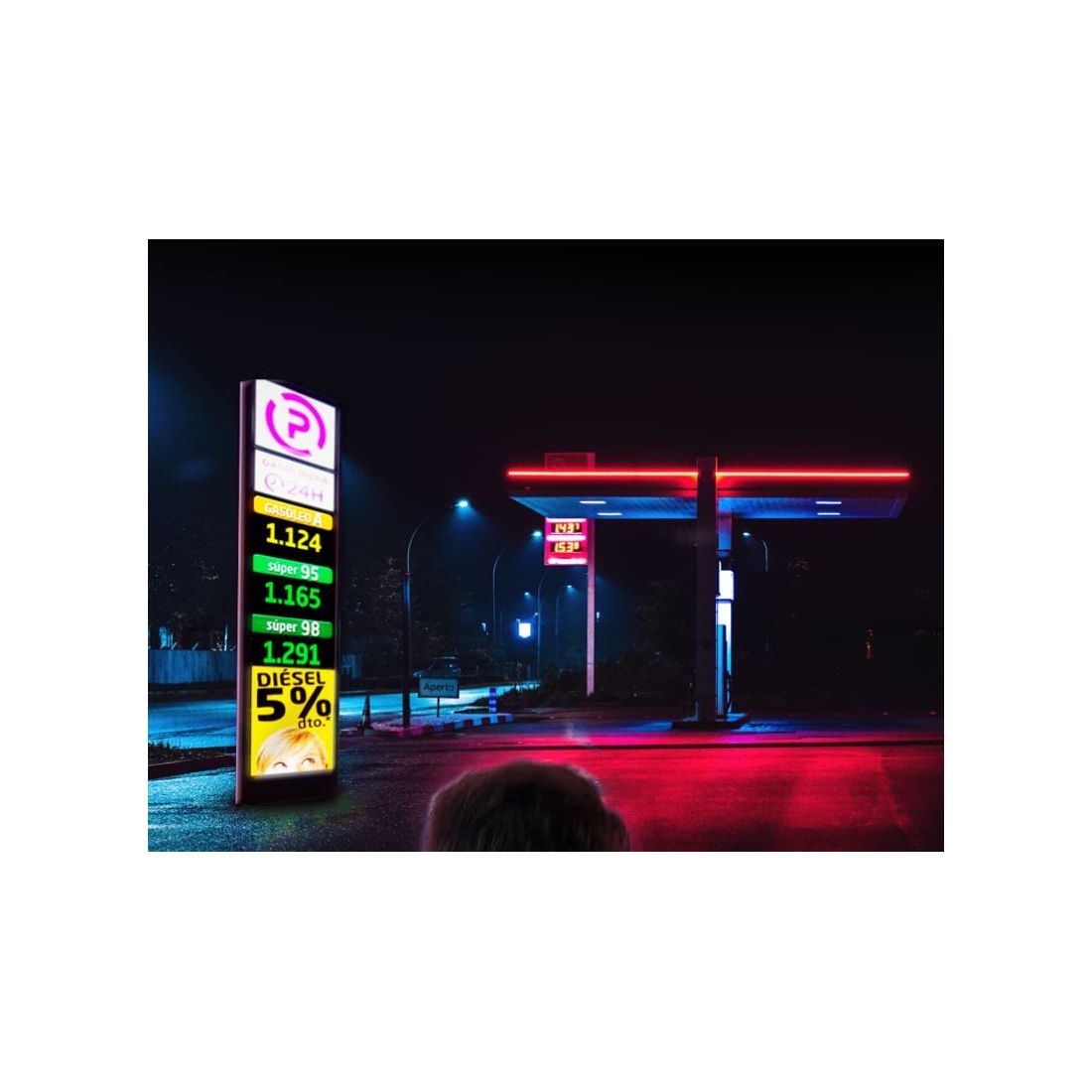

- Dynamic signage for public facilities and areas
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 8.0mm
- Grado Protezione IP
- IP65
8056666282238
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
