LED display P8 Smart Cosmi Full Color outdoor 96x64 cm 5500 nits IP65
€2,150.00
MN000770
8056666282245
P8 Smart Cosmi Full Color LED display for outdoor use in 96x64 cm format with front and rear openings. High brightness 5000-5500 nits and IP65 front and IP54 rear protection for outdoor installations. 1920Hz refresh rate and 140H 130V viewing angle for readable content. Supports text, video, images, pictograms, date, time, and temperature, and remote control via optional Cosmi Server. TCP IP connectivity and USB memory with Wi-Fi and 3G 4G options. Mandatory outdoor mounting in horizontal position with maximum inclination of 15 degrees.

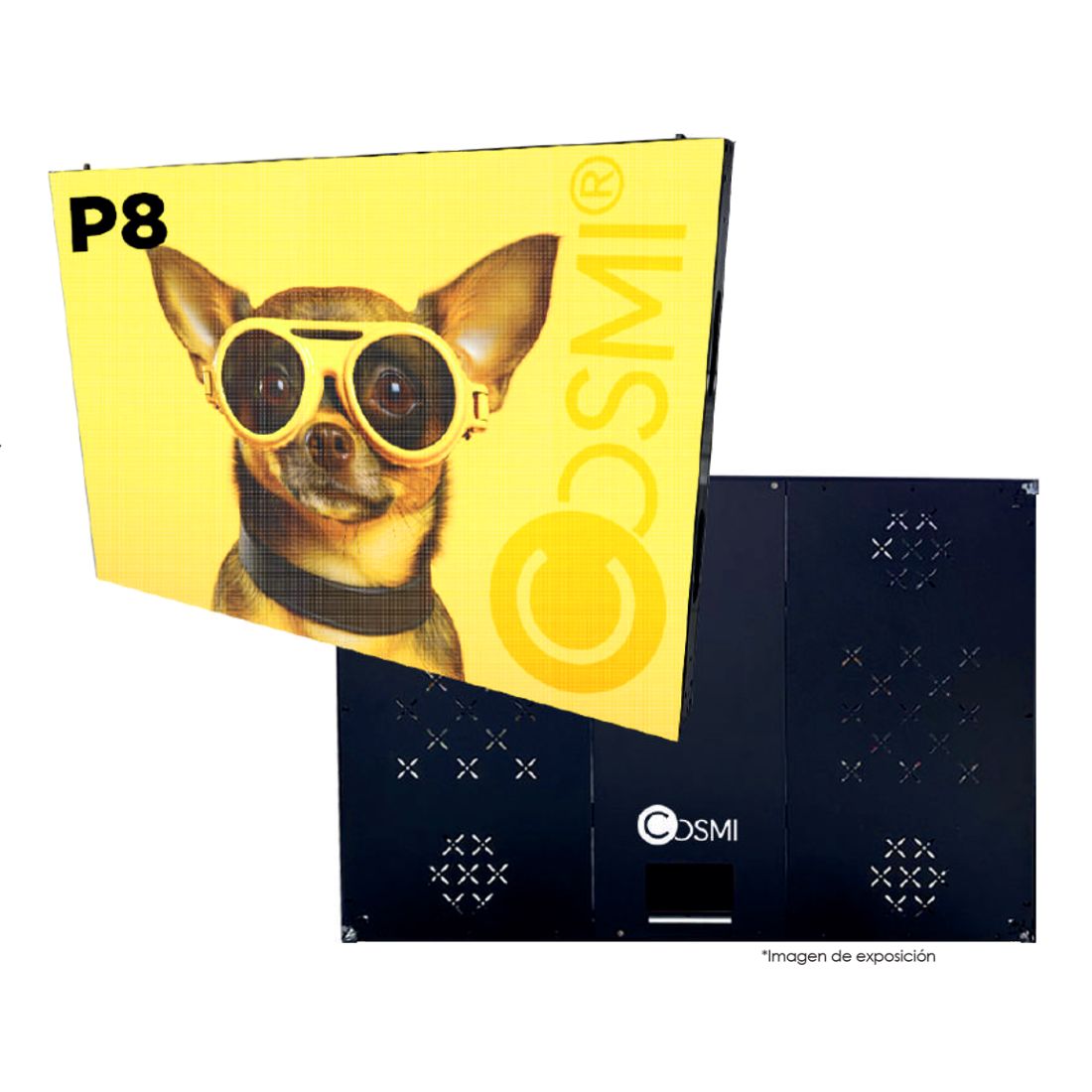

P8 Smart Cosmi Full Color outdoor LED display 96x64 cm 5500 nits IP65
New generation P8 Smart Cosmi Full Color LED screen for outdoor use. Size 96x64 cm and high brightness 5000-5500 nits for maximum visibility. Front and rear opening for more flexible installation and maintenance.
Key features
- Outdoor use with IP65 front and IP54 rear protection
- Brightness 5000-5500 nits
- Refresh rate 1920Hz and viewing angle 140H 130V
- Front and rear opening
- Size 96x64 cm
Content management and connectivity
- Content: text, video, images, pictograms, date, time, temperature
- Connections: TCP/IP network cable and USB memory
- Options: Wi-Fi, 3G, 4G, optional Cosmi Server
- Options: optional brightness sensor and temperature sensor
Installation notes
- Must be mounted horizontally when installed outdoors
- Maximum tilt allowed 15 degrees forward or backward
- Do not obstruct the air inlets and outlets of the frame
- Avoid impacts and deformations that could damage the chassis and LED modules
Technical specifications
| Brand | Cosmi |
|---|---|
| Category | LED display |
| Use | Outdoor |
| Model | P8 Smart Full Color LED Display |
| Pixel pitch | 8 mm P8 |
| Refresh | 1920 Hz |
| Cabinet resolution | 120 x 80 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 8 m |
| Viewing angle | 140 H / 130 V |
| Maximum power consumption | 532 W |
| Average power consumption | 212 W |
| Power supply | AC 200-230 V |
| Chassis | Oven-baked metal |
| Front | Front and rear |
| Scanning | 1/5 |
| Protection rating | Front IP65 / Rear IP54 |
| Operating temperature | -20 / +45 |
| Operating humidity | 10-90 |
| Gray scale | 14-16 bits |
| Net weight | 22.8 kg |
| Cabinet dimensions | 960 x 640 x 76 mm |
| Packaging dimensions | 1035 x 715 x 150 mm |
| Software | Included, multilingual |
| Connectivity | TCP/IP USB options Wi-Fi 3G 4G Cosmi Server optional |
Scenarios of use
- Outdoor promotional communication on facades and entrances
- Outdoor events and installations
- Dynamic signage for public facilities and areas
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 8.0mm
- Grado Protezione IP
- IP65
8056666282245
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
