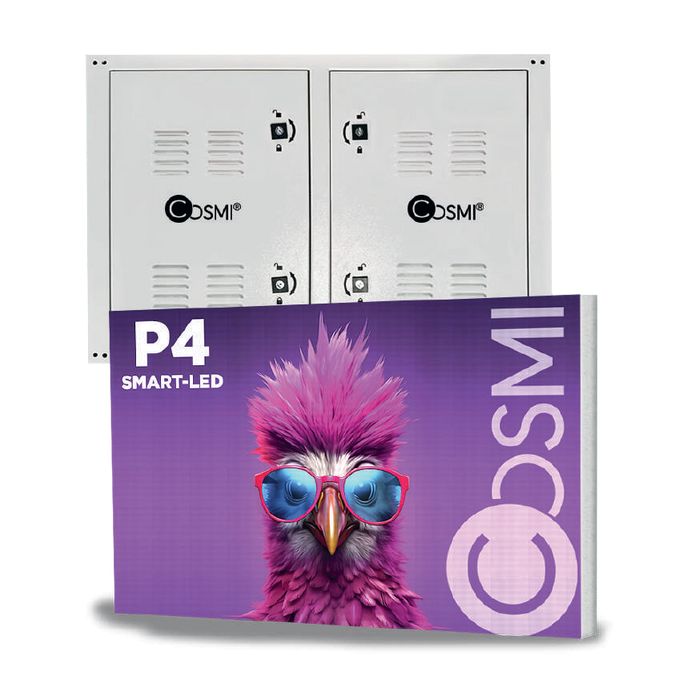

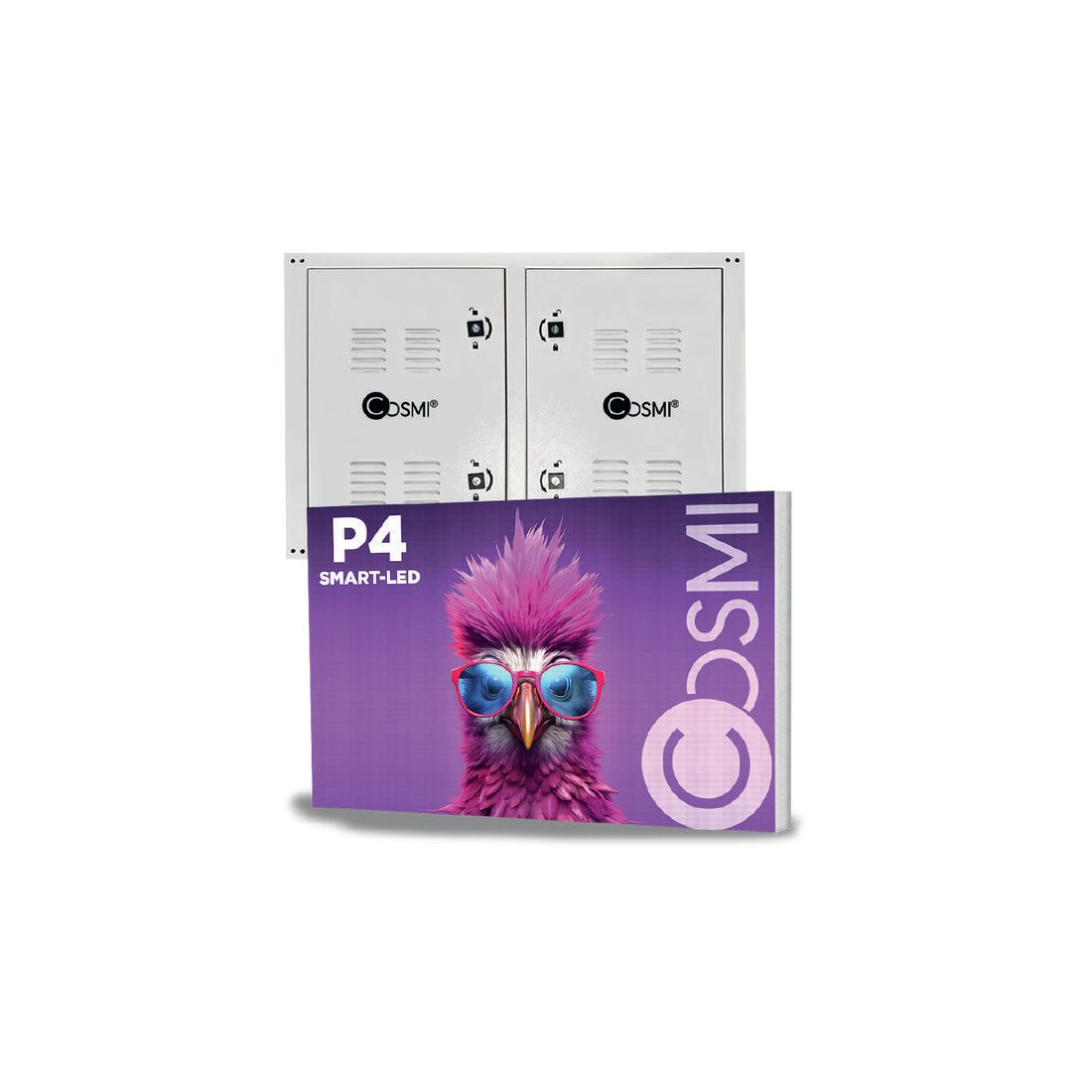

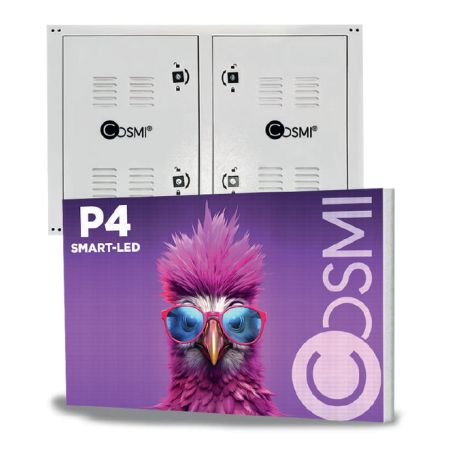

P4 LED display SmartLED Cosmi Full Color outdoor 96x64 cm 5500 nits IP65
€2,655.00
MN000762
8056666282160
Cosmi SmartLED P4 Full-Color LED Display for outdoor use featuring a new-generation 7680Hz refresh rate. Dimensions: 96x64 cm, with a RAL7035-painted metal chassis and front and rear access for installation and maintenance. High brightness: 5000–5500 nits, with IP65 front protection and IP54 rear protection for outdoor use. Resolution of 240 x 160 px per cabinet and high-definition images for dynamic communication. Content includes text, video, images, pictograms, date, time, and temperature. Multilingual software included and remote control with optional Cosmi Server. TCP/IP connectivity and USB memory with Wi-Fi and 3G/4G options.
Cosmi SmartLED P4 Full-Color Outdoor LED Display, 96x64 cm, 5500 nits, IP65
P4 SmartLED Cosmi Full Color LED Display for outdoor use. A new generation of Full Color screens with a 7680Hz refresh rate, designed to ensure excellent visibility, durability, and versatility outdoors. Supports dynamic content for promotional and informational communication on building facades, entrances, public areas, and events.
Key Features
- High brightness 5000 / 5500 nits for outdoor visibility
- Front protection IP65, rear IP54
- 7680Hz refresh rate for smooth images
- Front and rear access for maintenance and installation
- Content: text, video, images, pictograms, date, time, temperature
Content management and connectivity
- Multilingual software included
- Connections: TCP/IP, network cable, and USB drive
- Options: Wi-Fi, 3G, 4G, and optional Cosmi Server for remote control
Installation notes
- Horizontal mounting required when installed outdoors
- Maximum allowed tilt: 15 degrees forward or backward
- Do not block the chassis’s air intakes and outlets
- Avoid impacts and deformations that could damage the chassis and LED boards
Technical Specifications
| Brand | Cosmi |
|---|---|
| Category | LED Display |
| Use | Outdoor |
| Model | P4 SmartLED Outdoor Screen |
| LED | SMD |
| Pixel pitch | 4 mm P4 |
| Frequency | 7680 Hz |
| Cabinet resolution | 240 x 160 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 4 m |
| Viewing angle | 140 H / 130 V |
| Maximum power | 558 W |
| Average power consumption | 223 W |
| Power supply | AC 200–230 V |
| Chassis | Metal painted RAL7035 |
| Opening | Front and rear |
| Scanning | 1/10 |
| Protection rating | Front IP65 / Rear IP54 |
| Operating temperature | -20 / +45 |
| Operating humidity | 10–90 |
| Grayscale | 14–16 bits |
| Net weight | 26.7 kg |

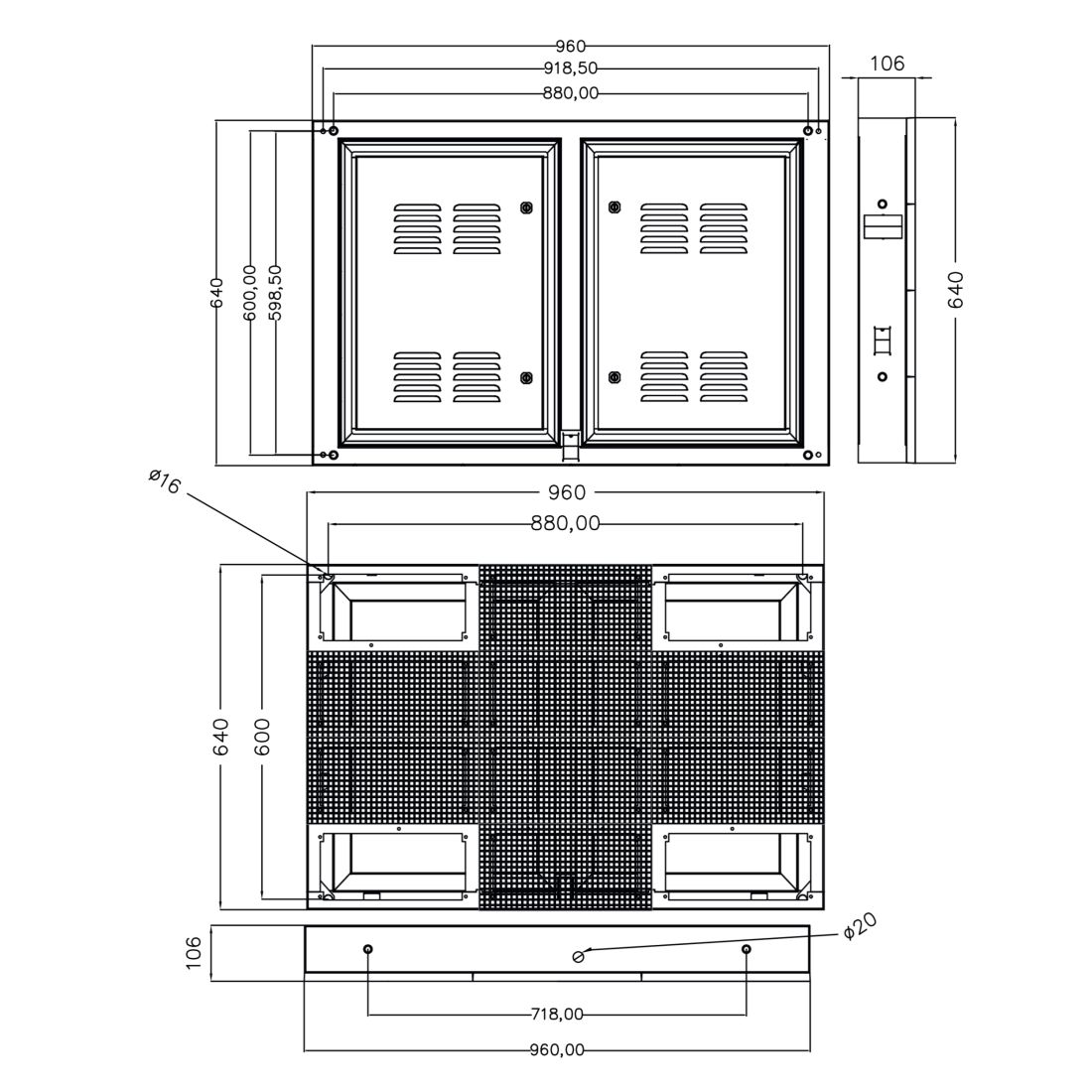

| Cabinet dimensions | 960 x 640 x 140 mm |
| Packaging dimensions | 1035 x 715 x 195 mm |
| Connectivity | TCP/IP, USB, optional Wi-Fi, 3G, 4G, optional Cosmi Server |
| Software | Included, multilingual |
Use Cases
- Digital signage for facades and entrances with dynamic content
- Retail and street-level businesses for promotions and informational messages
- Outdoor events with real-time updates
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 4 mm
- Grado Protezione IP
- IP65
8056666282160
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
