ARIES X P4 double-sided LED flag sign, outdoor, programmable, IP65, 102x102 cm, COSMI
€5,495.00
MN000776
8056666282306

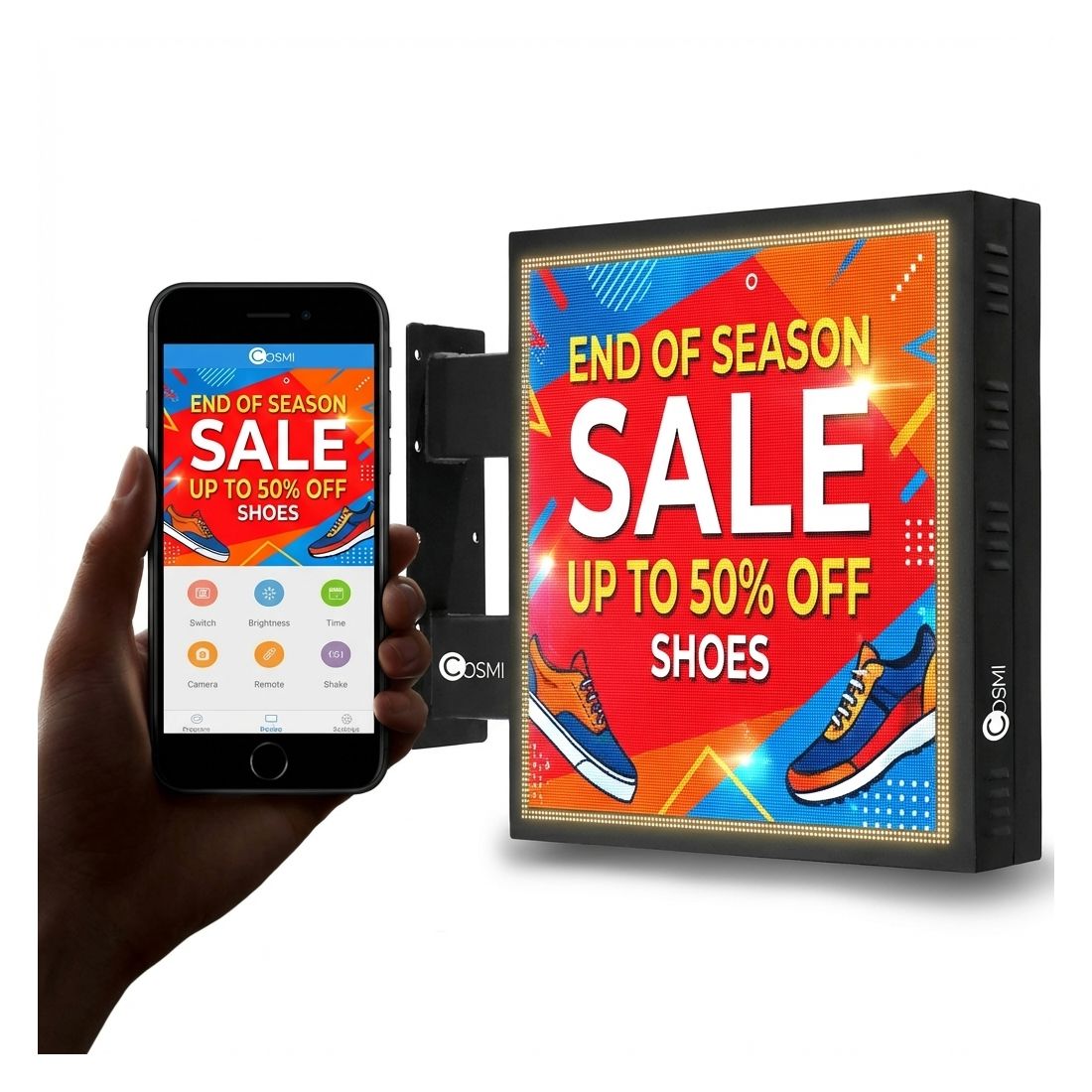

ARIES P4 X Cosmi Full Color outdoor double-sided flag sign, fully waterproof. Size 102x102 cm with 4 mm pitch and 240 x 240 px resolution per cabinet for color content such as special offers, videos, images, and text. High brightness 5000-5500 nits and IP65 protection for maximum visibility on the road. Multilingual software included with programmable content and remote control via optional Cosmi Server. TCP/IP connectivity and USB memory with Wi-Fi and 3G/4G options and optional sensors. Tie rods and downward ventilation are mandatory.
ARIES P4X Cosmi Full Color double-sided outdoor banner sign 102x102 cm 5500 nits IP65

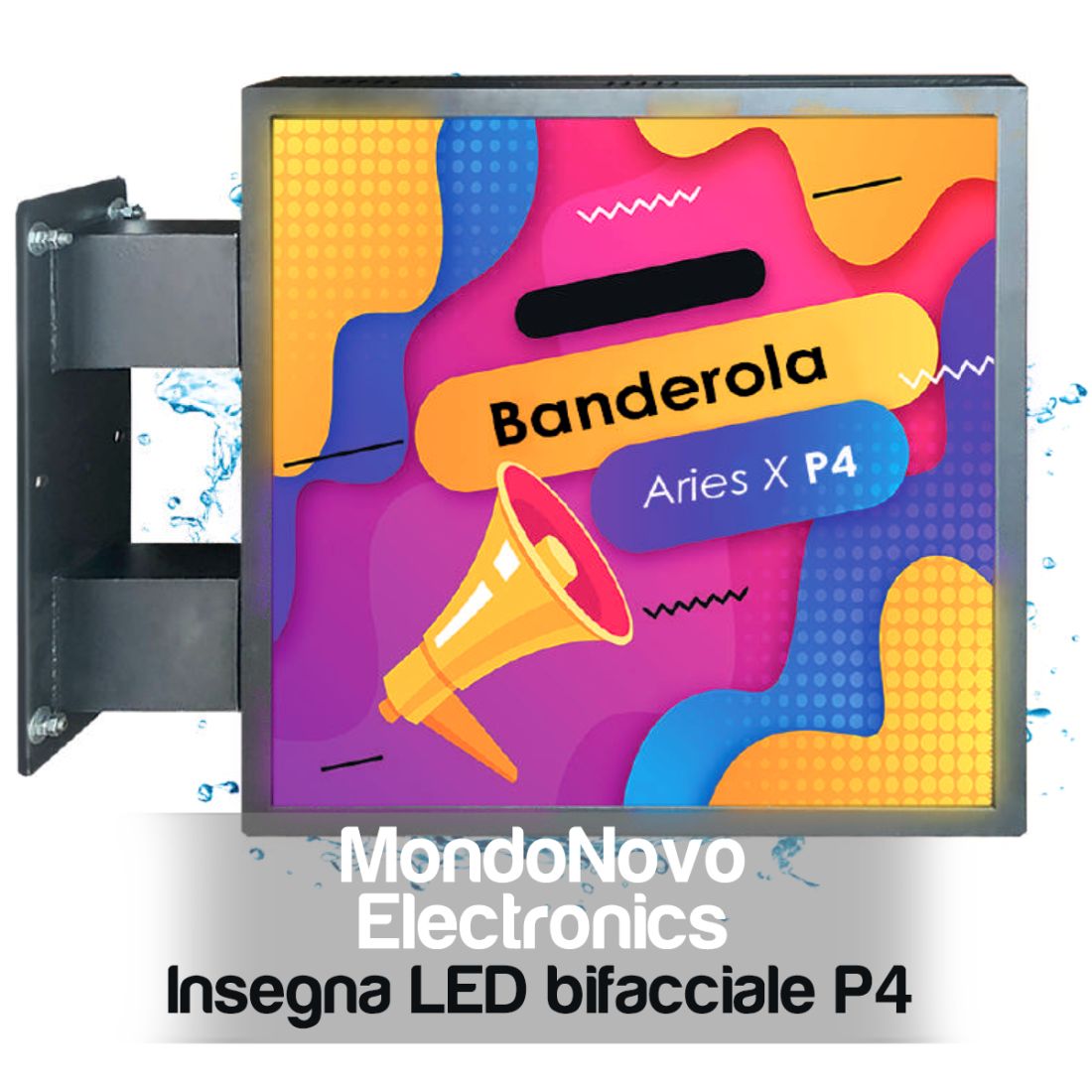

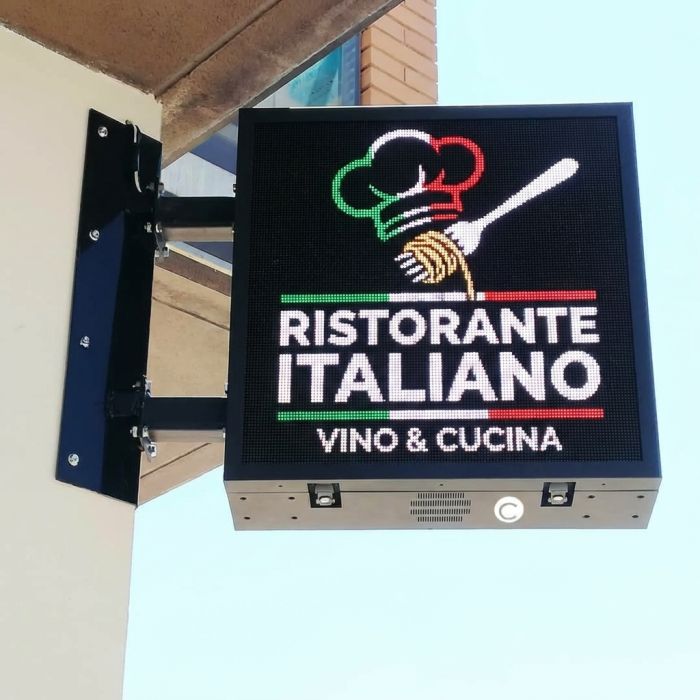

ARIES P4X Cosmi Full Color double-sided LED flag sign for outdoor installation. Square version measuring 102x102 cm and double-sided, completely waterproof for maximum visibility on the street. Suitable for shops and businesses that want to display dynamic color content such as special offers, videos, and images.
Key features
- Double-sided for communication visible from both directions of travel
- IP65 protection and metal chassis
- Brightness 5000/5500 nits
- 4 mm P4 pitch and 240 x 240 px resolution per cabinet

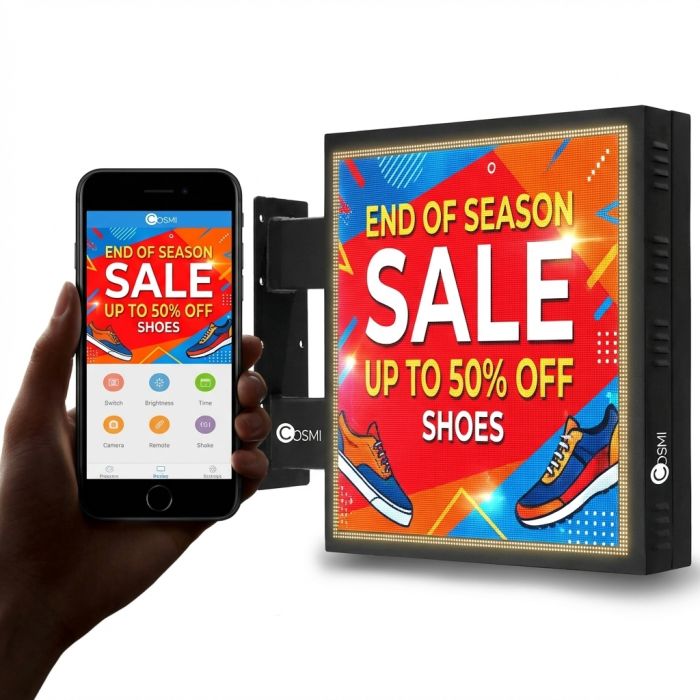

- Multilingual software and programmable content included
Content management and connectivity
- Content: text, video, images, time transitions, programming
- Connections: TCP/IP network cable and USB memory
- Options: Wi-Fi, 3G, 4G, and optional Cosmi Server for remote control
- Options: brightness sensor and optional temperature sensor

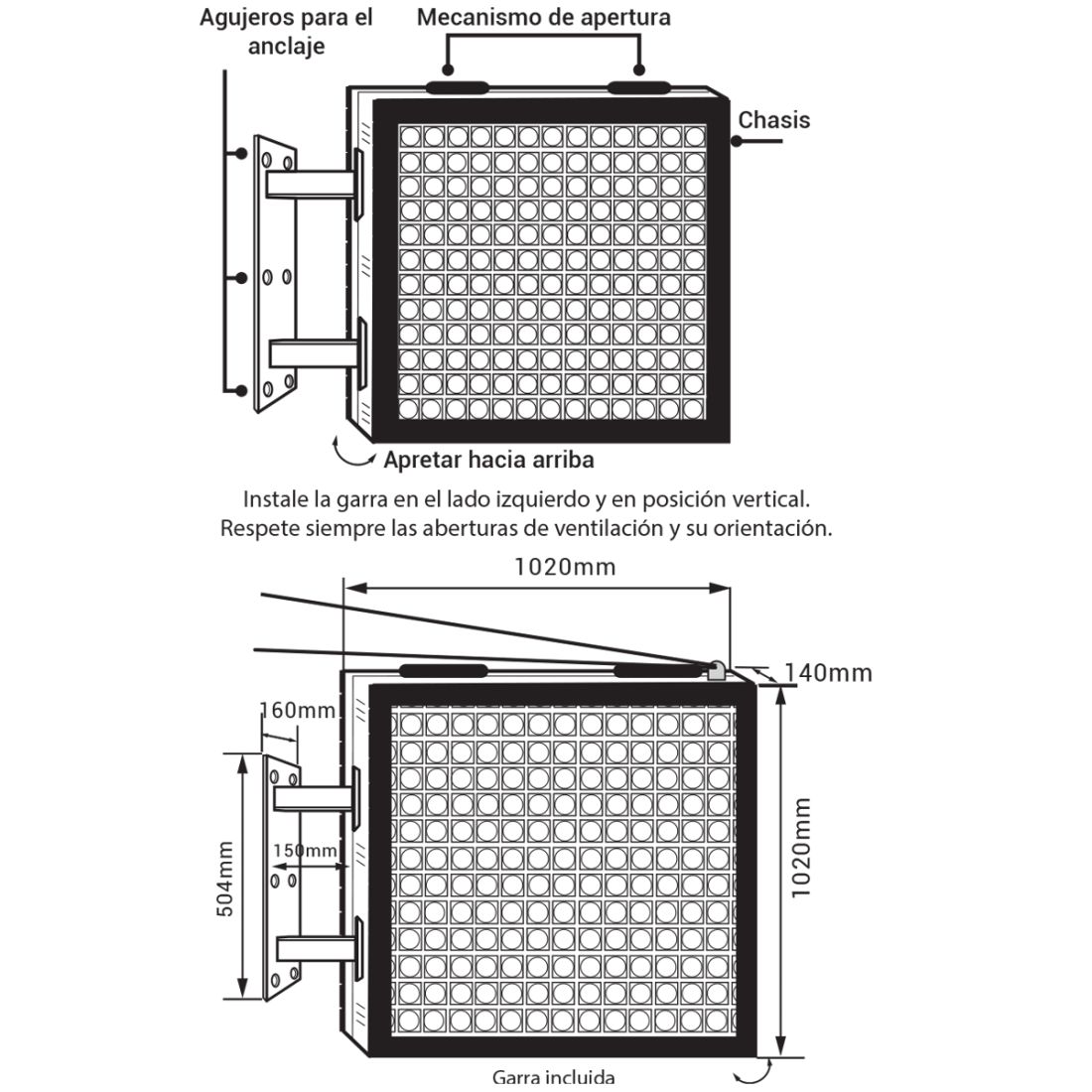

Installation notes
- Do not install with the ventilation holes facing upwards
- Install with the ventilation holes facing downwards
- The use of tie rods is mandatory
- The bracket can be installed on the left side and in a vertical position
- Avoid impacts and deformations that could damage the chassis and LED modules
Technical specifications
| Brand | Cosmi |
|---|---|
| Type | Double-sided LED banner sign |
| Use | Outdoor |
| Model | ARIES P4X Full Color |
| LED | SMD |
| Pixel pitch | 4 mm P4 |
| Resolution | 240 x 240 px per cabinet |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 4 m |
| Viewing angle | 140 H / 130 V |
| Maximum power | 1674 W |
| Average consumption | 670 W |
| Power supply | AC 200-230 V |
| Chassis | Metal |
| Protection rating | IP65 |
| Scanning | 1/10 |
| Double-sided | Yes |
| Operating temperature | -20 / +45 |
| Working humidity | 10-90 |
| Gray scale | 14-16 bits |
| Net weight | 58.5 kg |
| Weight with packaging | 63 kg |
| Product dimensions | 1020 x 1020 x 142 mm |
| Dimensions with packaging | 1095 x 1095 x 190 mm |
| Connectivity | TCP/IP USB memory Wi-Fi options 3G 4G Cosmi Server optional |
| Software | Included multilingual |
Usage scenarios

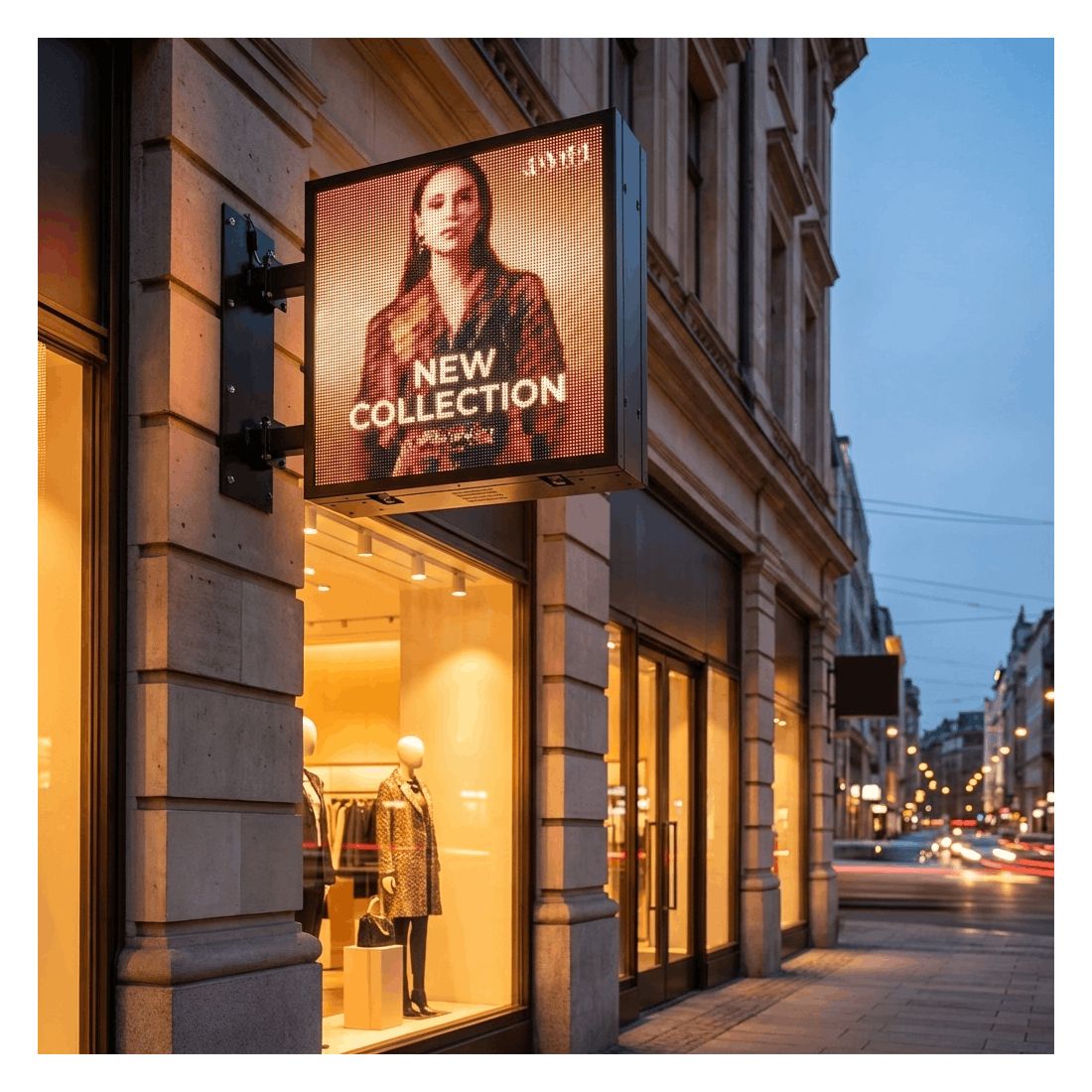

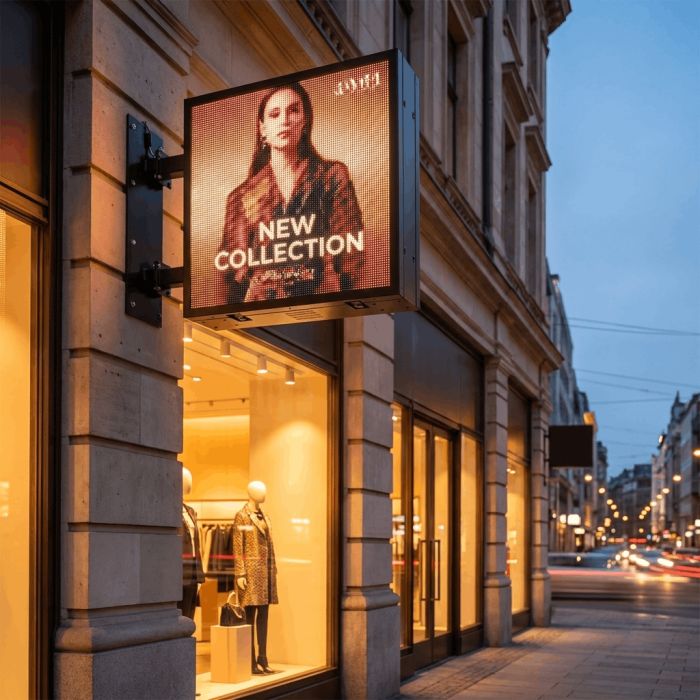

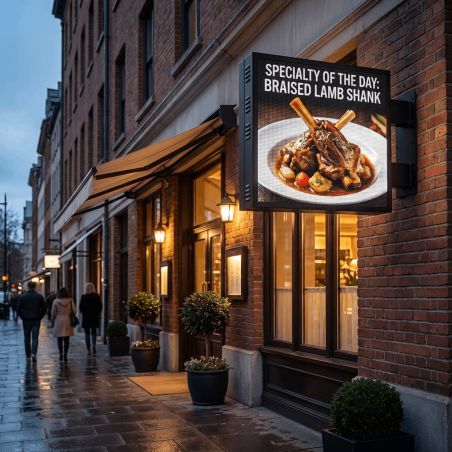

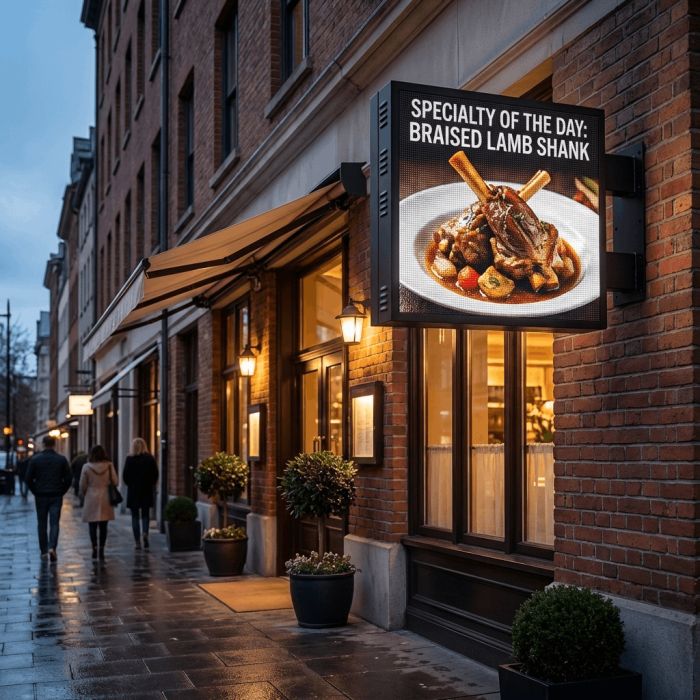

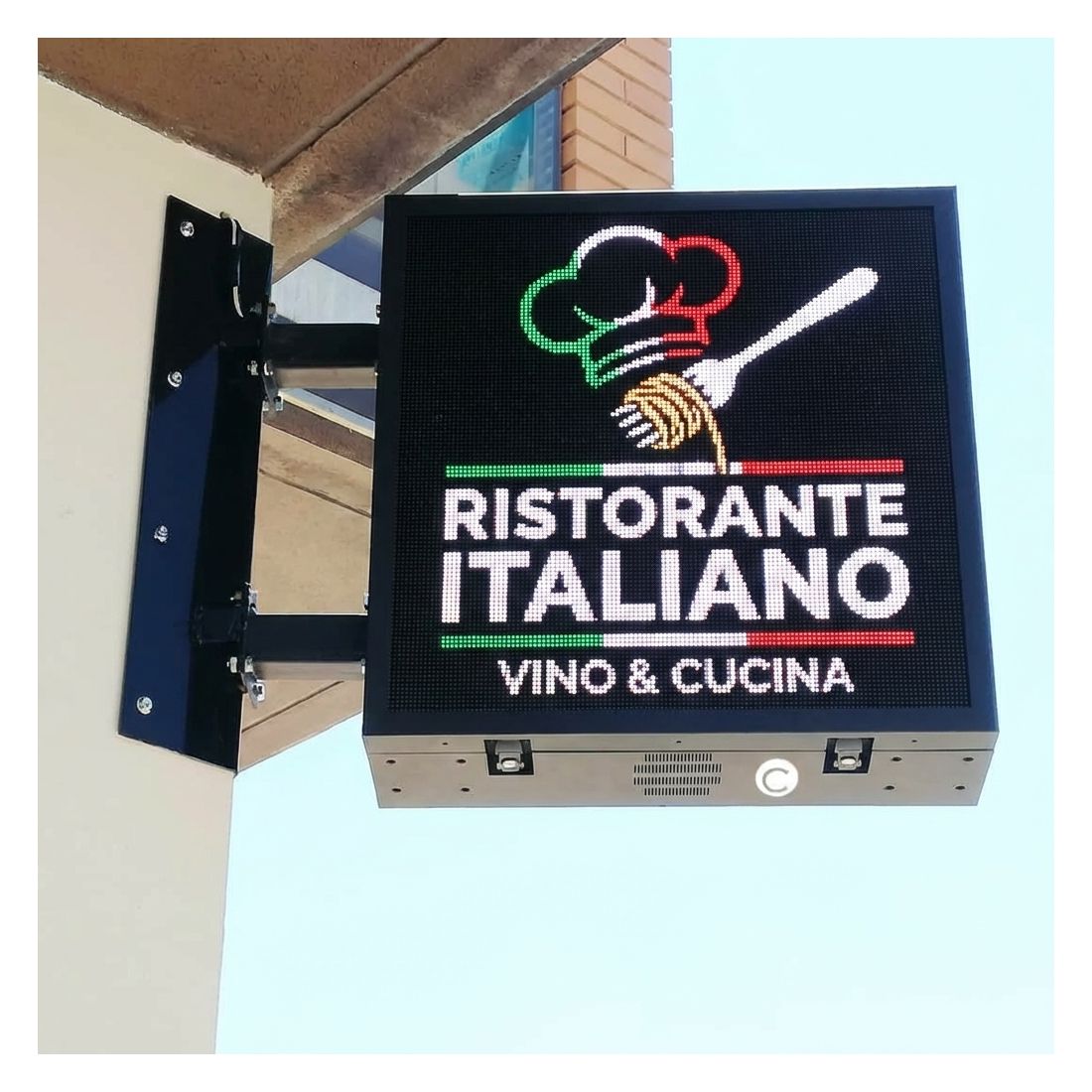

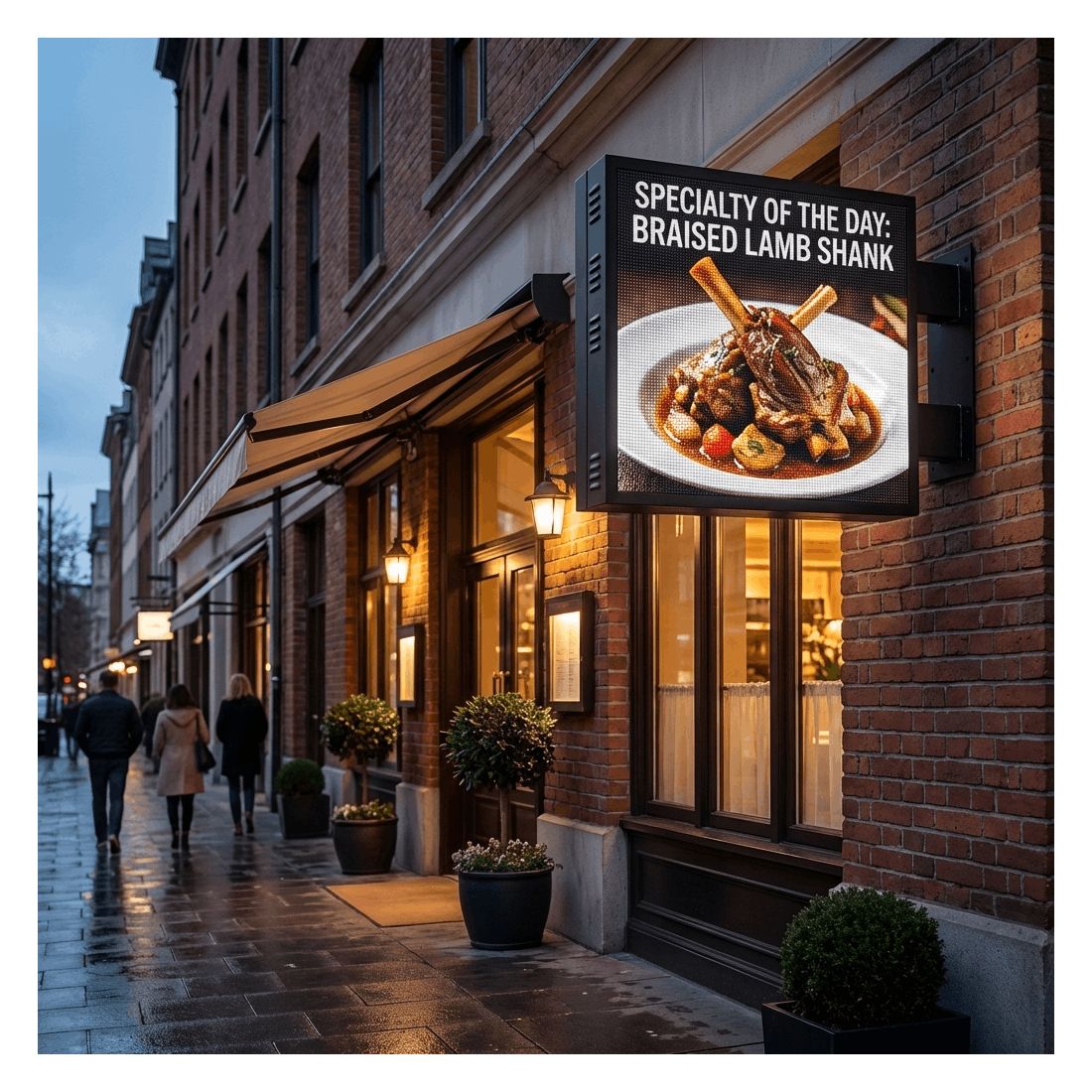

- Banner sign for street shops with dynamic content
- Promotions, offers, and hourly messages on double-sided signs
- Retail parks and shopping centers with visibility from a distance
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Double Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 4 mm
- Dimensions (mm)
- 1020x1020
- Grado Protezione IP
- IP65
- Tipologia insegna
- Bandiera
8056666282306
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
