Flat panel TV wall bracket, fix, grey

For more info, configurations, software applications and logistic call to   +39 377 5739345

Ask about price

Ask about product price

Flat panel TV wall bracket, fix, grey

Flat panel TV wall bracket, fix, grey


Please fill below informations. Customer service will contact with You soon as is possible.

*

* Required fields

Cancel or


Reference:
MN000390
Brand:
Add to wishlist
Description

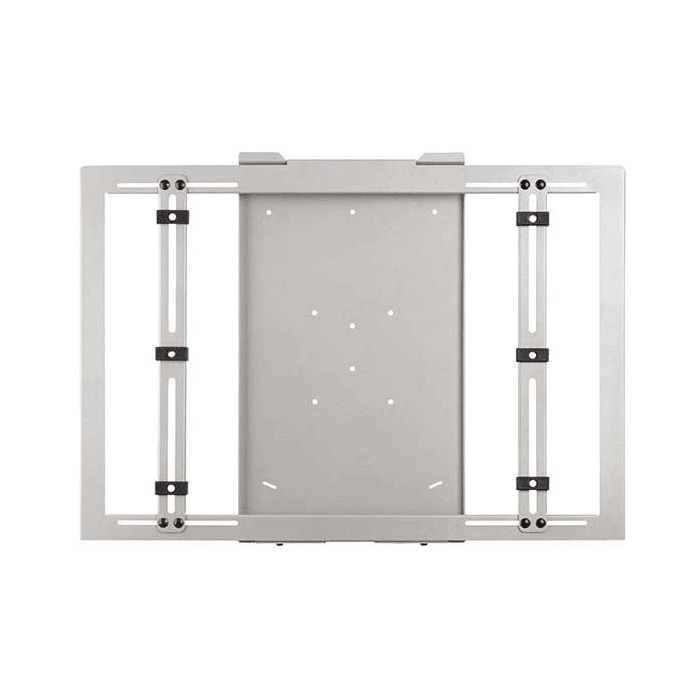

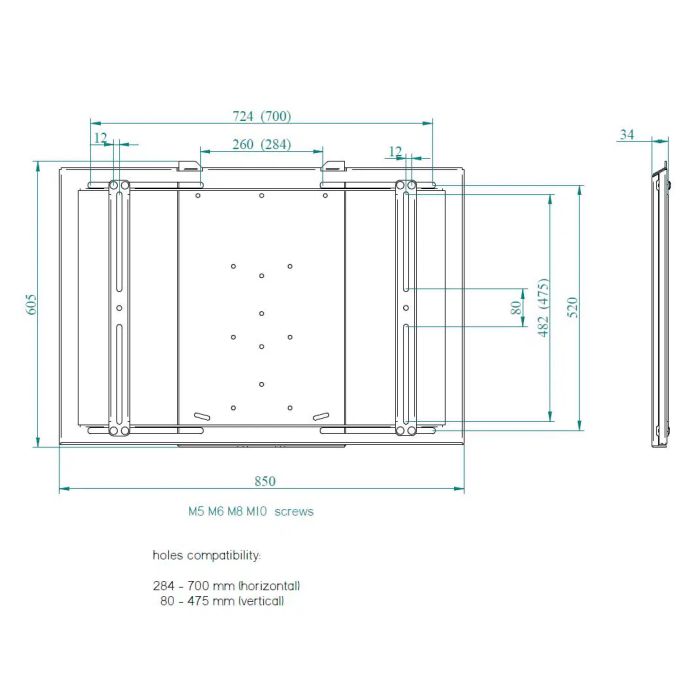

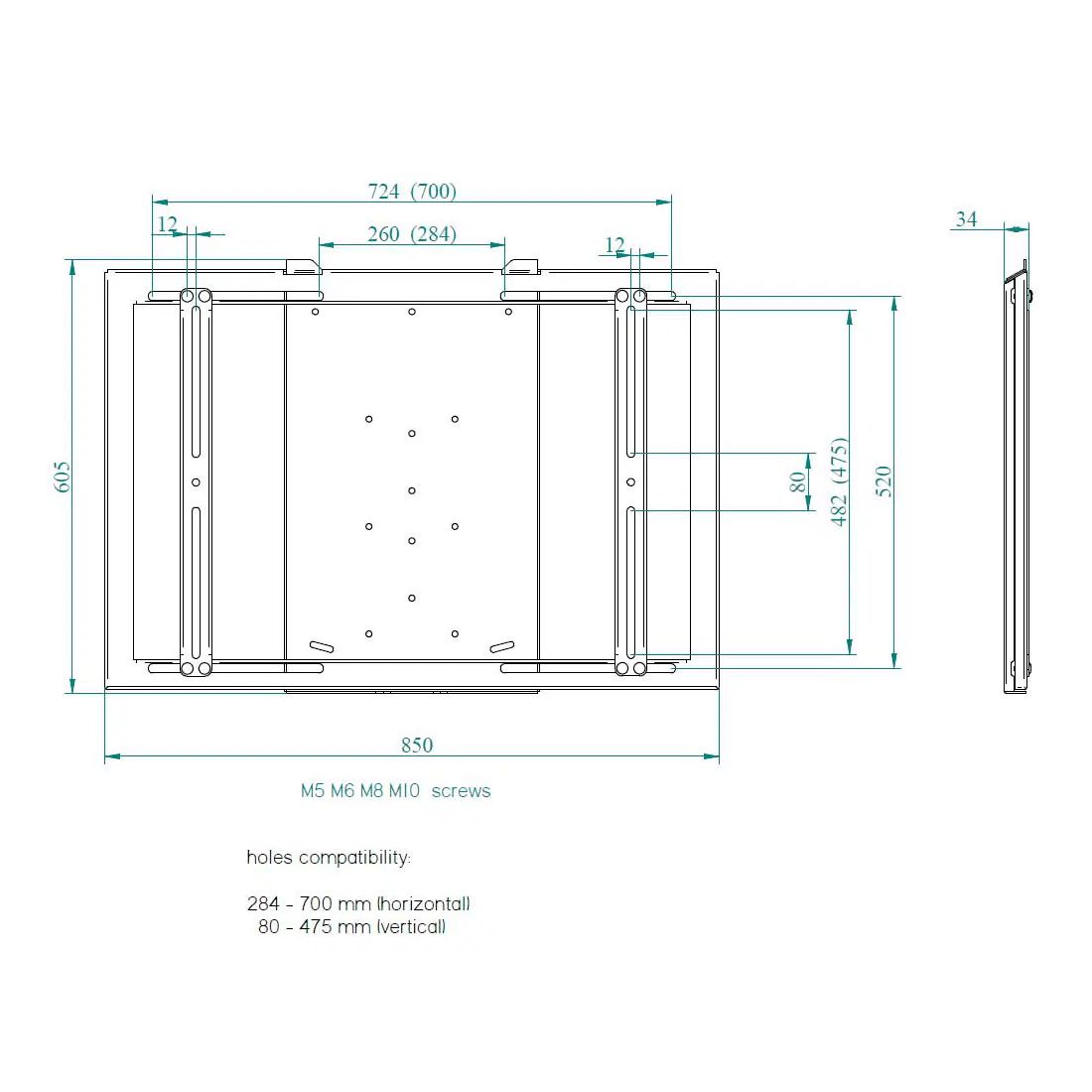

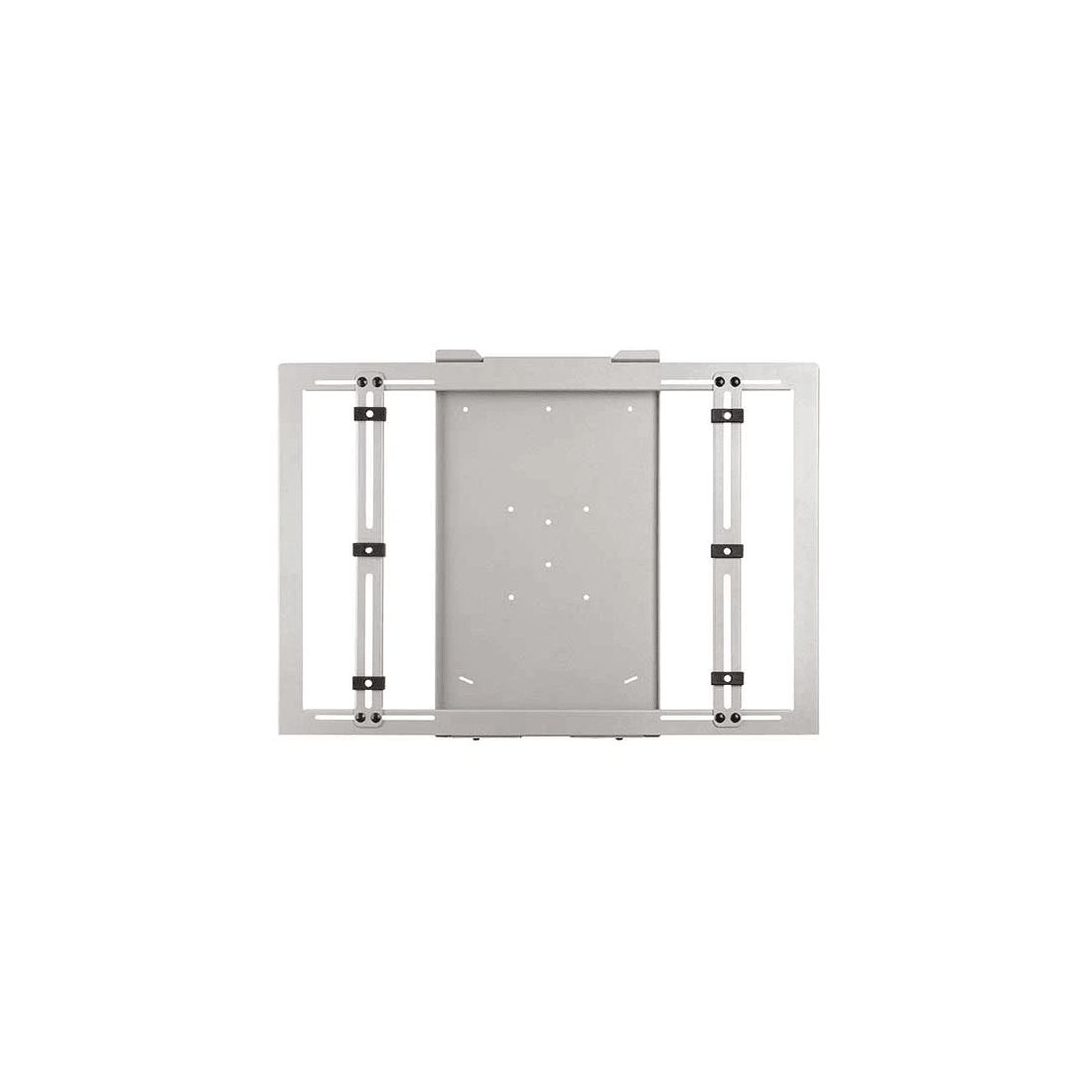

Fix Universal Plasma wall bracket, in steel plate. The bracket is composed of two plates: the first is to be fixed to the wall (365x605mm) and the other to the monitor (850x590mm). It is compatible with all models and brands of plasma (from 42” to 55”) thanks to the “sliding buttonholes system” that cover a horizontal 284-700mm distance and a 80-475mm vertical one. Thanks to that system after you have fixed the plasma you can centre it to hide the wall plate. The equipment includes 6 “jolly plates” with the hole or M5-M6-M8-M10 screws that centre the fixing screw to the plasma. The PVC insert grants the isolation of the bracket from the plasma. In the inferior part two security screws have been inserted to avoid attempts of stealing the plasma. Within the equipment 6 M5-M6-M8-M10 screws are also supplied. The time to assemble the plasma to the wall is 5 minutes.

NET WEIGHT

9,00 kg

CLOSED LENGTH

< 40mm

MAX LOAD

60 kg

THICKNESS

1,5/2 mm tubes – tubes

DIAGONAL OF THE MONITOR

42''-70''

MATERIAL

Fe

TREATMENTS

Grey

Product Details
MN000390

Data sheet

Type of Use
Indoor
Display supports
Wall Mounts

Settings
