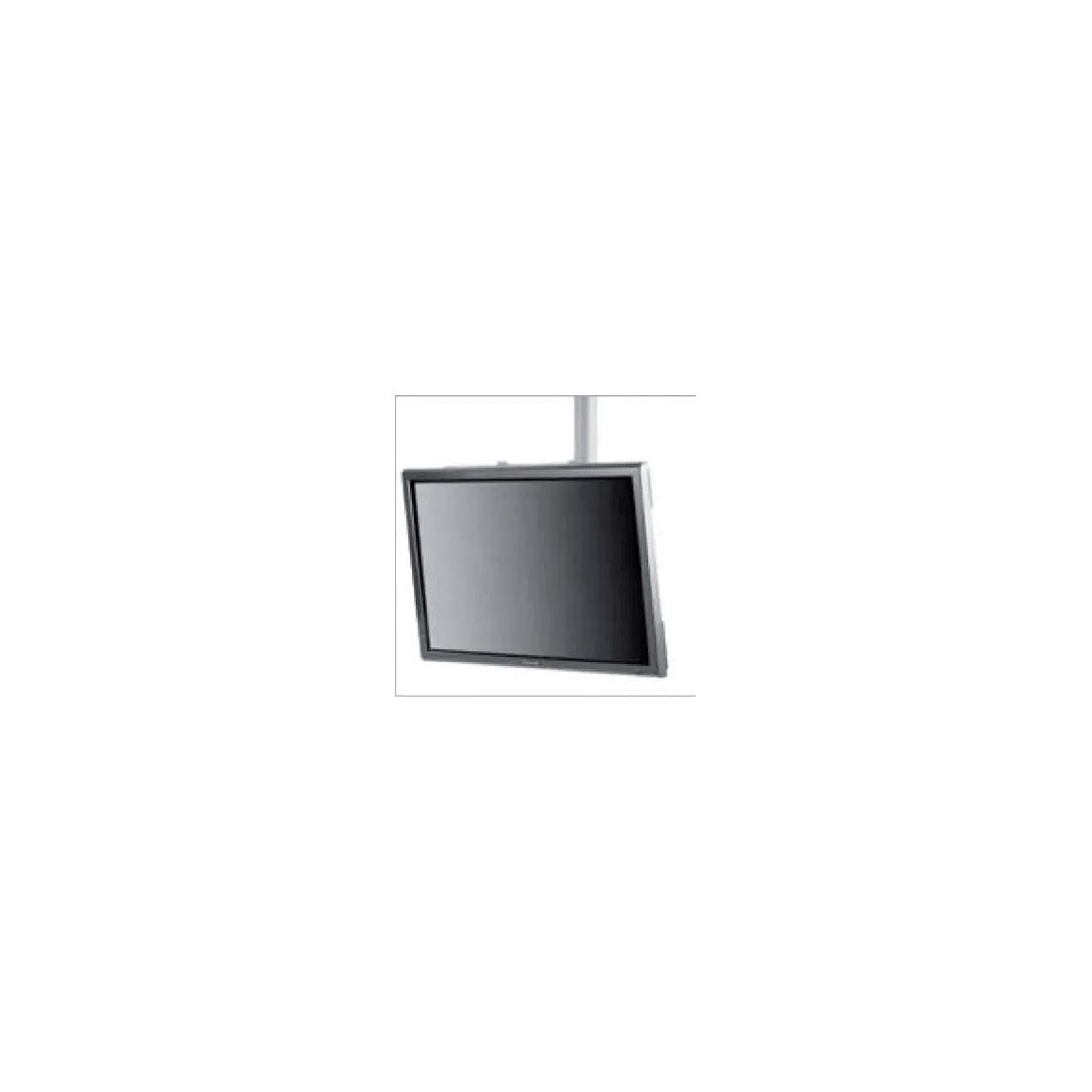

Ceiling mount for monitors up to 85”

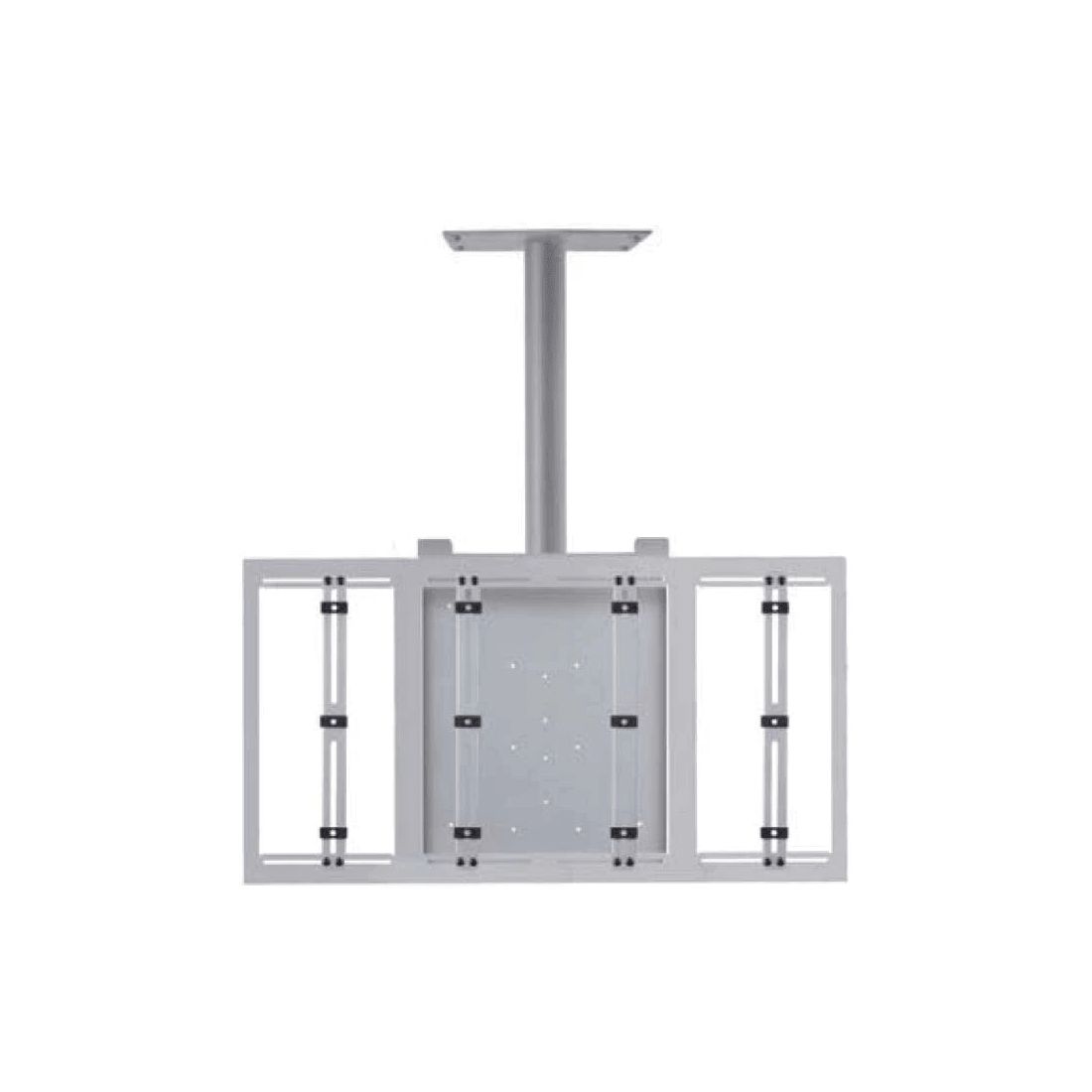

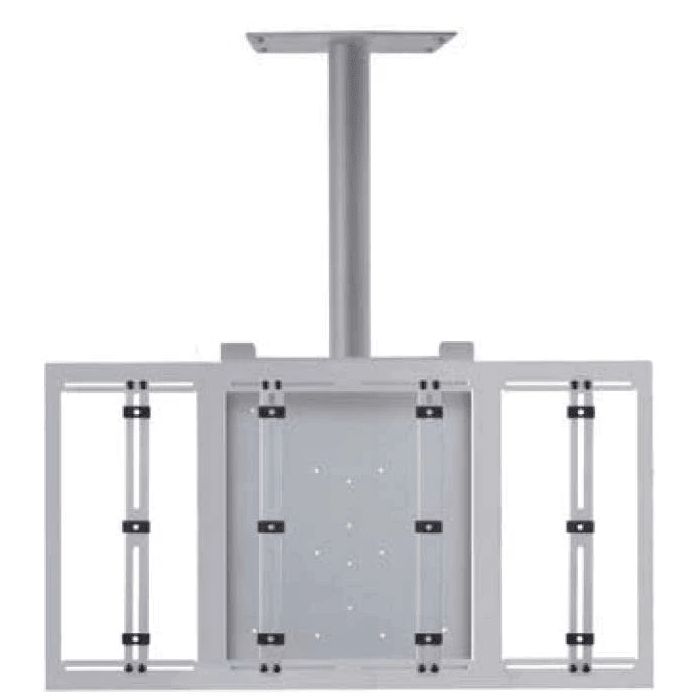

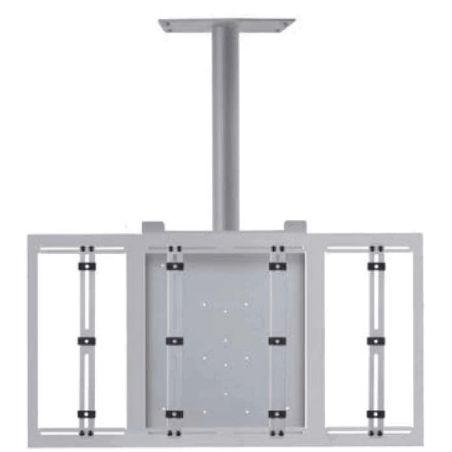

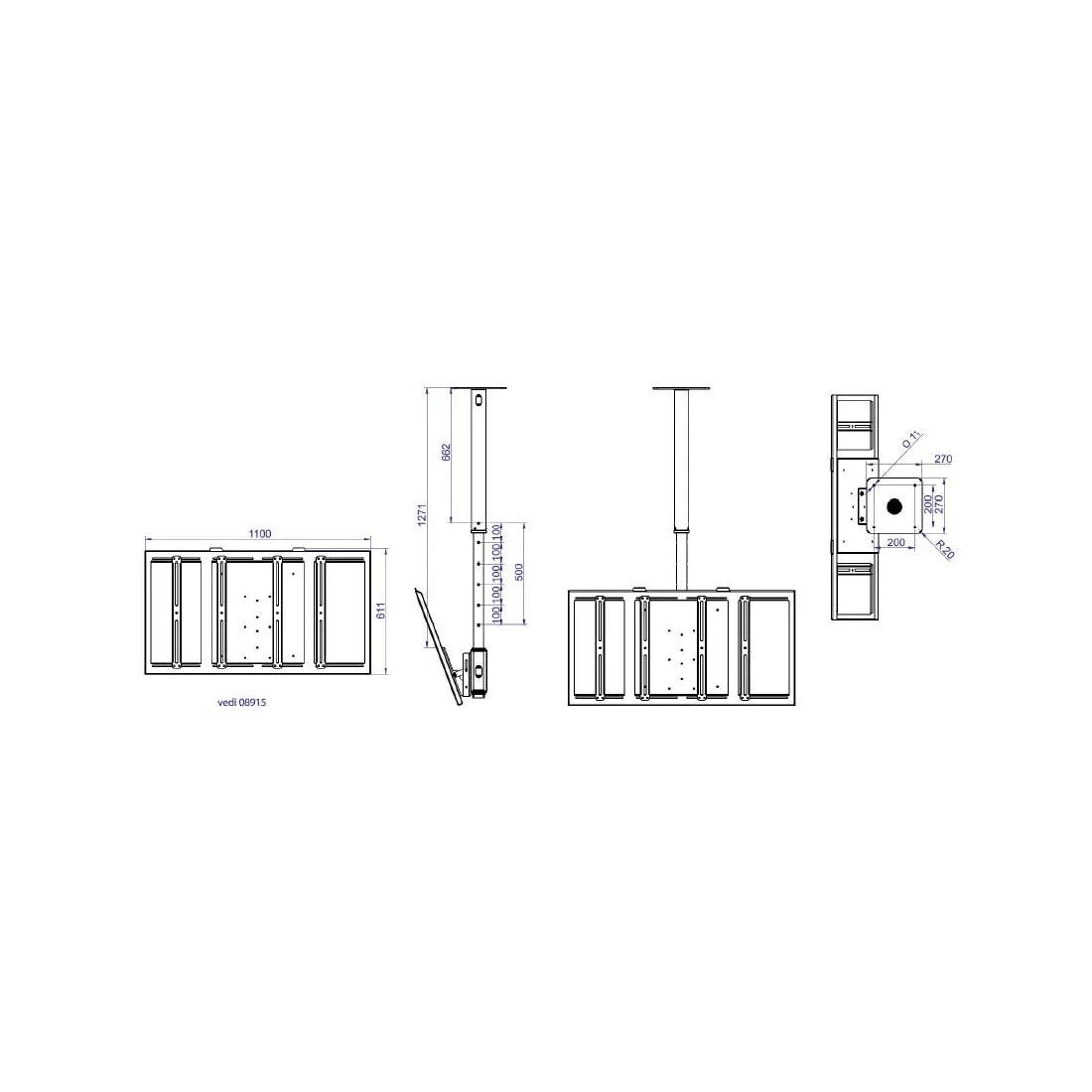

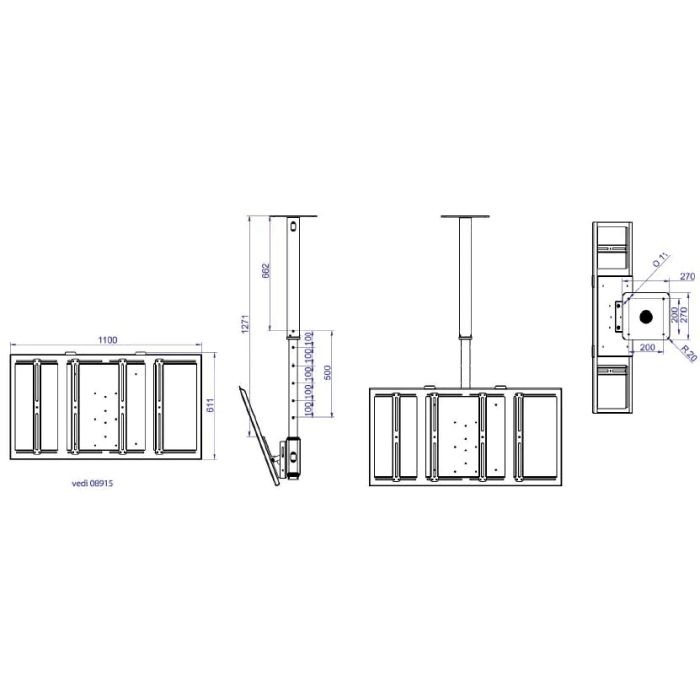

Universal ceiling mount for plasma monitors, in steel. The mount is made up of three elements: ceiling fixing system, controlled tilt system (Tilting System) and the “Maxi” frame. The ceiling fixing is done using the four Ø11mm holes provided on the square flange on the top of the column tube where the Tilting Systems is installed. This tilt system allows continuous adjustment of 20° downwards and 10° upwards, thanks to the hex key supplied. It is also possible to rotate the system on the vertical axis by 360°. The “Maxi” frame (1100x611mm) equipped with the sliding slot system has been designed to allow compatibility with large monitors. In fact, it is compatible with holes with 74-406mm and 594-1000mm interaxis horizontally and 80-465mm vertically. The average line of the monitor can be adjusted to a distance from the ceiling that varies from 75cm to 125cm in 10cm steps thanks to the telescopic tube. The use of the two M6 safety screws at the base of each sheet metal frame is essential for the correct functioning of the support. There are slots on the tubes for the passage of cables inside the support. Assembly time: 5 minutes.
