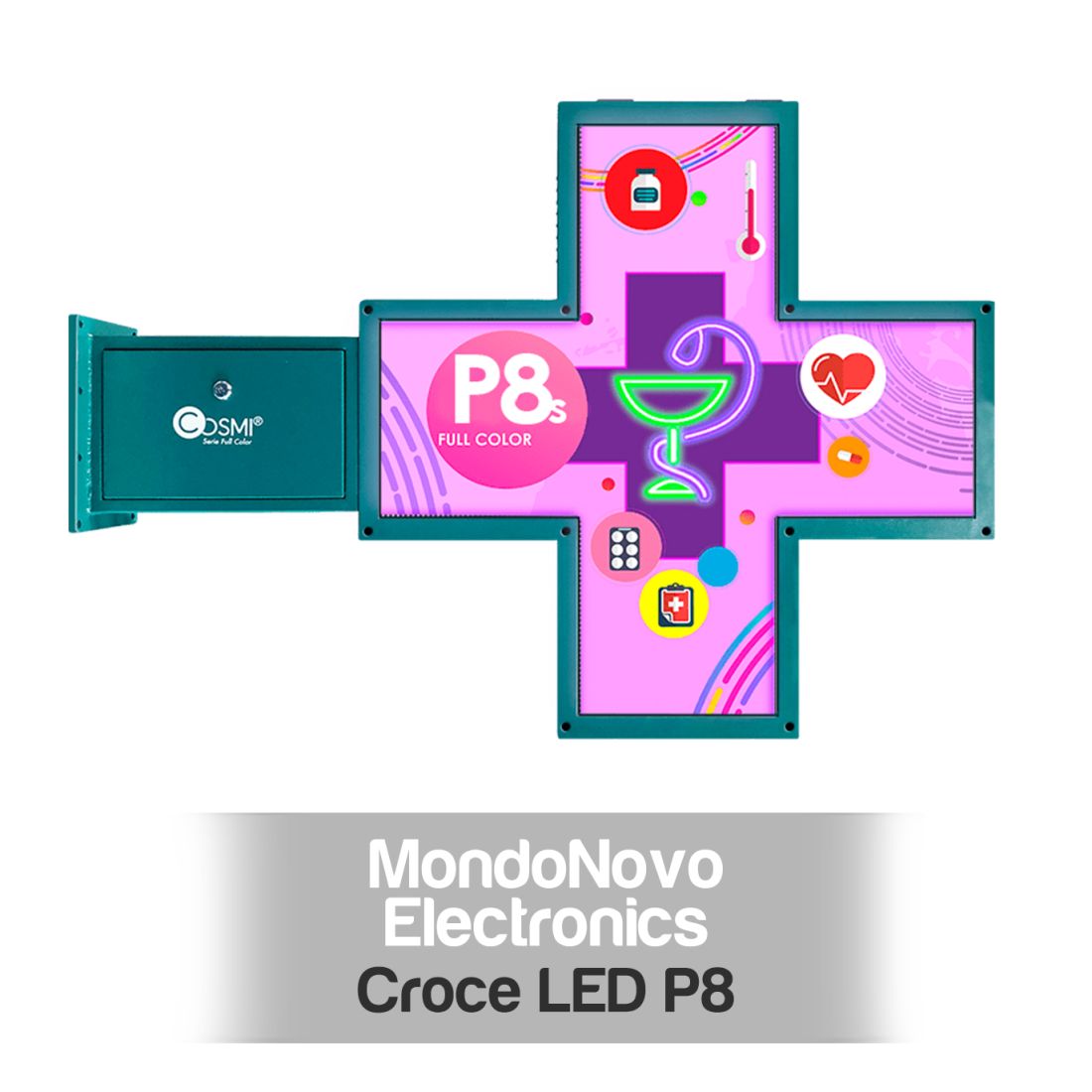

COSMI P8 S FULL COLOR Outdoor Pharmacy LED Cross IP65 840x840
The COSMI P8S Outdoor LED Cross is a professional solution for outdoor illuminated signage, designed to offer maximum visibility, robustness and a modern design. Perfect for pharmacies, clinics and commercial activities, this LED cross is an ideal tool to attract attention and communicate clear and effective messages.
For more info, configurations, software applications and logistic call to +39 377 5739345
2,855.00 €
(tax excl.)
Contact us to check availability and delivery times
Reference:
MN000651
Brand:
Add to wishlist
Main features
- High Brightness : Thanks to the superior quality LEDs, it ensures excellent visibility even in direct sunlight.
- Double-Sided Design : Allows viewing on both sides, optimizing communication in any direction.

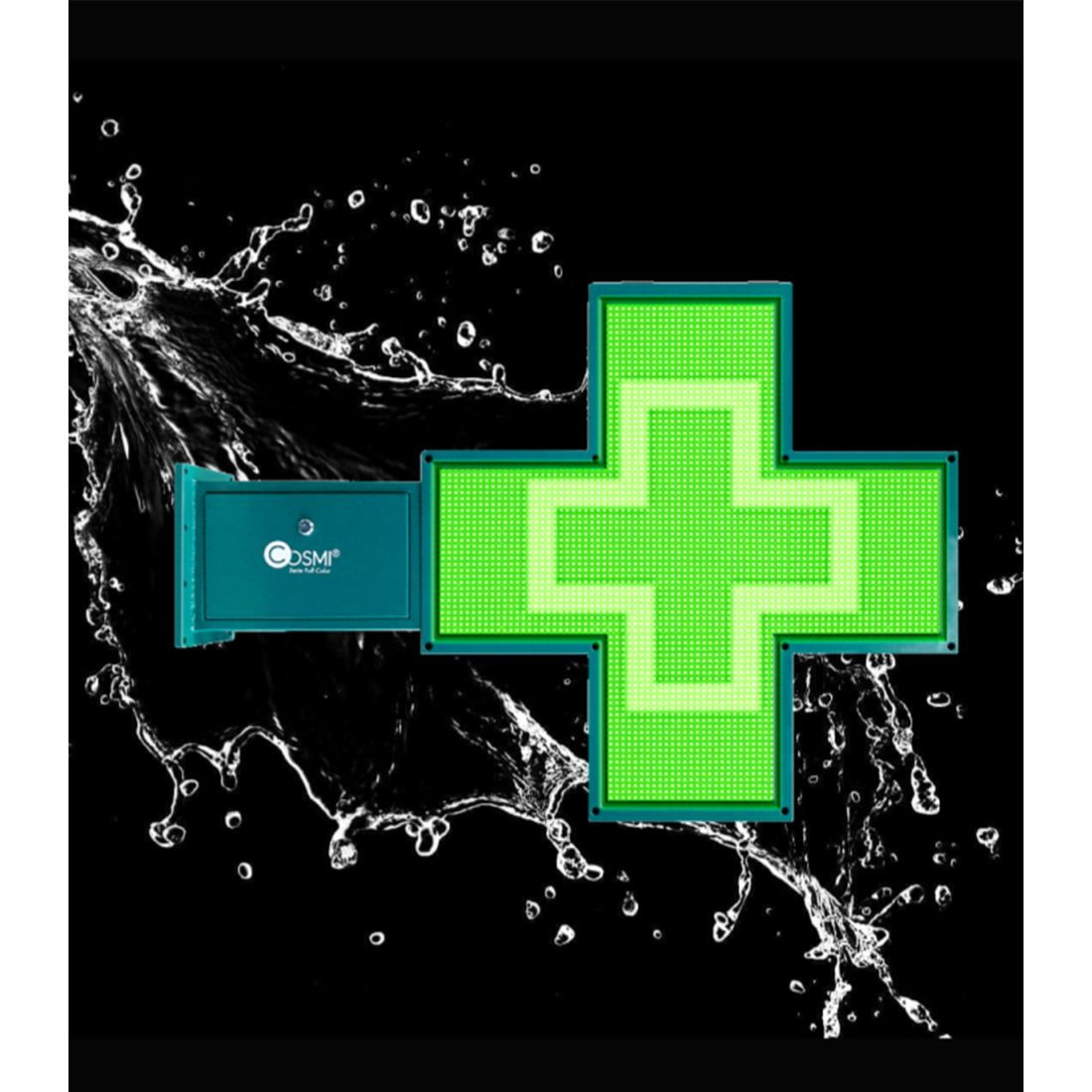

- Robustness and Durability : Weatherproof construction with IP65 certification, ideal for outdoor use.
- Content Management : Easily update text, images and animations with the included intuitive software.
- Low Energy Consumption : Designed to deliver high performance with minimal power consumption.
Advantages
- Excellent visibility : Perfect for attracting the attention of passers-by and improving visual communication.
- Ease of use : Thanks to the included software, you can customize messages and contents with extreme simplicity.
- Suitable for all weather conditions : Ideal for continuous use in outdoor environments.
Ideal Applications

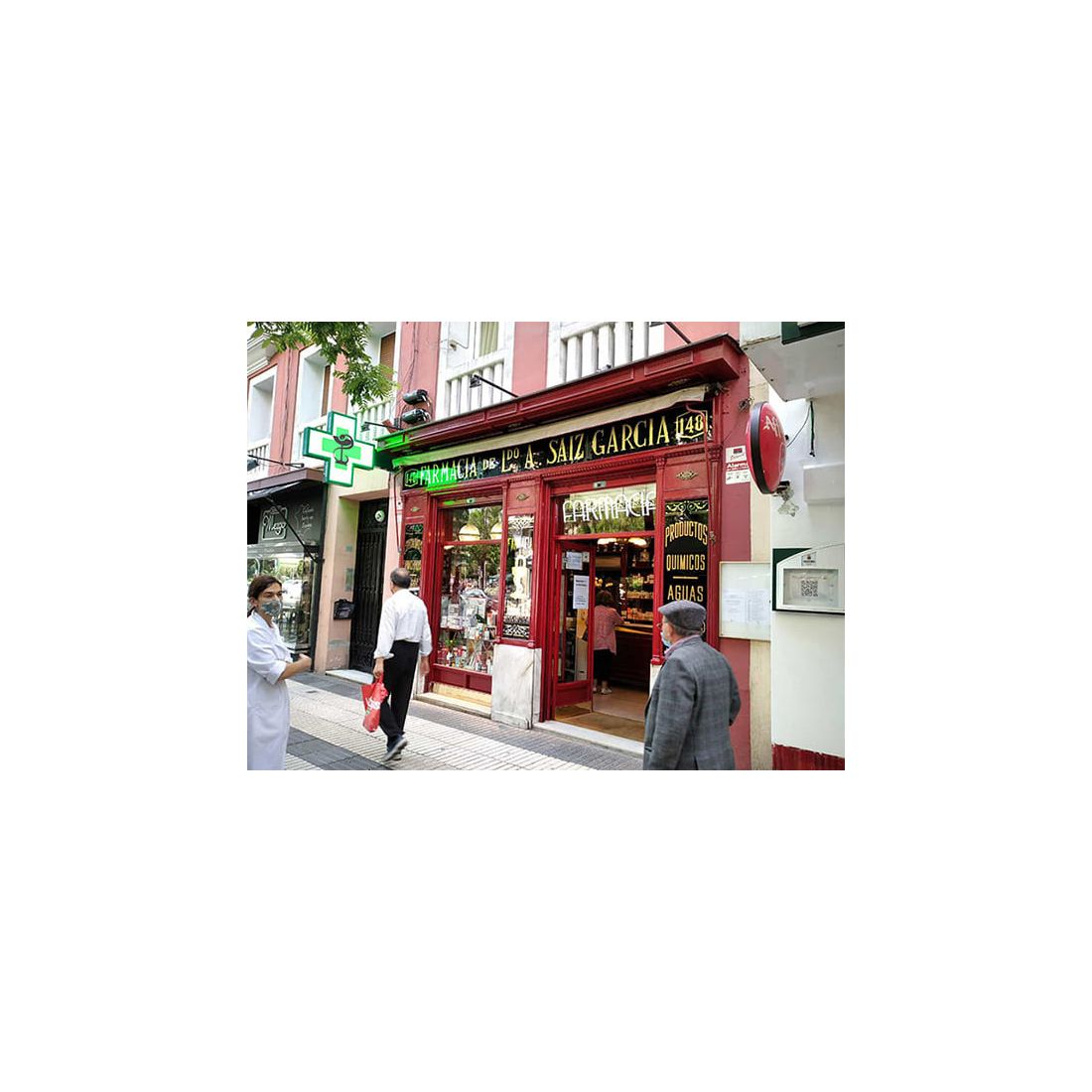

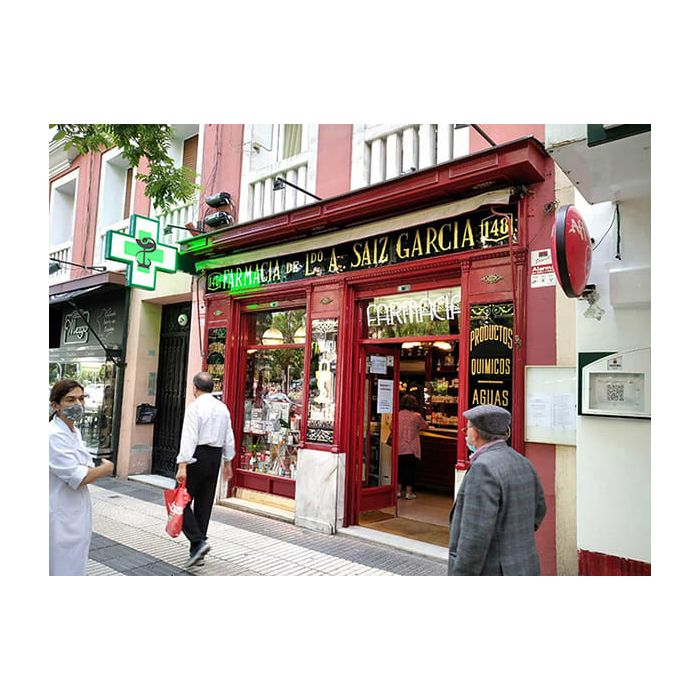

- Pharmacies and Health Facilities : Highlight your services and hours.
- Business : Dynamically promote offers and ads.
- Urban spaces : Effective signage for public information and communications.
| Technical Specifications | Details |
|---|---|
| LED type | SMD |
| Step (Pitch) | 8mm |
| Resolution | 96x96px per screen |
| Brightness | ±5,000 / 5,500 nits |
| Viewing distance | ≥8m |
| Viewing angle | 140°H / 130°V |
| Maximum consumption | ≤562W |
| Average consumption | ±224W |
| Working voltage | AC200-230V |
| Chassis | Oven-lacquered metal (RAL 6016) |
| Opening | Upward |
| Scan | 1/5 |
| Double sided | Yes |
| Working temperature | -20°C / +45°C |
| Working humidity | 10-90% |
| Software | Included, multilingual |
| Connectivity | TCP/IP (network cable), USB memory, Wi-Fi, 3G/4G, optional Cosmi Server |
| Weight | ±32.3kg net / 39.1kg with packaging |
| Dimensions with packaging | 1350x930x180mm |
| Standard support | 406x320x200mm |
| Plus Support | 708x265x120mm |
| Grayscale | 14-16 bit |
MN000651
Data sheet
- Type of Use
- Outdoor
- No. Display
- Double Side
- Brightness
- 5000 nits
- LED Pixel Pitch
- 8.0mm
- Dimensions (mm)
- 840x840
