ARIES VL P5 double-sided outdoor programmable color LED flag sign IP65 27.5x40.5 inches COSMI
€3,295.00
MN000813
8056666282337
ARIES P5 Cosmi Full Color double-sided flag sign for outdoor use, measuring 70x102 cm. Fully waterproof double-sided sign with IP65 protection and high brightness of 5000-5500 nits for maximum visibility on the road. 5 mm pitch and 128 x 192 px resolution per side for color content such as video offers, images, and text. Multilingual software included with programmable content and remote control via optional Cosmi Server. TCP/IP connectivity and USB memory with Wi-Fi and 3G 4G options. Installation of tie rods and ventilation always downwards is mandatory.
ARIES VL P5 Cosmi Full Color outdoor double-sided flag sign 70x102 cm 5500 nits IP65
ARIES P5 Cosmi Full Color double-sided LED flag sign for outdoor installation. Designed for maximum visibility on the street with double-sided and fully waterproof structure. Suitable for shops and businesses that want to publish dynamic color content such as video spots and images.
Key features
- Double-sided for communication visible from both directions of travel
- IP65 protection and metal chassis
- Brightness 5000/5500 nits
- 5 mm P5 pitch and 128 x 192 px resolution per side
- Multilingual software and programmable content included
Content management and connectivity
- Content: text, video, images, time transitions, programming
- Connections: TCP/IP network cable and USB memory
- Options: Wi-Fi, 3G, 4G, and optional Cosmi Server for remote control
Installation notes
- Do not install with the ventilation holes facing upwards
- Install with the ventilation holes facing downwards
- The use of tie rods is mandatory
- The bracket can be installed on the left side or at the bottom
- Avoid impacts that could damage the chassis and LED modules
Technical specifications
| Brand | Cosmi |
|---|---|
| Type | Double-sided LED banner sign |
| Use | Outdoor |
| Model | ARIES P5VL Full Color |
| LED | SMD |
| Pixel pitch | 5 mm P5 |
| Resolution | 128 x 192 px per side |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 5 m |
| Viewing angle | 140 H / 130 V |
| Maximum power | 1056 W |
| Average consumption | 422 W |
| Power supply | AC 200-230 V |
| Chassis | Metal |
| Protection rating | IP65 |
| Scanning | 1/8 |
| Double-sided | Yes |
| Operating temperature | -20 / +45 |
| Working humidity | 10-90 |
| Gray scale | 14-16 bits |
| Software | Multilingual included |
| Connectivity | TCP/IP USB options Wi-Fi 3G 4G Cosmi Server optional |
| Net weight | 43 kg |
| Weight with packaging | 47.5 kg |

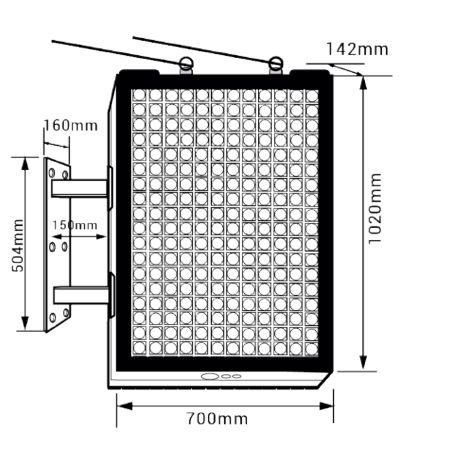

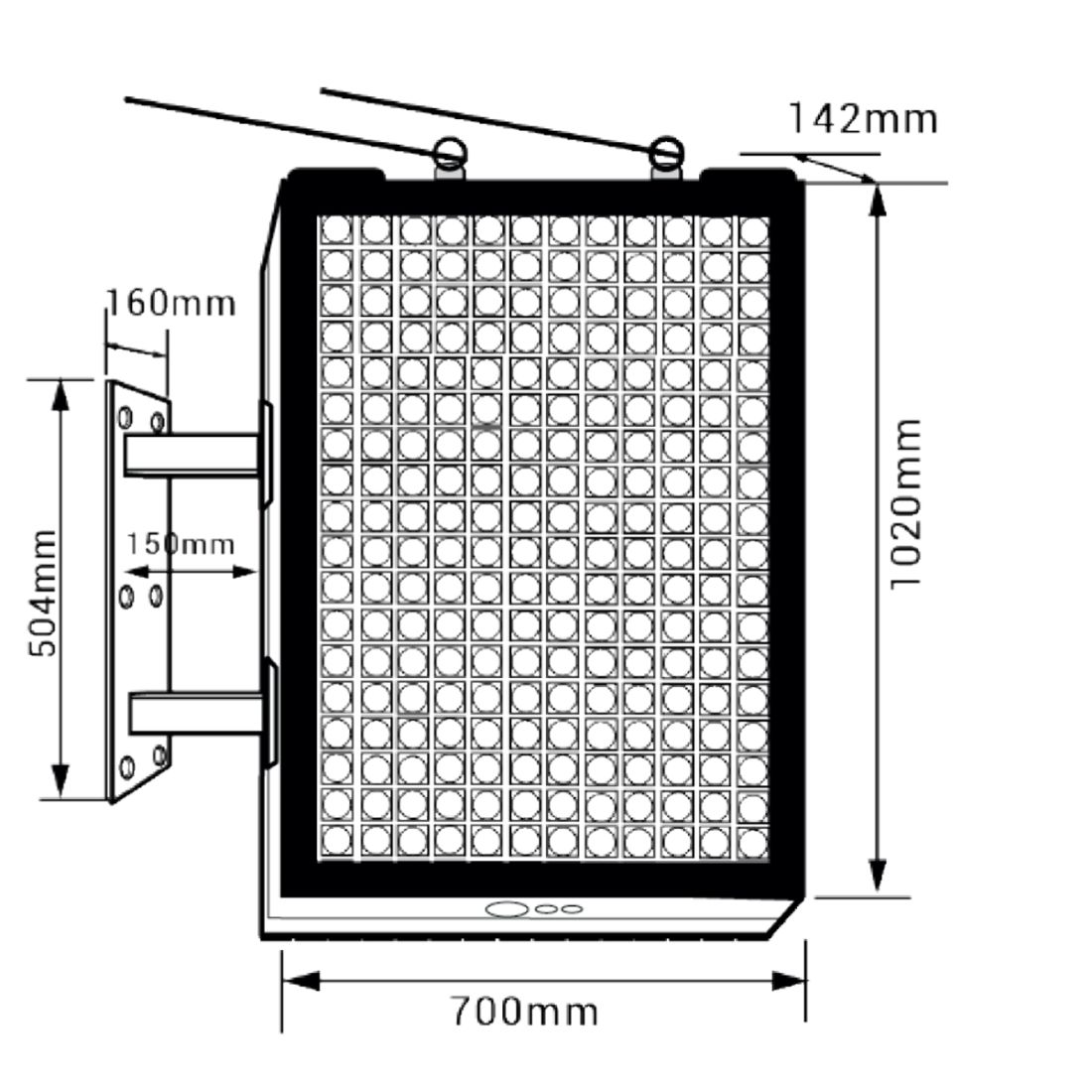

| Product dimensions | 700 x 1020 x 142 mm |
| Dimensions with packaging | 1095 x 775 x 190 mm + 512 x 175 x 215 mm |
Usage scenarios

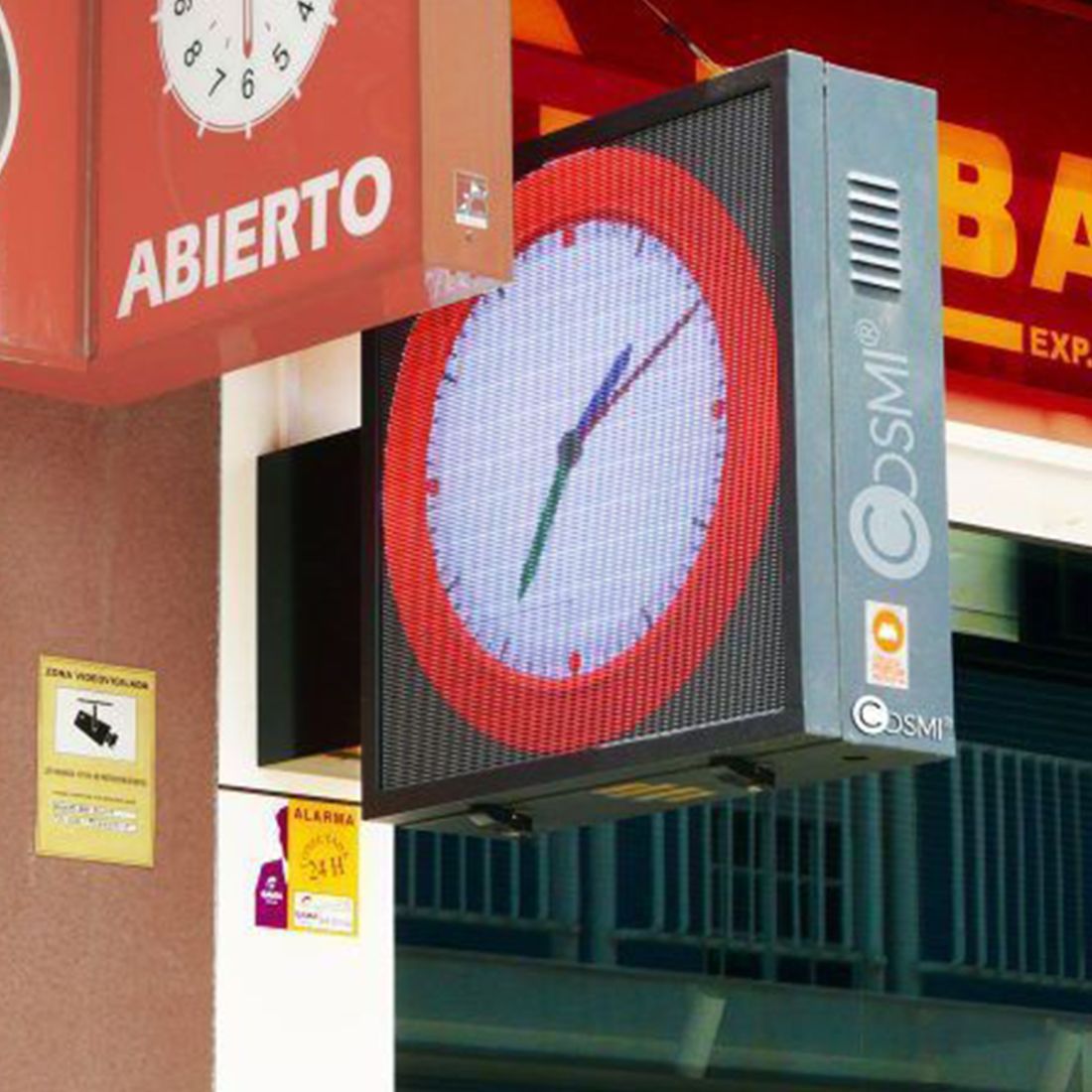

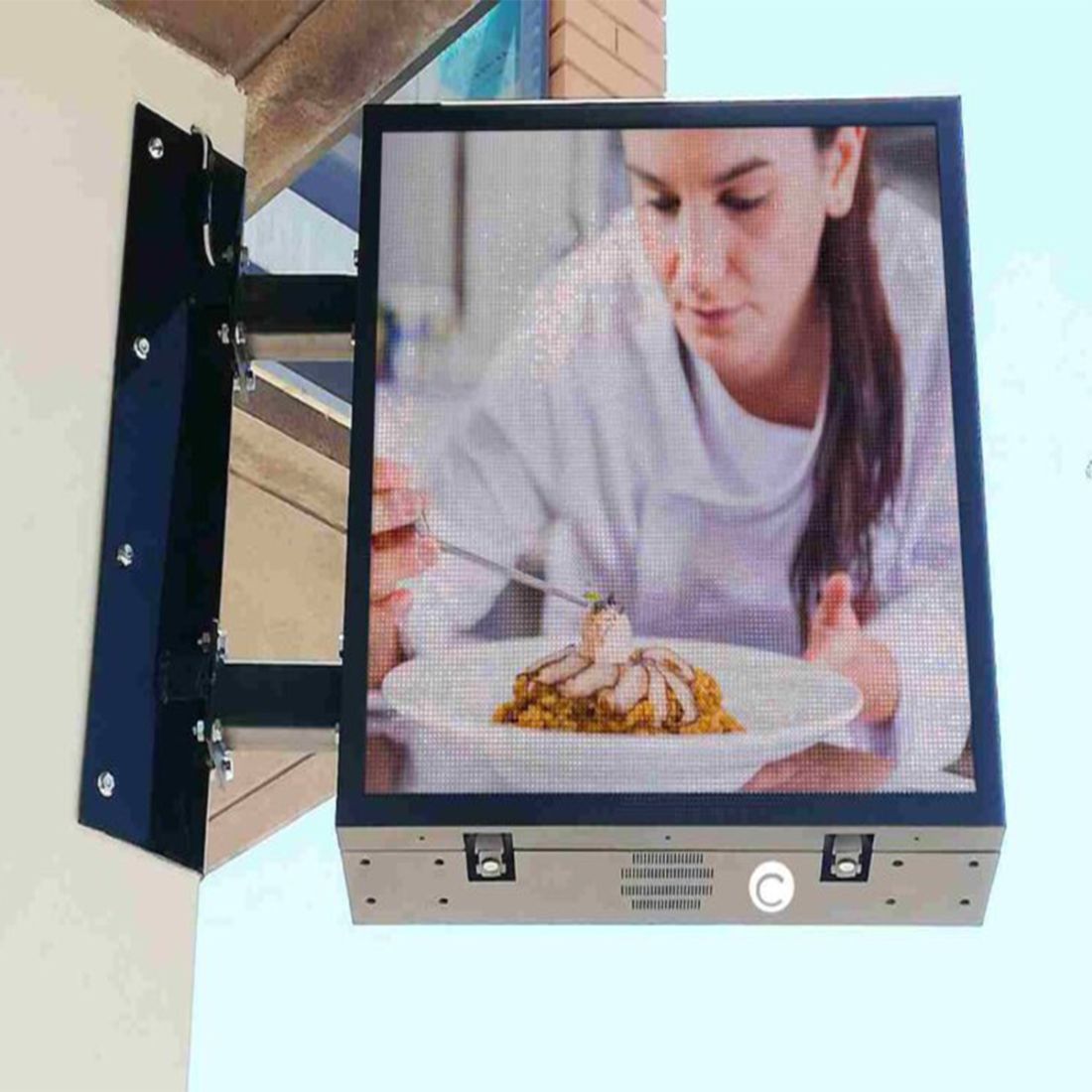

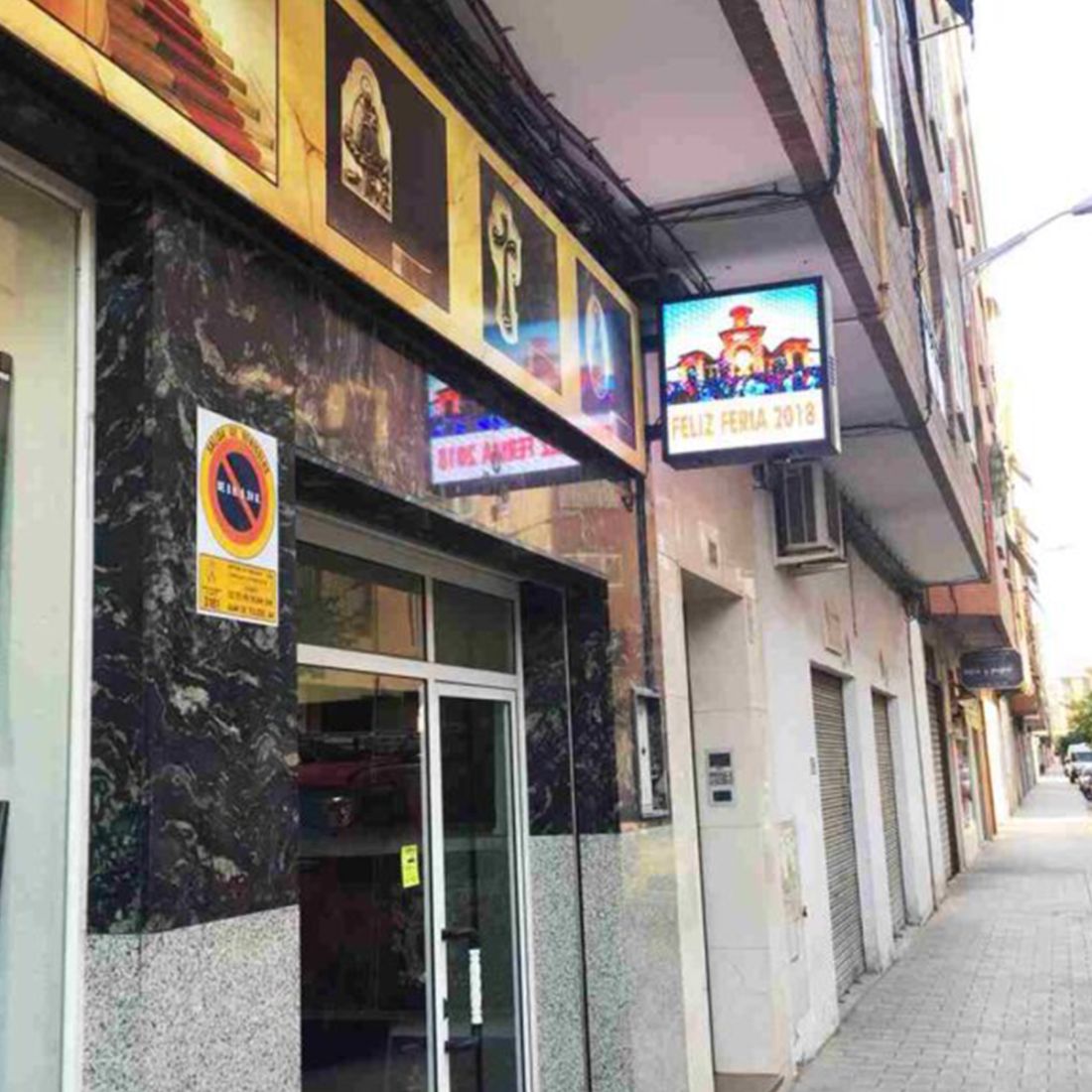

- Banner sign for street-front stores with dynamic content
- Double-sided promotions, offers, and time-based messages
- Retail parks and shopping centers with visibility from a distance
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Double Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 5 mm
- Dimensions (mm)
- 700X1020
- Grado Protezione IP
- IP65
- Tipologia insegna
- Bandiera
8056666282337
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
