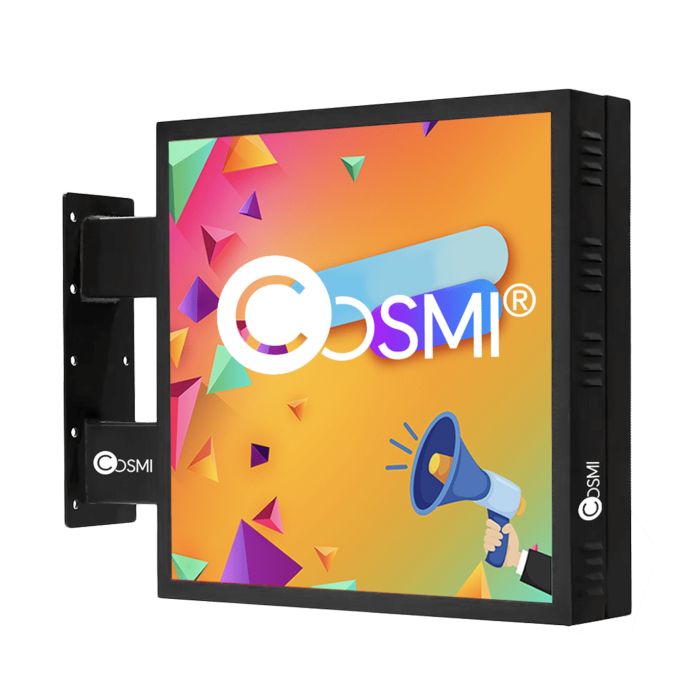

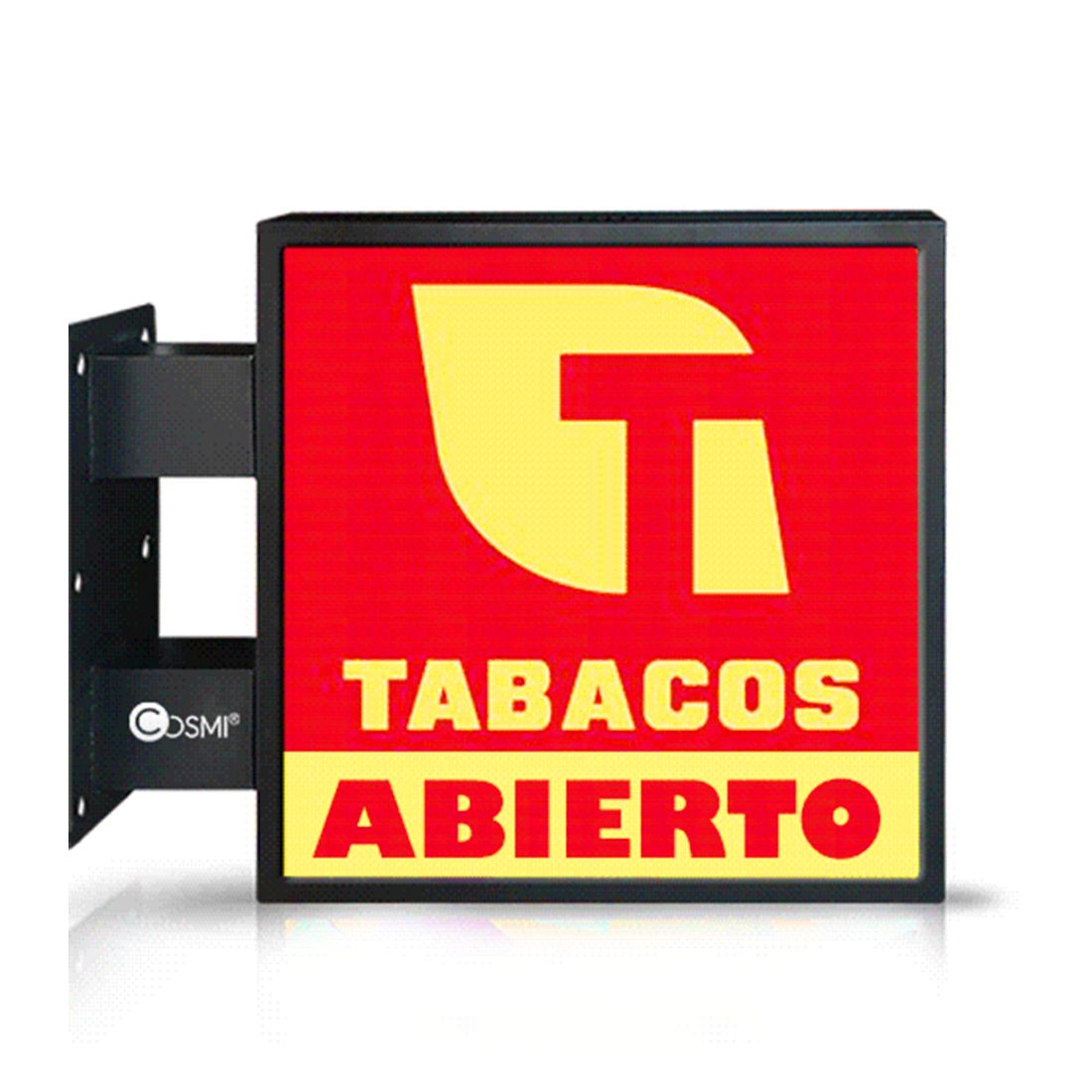

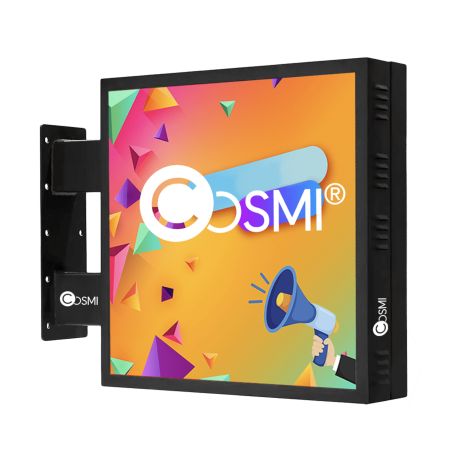

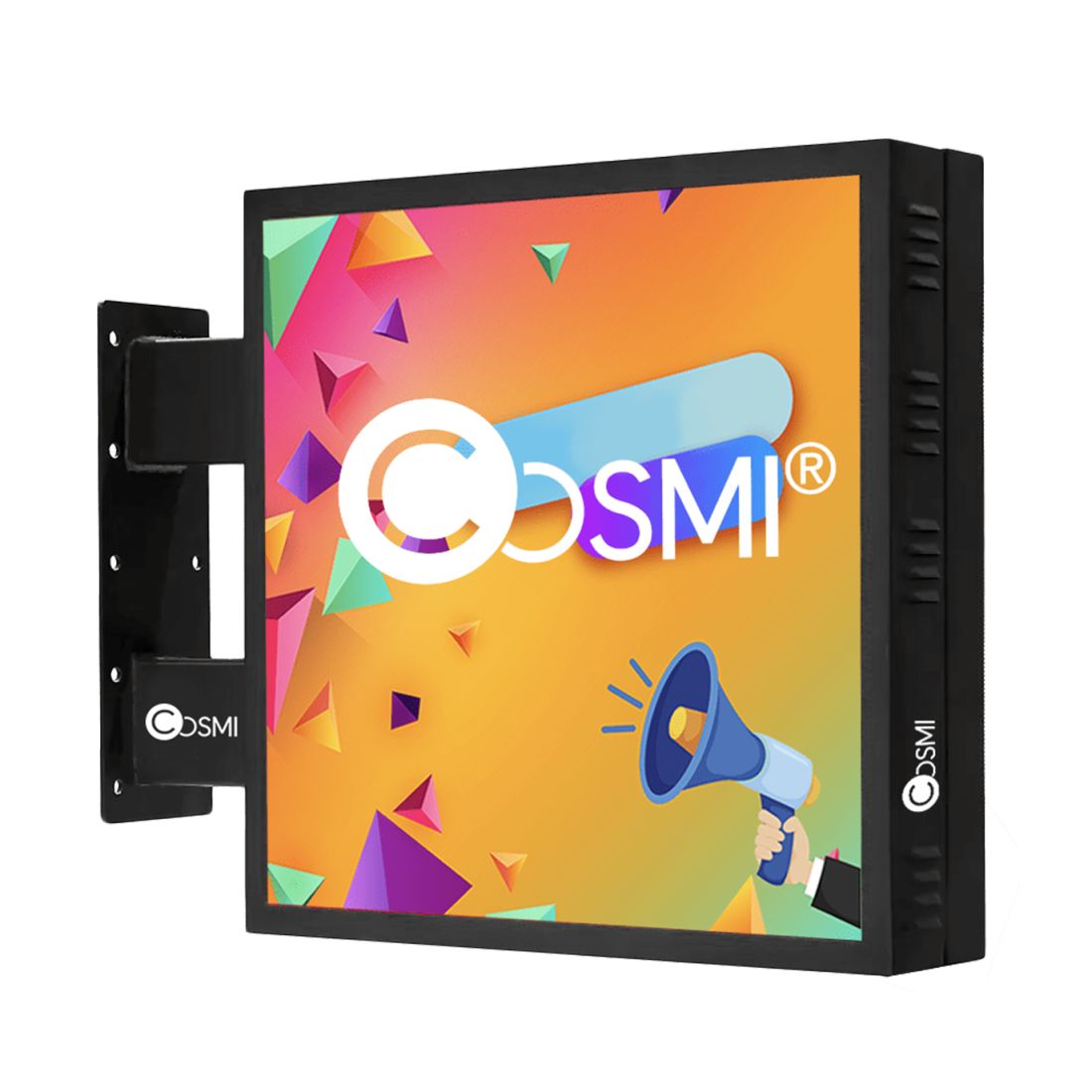

P5 Full Color IP65 Double Sided LED Sign, 700x700mm, COSMI Flag Sign
P5 (780x780) FULL COLOUR Double Sided LED Sign - COSMI
The P5 LED flag sign is a versatile and modern solution to communicate effectively and capture the attention of passers-by. With its 5mm LED pitch and a brightness of up to 5500 nits, it guarantees clear and vivid images, ideal for outdoor and indoor environments.
For more info, configurations, software applications and logistic call to +39 377 5739345

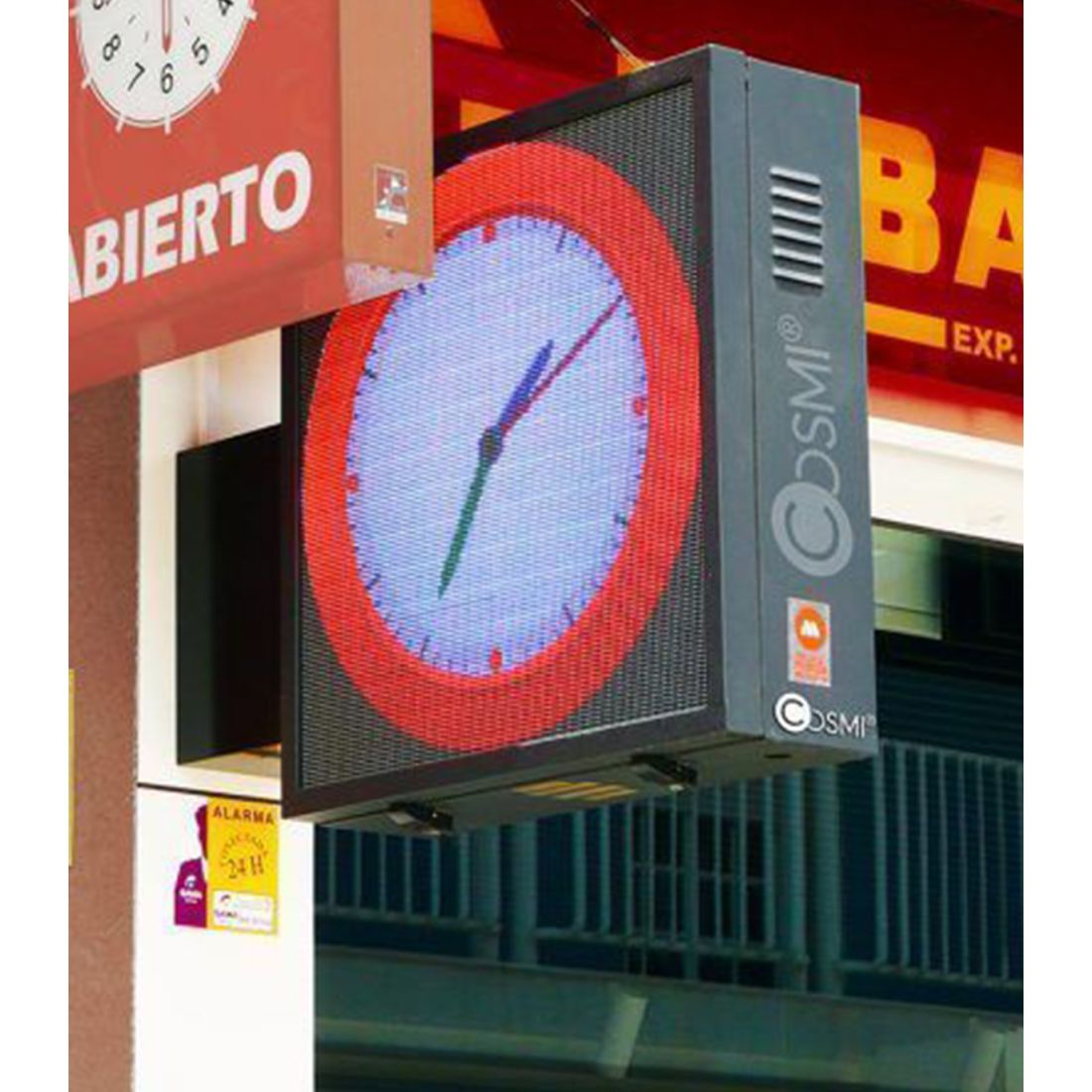

Designed with a sturdy IP65 certified metal frame, this flag sign is waterproof and durable, perfect for outdoor installations, even in harsh weather conditions. Thanks to its flag position, it ensures optimal visibility from multiple angles and on both sides, making it the ideal choice for shops, pharmacies, restaurants and other commercial activities.
Main features:
- P5 LED pitch , for clear and defined visibility even from a distance.
- Brightness up to 5500 nits , perfect for all lighting conditions.
- Double-sided design , for maximum visibility on both sides.
- IP65 metal structure , resistant to water and dust.
- Wide viewing angle : 140° horizontal, 130° vertical.

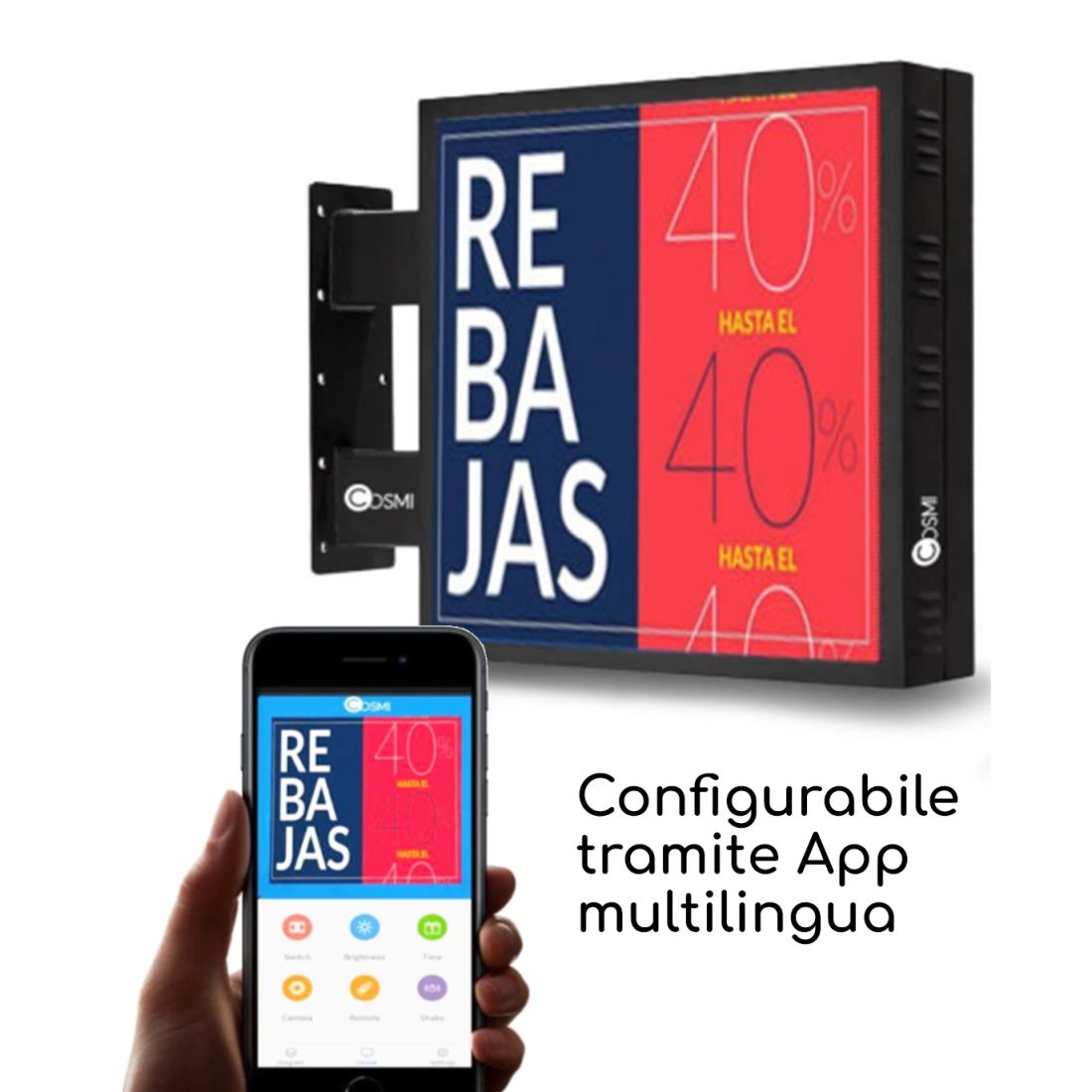

- Easy management : equipped with multilingual software included and TCP/IP connectivity, USB memory and 3G/4G WiFi.
This flag sign is designed to grab attention and professionally enhance your business. With its easy installation and minimal maintenance, it is an excellent investment for those looking for a functional and high-impact digital signage solution.
Technical specifications:

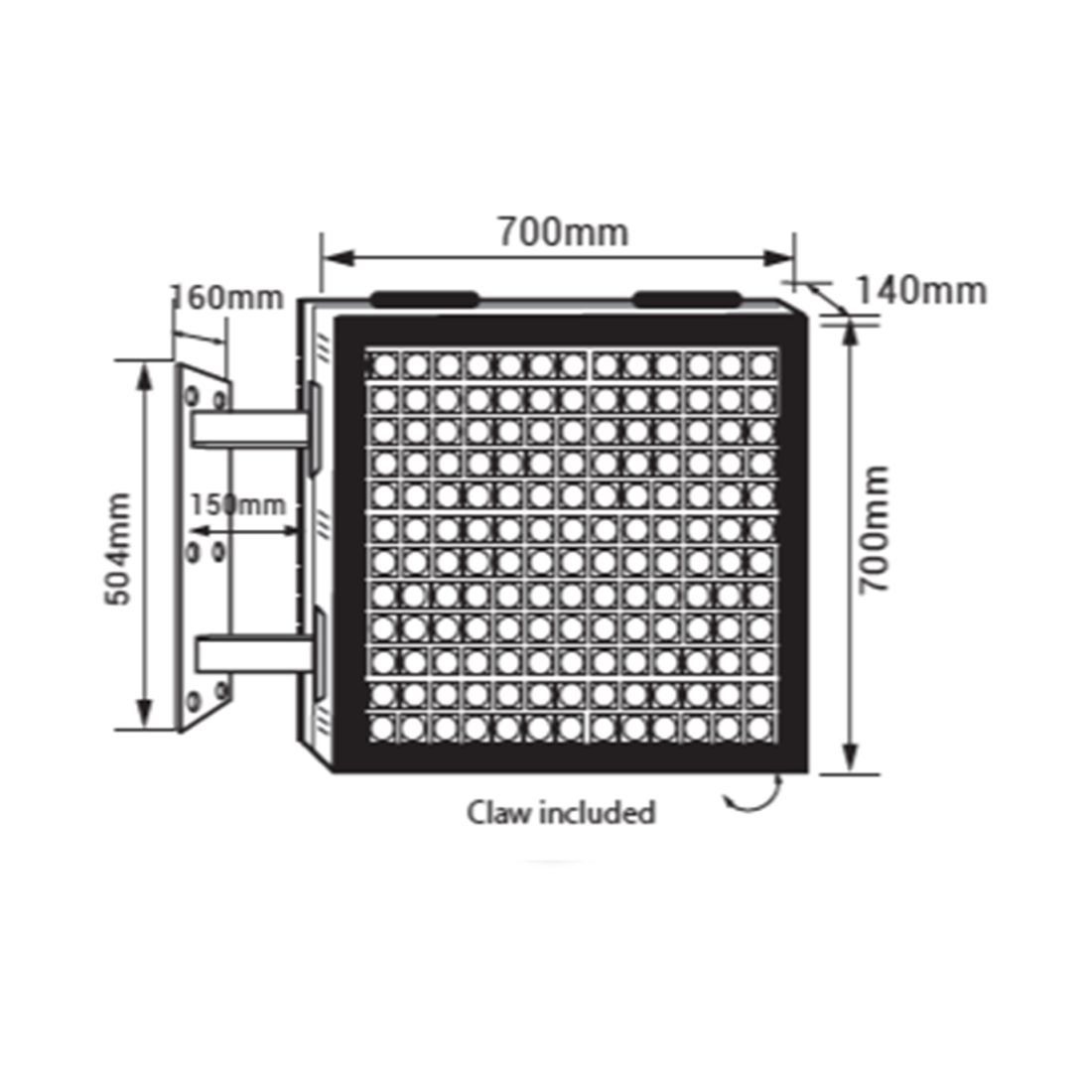

- Structure dimensions: 780x780x190 mm.
- Net weight: ±29.4 kg.
- Grayscale: 14-16 bit.
Ideal applications:
Pharmacies, clothing stores, restaurants, hotels, supermarkets and any business that wants to stand out with visible and effective communication.
For configurations or customizations, contact us directly.
Choose the P5 LED flag sign to give a new face to your business communication!
| Characteristic | Specifications |
|---|---|
| LED | SMD |
| Step | 5mm |
| Resolution | 128*128px/cabinet |
| Brightness | ±5,000 / 5,500 nits |
| Viewing distance | ≥5m |
| Viewing angle | 140°H / 130°V |
| Maximum consumption | ≤685w |
| Average consumption | ± 274w |
| Operating voltage | AC200-230V |
| Frame / IP Rating | Metal / IP65 |

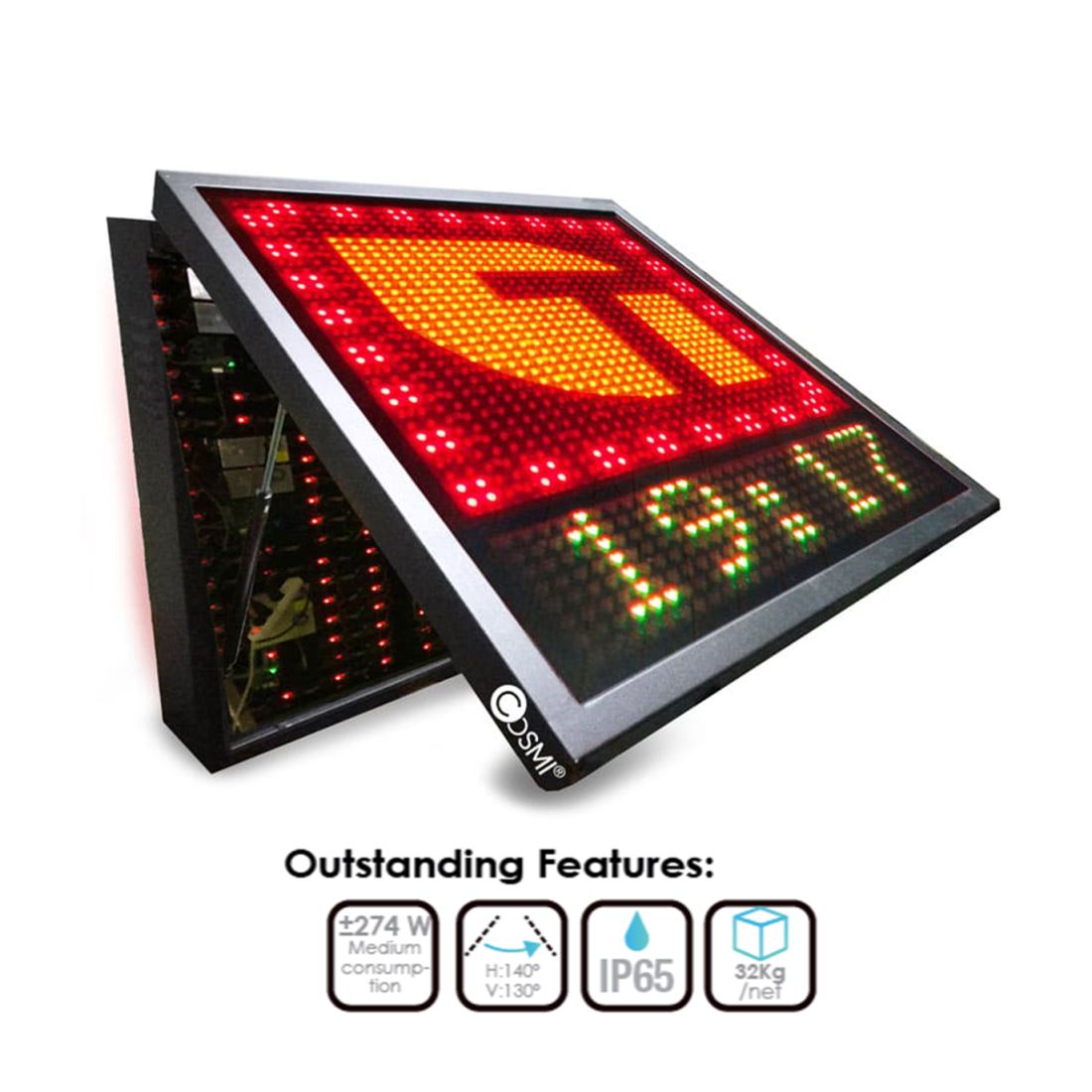

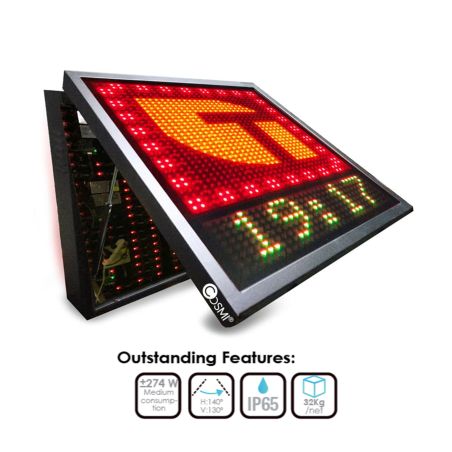

| Opening | Upward |
| Scan | 1/8 |
| Double-sided | Yes |
| Working temperature | -20° / +45° |
| Working humidity | 10-90% |
| Software | Included. Multilingual |
| Connectivity | TCP/IP (network cable), USB memory, 3G/4G WiFi, Optional Cosmi Server |
| Weight | ±29.4 kg net + 4.5 kg for the support |
| Dimensions with packaging | 780x780x190 mm / Support: 512x175x215 mm |
| Grayscale | 14-16 bit |
Data sheet
- Type of Use
- Outdoor
- No. Display
- Double Side
- Brightness
- 5000 nits
- LED Pixel Pitch
- 5 mm

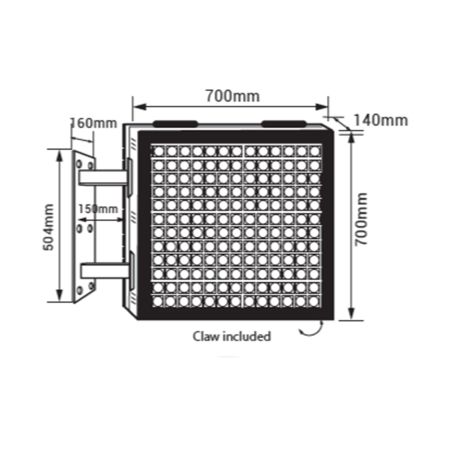

- Dimensions (mm)
- 700x700
