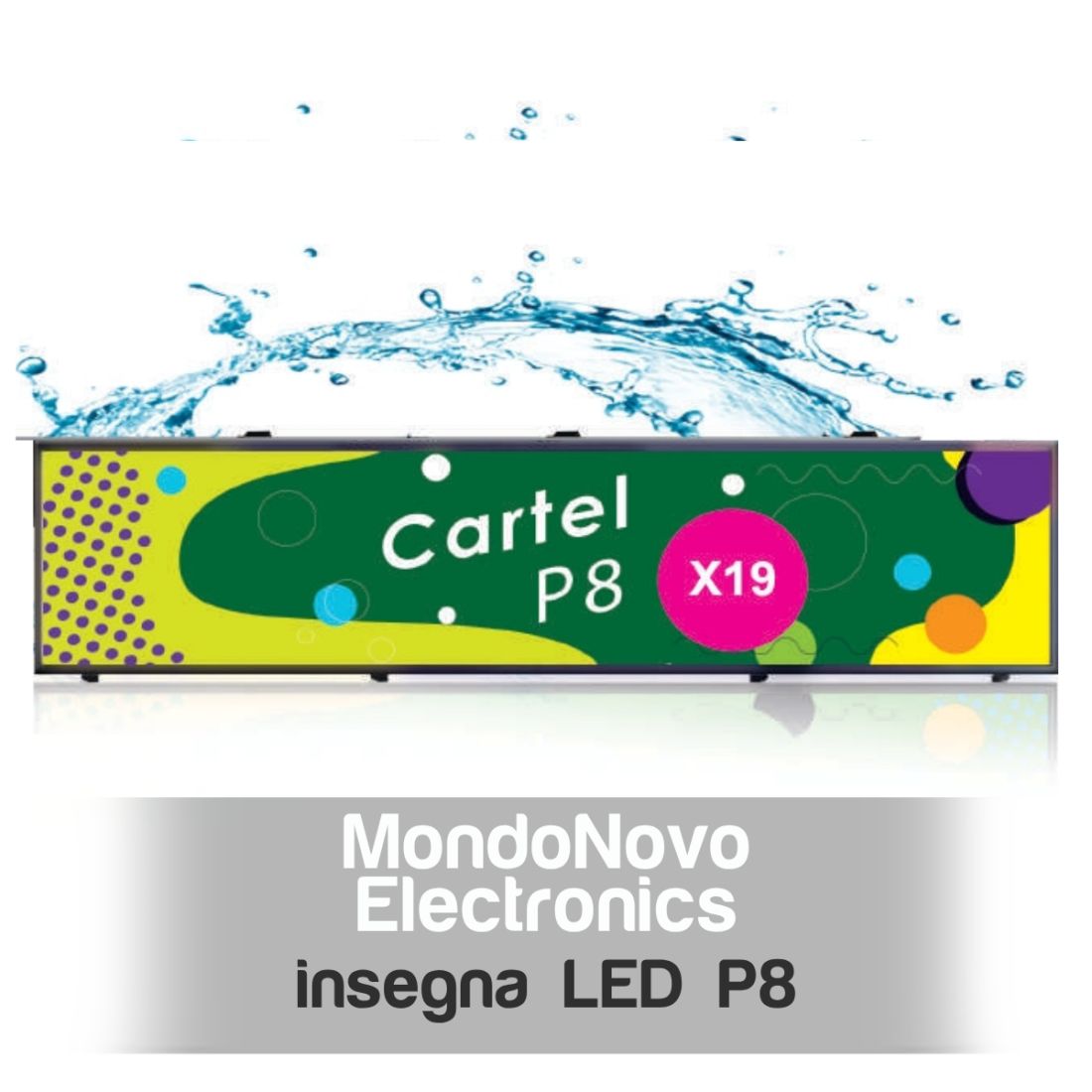

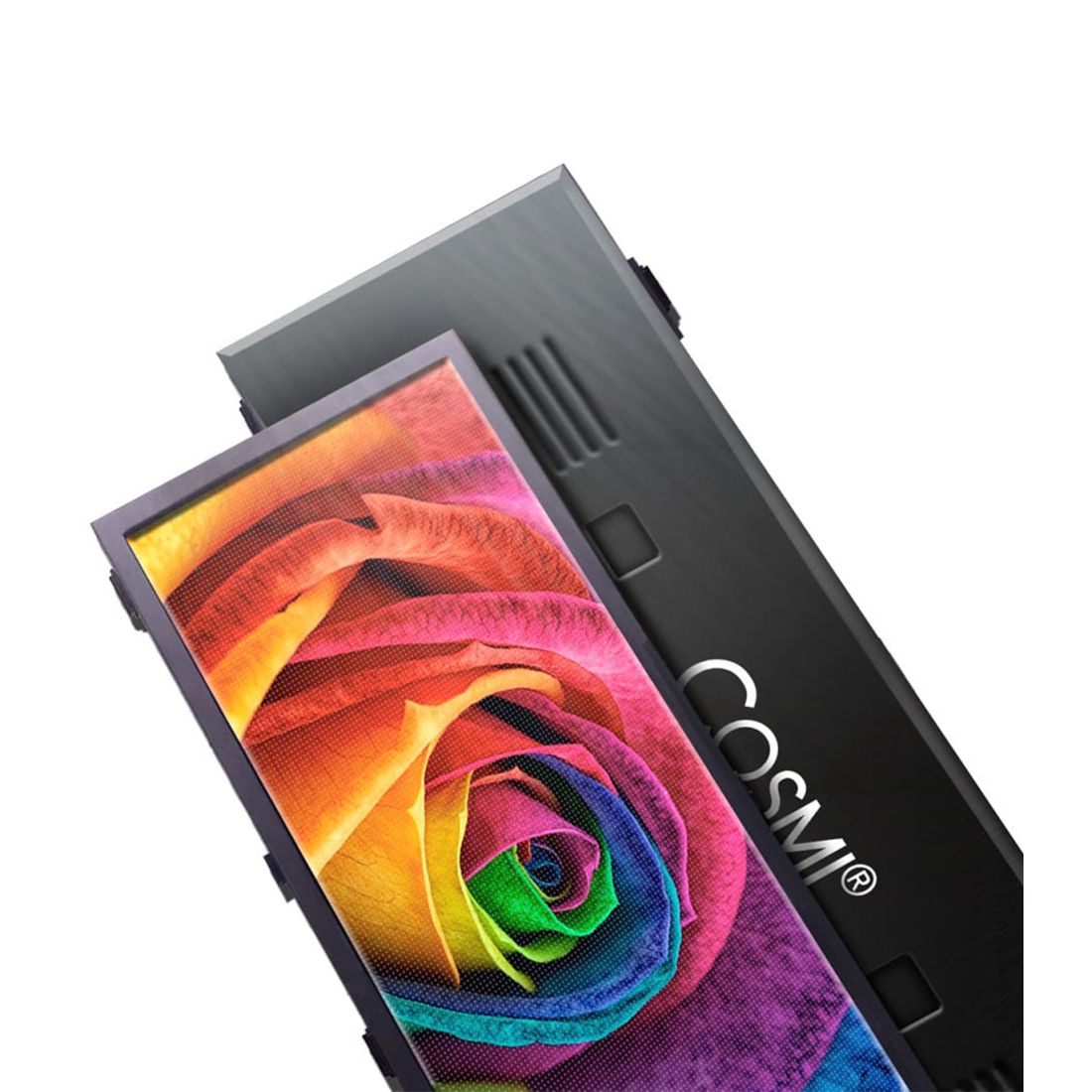

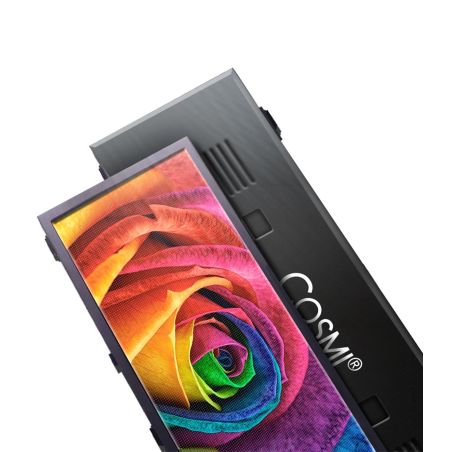

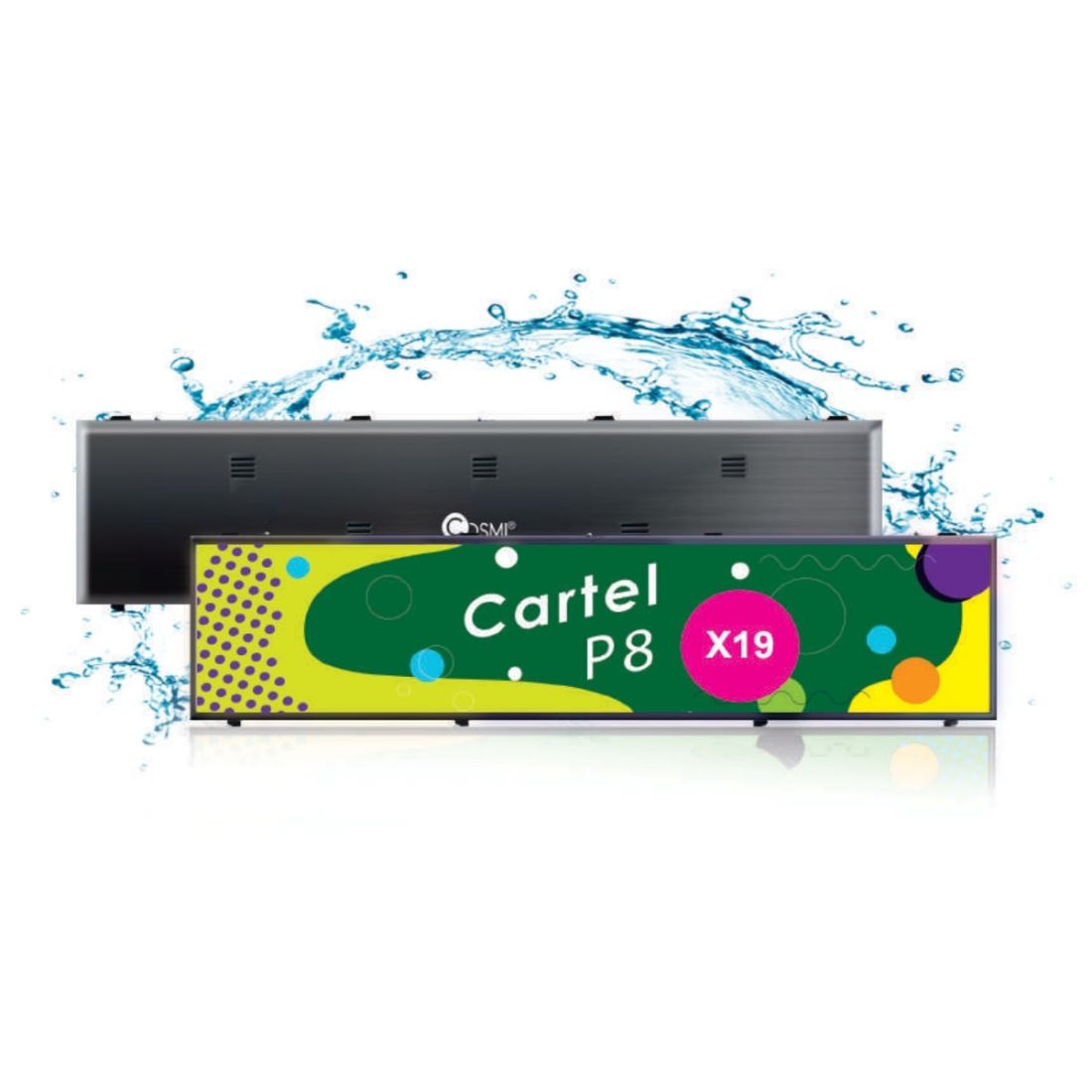

P8 X19 Cosmi Full Color outdoor programmable outdoor LED wall sign 198x54 cm 5500 nits IP65
€2,695.00
MN000822
8056666282429
Tax excluded
Contact us to check availability and delivery times
Cosmi P8 X19 Full-Color LED Banner Display for outdoor use, compact and highly visible for building facades and entrances. Brightness: 5000–5500 nits; IP65 front protection and IP54 rear protection. Resolution: 240 x 60 px per module; refresh rate: 3840 Hz for smooth content playback. Supports text, video, images, time display, and content scheduling. Multilingual software included and remote control via optional Cosmi Server. TCP/IP connectivity and USB memory with optional Wi-Fi and 3G/4G, brightness sensor, and optional temperature sensor. Front opening toward the top. Outdoor installation horizontal only with a maximum tilt of 15° and a minimum clearance of 80 mm for opening.

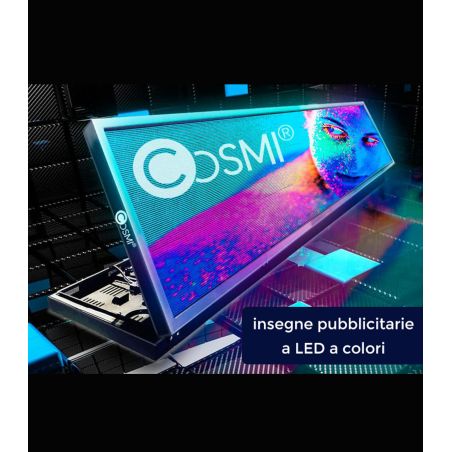

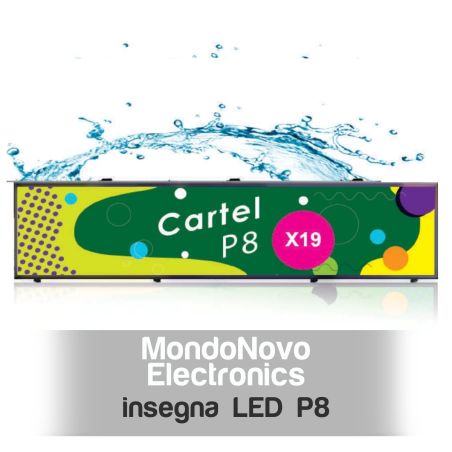

Cosmi P8 X19 Full Color Outdoor LED Banner Display, 198x54 cm, 5500 nits, IP65
Cosmi P8 X19 Full Color outdoor LED banner display, designed for high visibility, durability, and versatility. Ideal for corporate presentations and dynamic advertising on building facades and entrances with full-color content. Supports text, video, images, and content scheduling, with remote control via the optional Cosmi Server.
Key Features
- High brightness 5000 / 5500 nits
- Front protection IP65, rear IP54
- 8 mm P8 pixel pitch and 240 x 60 px resolution per module
- Refresh rate 3840 Hz for smooth video playback

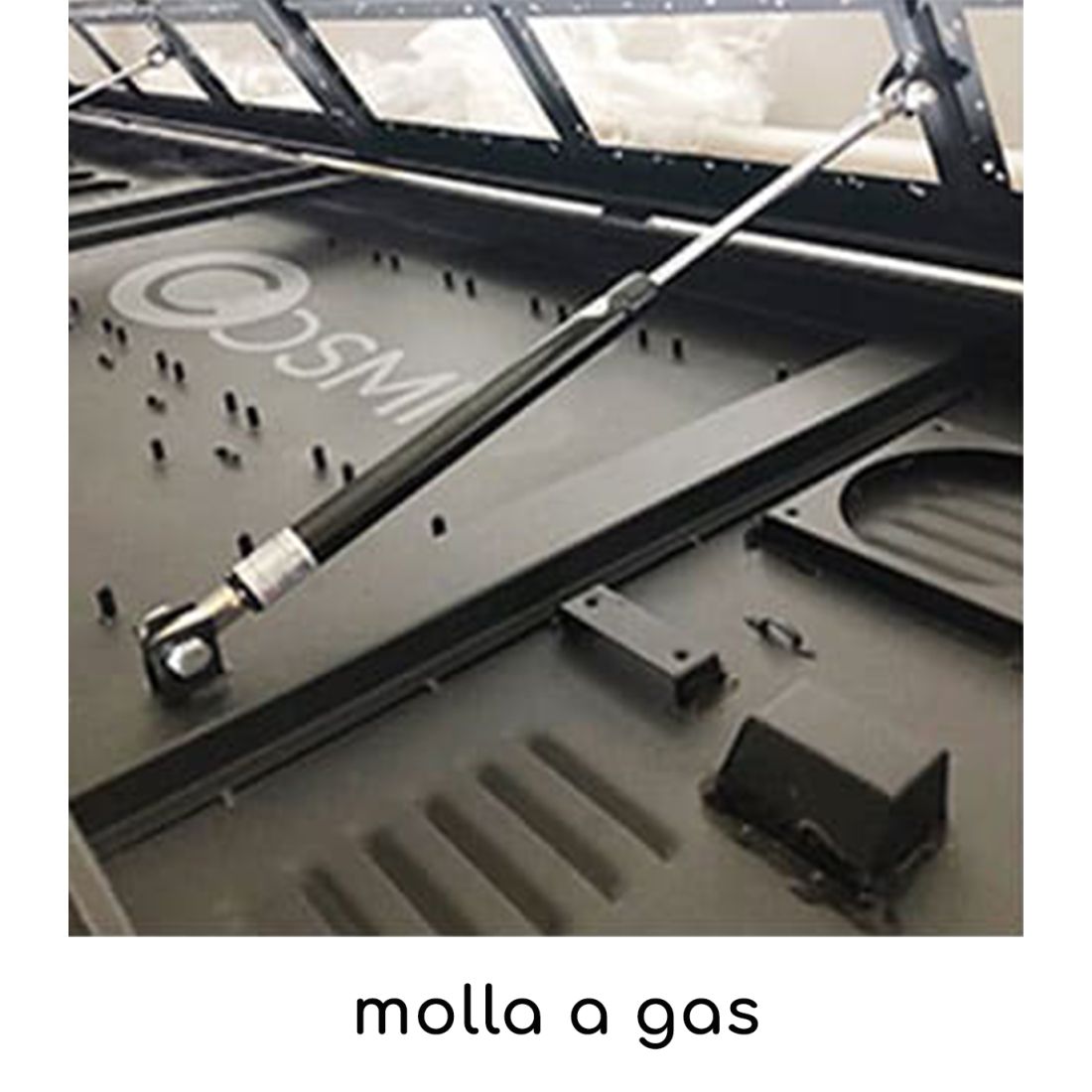

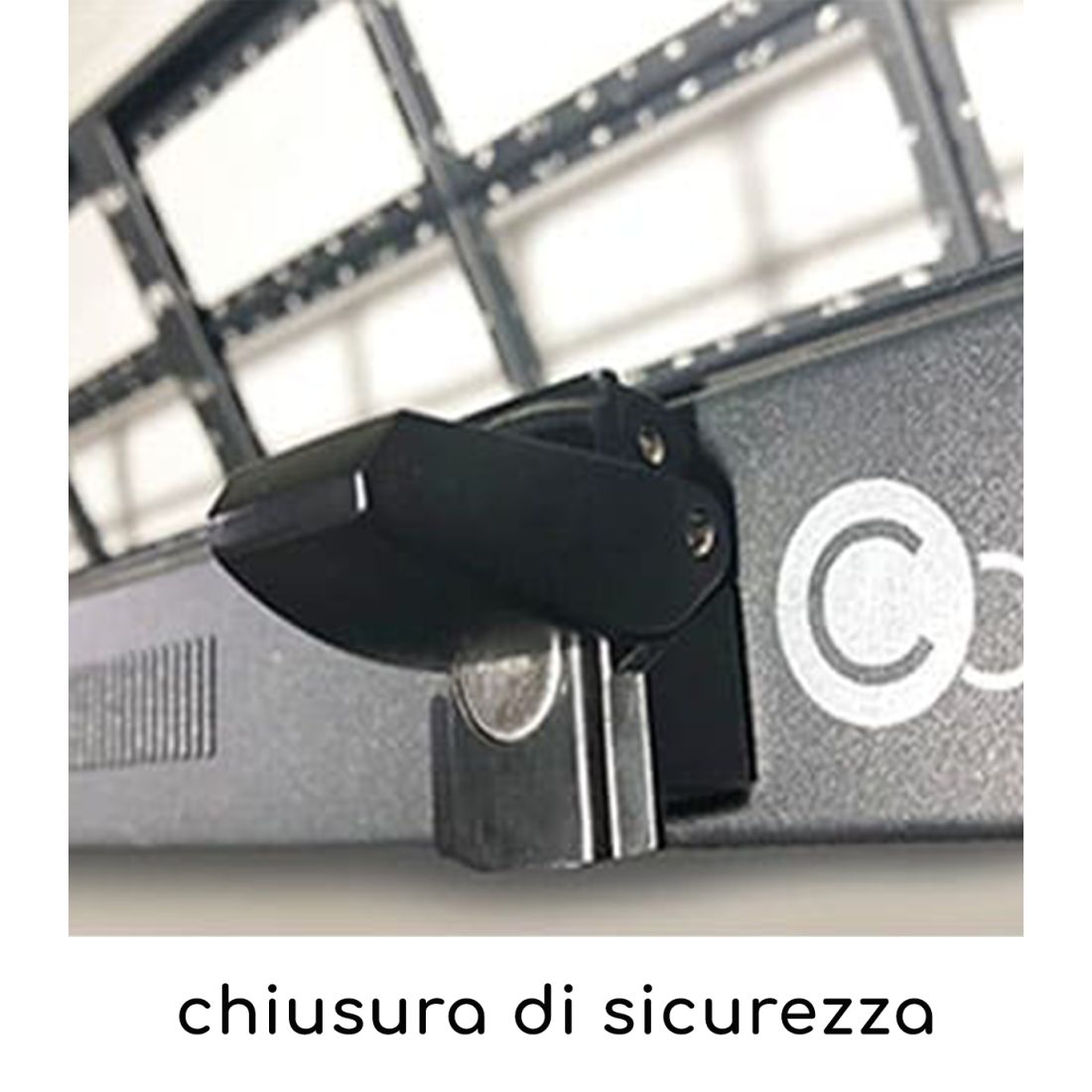

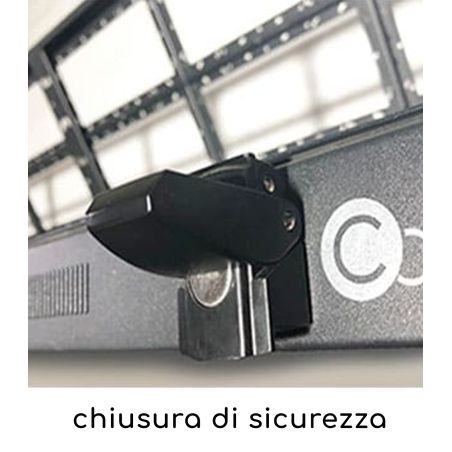

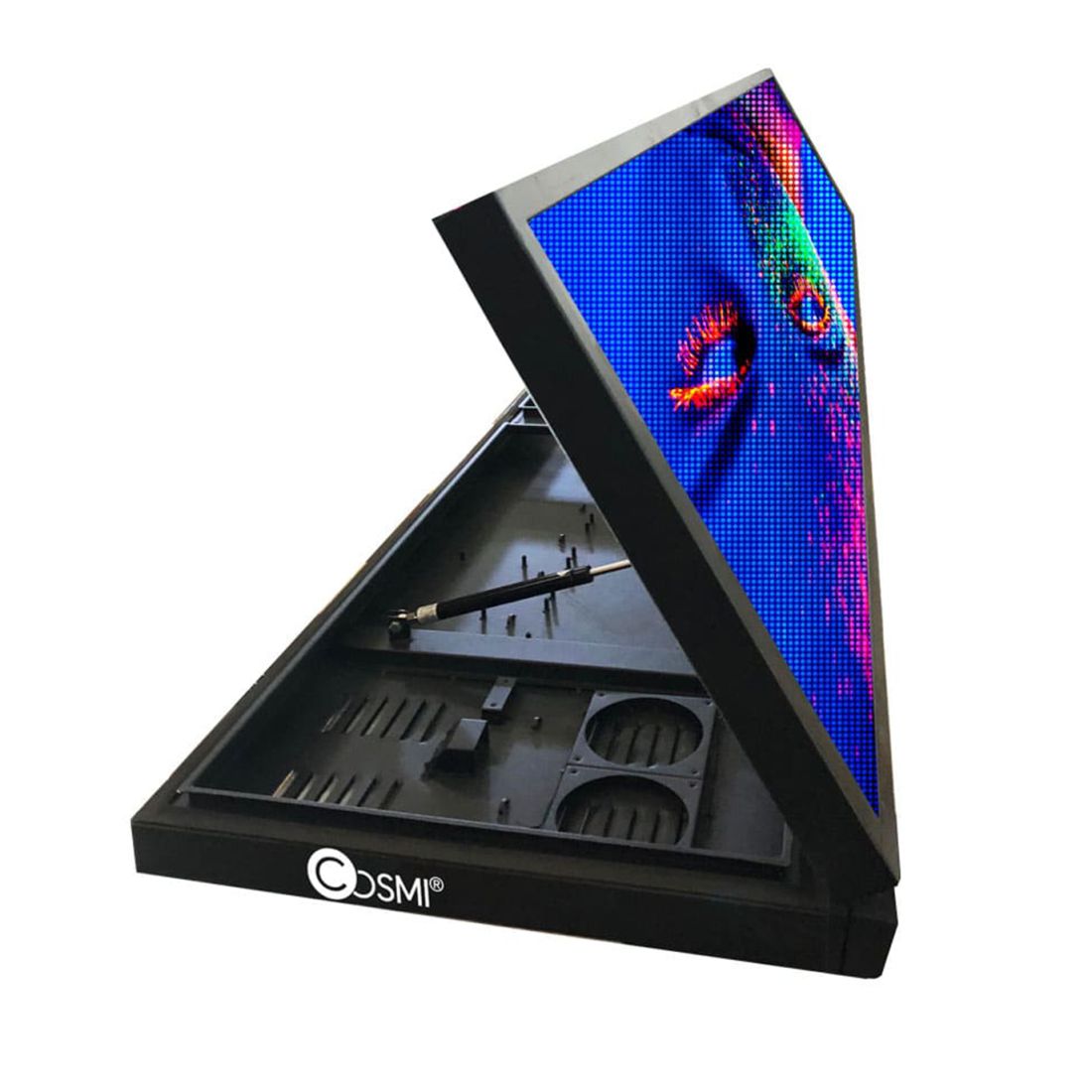

- Front panel opens upward for maintenance
Content management and connectivity
- Multilingual software included
- Connections: TCP/IP, network cable, and USB drive
- Options: Wi-Fi, 3G, 4G, light sensor, temperature sensor, and optional Cosmi Server
Installation notes
- Outdoor installation only in a horizontal position
- Maximum allowed tilt: 15 degrees forward or backward
- Leave at least 80 mm of space for ventilation and safety
- Do not obstruct the frame’s air intakes and outlets
- No perforations or deformations that could affect the interior are permitted
Technical Specifications
| Brand | Cosmi |
|---|---|
| Category | LED Signs |
| Use | Outdoor |
| Model | P8 X19 Full Color Banner |
| LED | SMD |
| Pixel pitch | 8 mm P8 |
| Cabinet resolution | 240 x 60 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 8 m |
| Viewing angle | 140° H / 130° V |
| Maximum power | 798 W |
| Average power consumption | 318 W |
| Power supply | AC 200–230 V |

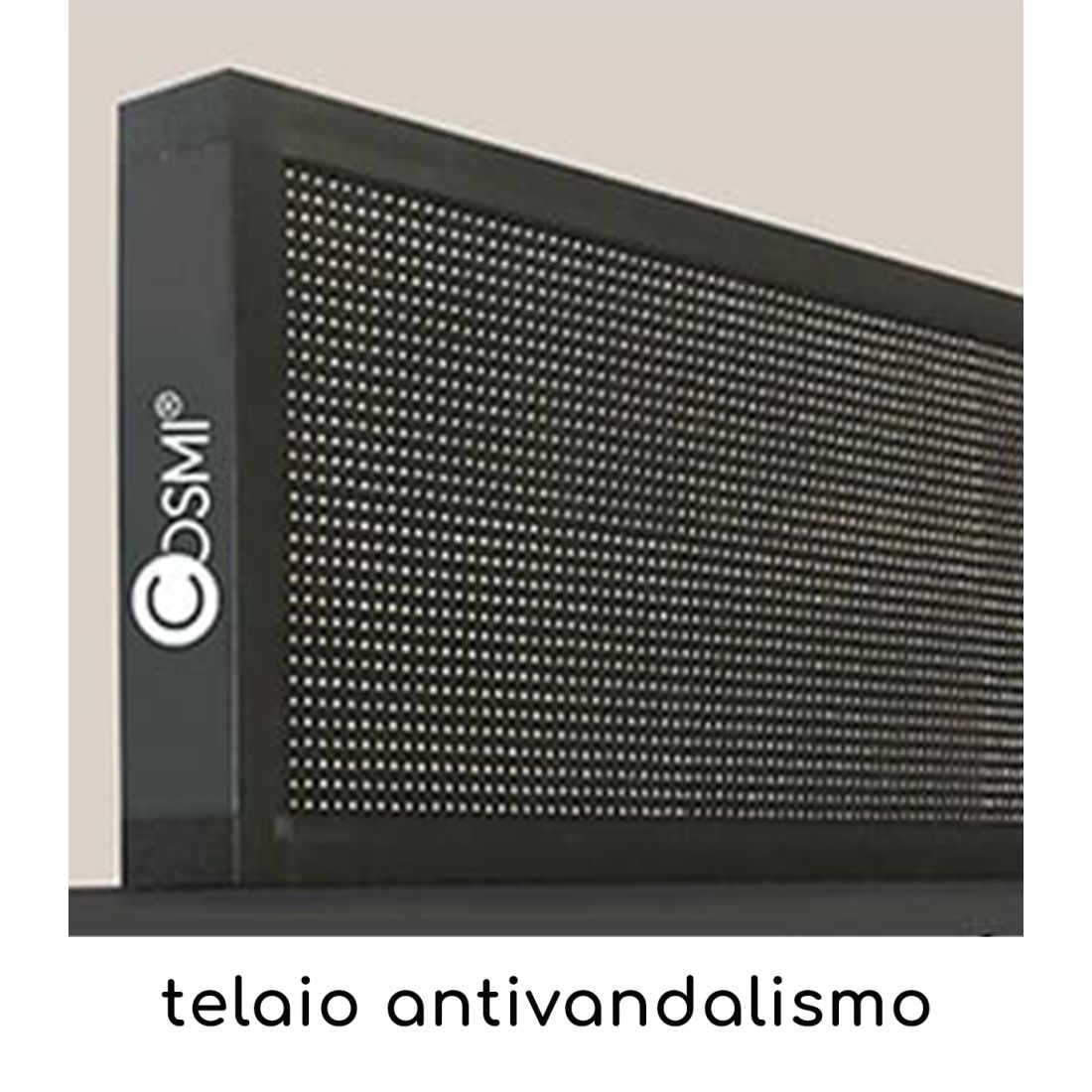

| Chassis | Metal |
| Opening | Front-to-top |
| Scanning | 1/5 |
| Double-sided | No |
| Operating temperature | -20 / +45 |
| Operating humidity | 10–90 |
| Grayscale | 14–16 bits |
| Protection rating | Front IP65 / Rear IP54 |
| Net weight | 51.7 kg |
| Weight with packaging | 56 kg |
| Product dimensions | 1980 x 540 x 103 mm |
| Dimensions with packaging | 2070 x 625 x 160 mm |
| Software | Included, multilingual |
| Connectivity | TCP/IP, USB, optional Wi-Fi, 3G, 4G, optional Cosmi Server |
Applications
- Banner signage for facades and entrances with dynamic advertising
- Promotions and offers updated in real time
- Street-level businesses seeking greater visibility day and night
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 8.0mm
- Dimensions (mm)
- 1980x540
- Grado Protezione IP
- IP65
- Tipologia insegna
- Banner
8056666282429
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
