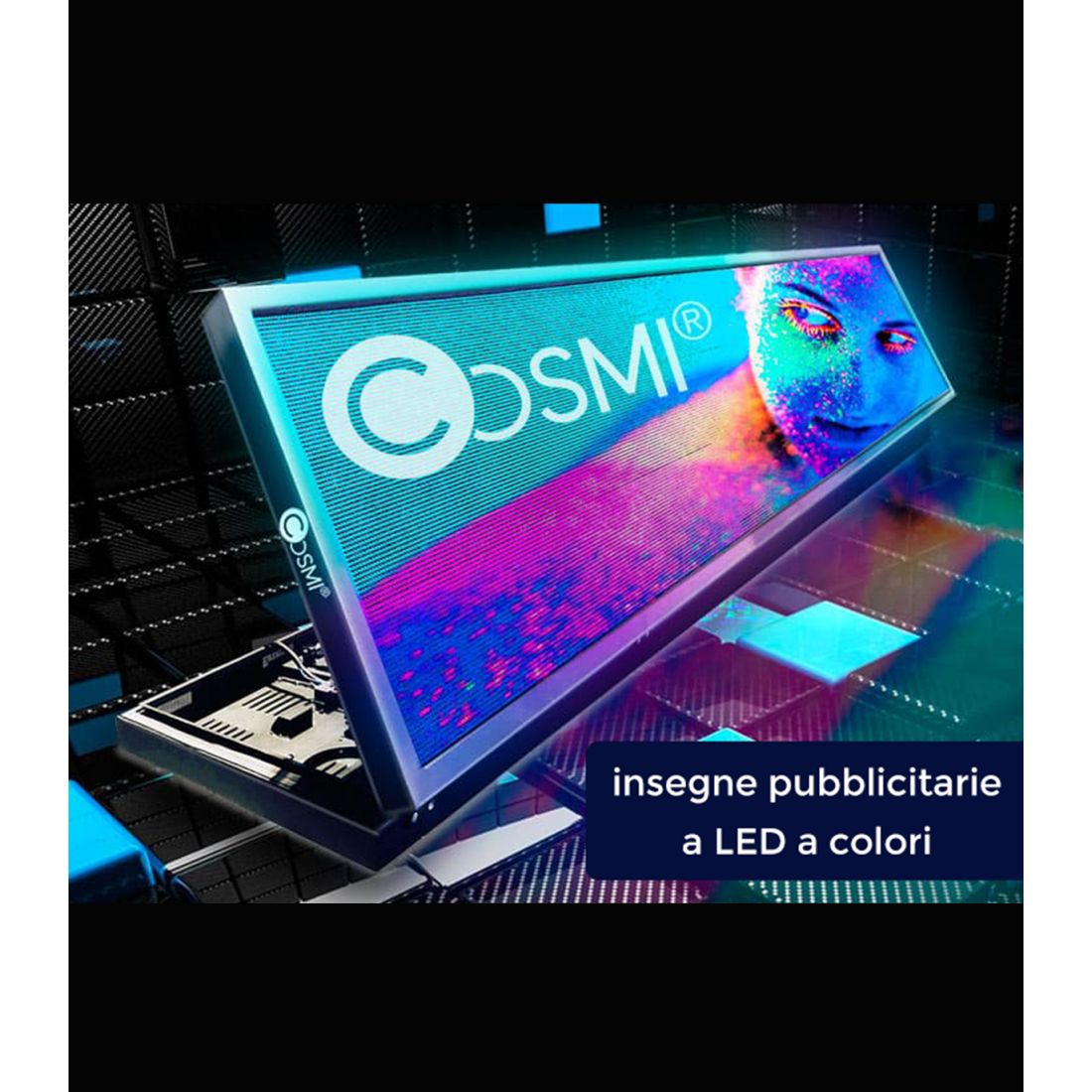

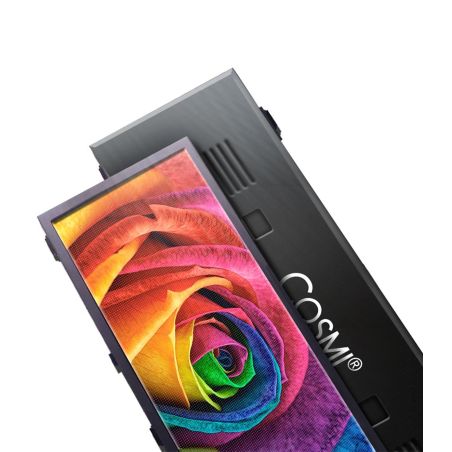

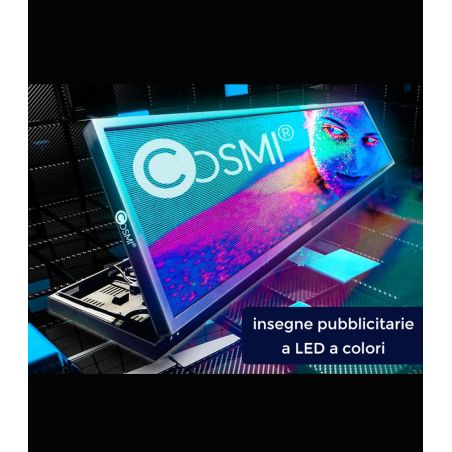

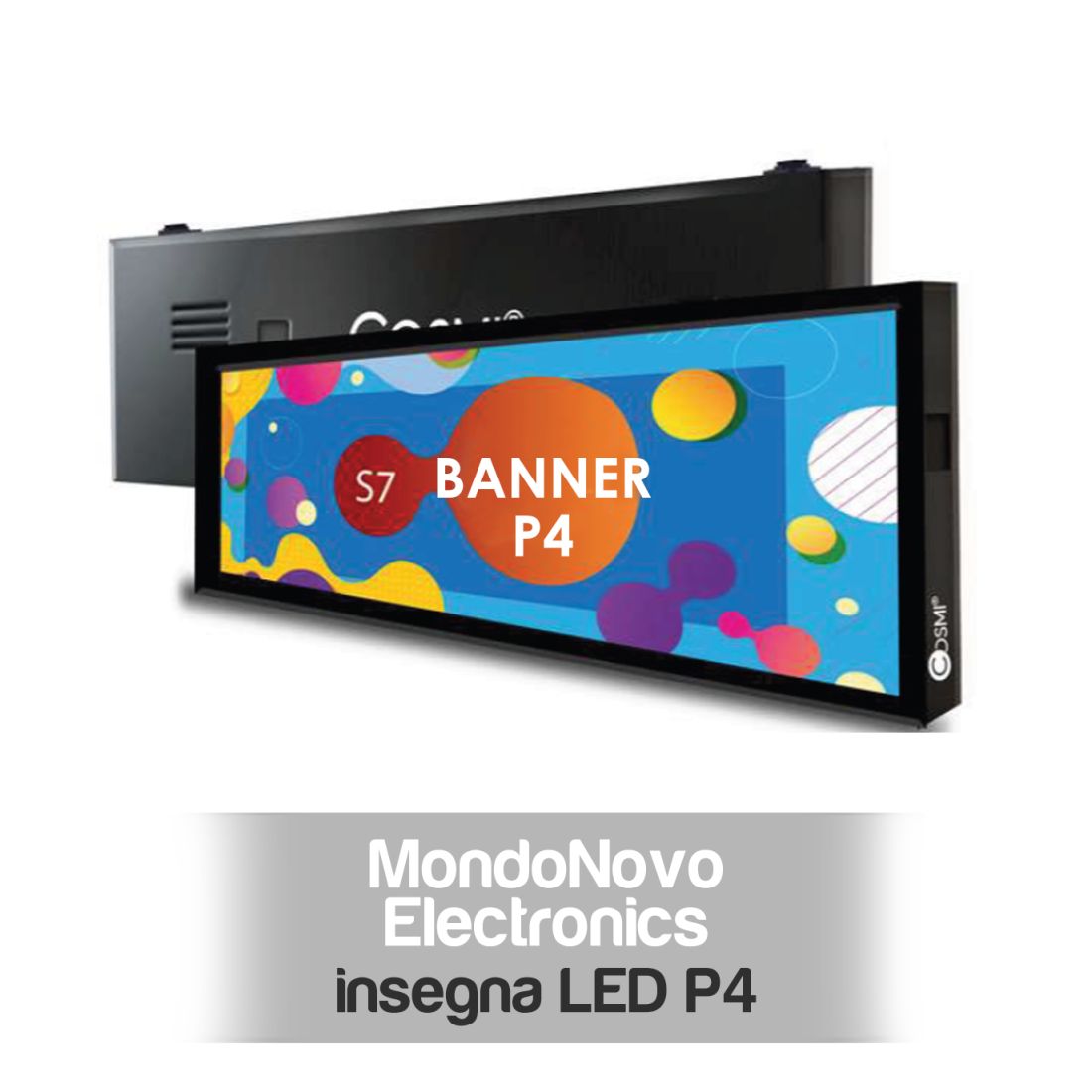

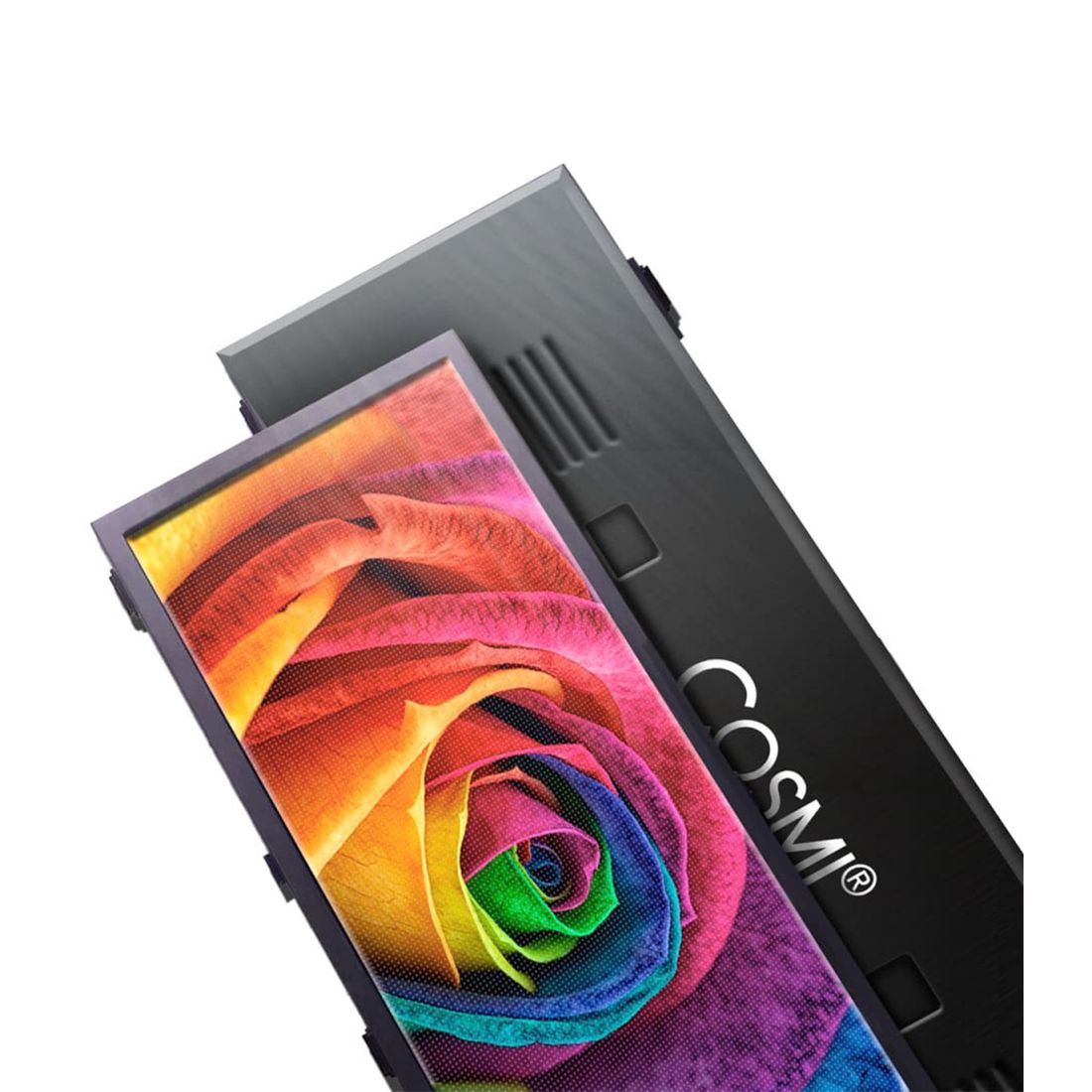

P4 Full Color S7 LED Sign Outdoor IP65 700x220mm COSMI
The P4 S7 Full Color LED sign is a compact and durable solution, ideal for outdoor installations. Thanks to its excellent visibility and versatility, it is perfect for advertising products, offers or dynamic content such as text, videos, schedules and images with transitions.
For more info, configurations, software applications and logistic call to +39 377 5739345
Designed to ensure maximum resistance to atmospheric conditions (IP65).
Easy management via Windows software and iOS/Android app.
Perfect for promoting offers and information in an innovative way. It includes advanced features such as WiFi, 3G/4G connection, brightness sensor and, on request, temperature sensor.

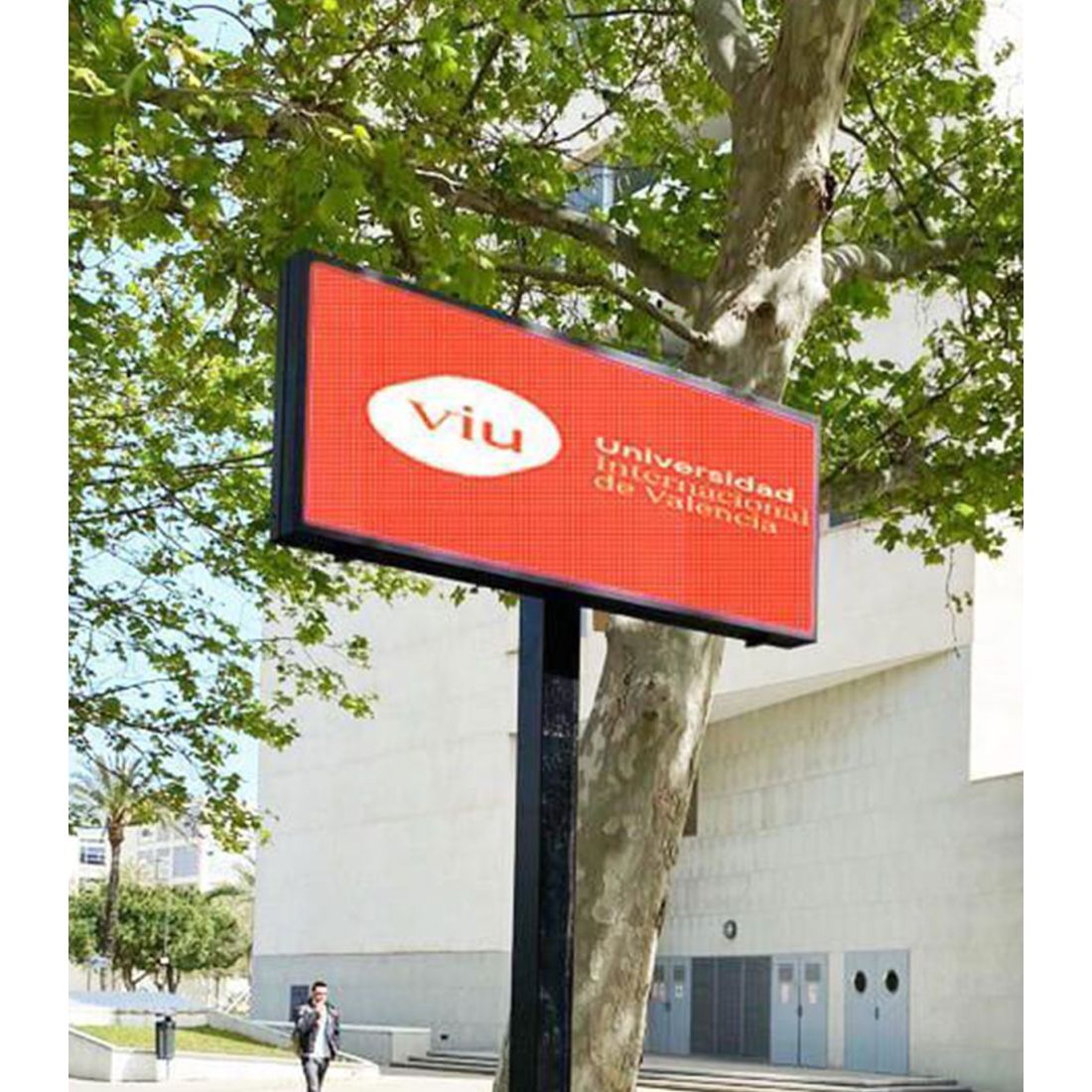

Horizontal installation is mandatory for outdoor mounting, ensuring safe and durable use.
Main features:
- High brightness for exceptional visibility, even during the day.
- Dynamic content: videos, images, programmable texts and animations.

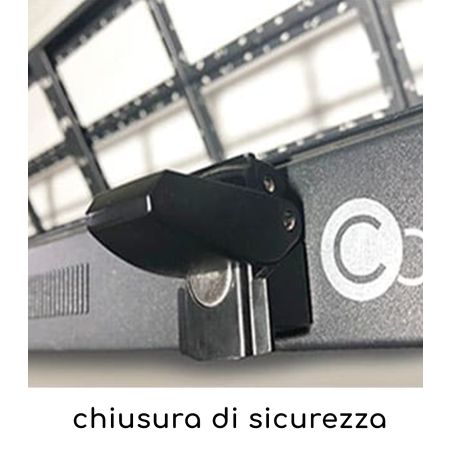

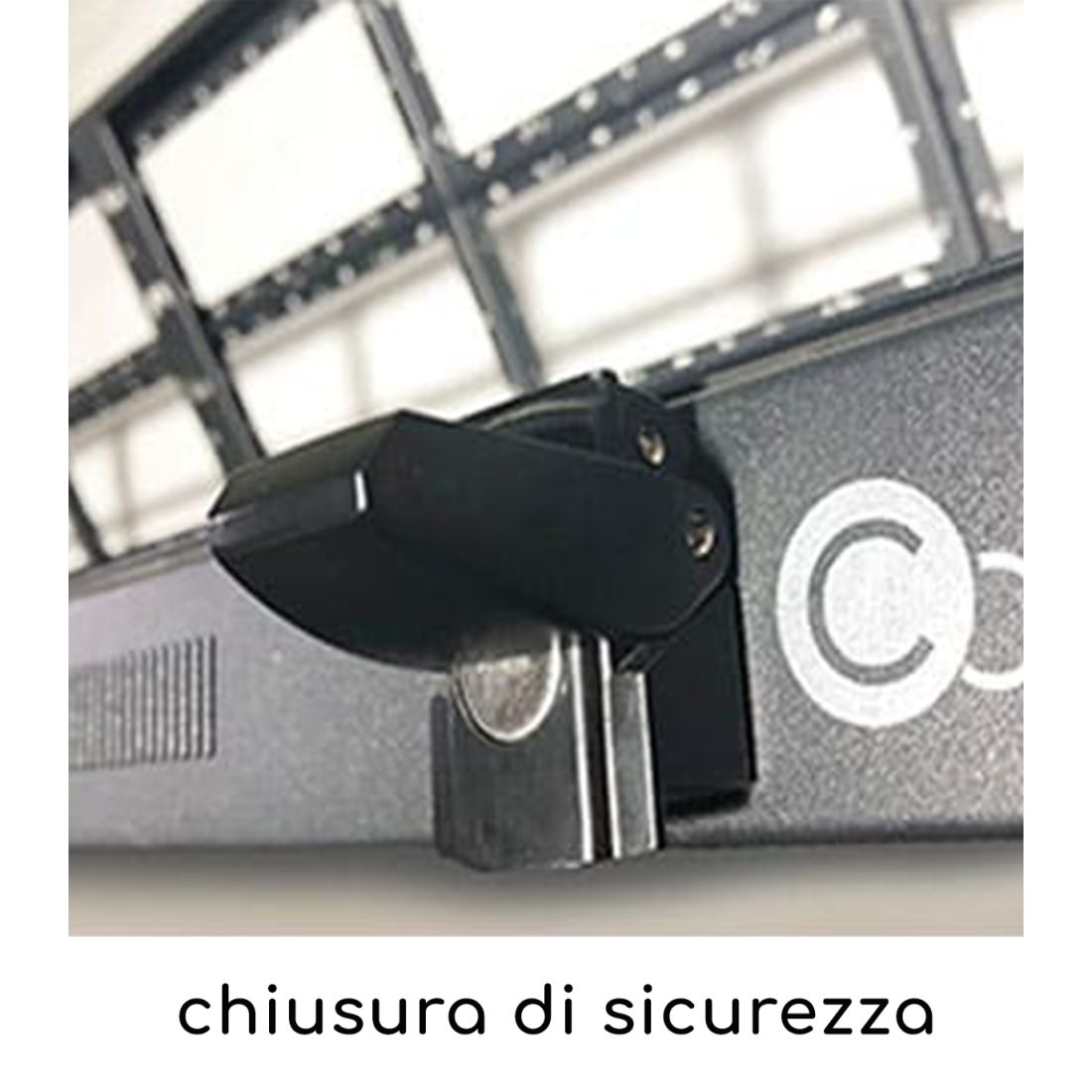

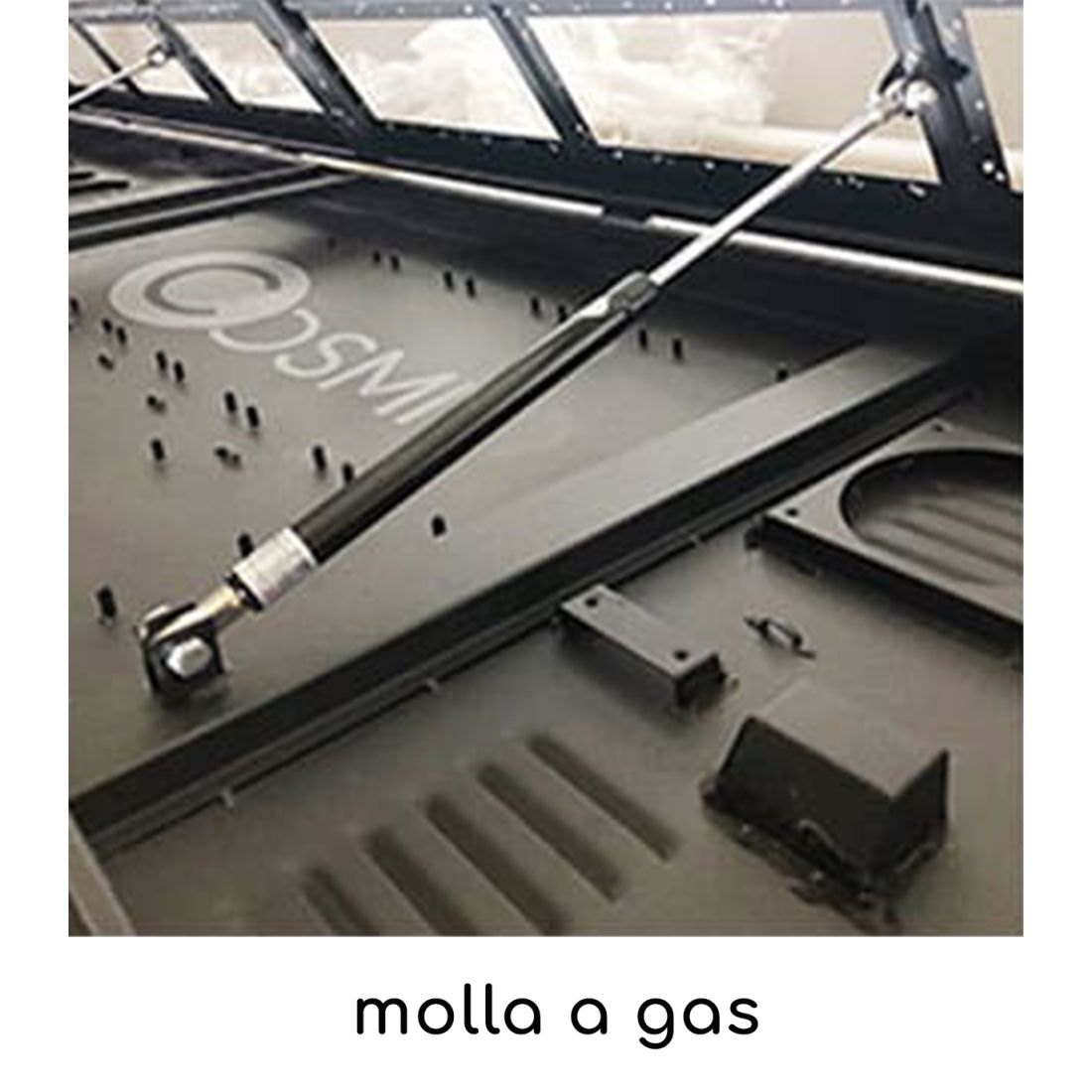

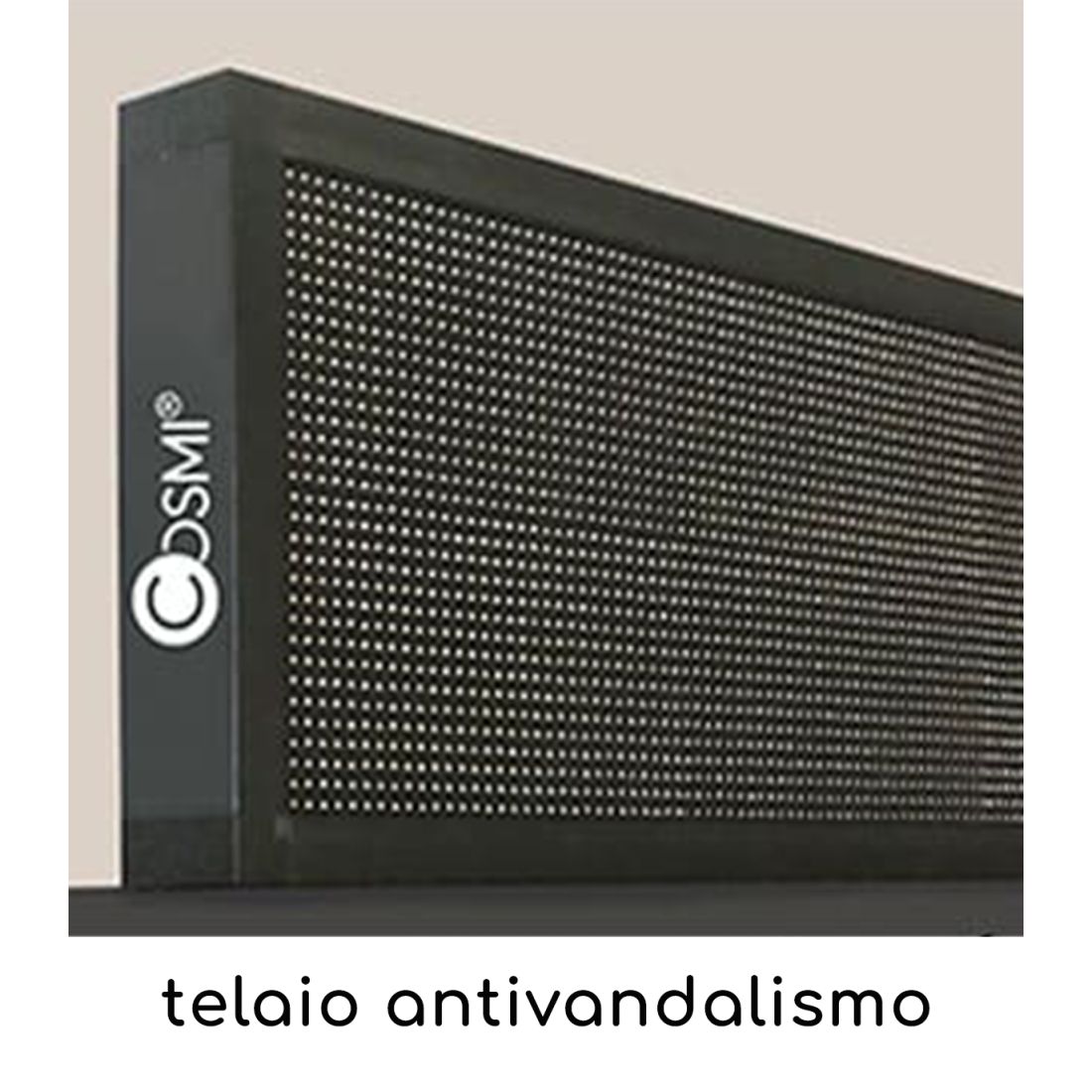

- Easy maintenance: sturdy chassis with top opening and anti-vandalism system.
- Weatherproof: IP65 certified.
| Characteristic | Detail |
|---|---|
| LED | SMD |

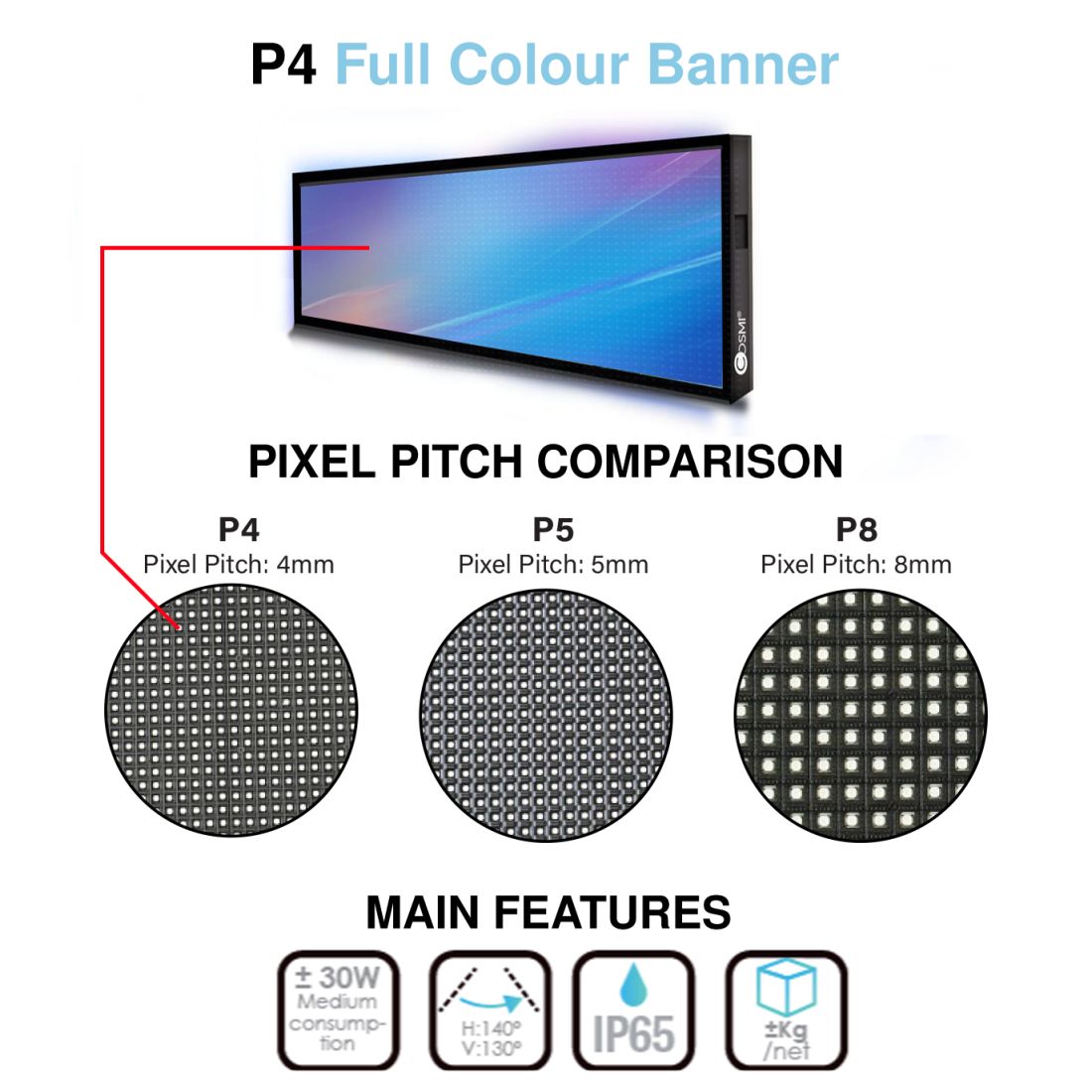

| Step | 4mm |
| Resolution | 160 × 40 px per cabinet |
| Brightness | ± 5,000 / 5,500 nits |
| Viewing distance | ≥ 4 m |
| Viewing angle | 140° Horizontal / 130° Vertical |
| Maximum consumption | ≤ 90W |
| Average consumption | ±30W |
| Operating voltage | AC 200-230V |
| Chassis / Degree of protection | Metal / Front: IP65, Back: IP54 |
| Opening | Front, upwards |
| Scan | 1/10 |
| Double sided | No |
| Operating temperature | -20° / +45° C |
| Operating humidity | 10-90% |
| Software | Included, multilingual |
| Connectivity | TCP/IP (network cable), USB memory, 3G/4G WiFi, optional Cosmi server |
| Weight | ± 12 kg with packaging |
| Grayscale | 14-16 bit |
Data sheet
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5000 nits
- LED Pixel Pitch
- 4 mm

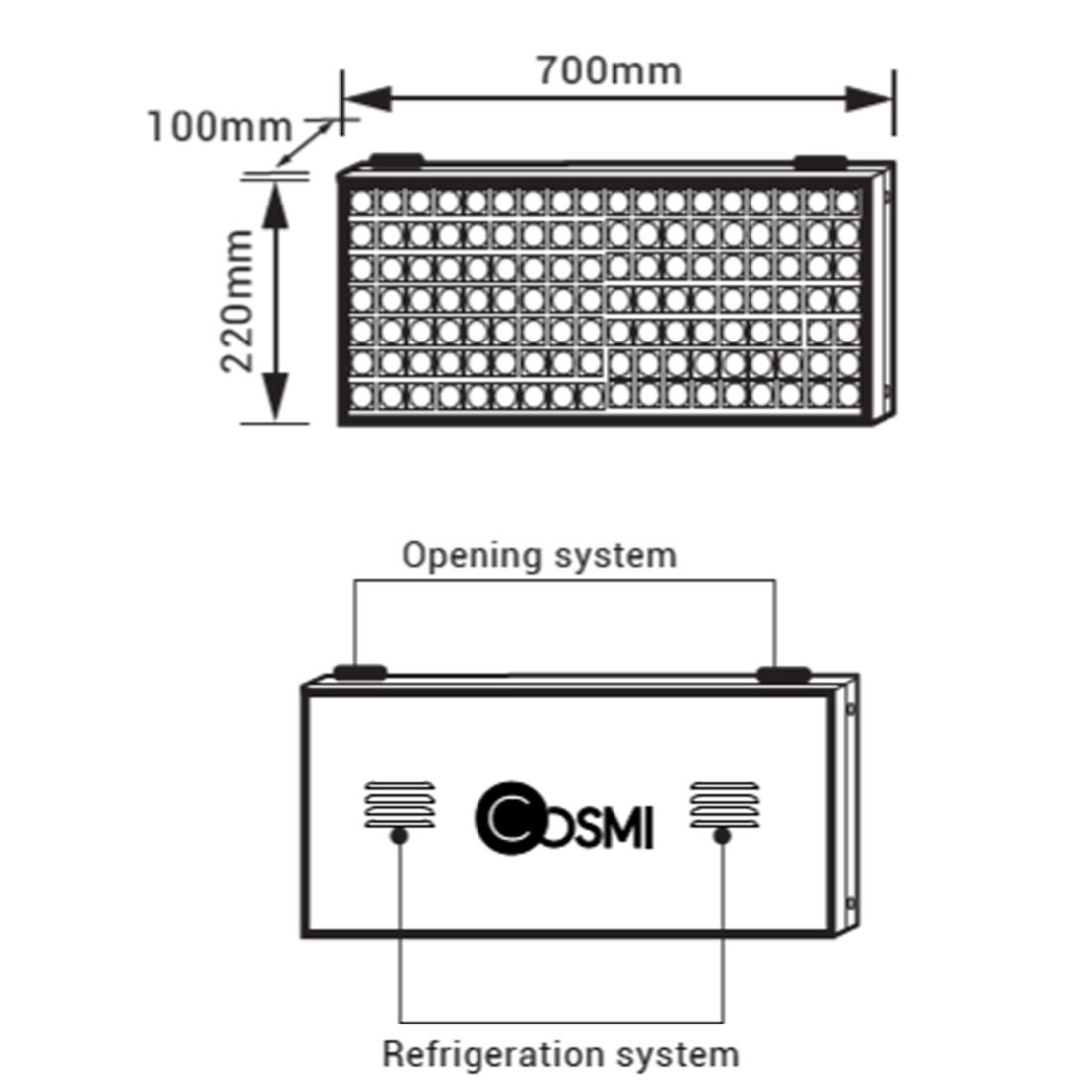

- Dimensions (mm)
- 700x220
