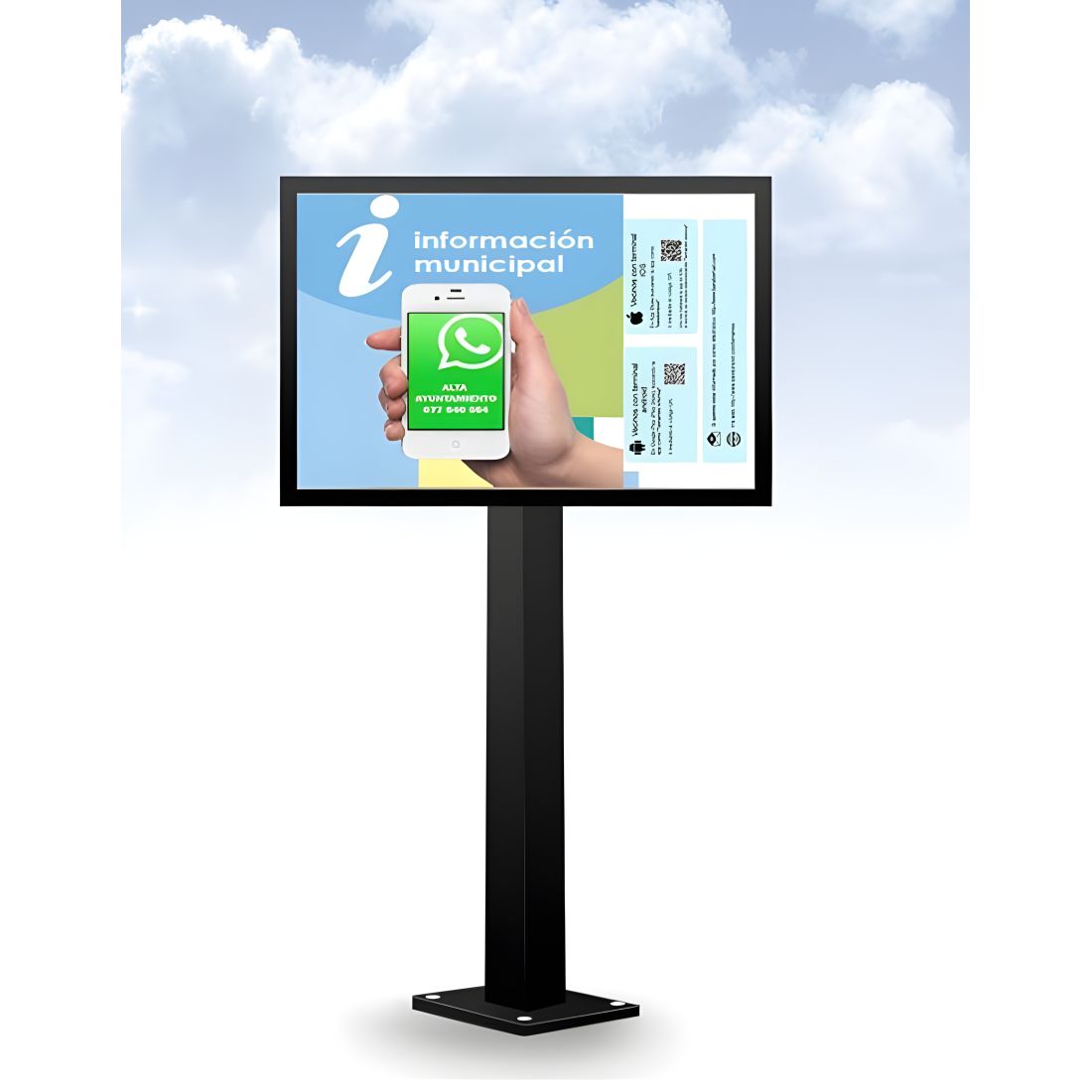

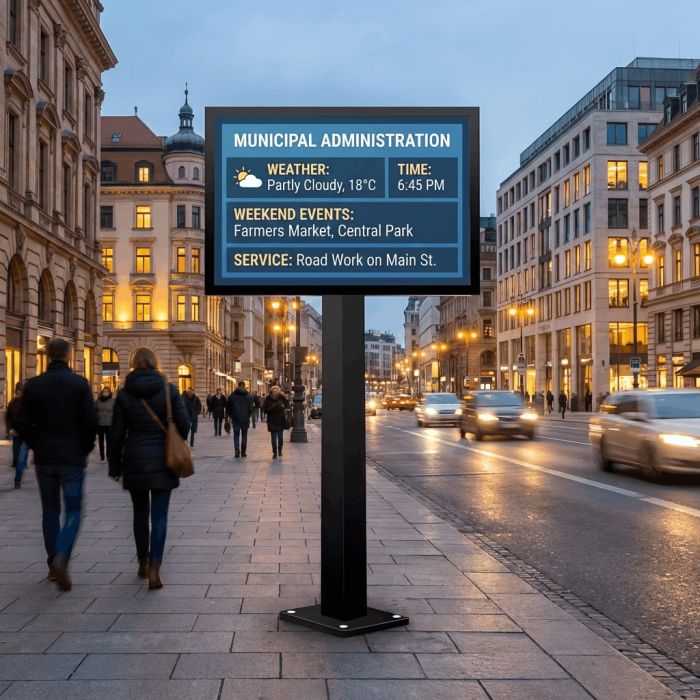

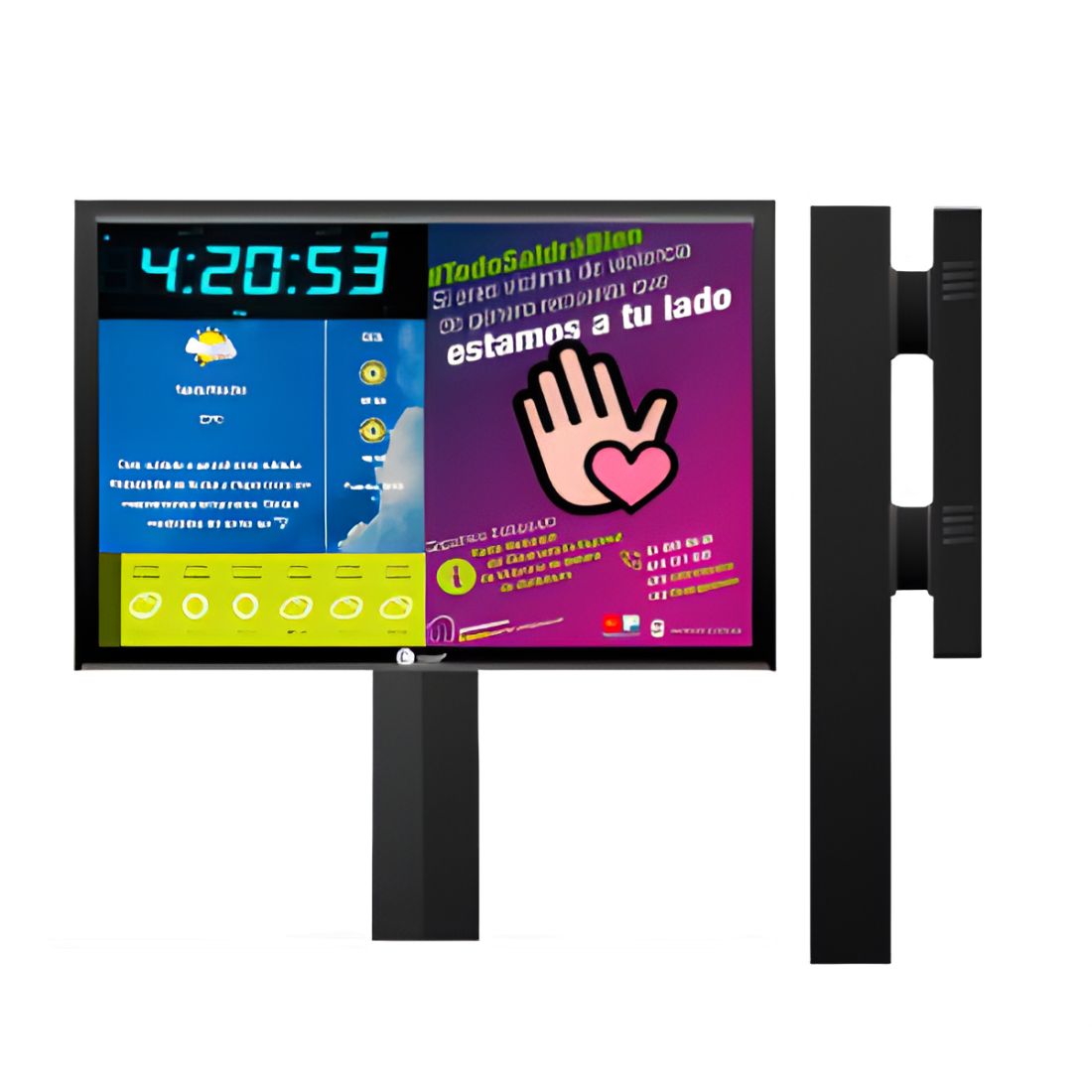

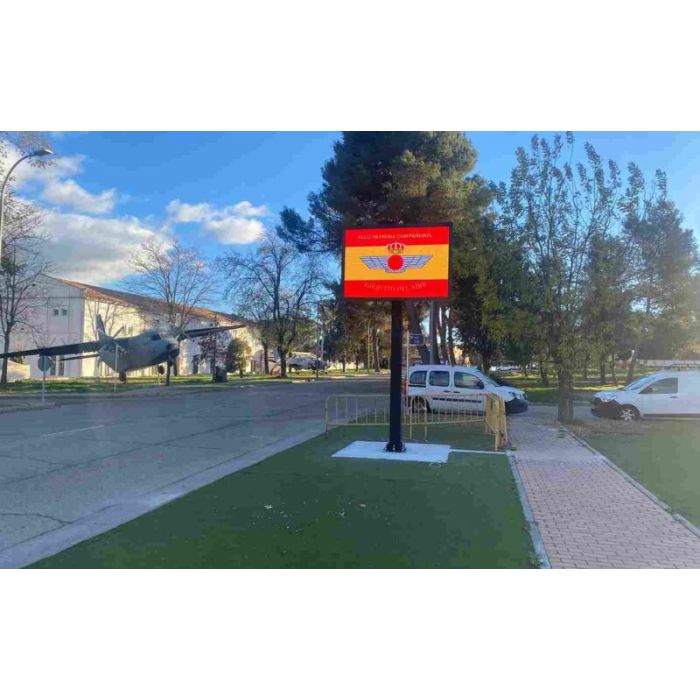

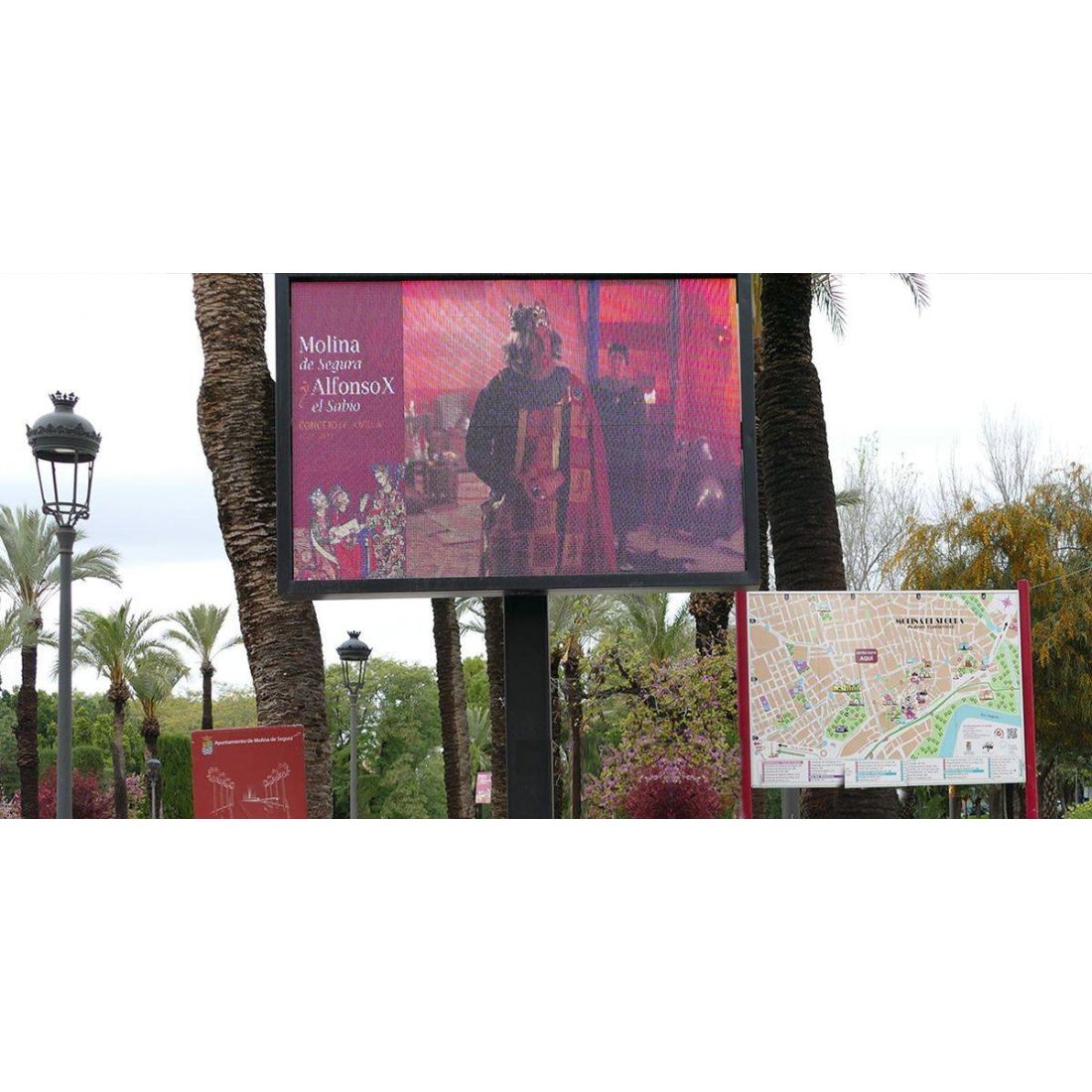

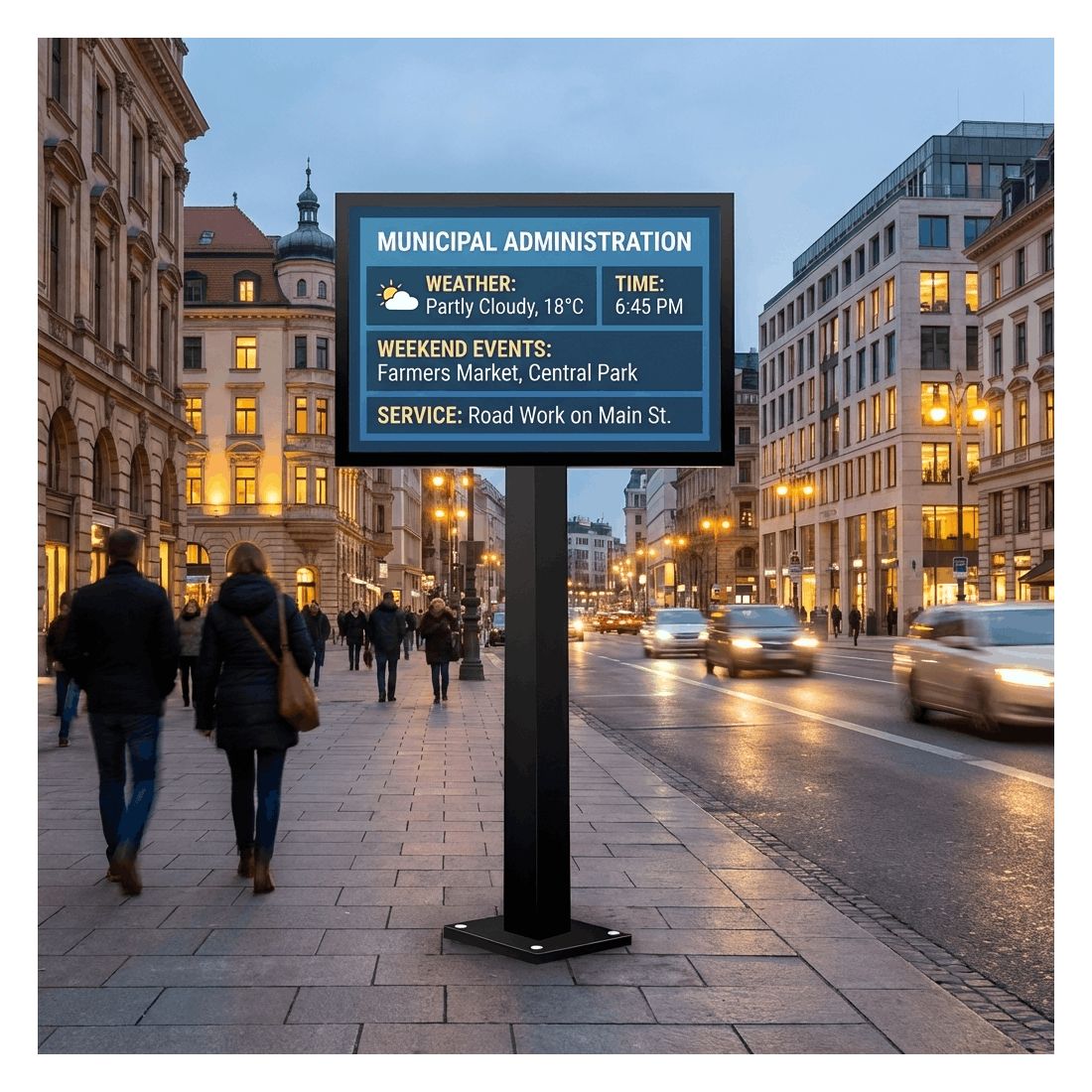

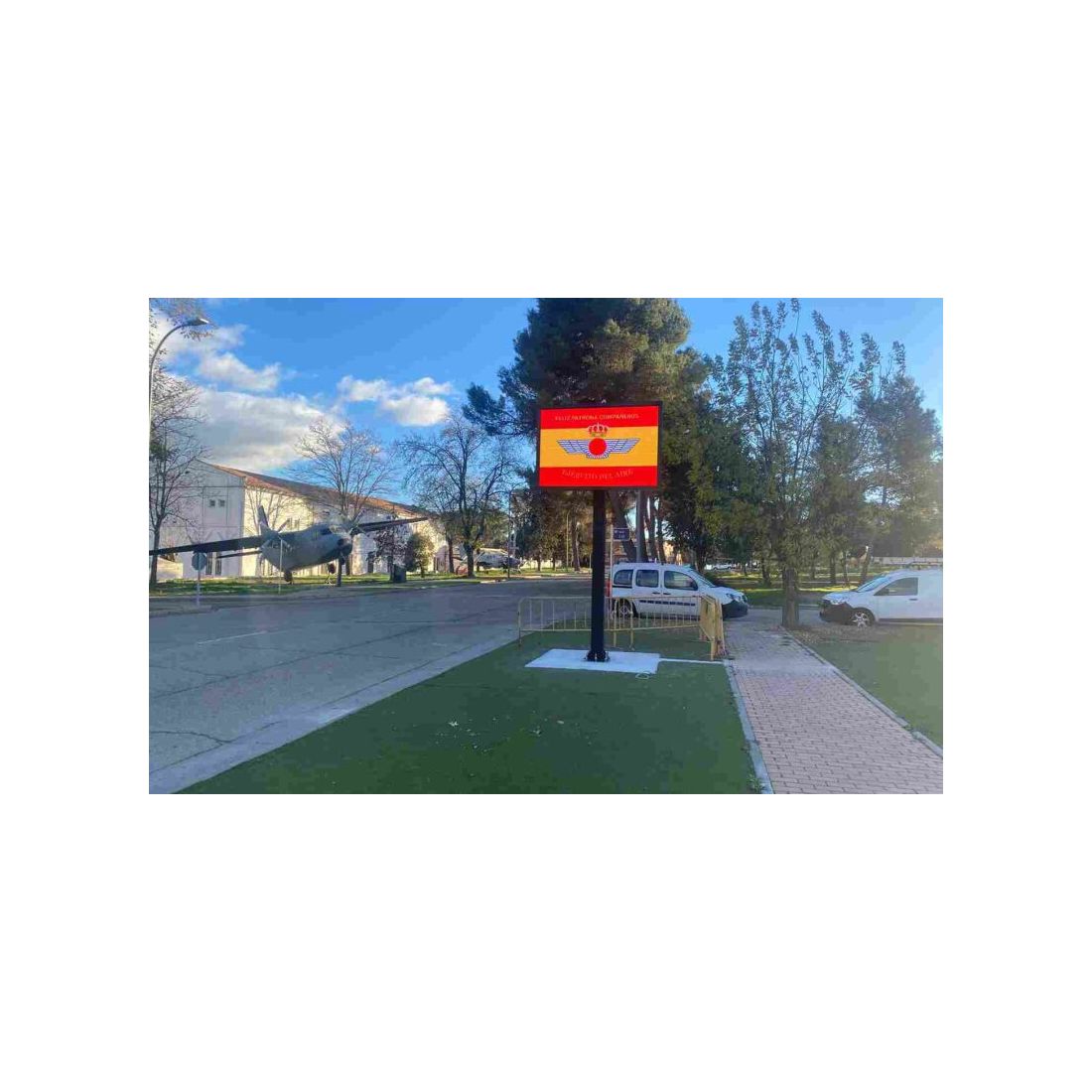

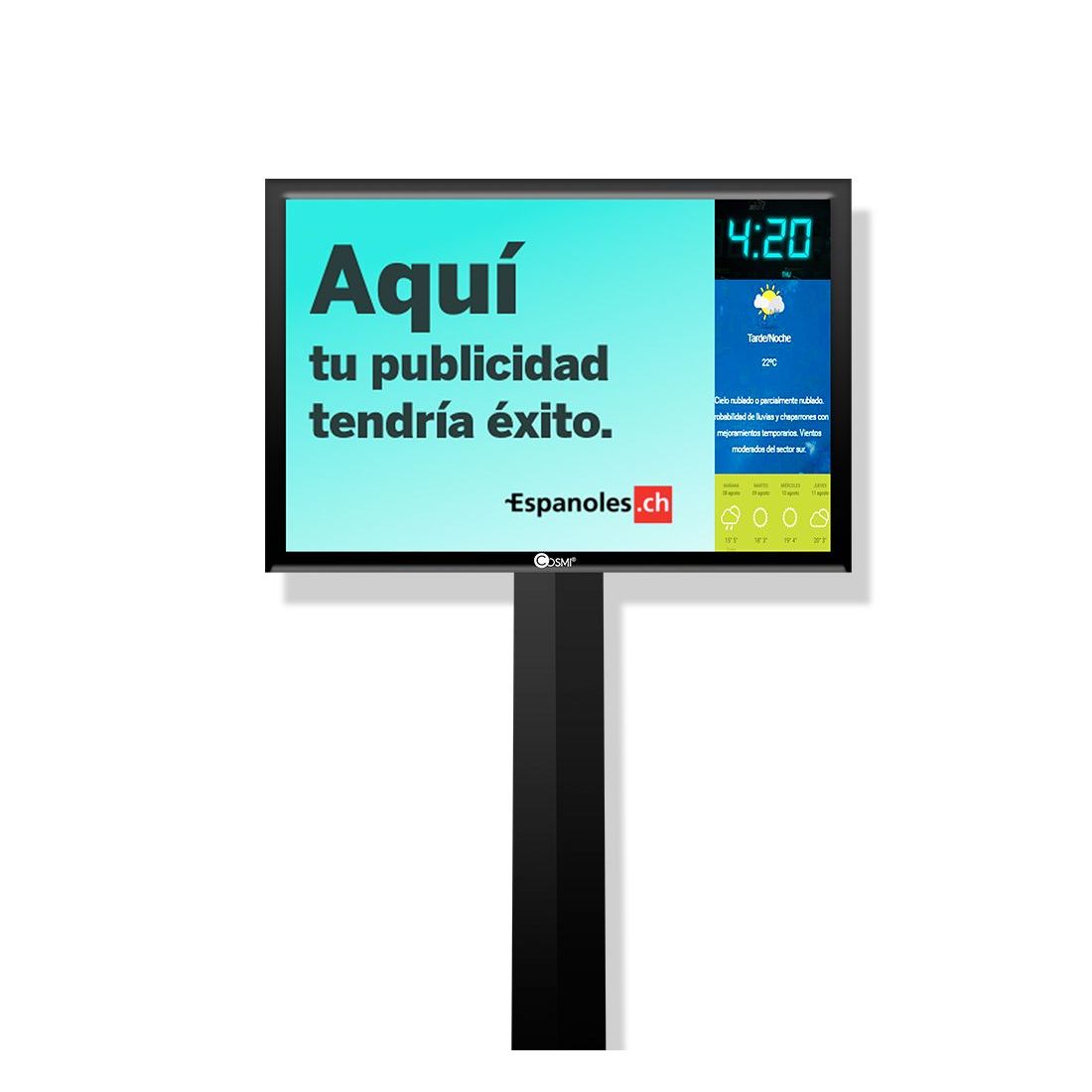

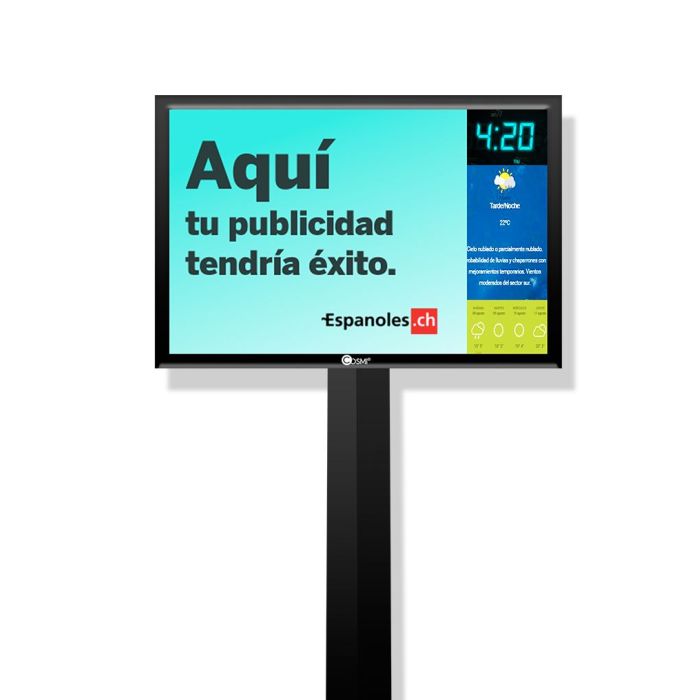

P5 Full Color LED digital advertising billboard on pole (COSMIr Urban line) for urban communication and DOOH: events, public notices, institutional campaigns, and advertising. 2051×1417 mm screen (with casing), 480×320 px resolution, 5,000–5,500 nits brightness, 3,840 Hz refresh rate, and 4G communication. Includes automatic brightness sensor and time/temperature/humidity display. Designed for outdoor use (PC10).
The Cosmi Urban single-seater is an advanced digital communication system consisting of four high-contrast P5 outdoor LED screens.
Designed to operate 24 hours a day, it allows dynamic management of videos, texts, and graphics in real time.
The structure is made of black anodized metal and is resistant to atmospheric agents.
Technical Specifications
| LED pitch | 5 mm |
| Total Resolution | 384 x 265 px |
| Maximum Brightness | ± 5,500 nits |
| Viewing Distance | ≥ 25 m |
| Viewing Angle | 140°H / 130°V |
| Maximum/Average Power Consumption | 2,058W / 824W |
| Refresh Rate | 3,840 Hz |
| LED type | Professional SMD |
| Maintenance | Rear Access |
| Connectivity | 4G, WiFi, TCP/IP |
| Operating System | Multilingual Software |
| Certifications | CE, RoHS Compliant |
Included in delivery:
- Ground anchoring kit
- Environmental probes (Temp/Humidity/Light)
- 2-year official warranty
Includes 4G connectivity for simplified remote management and integrated environmental sensors.
Technological Plus
IP65 Total Protection
+5500 NITS High Brightness
AUTO SENS Light/Temp/Humidity
Overall Dimensions
| Total Height | 4,217 mm |
| Cabinet Width | 2,050 mm |
| Cabinet Height | 1,417 mm |
| Pole height | 2,800 mm |
| Cabinet depth | 160 mm |
Technical Installation Notes
Mandatory requirements:
- Perfectly flat support surface.
- Reinforced concrete plinth (min. 1200x1200x800mm).
- Provide ducting for power and data.
- Do not obstruct the ventilation grilles on the rear.
- Use certified M20/M22 anchor bolts.
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 5 mm
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
