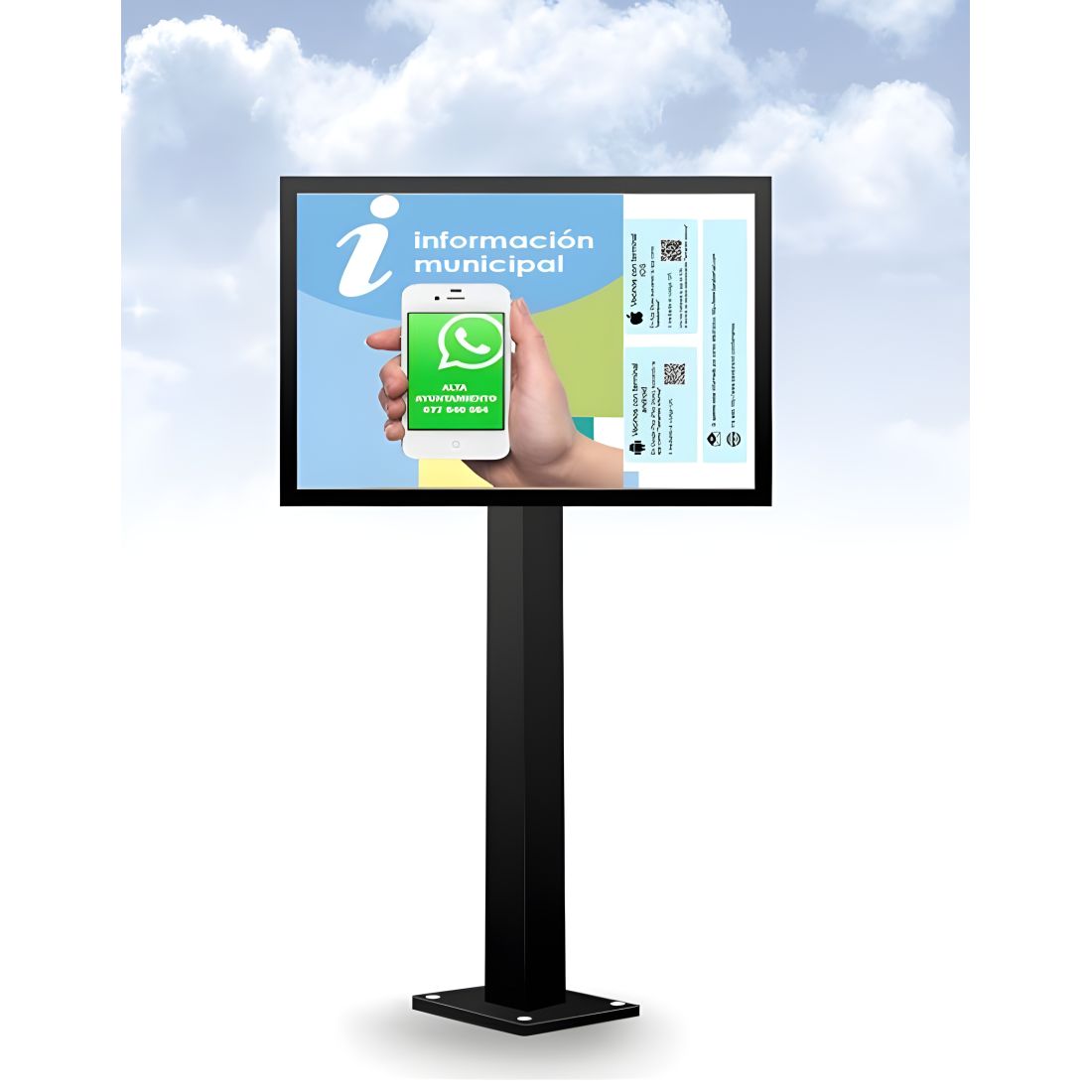

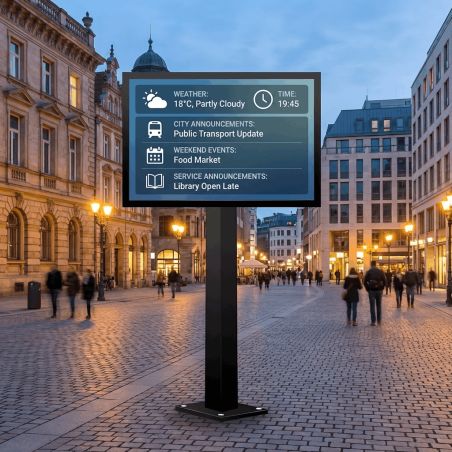

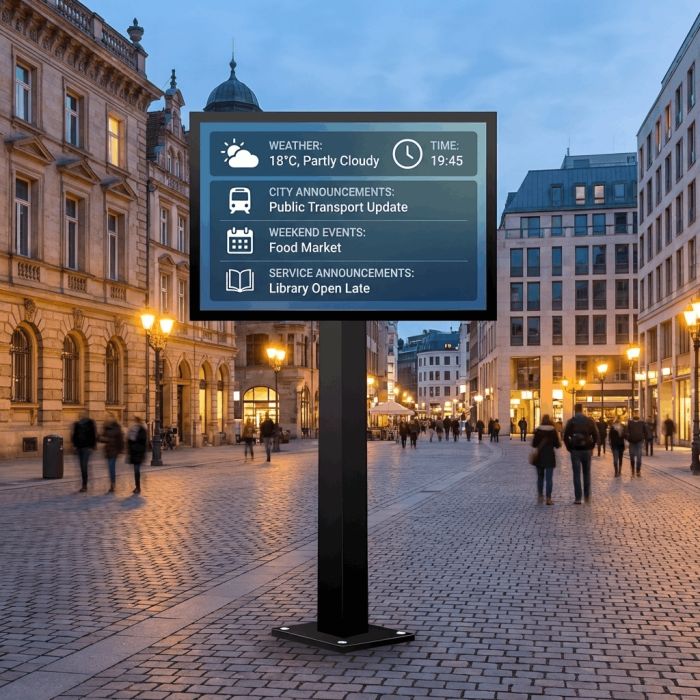

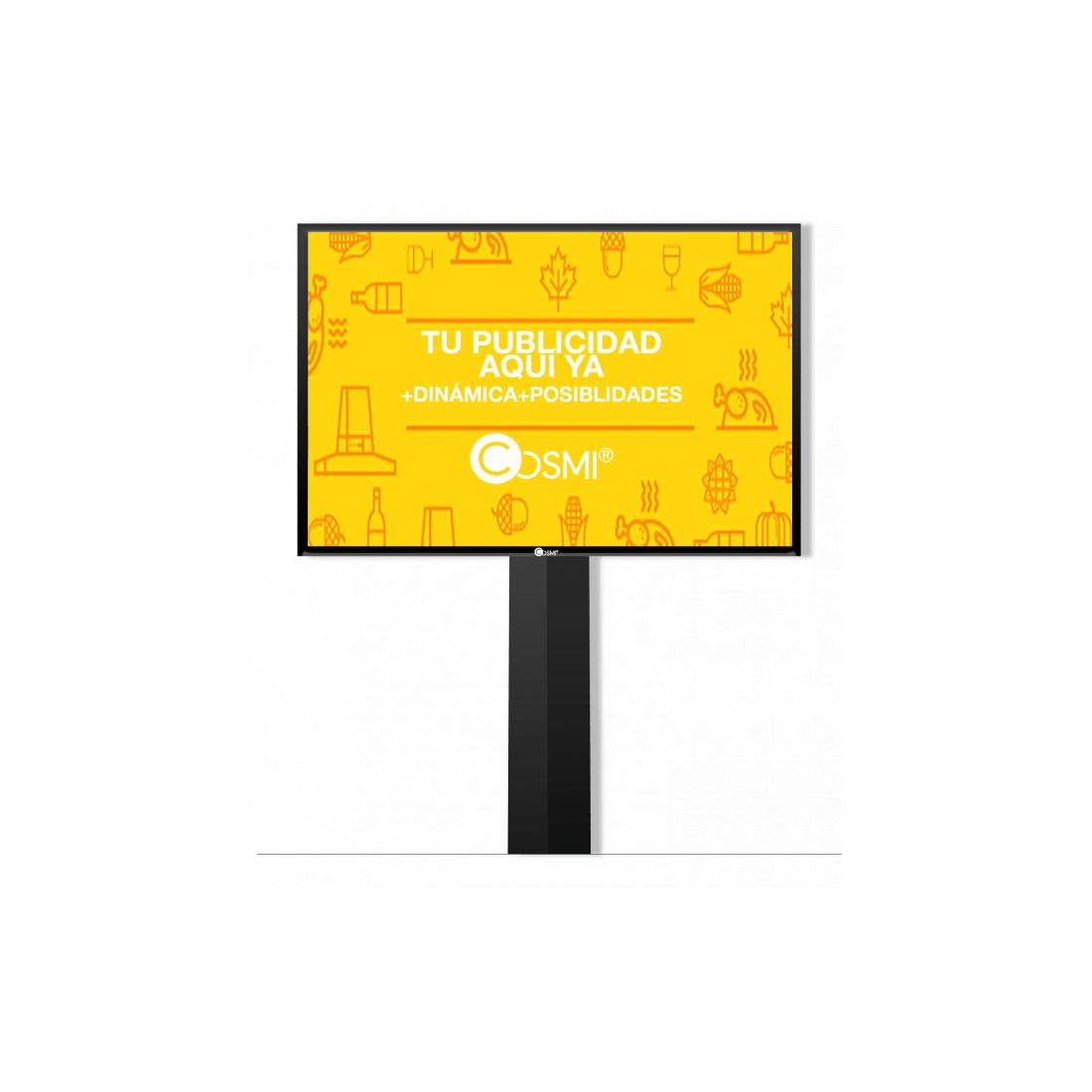

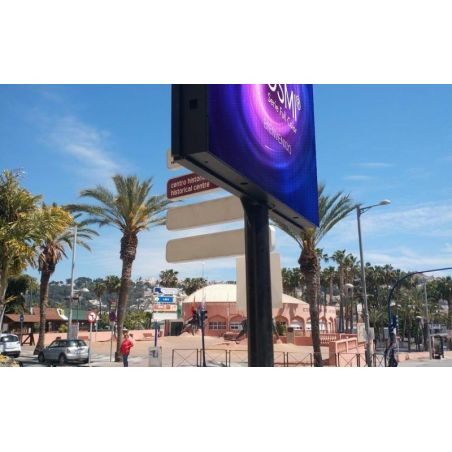

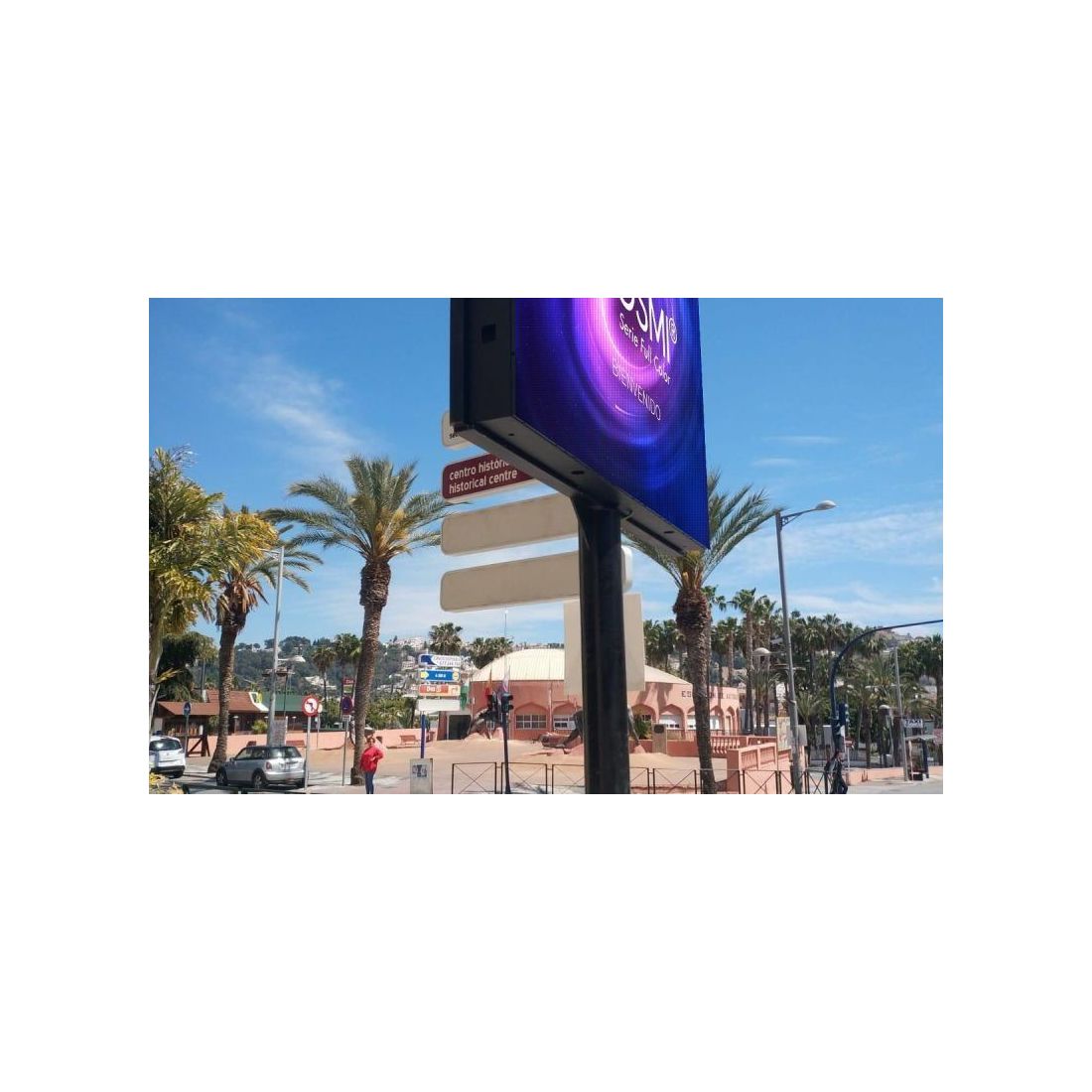

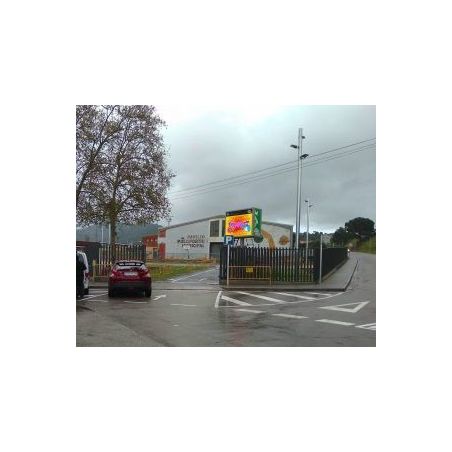

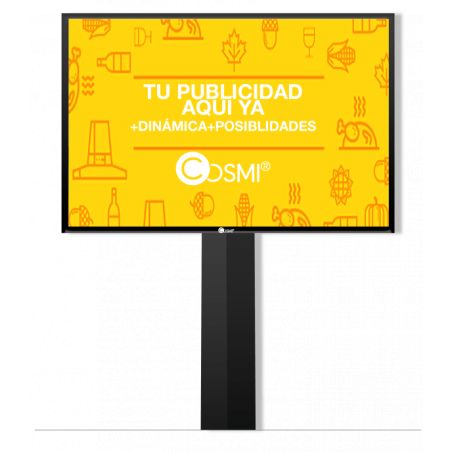

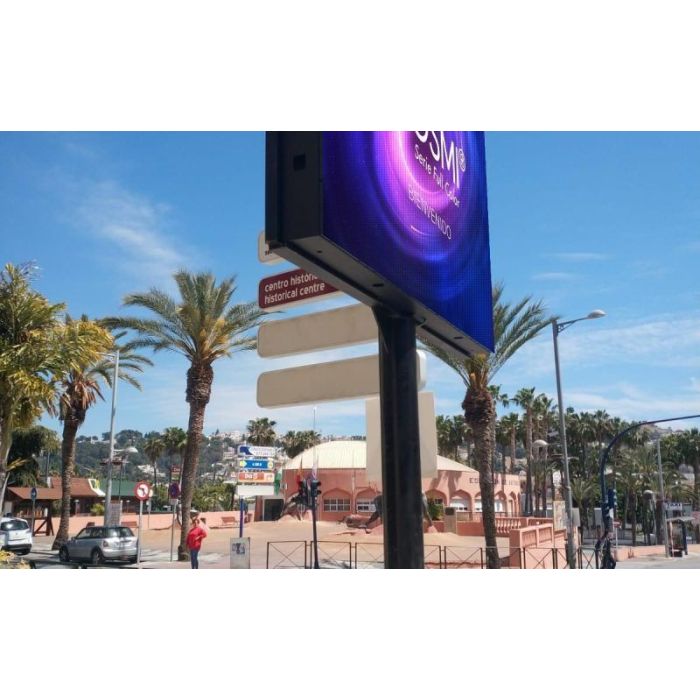

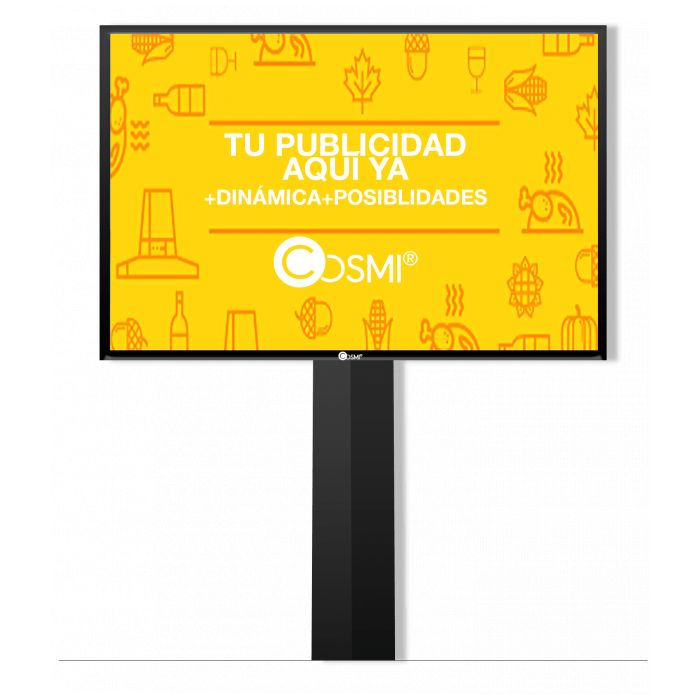

Full Color P5 Double-Sided LED Digital Advertising Billboard on Pole (COSMI Urban line) for urban communication and DOOH: events, public notices, institutional campaigns, and advertising. Double-sided screen 2050×1417 mm (with casing), resolution 384 x 265 px (per side), brightness 5,000–5,500 nits, refresh rate 3,840 Hz and 4G communication. Includes automatic brightness sensor and time/temperature/humidity display. Designed for outdoor use (PC10)
The double-sided Cosmi Urban X2 single-unit display is the ultimate solution for maximum urban visibility.
It displays color content in both directions of travel, doubling the advertising and informational impact.

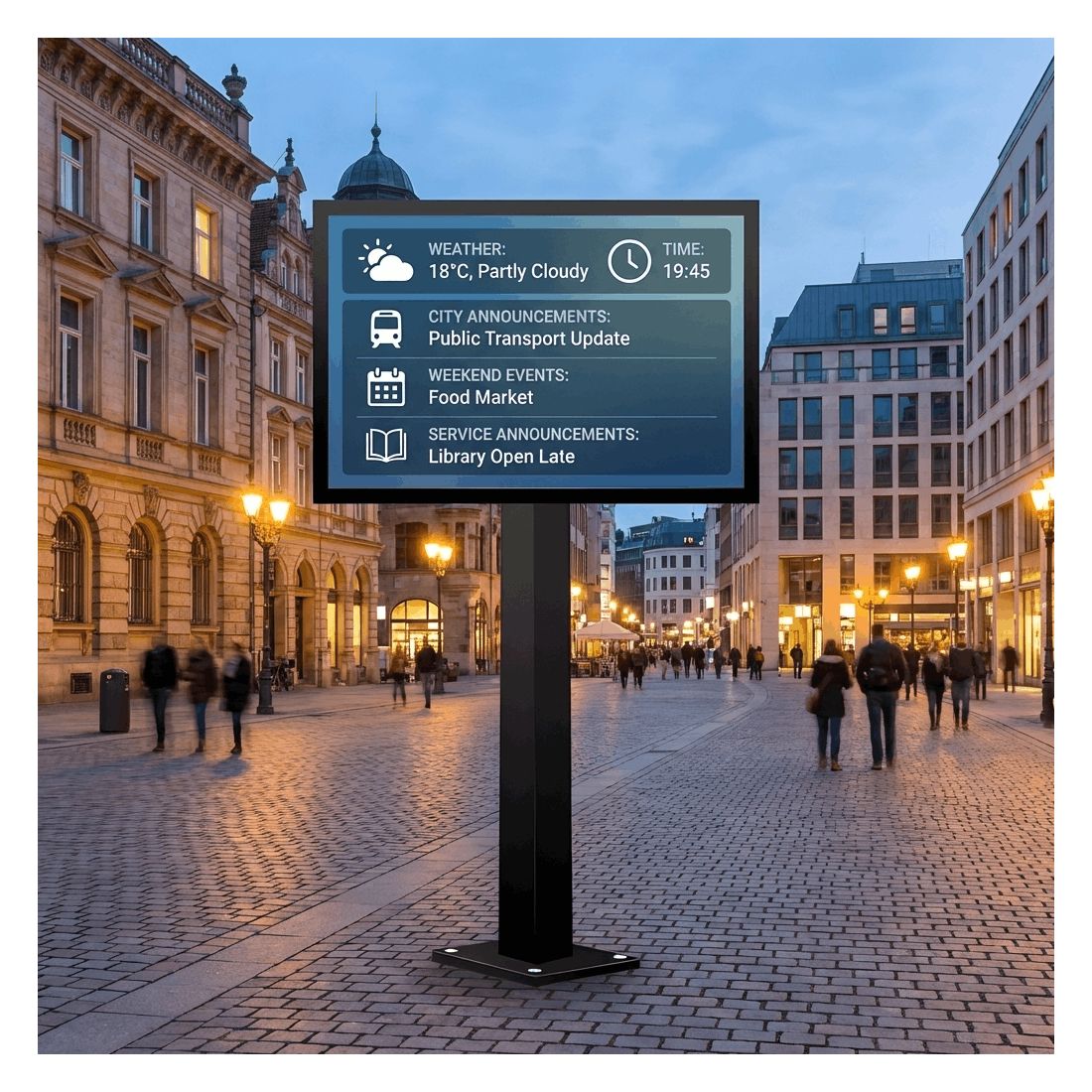

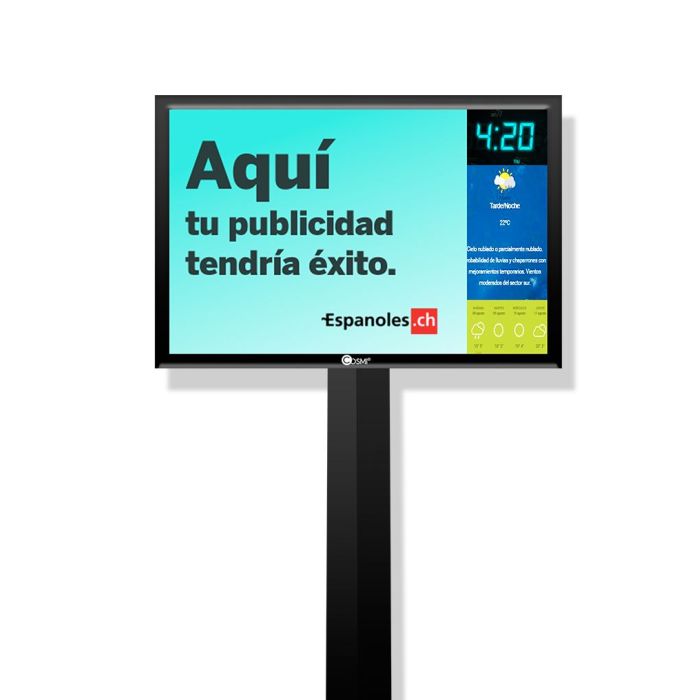

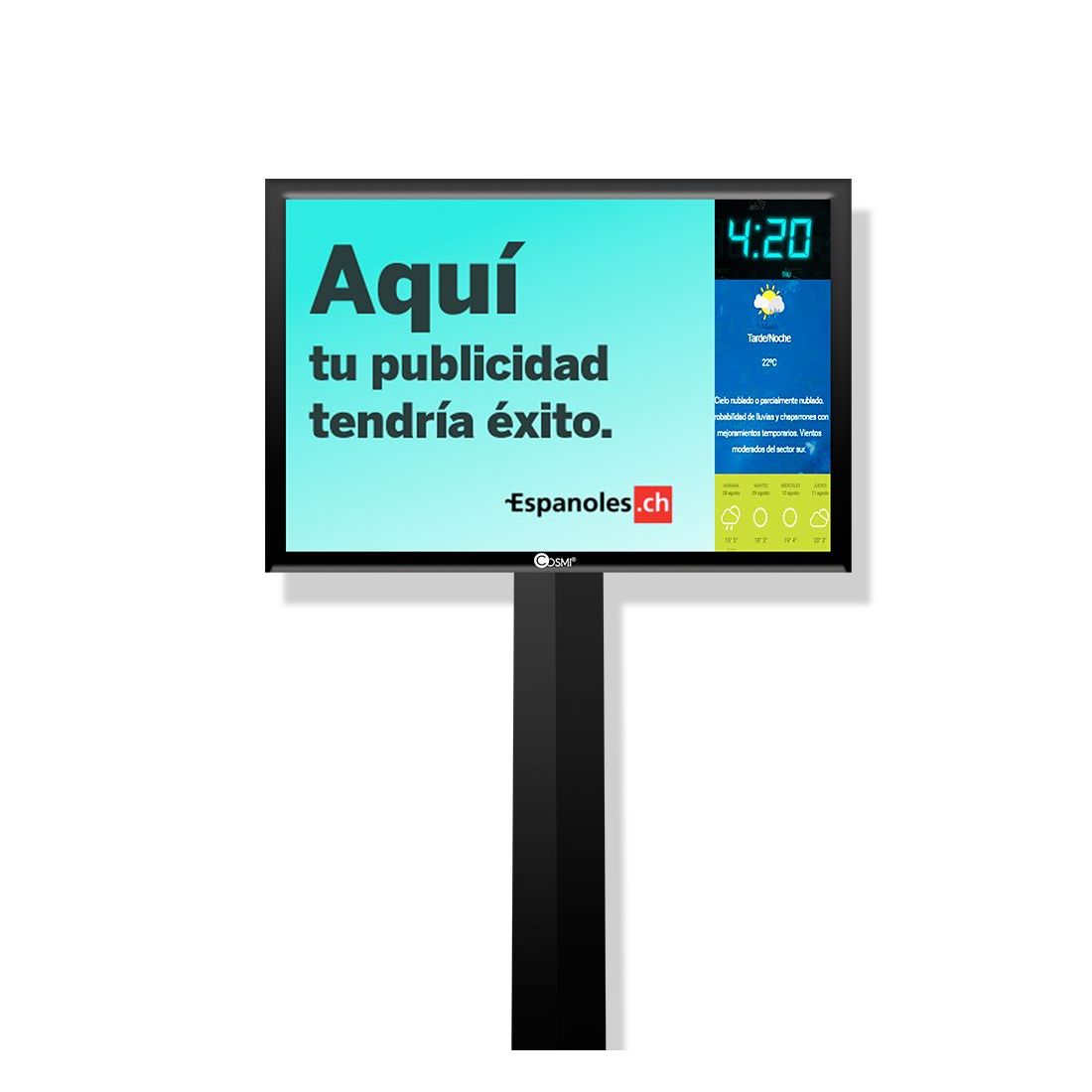

It allows for the segmentation of areas to simultaneously transmit videos, text, weather, and clocks. High-quality
black anodized metal structure, designed as a superior tool for smart cities.
Technical Specifications
| LED technology | Professional SMD |
| Pitch | 5 mm |
| Resolution | 384 x 265 px (per side) |
| Brightness | ± 5,000 / 5,500 nits |
| Viewing distance | ≥ 25 m |
| Viewing angle | 140°H / 130°V |
| Maximum Power | ≤ 4,112 W |
| Average Consumption | ± 1,648 W |
| Operating Voltage | AC 200-230V |
| Refresh Frequency | 3,840 Hz |
| Protection Rating | IP65 (Outdoor) |
| Connectivity | 4G, WiFi, TCP/IP, USB |
| Software | Included (Multilingual) |
Smart Management:
- Manageable via Cloud Server (optional)
- Automatic brightness sensor included
- Integrated temperature and humidity probe
Key Features
2 SIDES Total Visibility
4G READY Turnkey
SENSORS Auto Control
Product Dimensions
| Total Width | 2050 mm |
| Cabinet Height | 1417 mm |
| Pole Height | 2800 mm |
| Screen thickness | 160 mm (each) |
| Pole spacing | 200 mm |
| Support base | 400 mm |
Installation notes
Important for installation:
- Ensure that the base (plinth) is level.
- Use the anchors included in the package.
- Leave space for air to flow between the two cabinets.
- Do not drill holes in the frame to prevent water infiltration.
- All measurements are in millimeters.
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Double Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 5 mm
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
