P5 XL Full Color LED digital billboard on pole for urban communication and DOOH: events, public notices, institutional campaigns, and advertising.
Cabinet 2985.5×2040.5 mm, resolution 576×384 px, brightness 5,000–5,500 nits, refresh rate 3,840 Hz, integrated 4G.
Includes automatic brightness/temperature/humidity sensors. IP65, rear access, multilingual software included.

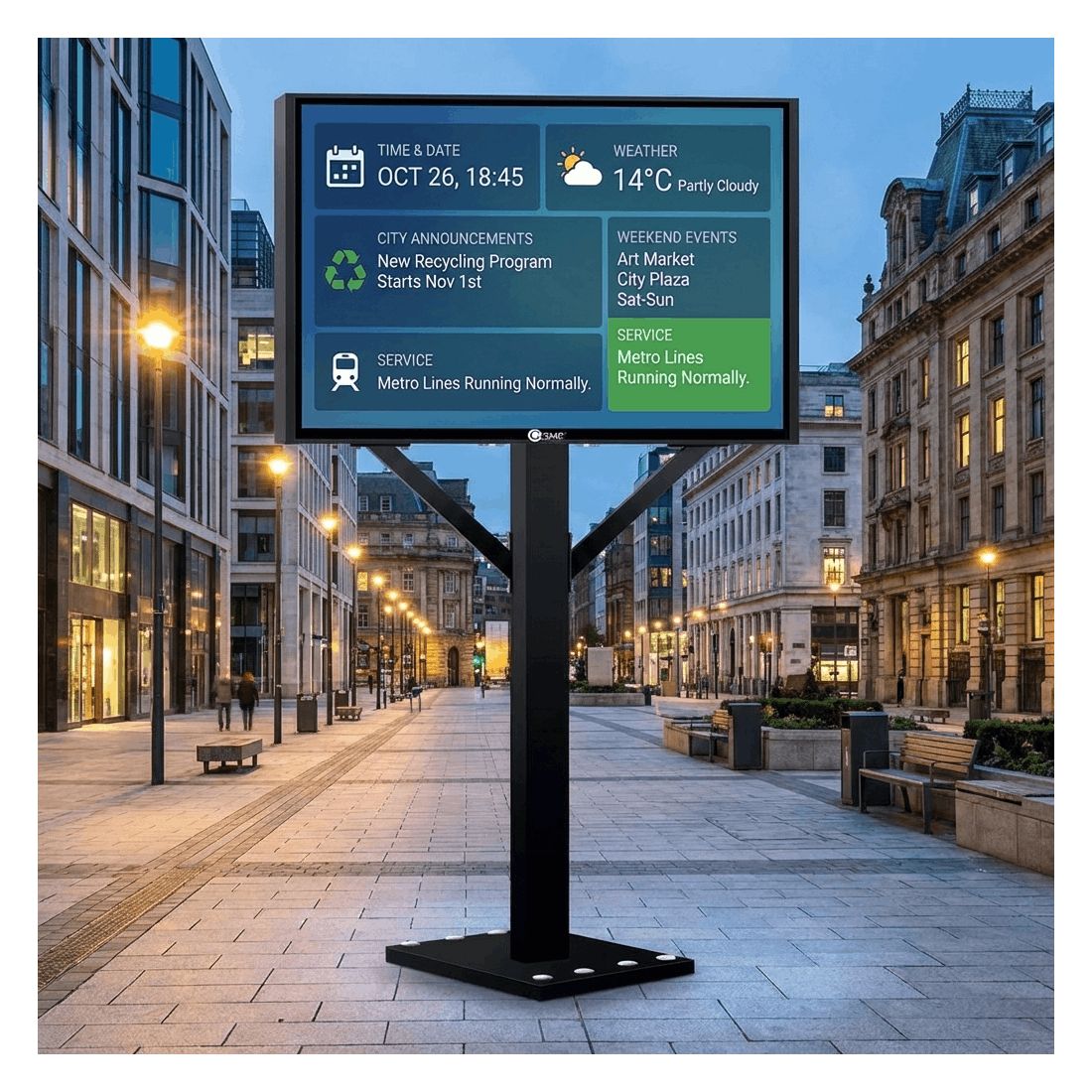

The Cosmi Urban XL single-position digital LED billboard is the leading solution for large-format urban communication.
Equipped with a high-resolution P5 LED screen (576x384px), it guarantees superior clarity even at great distances.

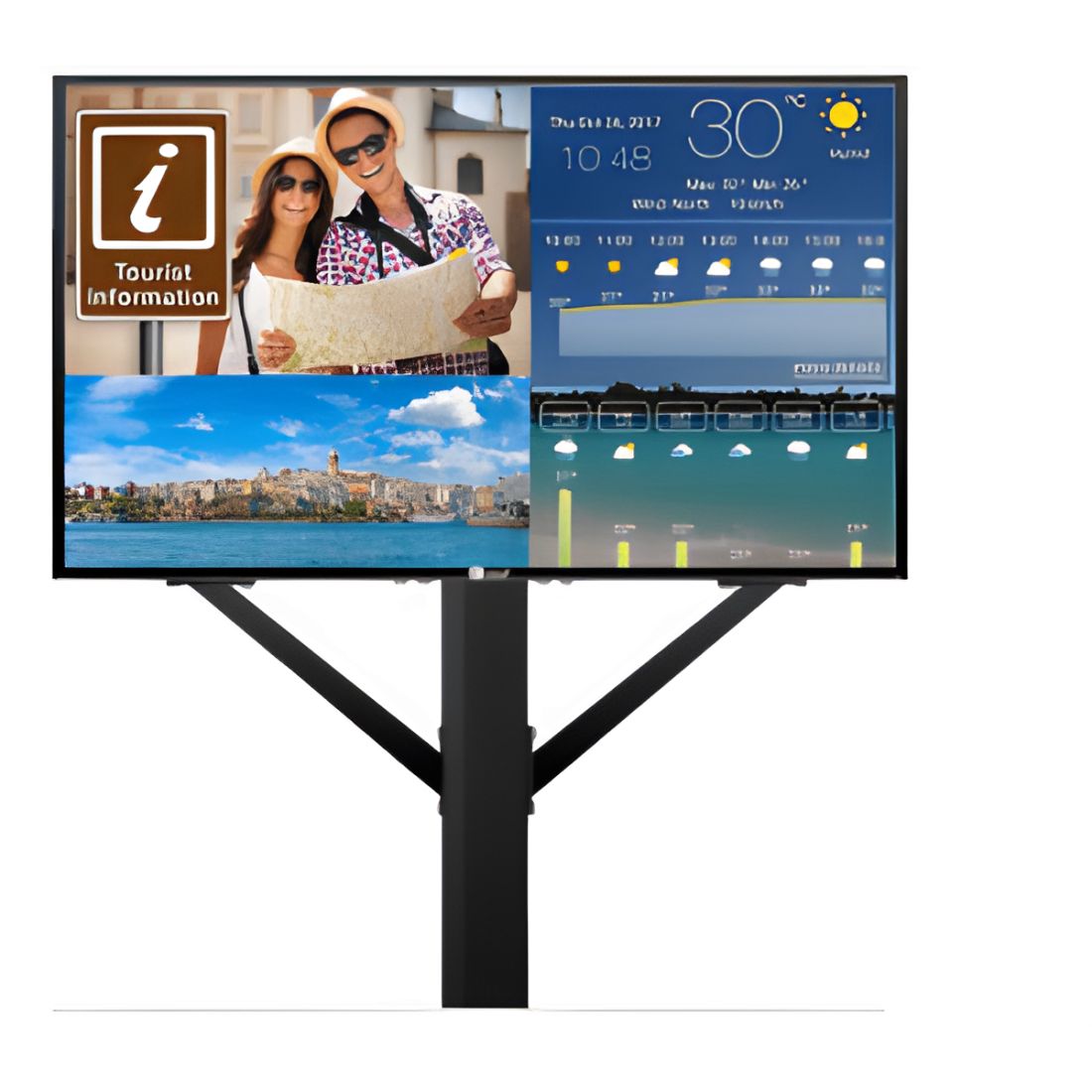

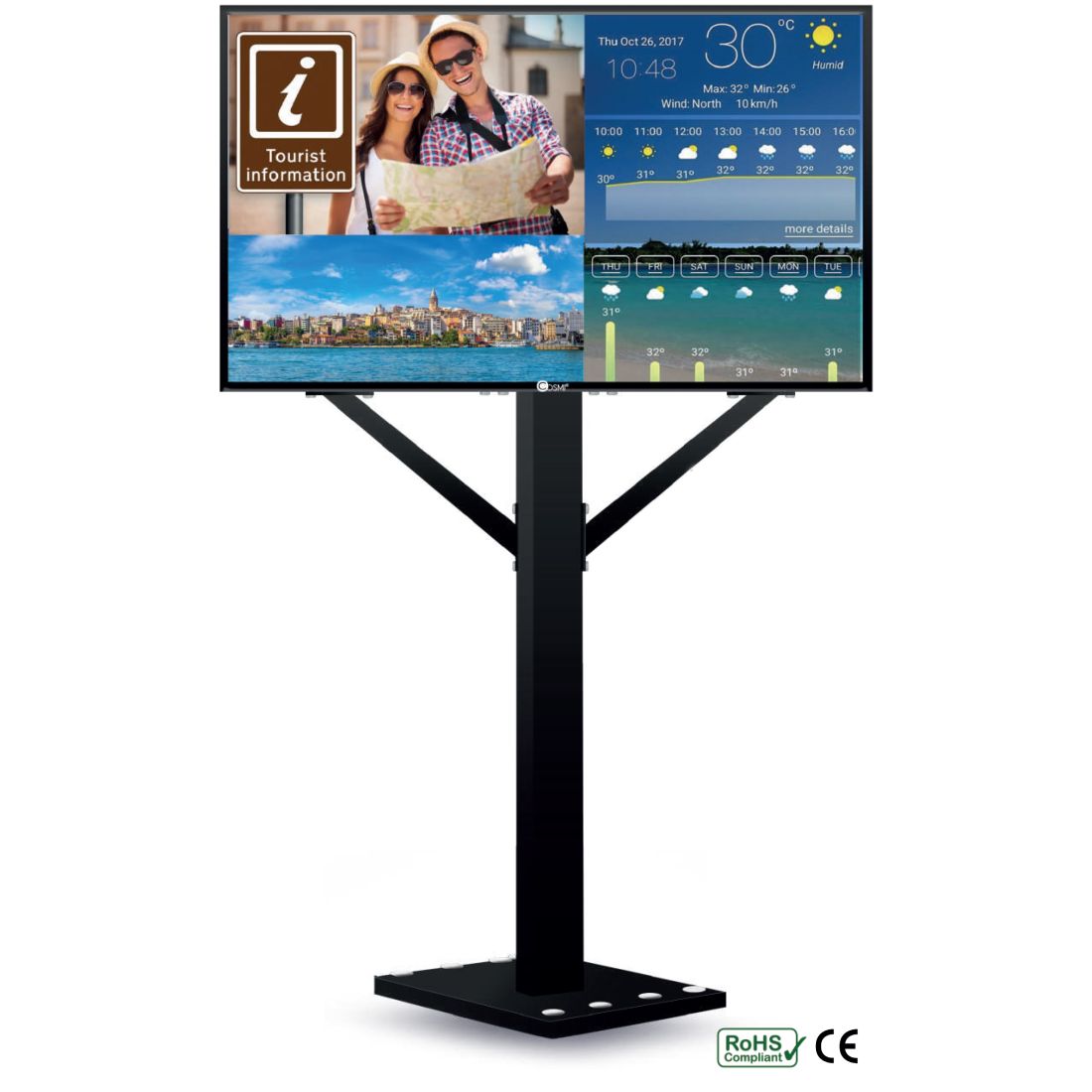

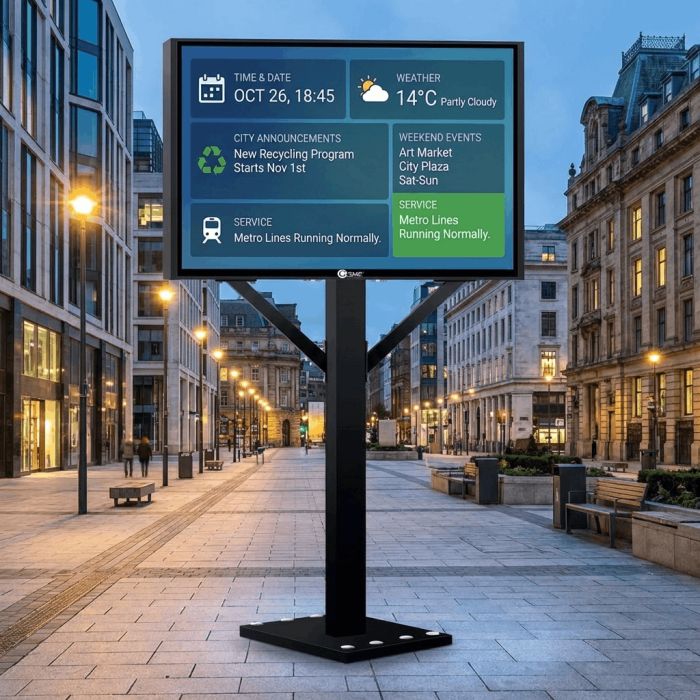

Designed in black anodized metal, it allows for the management of segmented areas for promotional videos, tourist information, weather, and municipal notices in real time. Turnkey
system with integrated 4G connectivity.
Technical Specifications
| LED pitch | 5 mm |
| Total Resolution | 576 x 384 px |
| Brightness | ± 5,000 / 5,500 nits |
| Viewing Distance | ≥ 25 m |
| Viewing angle | 140°H / 130°V |
| Maximum Power | ≤ 4,626 W |
| Average Power Consumption | ± 1,854 W |
| Working Voltage | AC 200-230 V |
| LED Type | High Contrast SMD |
| Refresh Frequency | 3,840 Hz |
| Protection Rating | IP65 (Outdoor) |
| Material | Black Anodized Metal |
Automatic Sensors Included:
- Brightness sensor (energy saving)
- Real-time temperature probe
- Integrated humidity sensor

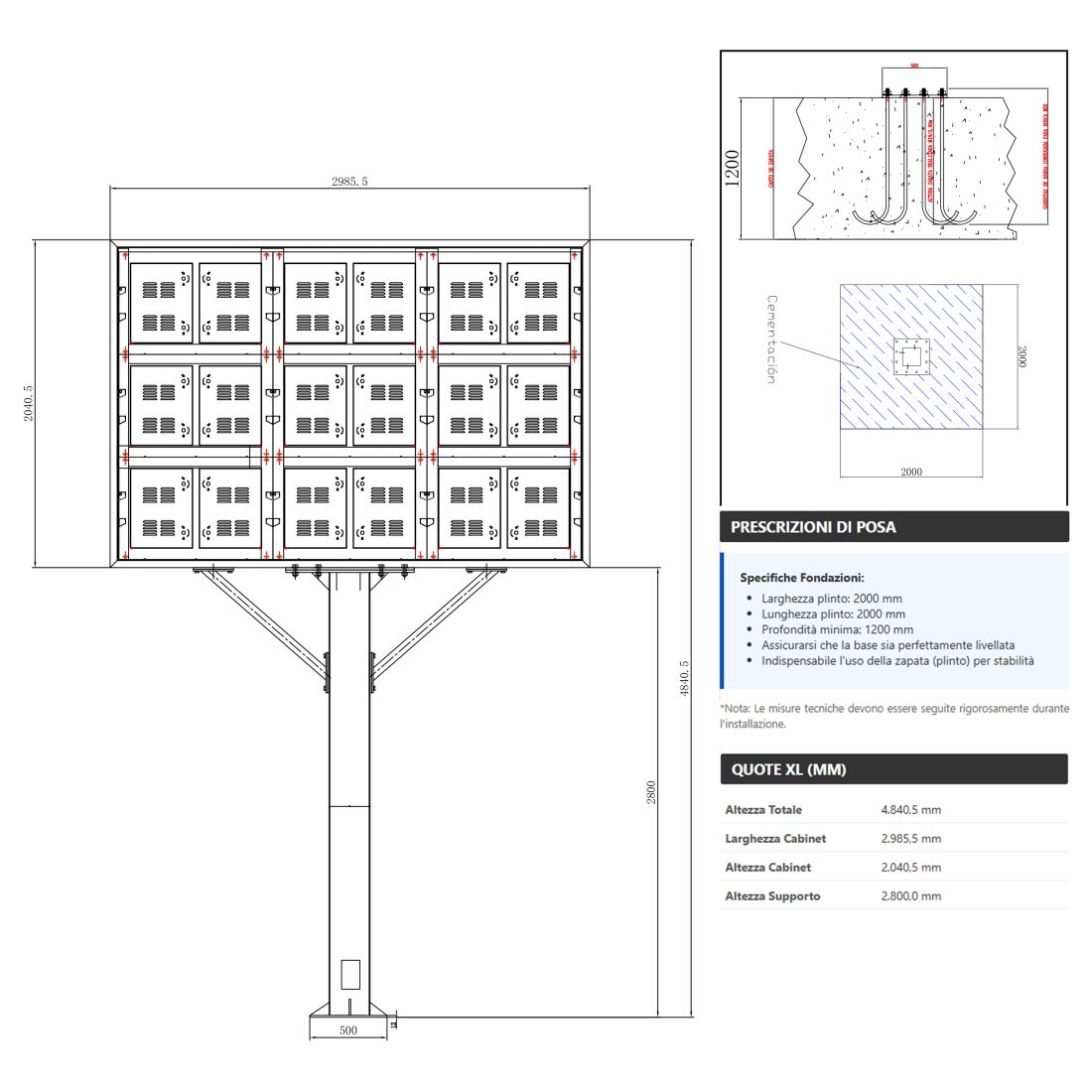

XL Dimensions (mm)
| Total height | 4,840.5 mm |
| Cabinet width | 2,985.5 mm |
| Cabinet Height | 2,040.5 mm |
| Support height | 2,800.0 mm |
Installation requirements
Foundation Specifications:
- Plinth width: 2000 mm
- Plinth length: 2000 mm
- Minimum depth: 1200 mm
- Ensure that the base is perfectly level
- The use of a zapata (plinth) is essential for stability
*Note: Technical measurements must be strictly followed during installation.
- Tecnologia
- LCD
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 5 mm
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
