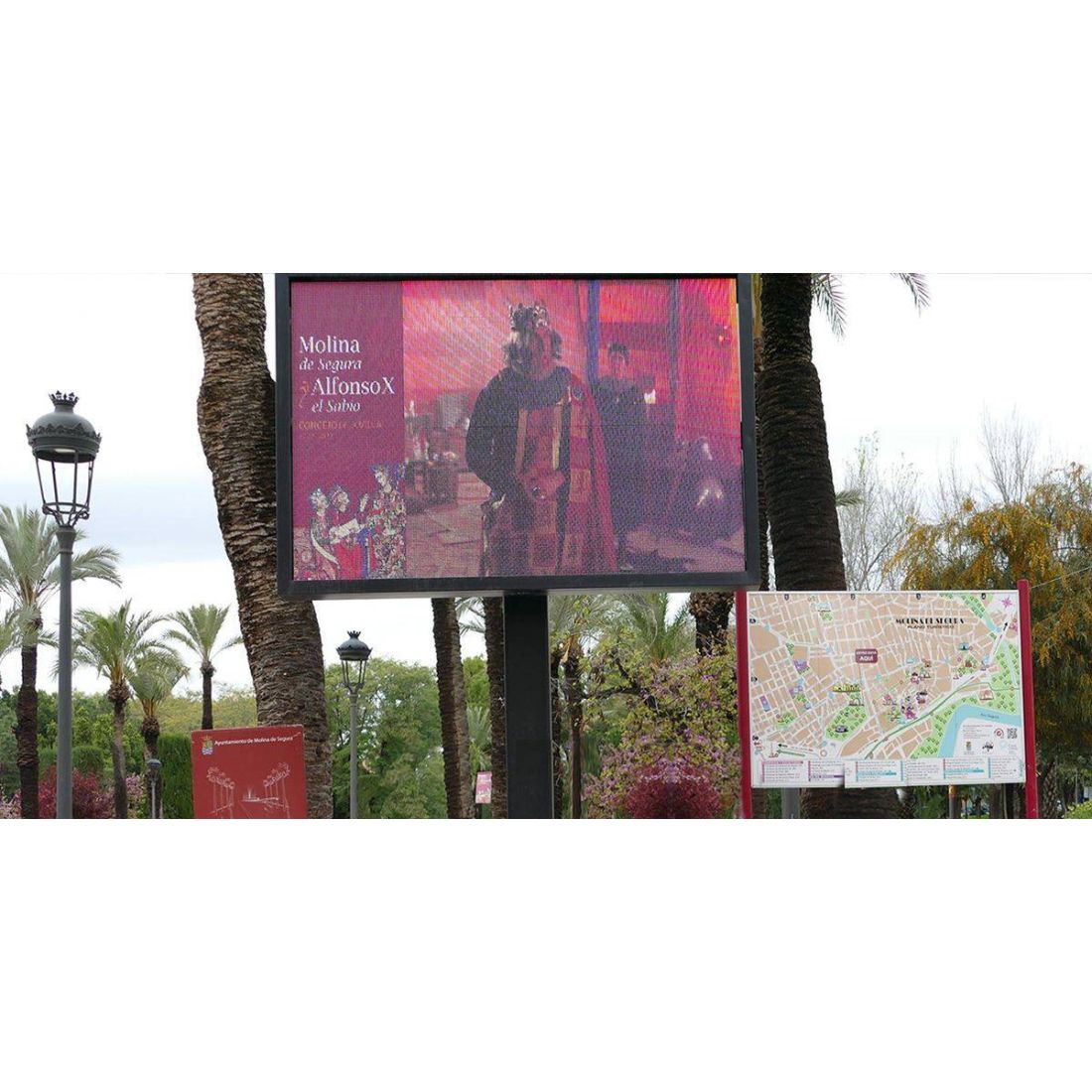

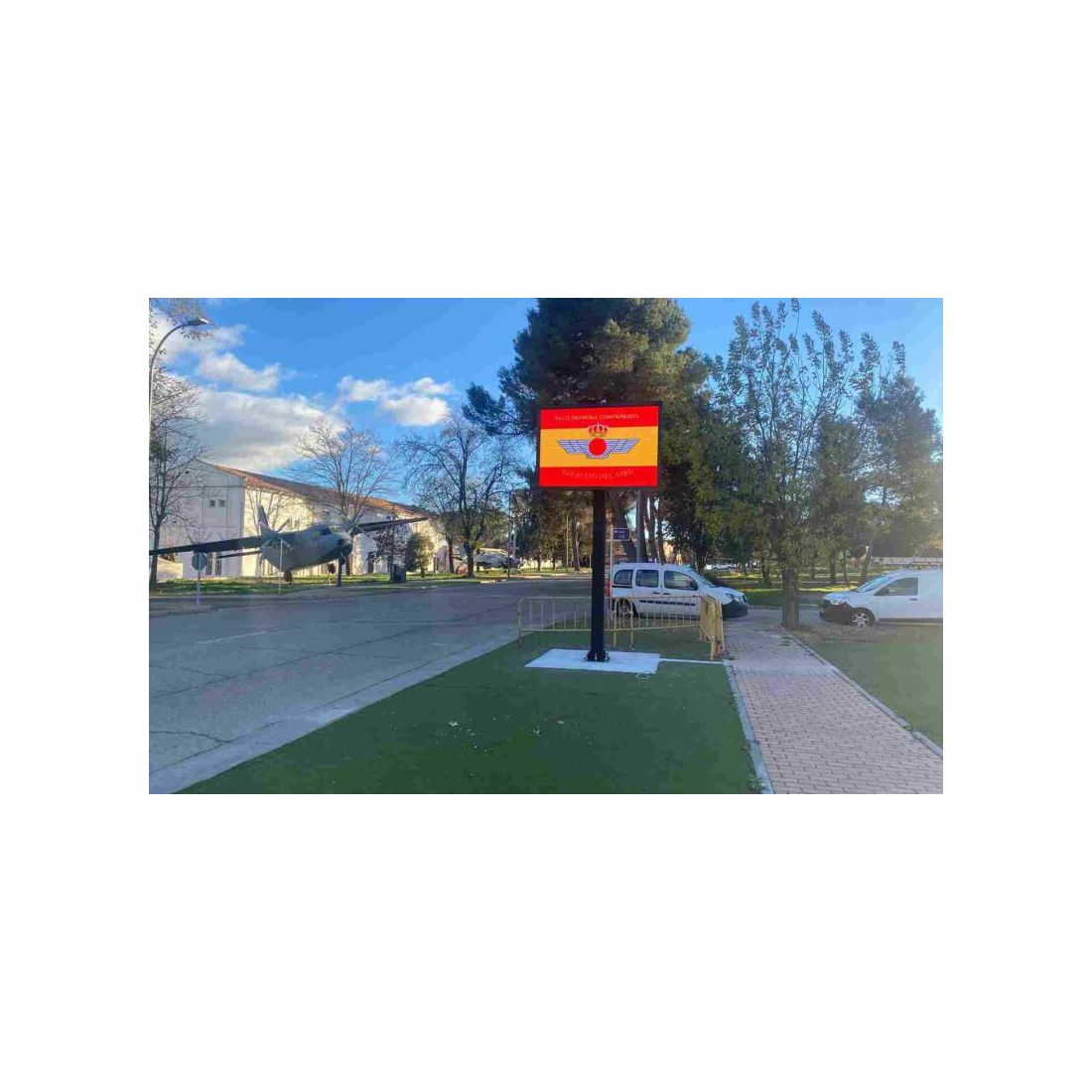

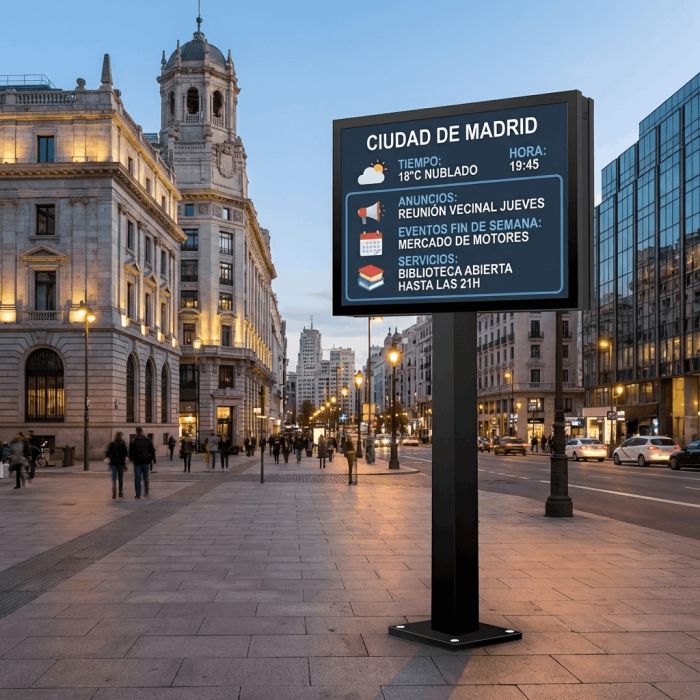

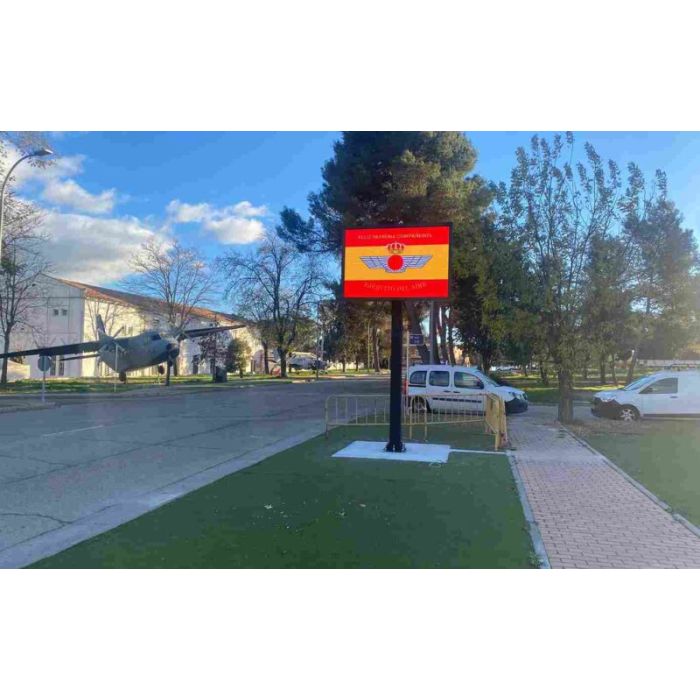

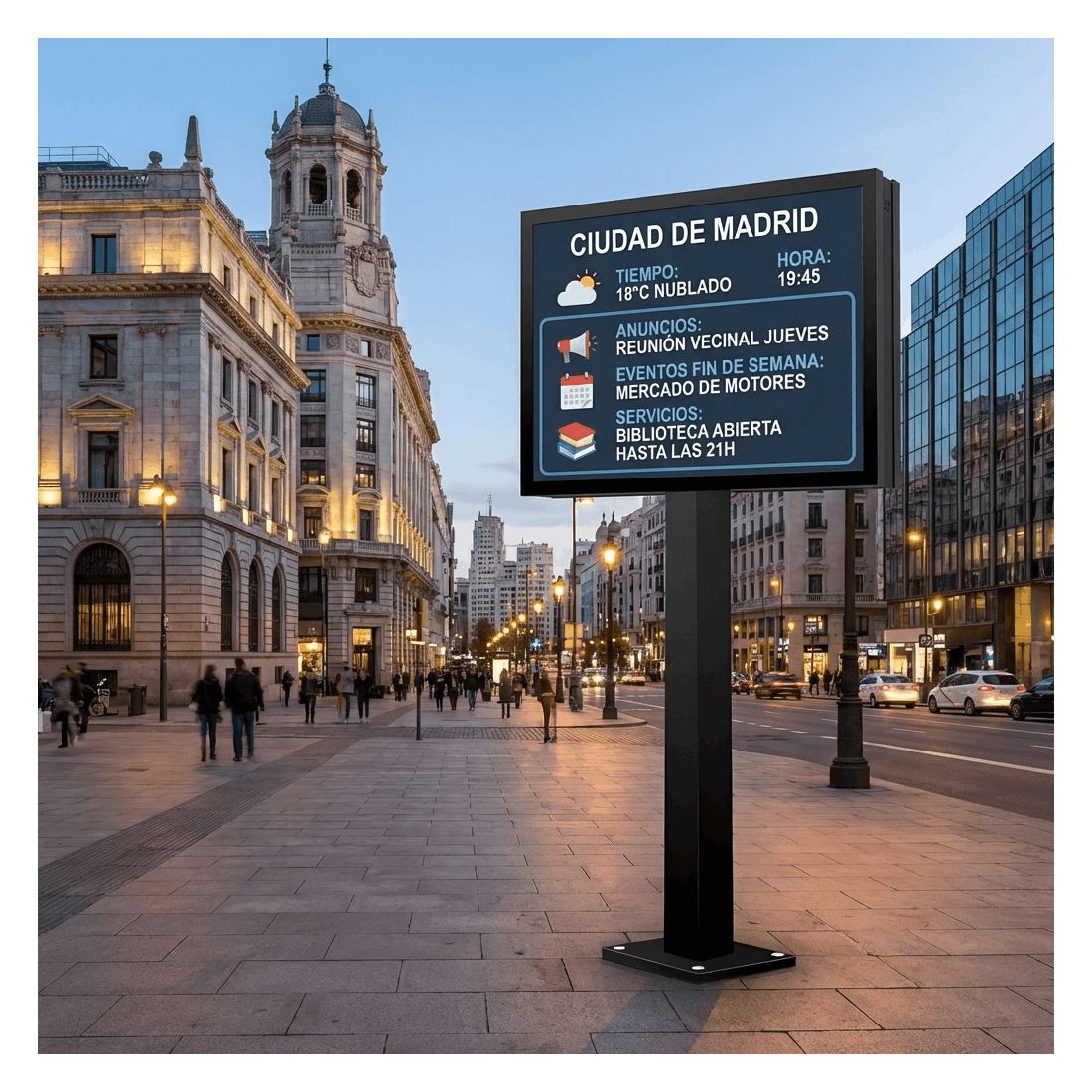

P4 Full Color LED digital advertising billboard on pole (COSMIr Urban line) for urban communication and DOOH: events, public notices, institutional campaigns, and advertising. 2051×1417 mm screen (with casing), 480×320 px resolution, 5,000–5,500 nits brightness, 3,840 Hz refresh rate, and 4G communication. Includes automatic brightness sensor and time/temperature/humidity display. Designed for outdoor use (PC10).

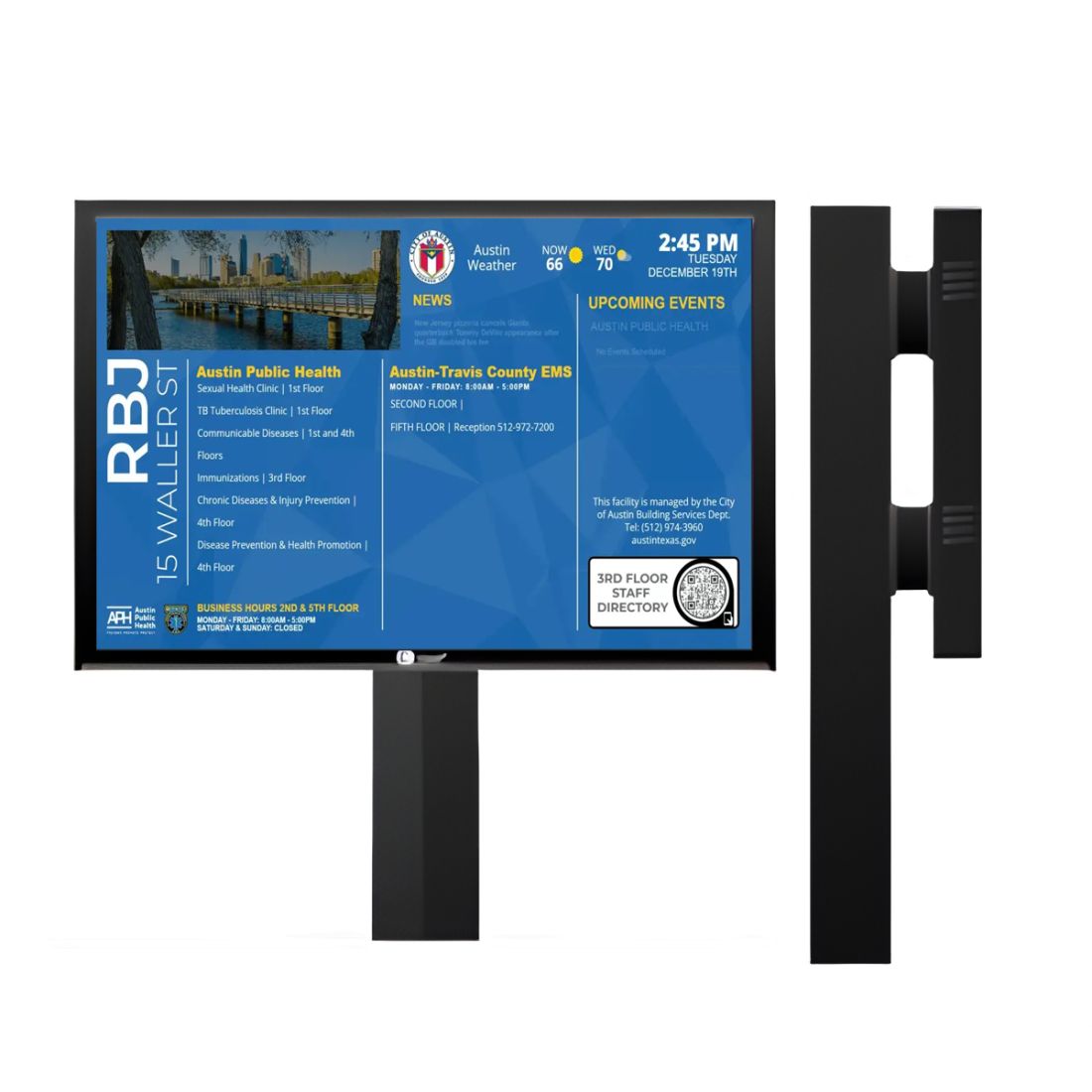

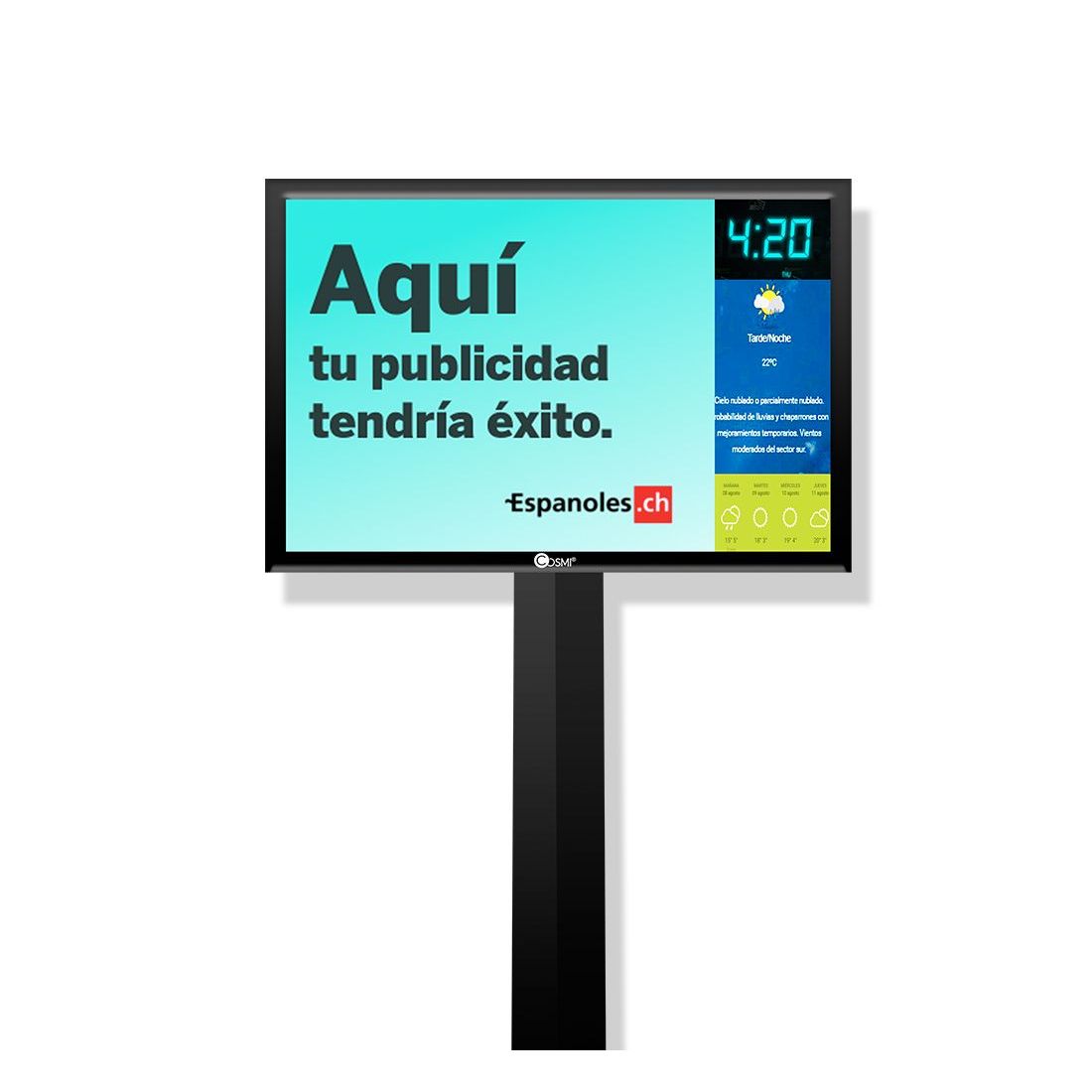

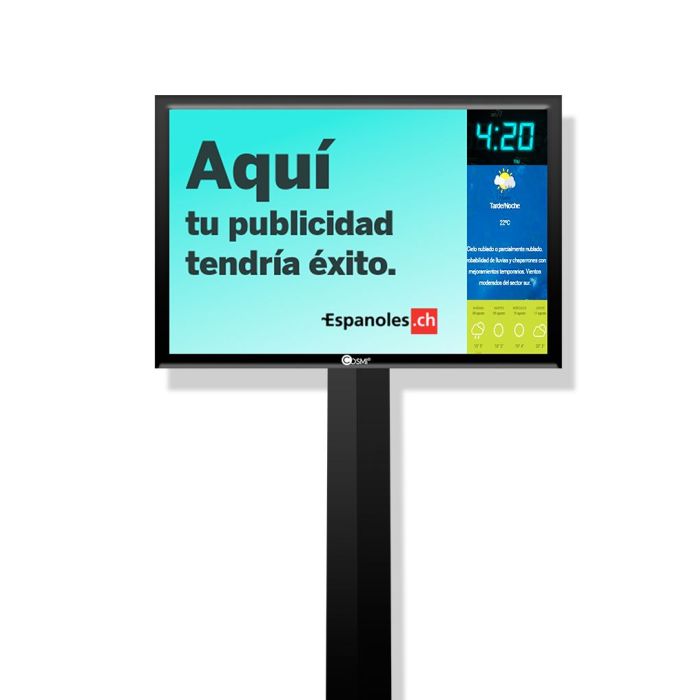

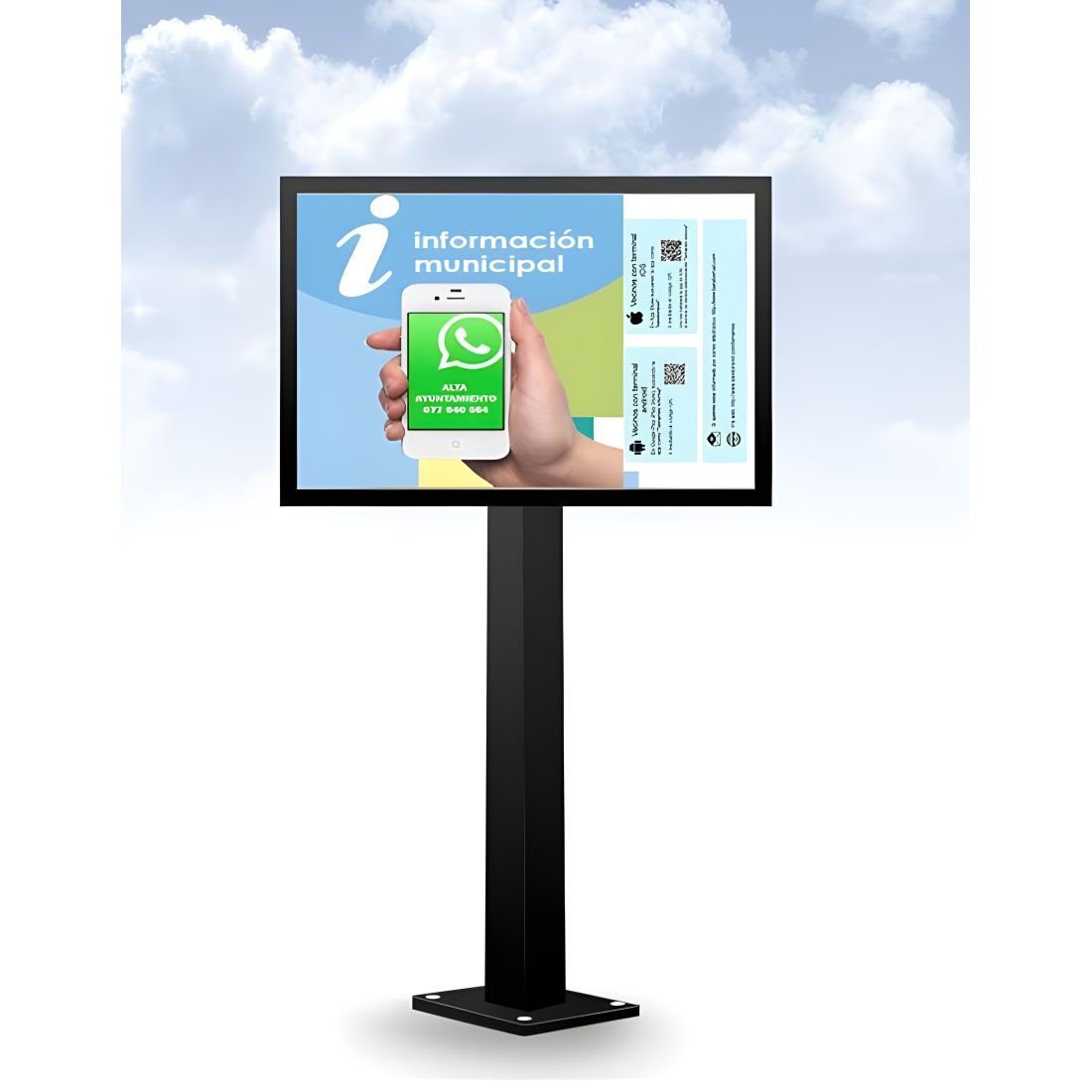

The Cosmi Urban P4 single-position LED advertising billboard is the high-definition evolution of the Urban range.
Thanks to a pixel pitch of just 4 mm, it offers superior image quality, ideal for urban installations where viewing distance may be reduced. Sturdy black
anodized metal structure with IP65 protection.
Manages video content, images, and dynamic text. Version with 4G connectivity and environmental sensors for maximum management autonomy.
Technical Specifications
| LED pitch | 4 mm |
| Total Resolution | 480 x 320 px |
| Maximum Brightness | ± 5,000 / 5,500 nits |
| Viewing Distance | ≥ 4 m (minimum) |
| Viewing Angle | 140°H / 130°V |
| Maximum / Average Power Consumption | 2,058W / 824W |
| Refresh Rate | 3,840 Hz |
| LED type | Professional SMD |
| Protection | IP65 (Waterproof) |
| Connectivity | 4G, WiFi, TCP/IP |
| Cabinet | Aluminum/Black Metal |
| Certifications | CE, RoHS Compliant |
Included in delivery:
- Certified anchoring system
- Temp/Humidity/Light Probe
- Multilingual management software
- 2-year warranty
Technological Plus
P4 HD High Density
5500 NITS Max Brightness
4G/WIFI Always Online
Dimensions
| Maximum Height | 4,217 mm |
| Cabinet Width | 2,051 mm |
| Cabinet Height | 1,417 mm |
| Pole height | 2,800 mm |
| Cabinet depth | 160 mm |
Technical Installation Notes
Foundation requirements:
- Concrete plinth: min. 1200x1200x800mm.
- Provide for cable passage in the support.
- Check the flatness of the base.
- Do not drill holes in the cabinet to avoid losing IP65 rating.
- Tecnologia
- LED
- Type of Use
- Outdoor
- No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 4 mm
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
