Perimeter LED screen P8 Cosmi Full Color indoor outdoor for edge-of-field sponsors
€2,995.00
MN000771
8056666282252

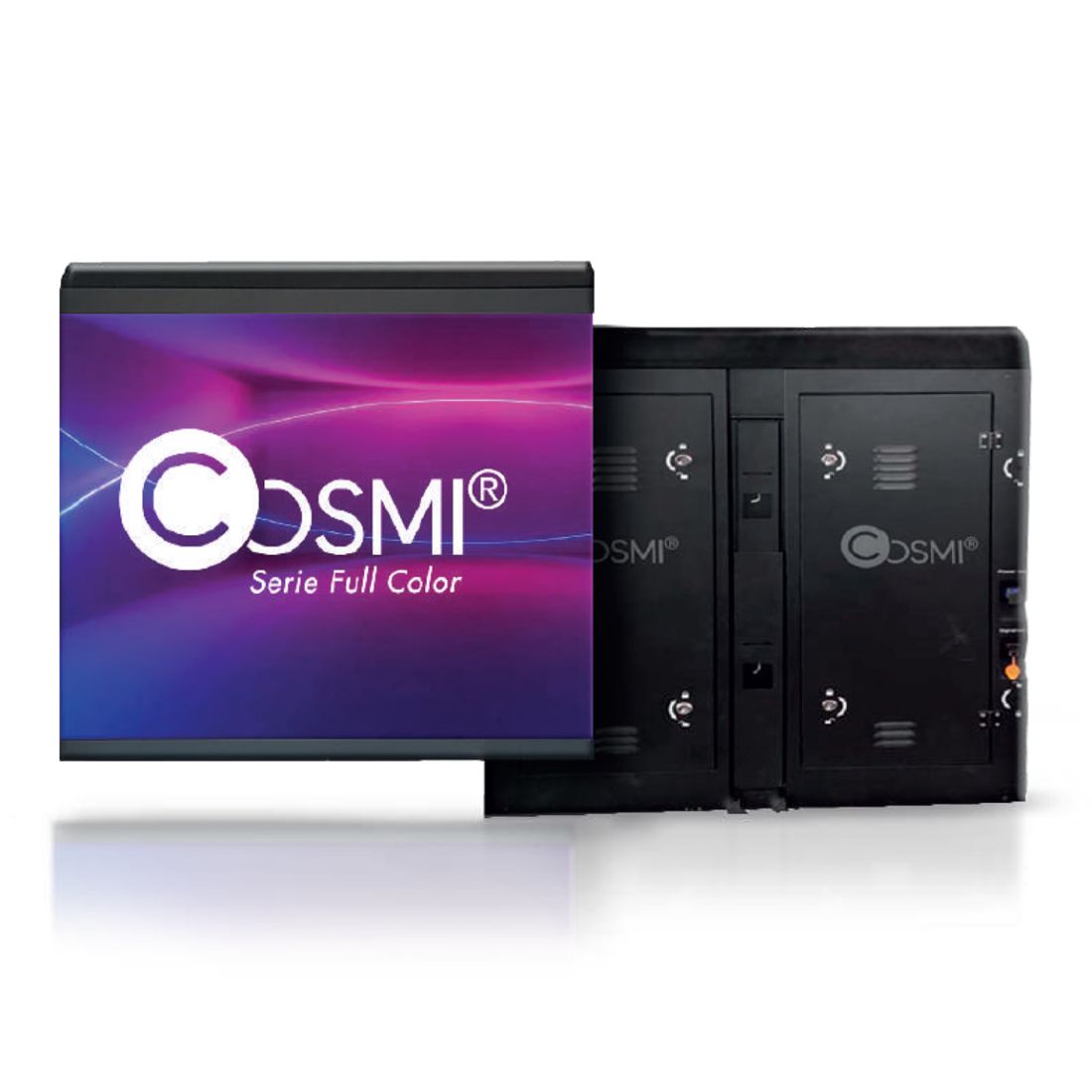

Cosmi Full Color P8 Perimeter LED Screen for indoor and outdoor sports facilities, designed for installation along the perimeter of fields. Size 96x90 cm with black metal chassis and tilt adjustment bracket. High brightness 5000-5500 nits and IP65 for visibility and durability. Dynamic sponsor content with videos, images, text, pictograms, date, time, and temperature. Remote control via optional Cosmi Server. TCP/IP connectivity and USB memory with Wi-Fi and 3G/4G options. Anti-shock system and screen foldable up to 45 degrees.
Cosmi Full Color P8 Perimeter LED Screen 96x90 cm 5500 nits IP65

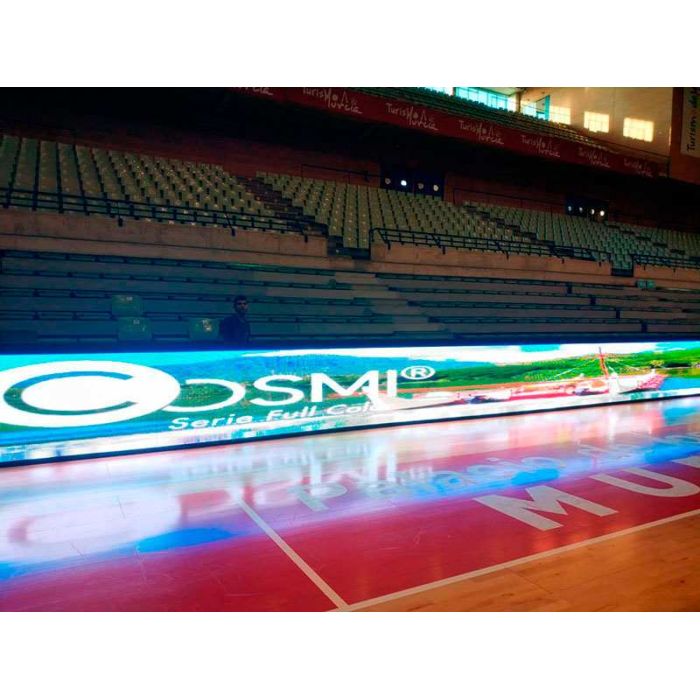

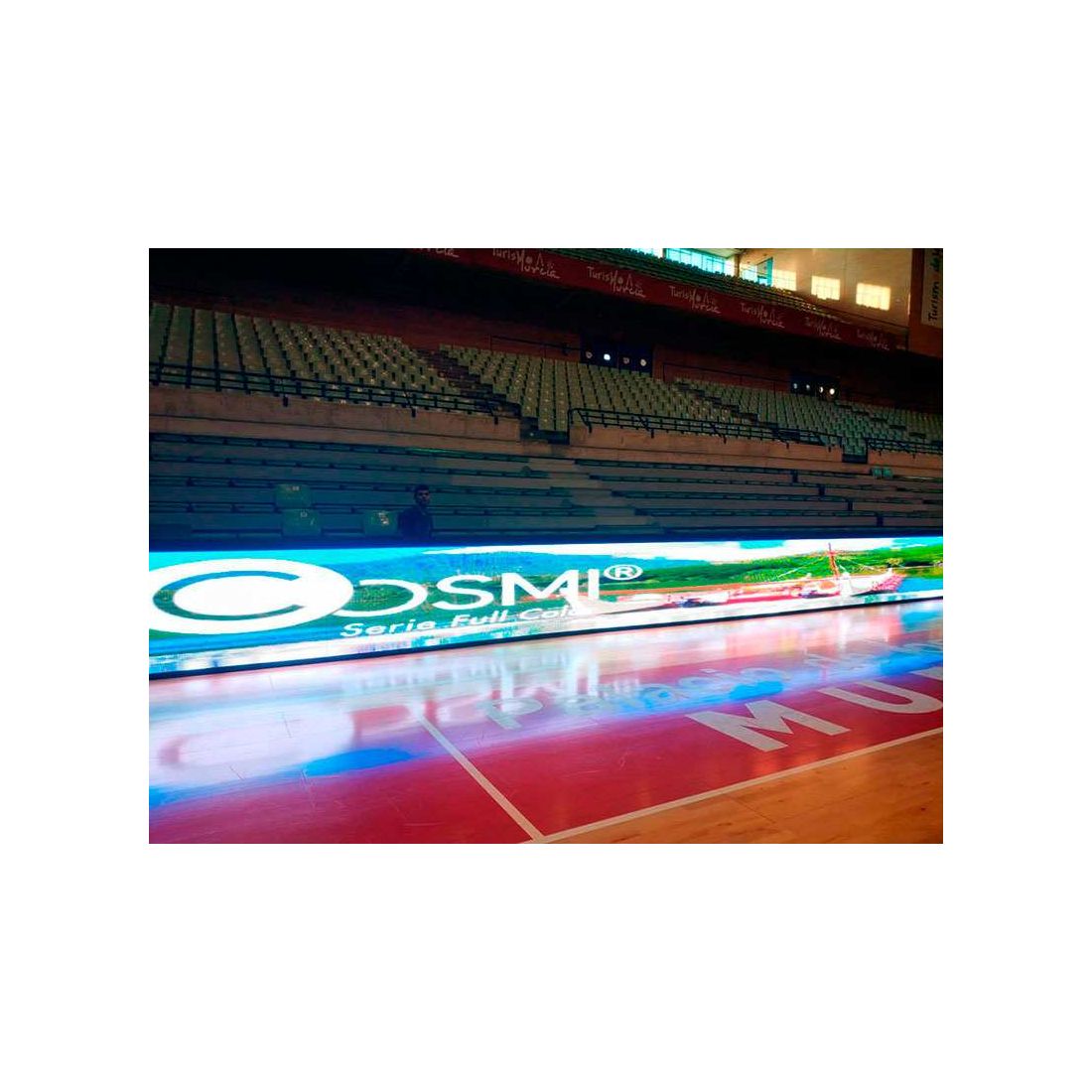

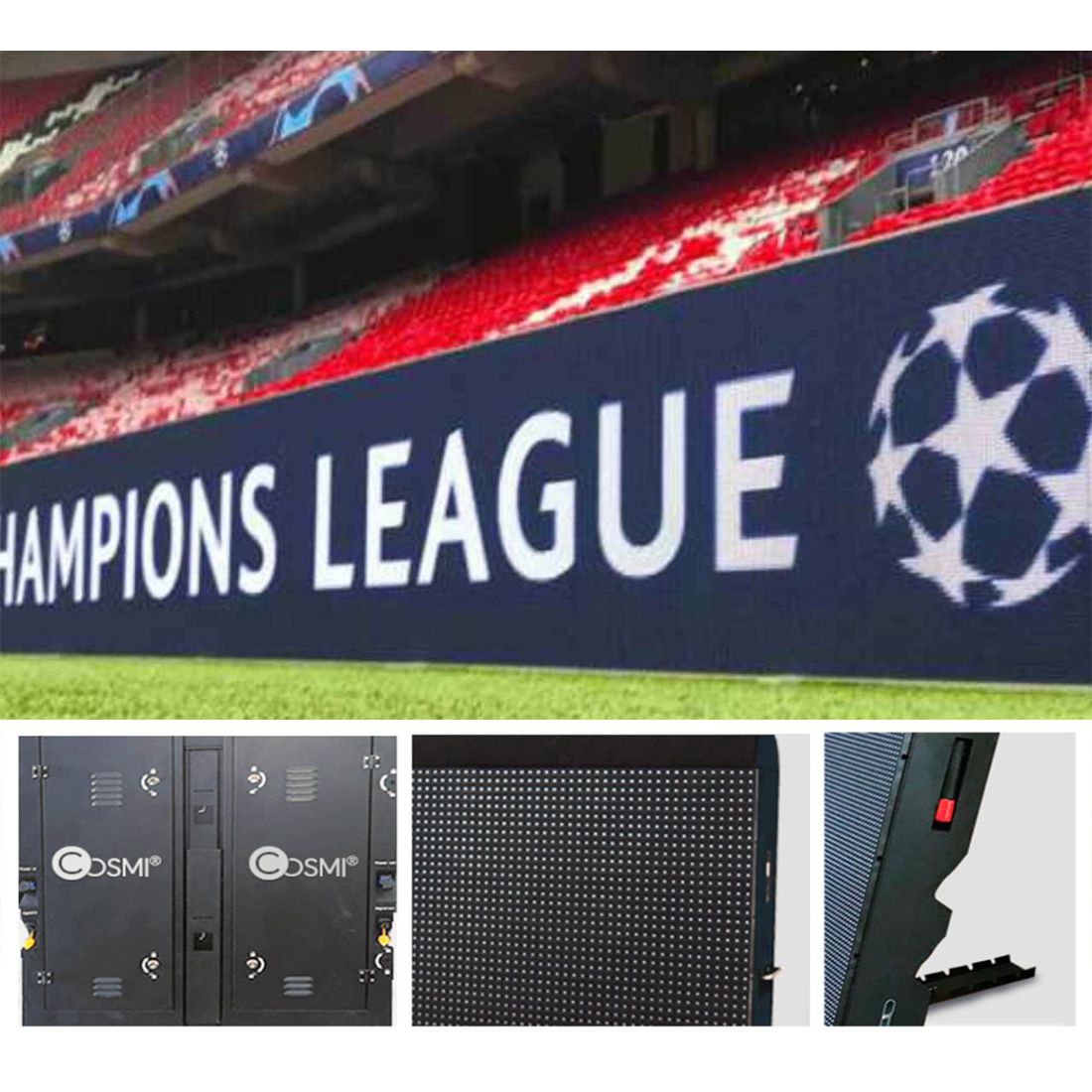

P8 Cosmi Full Color Perimeter LED Screen for indoor and outdoor sports facilities. Designed for installation along the perimeter of playing fields for the display of dynamic sponsor content. Allows content to be updated at any time with high visibility and durability.
Strengths

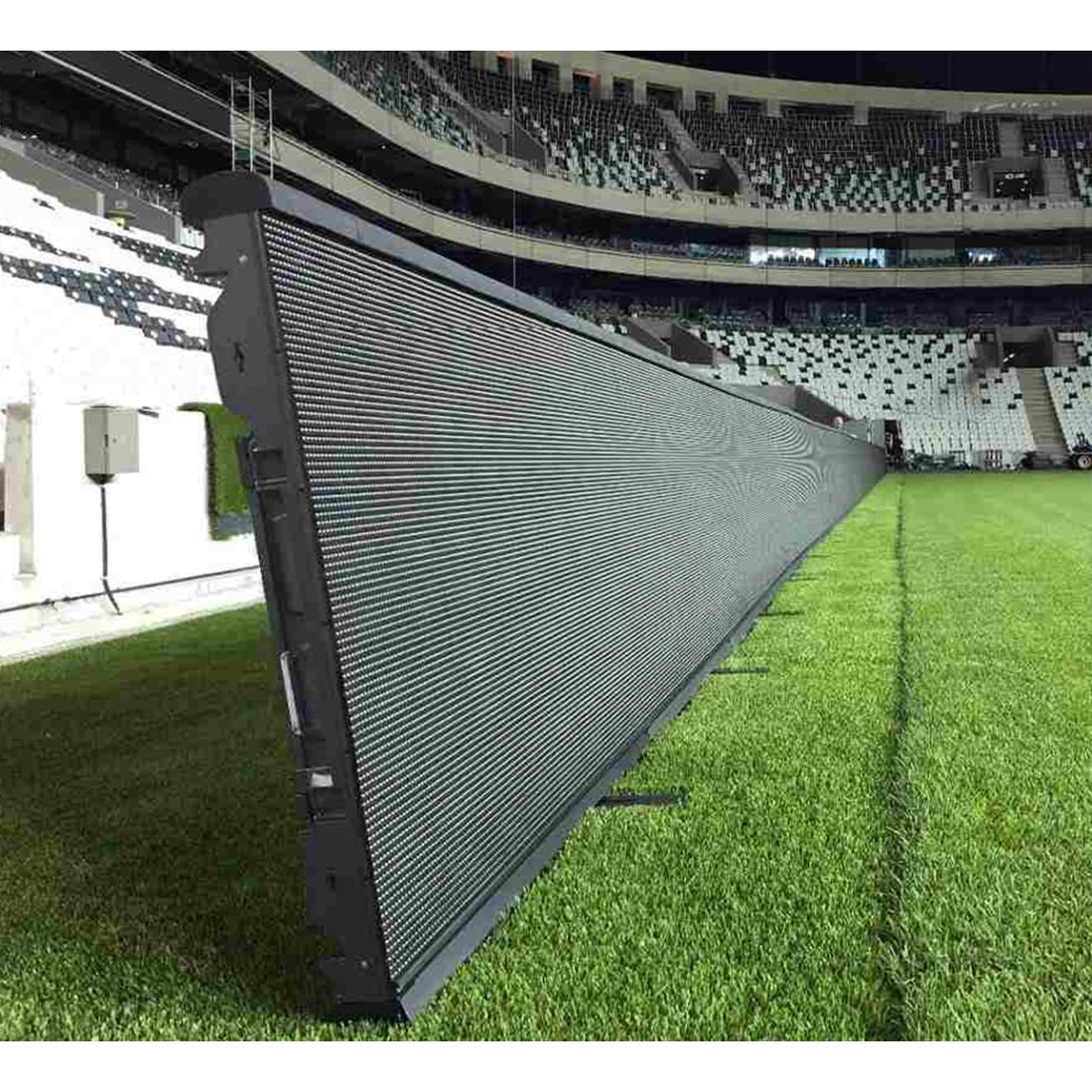

- Specifically designed for the sidelines and perimeter of sports fields
- Indoor and outdoor use with IP65 protection
- Brightness 5000-5500 nits
- 8 mm P8 pitch for long-distance viewing
- Anti-shock system and screen that can be folded up to 45 degrees
- Tilt adjustment bracket and module connection system
Content management and connectivity
- Content: text, video, images, pictograms, date, time, temperature
- Remote control: Optional Cosmi Server
- Connections: TCP/IP network cable and USB memory
- Options: Wi-Fi, 3G, 4G, brightness sensor, and optional temperature sensor
Installation notes
- Install on a surface without deformations
- Avoid impacts that could damage the chassis and LED boards
- Do not obstruct the chassis air intakes and outlets
- When placing on the ground, support the back first, then the front
Technical specifications
| Brand | Cosmi |
|---|---|
| Type | Perimeter LED screen |
| Use | Indoor/outdoor |
| Pixel pitch | 8 mm P8 |
| Cabinet resolution | 120 x 100 px |
| Brightness | 5000 / 5500 nits |
| Viewing distance | 8 m |
| Viewing angle | 140 H / 130 V |
| Maximum power consumption | 665 W |
| Average power consumption | 266 W |
| Power supply | AC 200-230 V |
| Chassis | Oven-baked metal |
| Access | Rear |
| Scanning | 1/5 |
| Refresh | 1920 Hz |
| Operating temperature | -20 / +45 |
| Working humidity | 10-90 |
| Gray scale | 14-16 bits |
| Protection rating | IP65 |
| Net weight | 43.3 kg |
| Cabinet dimensions | 960 x 900 x 150 mm |
| Packaging dimensions | 1590 x 980 x 205 mm |
| Software | Included, multilingual |
| Connectivity | TCP/IP USB options Wi-Fi 3G 4G Cosmi Server optional |
Usage scenarios

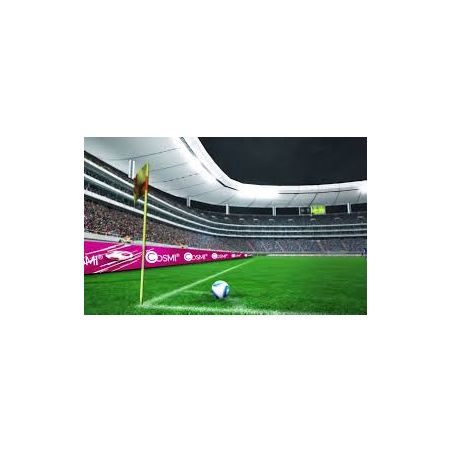

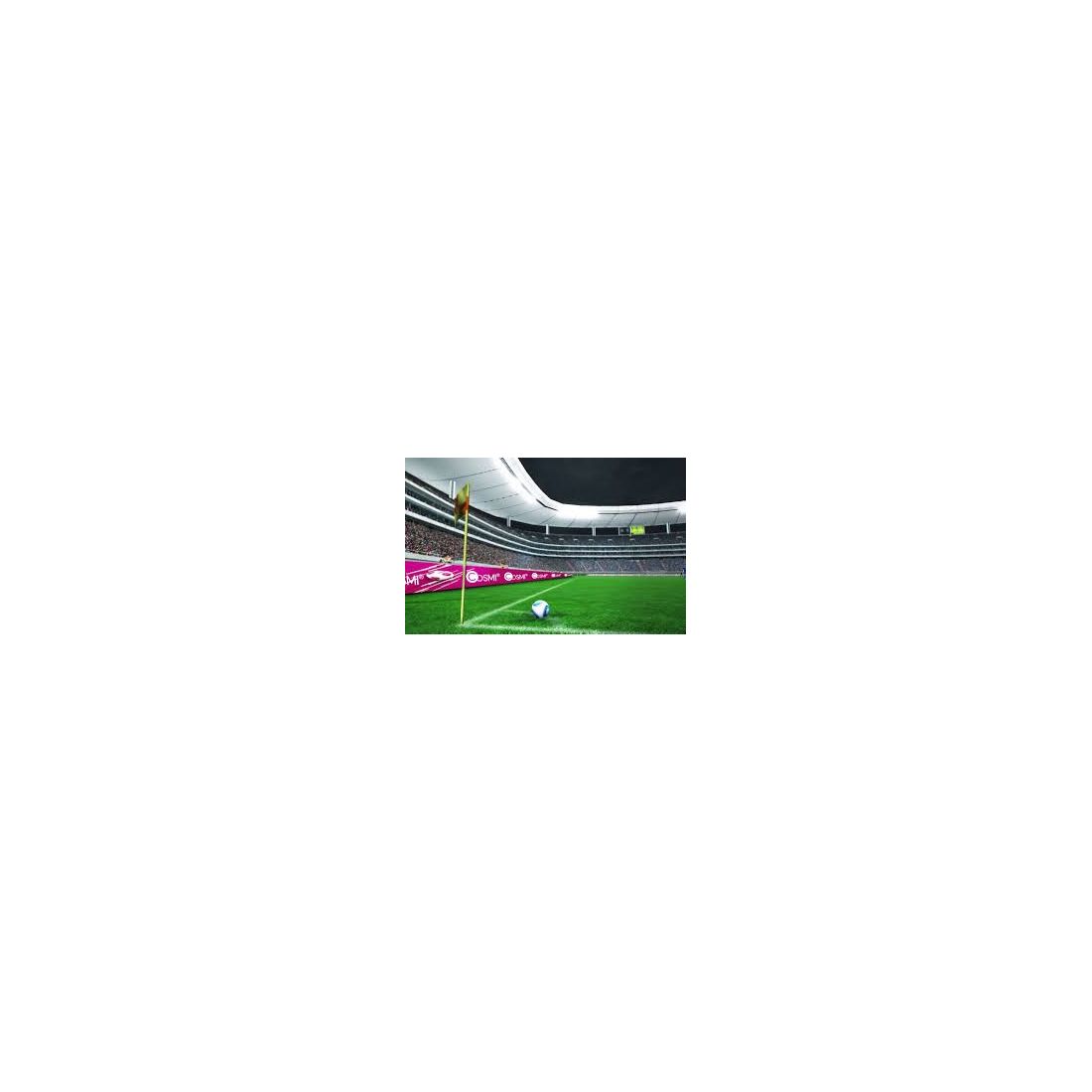

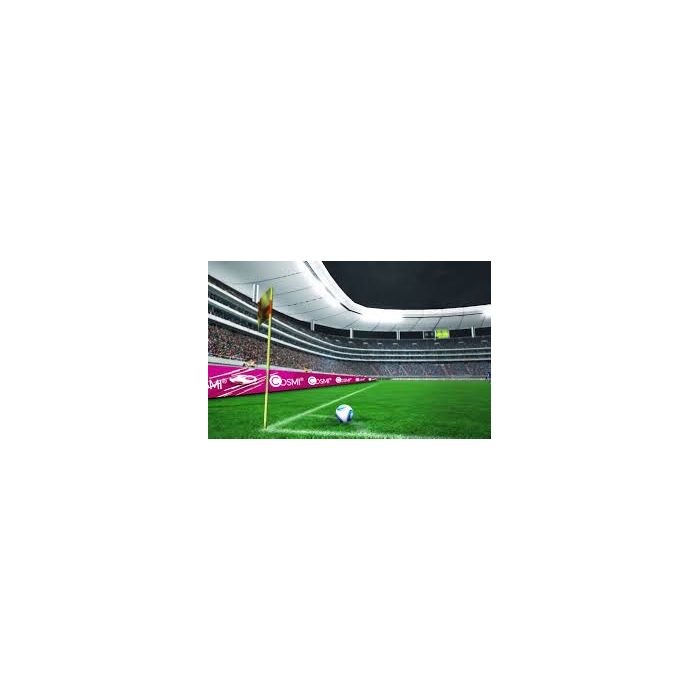

- Stadiums and arenas for sideline sponsor content
- Sports events and tournaments with dynamic messages
- Promotional and informational communication in sports facilities
- Tecnologia
- LED
- Type of Use
- Indoor
Outdoor - No. Display
- Single Side
- Brightness
- 5500 cd/m2
- LED Pixel Pitch
- 8.0mm
- Grado Protezione IP
- IP65
8056666282252
Cosmi is a leading manufacturer and distributor of LED technology solutions, specializing in full-color devices. Thanks to the in-house development of its products, Cosmi anticipates market trends by offering cutting-edge innovations for immediate implementation. With one of the most extensive partner networks in Spain and Europe, Cosmi guarantees quality, efficiency, and advanced service, distinguishing itself in the sector with a unique and innovative range of full-color LED products.
